TASK 72-00-40-450-003 HP System Module Components - Install The P3/T3 Sensor, Installation-013

DMC:V2500-A0-72-00-4050-02A-720A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-00-40-450-003 HP System Module Components - Install The P3/T3 Sensor, Installation-013

General

This TASK gives the procedure to install the P3/T3 sensor on to the HP system module.

For standard torque data procedures, refer to TASK 70-41-00-400-501 and TASK 70-41-02-400-501.

For installation or the reuse of self-locking fasteners, refer to TASK 70-42-01-400-501.

For installation of lockwire, refer to TASK 70-42-05-400-502

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants, refer to the IPC.

For all parts identified in a different Chapter/Section/Subject, the applicable Chapter/Section/Subject comes before the Fig/item number.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-141 LOCKWIRELOCALCoMat 02-141
CoMat 10-077 APPROVED ENGINE OILSLOCALCoMat 10-077

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Gasket1

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-00-40-450-053 Install the P3/T3 Sensor on the Diffuser Case Assembly

    1. Refer to Figure.

    2. Install a new ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-010) gasket 1 off on to the diffuser case boss.

    3. Align the holes in the gasket with the bolt holes in the boss.

    4. Lower the sensor ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-030) so that the extension goes into the hole in the center of the boss with the tube connector to the rear.

    5. Lower the sensor until it touches the boss and align the bolt holes in the sensor with the bolt holes in the boss.

    6. Apply clean CoMat 10-077 APPROVED ENGINE OILS to the three bolts ENGINE FUEL AND CONTROL-P3/T3 SENSOR (73-22-15, 01-050).

    7. Install the bolts and torque to 65 to 85 lbf.in (7.3 to 9.6 Nm).

    8. Safety the bolts with CoMat 02-141 LOCKWIRE.

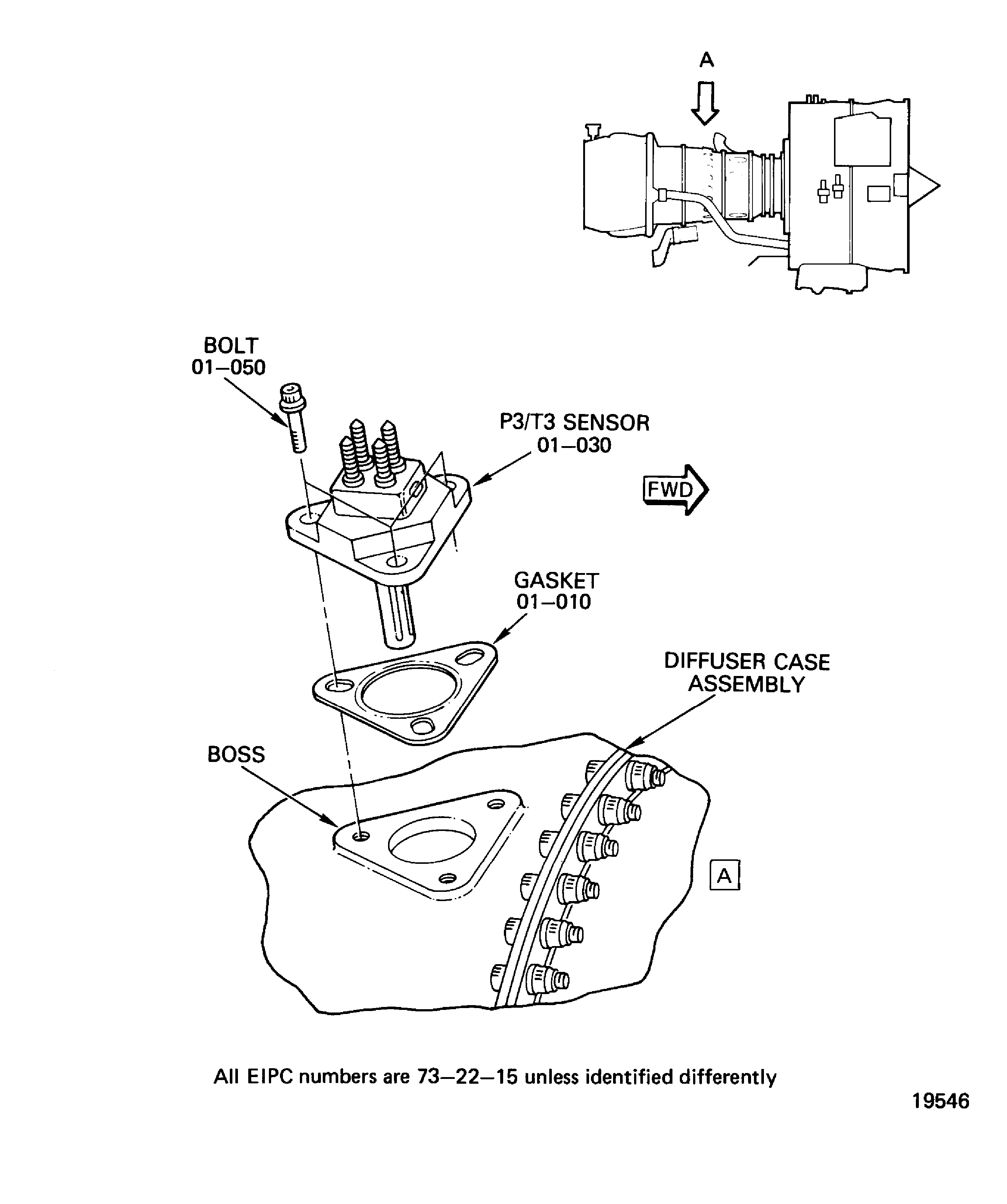

    2. Figure: Installation of the P3/T3 Sensor

    Installation of the P3/T3 Sensor

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:LOCAL
Supply Number:CoMat 02-141
Type:sp01
Supply Short Name:CoMat 02-141 LOCKWIRE
Supply Name:CoMat 02-141 LOCKWIRE
Specification Groups:
Doc NumberType
AS3214-02 (0.8 mm)AMS 5689
Suppliers:
ManufacturerRemarks
LOCAL
81343
IE508
58401
Manufacturer Code:X333X
Supply Number:CoMat 10-077
Type:sp01
Supply Short Name:CoMat 10-077 APPROVED ENGINE OILS
Supply Name:CoMat 10-077 APPROVED ENGINE OILS
Specification Groups:
Doc NumberType
For V2500-A1/A5/D5 models - Refer to V2500 Service Bulletin ENG-79-0108
For V2500-E5 model - Refer to Service Bulletin E5-79-0001
Suppliers:
ManufacturerRemarks
X333X
