TASK 72-31-12-300-003 Fan Blade Rear Retaining Ring - Replace The Dry Film Lubricant, Repair-003 (VRS1151)

Effectivity

FIG/ITEM	PART NO.
01-100	5A0211
01-100	5A0897

Material of component

	RR
DESCRIPTION	SYMBOL	MATERIAL
Rear blade retaining ring	-	Titanium alloy

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability - not applicable

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

Name	Manufacturer	Part Number / Identification	Quantity	Remark
Abrasive Blast Equipment	LOCAL	Abrasive Blast Equipment
Oven	LOCAL	Oven

Consumables, Materials and Expendables

Name	Manufacturer	Part Number / Identification
CoMat 01-124 ISOPROPYL ALCOHOL	LOCAL	CoMat 01-124
CoMat 02-001 ADHESIVE TAPE (MASKING)	LOCAL	CoMat 02-001
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER	LOCAL	CoMat 02-002
CoMat 02-005 ADHESIVE TAPE (MASKING)	LOCAL	CoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING	76381	CoMat 02-019
CoMat 05-004 ABRASIVE MEDIUM, ALUMINUM OXIDE, 140/400 GRADE	X222X	CoMat 05-004
CoMat 07-009 THINNER	K3504	CoMat 07-009
CoMat 10-004 DRY FILM LUBRICANT	LOCAL	CoMat 10-004

Spares

NONE

Safety Requirements

NONE

Procedure

1. 1. Refer to TASK 72-31-12-100-001 (CLEANING-000) for the applicable cleaning TASK.
1. Refer to Figure.
2. 1. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.
  2. Use CoMat 02-001 ADHESIVE TAPE (MASKING) or CoMat 02-005 ADHESIVE TAPE (MASKING).
  3. Refer to the SPM TASK 70-38-03-380-501.
3. 1. Use abrasive blast equipment.
  2. Use CoMat 05-004 ABRASIVE MEDIUM, ALUMINUM OXIDE, 140/400 GRADE.
  3. Refer to the SPM TASK 70-12-01-120-501.
4. Remove the masking tape.
5. 1. Refer to the SPM TASK 70-38-03-380-501.
6. 1. Use a clean cloth which is moist with degreasing fluid and clean the coating area.
  2. Use CoMat 01-124 ISOPROPYL ALCOHOL.
1. Refer to: Figure
2. 1. Apply the masking tape to the areas which are not to be given a layer of dry film lubricant.
  2. Use CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING or CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPER.
  3. Refer to the SPM TASK 70-38-03-380-501.
3. 1. Apply the dry film lubricant to the inside of holes (BD) and surface (BE).
  2. The thickness of the dry film lubricant is to be 0.00012 to 0.00059in. (0.003 to 0.015 mm).
  3. Use CoMat 10-004 DRY FILM LUBRICANT and CoMat 07-009 THINNER.
  4. Refer to the SPM TASK 70-38-03-380-501.
4. Remove the masking tape.
5. 1. Stove for two hours between 365 to 383 deg F (185 to 195 deg C).
  2. Use an applicable oven.
6. 1. Refer to the SPM TASK 70-38-03-380-501.

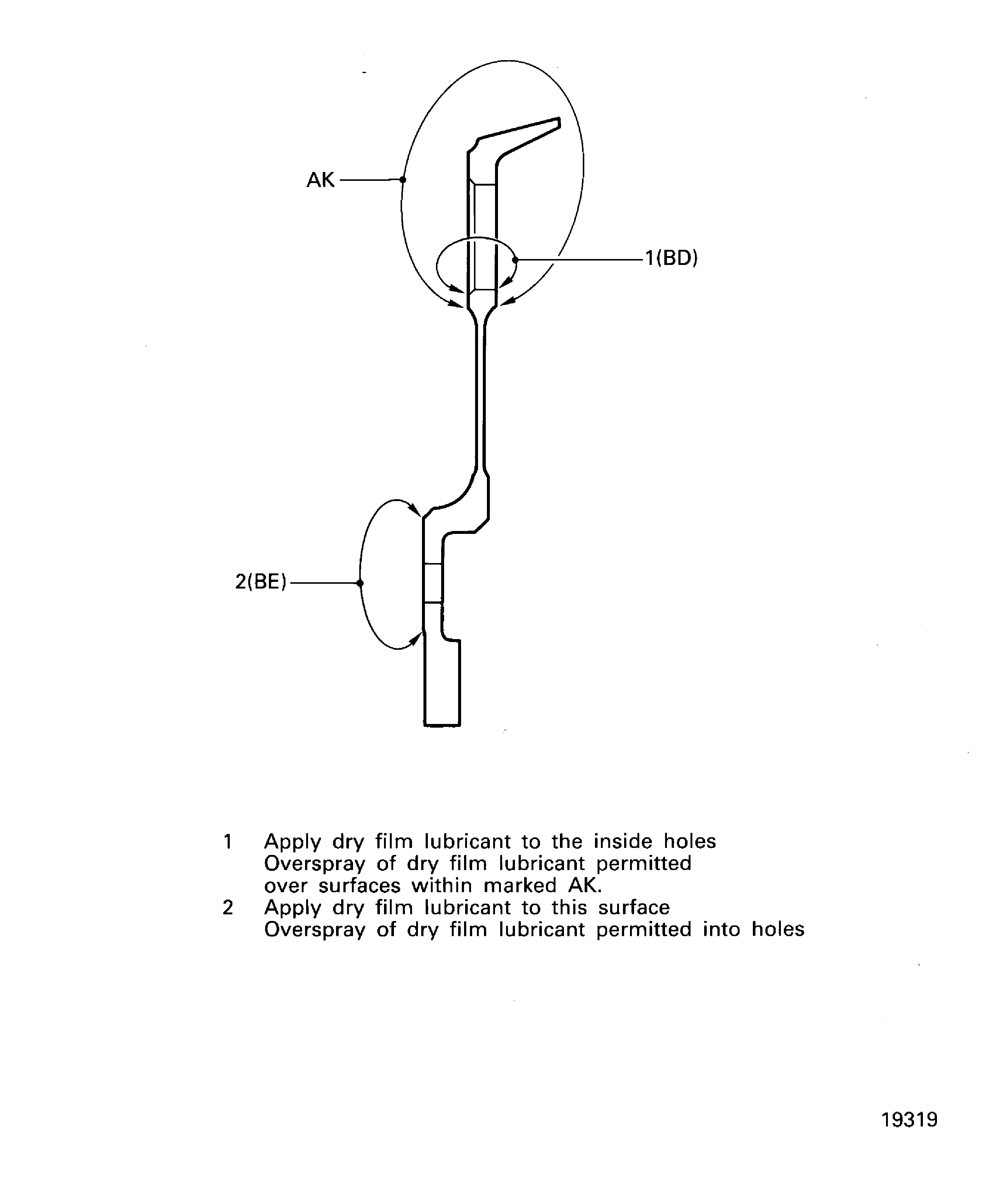

Apply dry film lubricant to the rear blade retaining ring
