TASK 72-32-00-300-011 Bleed Valve Actuating Rod Pin - Replace The Dry Film Lubricant, Repair-011 (VRS1604)
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
Price and availability - not applicable
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Abrasive blast equipment | LOCAL | Abrasive blast equipment | ||
| Oven | LOCAL | Oven |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADE | LOCAL | CoMat 05-003 | ||
| CoMat 07-009 THINNER | LOCAL | CoMat 07-009 | ||
| CoMat 10-004 DRY FILM LUBRICANT | LOCAL | CoMat 10-004 |
Spares
NONESafety Requirements
NONEProcedure
Refer to TASK 72-32-00-100-000 (CLEANING-000).
Remove the dry film lubricant, if necessary.
SUBTASK 72-32-00-110-064 Remove the Dry Film Lubricant
Refer to Figure.
Refer to the SPM TASK 70-12-02-120-501.
Refer to the SPM TASK 70-38-03-380-501.
Use abrasive blast equipment.
Abrasive blast the surfaces which are to be given a layer of dry film lubricant.
Refer to the SPM TASK 70-38-03-380-501.
Remove the abrasive grit.
Refer to the SPM TASK 70-11-26-300-503.
Remove the grease from the repaired area.
SUBTASK 72-32-00-120-051 Abrasive Blast the Pin
Refer to Figure.
The thickness of the dry film lubricant is to be 0.00031 to 0.0012 in. (0.008 to 0.030 mm).
Refer to the SPM TASK 70-38-03-380-501.
Apply the dry film lubricant.
Refer to the SPM TASK 70-38-03-380-501.
Examine the layer of dry film lubricant.
SUBTASK 72-32-00-380-051 Apply the Dry Film Lubricant to the Pin

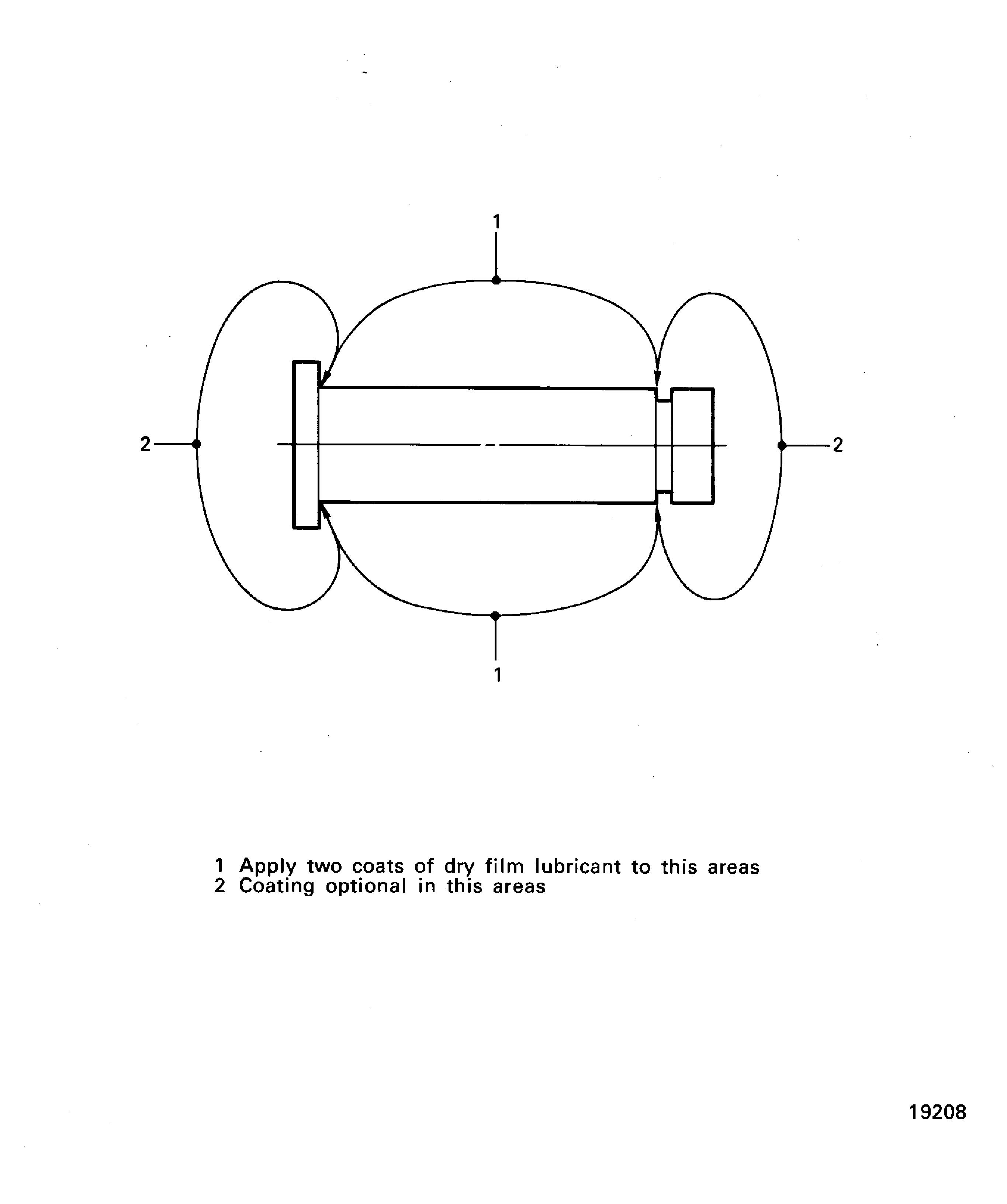

Figure: Apply dry film lubricant to the area and location of the pin
Apply dry film lubricant to the area and location of the pin
