TASK 72-32-00-300-001 Bleed Valve Actuating Rod Pin - Repair Surface Damage, Repair-001 (VRS1601)

DMC:V2500-A0-72-32-0004-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-00-300-001 Bleed Valve Actuating Rod Pin - Repair Surface Damage, Repair-001 (VRS1601)

Effectivity

FIG/ITEM

PART NO.

01-720

5A3716

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Pin

-

Chromium nickel corrosion

resistant steel (17-4PH)

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-00-350-061 Remove the Damage of the Pin

      1. Make smooth and/or hand polish to remove the galls and nicks.

      1. Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or a fine file. The surface finish of the repair must be the same as the adjacent area.

      2. Refer to Figure.

      3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-00-220-102 Examine the Pin

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, galls, scores and/or pick-up using 10X magnifying glass.

      2. Refer to TASK 72-32-00-200-004 .

    3. SUBTASK 72-32-00-220-103 Examine the Pin

      1. Examine the diameter, if repaired the diameter surface.

      1. Refer to TASK 72-32-00-200-004 .

    4. SUBTASK 72-32-00-230-061 Examine the Pin

      1. Fluorescent penetrant equipment examine the repaired area.

      1. Make sure there are no cracks in the repaired area.

      2. Refer to TASK 72-32-00-200-004 .

      3. Refer to the SPM TASK 70-23-05-230-501.

    5. SUBTASK 72-32-70-380-053 Apply the Dry Film Lubricant

      1. Apply the dry film lubricant to the repaired area, when repaired on coating area.

      1. Refer to VRS1604, TASK 72-32-00-300-011, Figure.

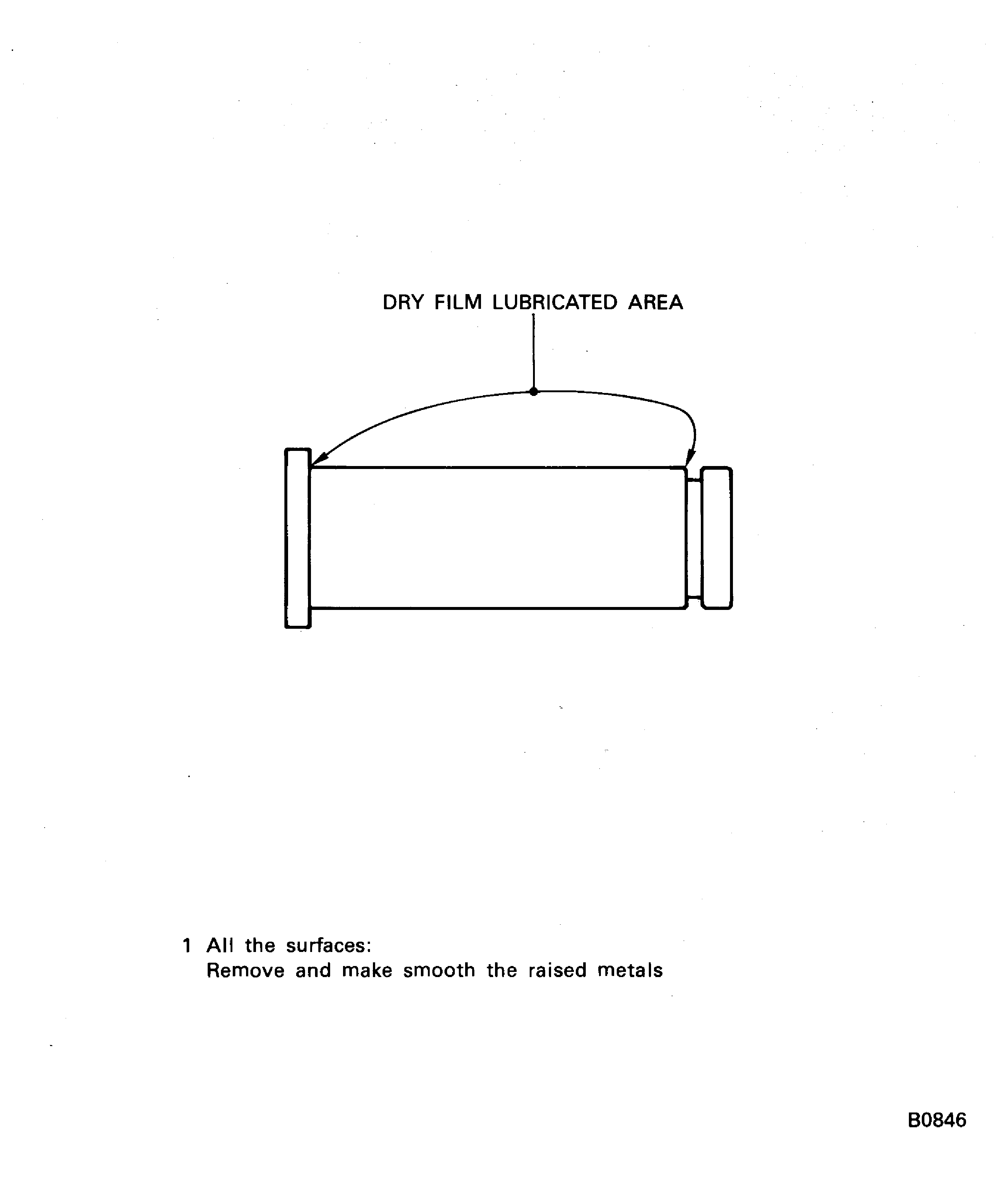

    6. Figure: Pin (01-720) - Repair limit

    Pin (01-720) - Repair limit
