TASK 72-32-03-300-008 Fan Frame - Replace The Rubber Seal, Repair-008 (VRS1185)

DMC:V2500-A0-72-32-0301-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-008 Fan Frame - Replace The Rubber Seal, Repair-008 (VRS1185)

Effectivity

FIG/ITEM

PART NO.

03-100

5A0256

Assembly A

03-100

5A0349

Assembly A

03-100

5A0362

Assembly A

03-100

5A0363

Assembly A

03-100

5A0364

Assembly A

03-100

5A0365

Assembly A

03-100

5A0366

Assembly A

03-100

5A0395

Assembly A

03-100

5A0397

Assembly A

03-100

5A0399

Assembly A

03-100

5A0401

Assembly A

03-100

5A0403

Assembly A

03-100

5A0405

Assembly A

03-100

5A0407

Assembly A

03-100

5A0409

Assembly A

03-100

5A6596

Assembly A

03-100

5A0856

Assembly A

03-100

5A1047

Assembly A

03-100

5A1087

Assembly A

03-100

5A1448

Assembly A

03-100

5A6592

Assembly A

03-100

5A1049

Assembly A

03-100

5A1062

Assembly A

03-100

5A1064

Assembly A

03-100

5A1066

Assembly A

03-100

5A1068

Assembly A

03-100

5A1167

Assembly A

03-100

5A1652

Assembly A

03-100

5A0423

Assembly B

03-100

5A1377

Assembly B

03-100

5A1424

Assembly B

03-100

5A1654

Assembly B

03-100

5A1070

Assembly A

03-100

5A1072

Assembly A

03-100

5A1074

Assembly A

03-100

5A1763

Assembly A

03-100

5A1764

Assembly A

03-100

5A1765

Assembly A

03-100

5A1766

Assembly A

03-100

5A1767

Assembly A

03-100

5A1768

Assembly A

03-100

5A1769

Assembly A

03-100

5A1770

Assembly A

03-100

5A1771

Assembly A

03-100

5A1772

Assembly A

03-100

5A1773

Assembly A

03-100

5A1774

Assembly A

03-100

5A1775

Assembly A

03-100

5A1776

Assembly A

03-100

5A1777

Assembly A

03-100

5A1778

Assembly A

03-100

5A1779

Assembly A

03-100

5A1780

Assembly A

03-100

5A1781

Assembly A

03-100

5A1782

Assembly A

03-100

5A1783

Assembly A

03-100

5A1784

Assembly A

03-100

5A1787

Assembly A

03-100

5A1788

Assembly A

03-100

5A1789

Assembly A

03-100

5A1790

Assembly A

03-100

5A1791

Assembly A

03-100

5A1792

Assembly A

03-100

5A1828

Assembly A

03-100

5A1824

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Fan frame

Titanium alloy

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Non-metallic scraperLOCALNon-metallic scraper
SpatulaLOCALSpatula

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 01-031 ACETONE (CH3)2COLOCALCoMat 01-031
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Rubber seal5A0079AR

(Assembly A)

Strip seal5A1255AR

(Assembly B)

Strip seal5A1837AR

(Assembly B)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-060 Remove the Damaged Rubber Seal from the Fan Frame Assembly

    1. Refer to Figure and Figure.

    2. Inspect and identify the damaged strip seal.

      3. Remove the damaged rubber seal without damage to the parent material and remove the compound that remains.

    2. SUBTASK 72-32-03-360-054 Prepare the Mating Surfaces for the Cold Curing Silicone Compound

    1. Refer to Figure and Figure.

      2. Cold liquid degrease the mating surfaces.

    4. Do step A again.

    5. NOTE

      A water-break test is not necessary.

    3. SUBTASK 72-32-03-360-055 Apply and Cure the Cold Curing Silicone Compound

      CAUTION

      DO NOT EAT ANYTHING OR SMOKE AT LOCATIONS WHERE THESE MATERIAL ARE USED.

      CAUTION

      TO PREVENT CONTAMINATION, THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND AFTER PREPARATION.

      CAUTION

      DO NOT APPLY THE PRIMER TO THE MATING SURFACE OF THE RUBBER SEAL.

      NOTE

      1. The primer must be applied immediately after the mating surfaces are prepared. It is cured at room temperature by contact with the moisture in the air.

      2. If the parts are not used immediately after the primer is applied, they must be kept in polythene bags, but for no longer than 24 hours.

    1. Refer to Figure and Figure.

      2. Apply a thin layer of primer only to the prepared mating surface of the frame. Dry in air for 30 minutes.

      3. Apply the cold curing silicone compound to each of the mating surfaces.

      4. Install the rubber seal to the frame assembly in less than three minutes after the compound is applied.

      1. Apply sufficient pressure to make sure of a good contact and to form a witness of adhesive at all edges.

        Make sure that the compound can be seen around all of the sealed surfaces.

    5. Remove unwanted adhesive compound from the frame.

      6. Cure the compound at 68 deg F (20 deg C) for 48 hours.

      1. Do not apply a load during this time.

    7. NOTE

      The parts can be touched after 12 hours.

    4. SUBTASK 72-32-03-220-090 Examine the Repaired Areas of the Fan Frame Assembly

    1. Refer to Figure and Figure.

    2. Dimensionally inspect the position of the repaired rubber seal.

      3. Visually examine the seal.

      1. Make sure that there is not too much adhesive coming out of the bond.

        There must be continuity of bond around the seal.

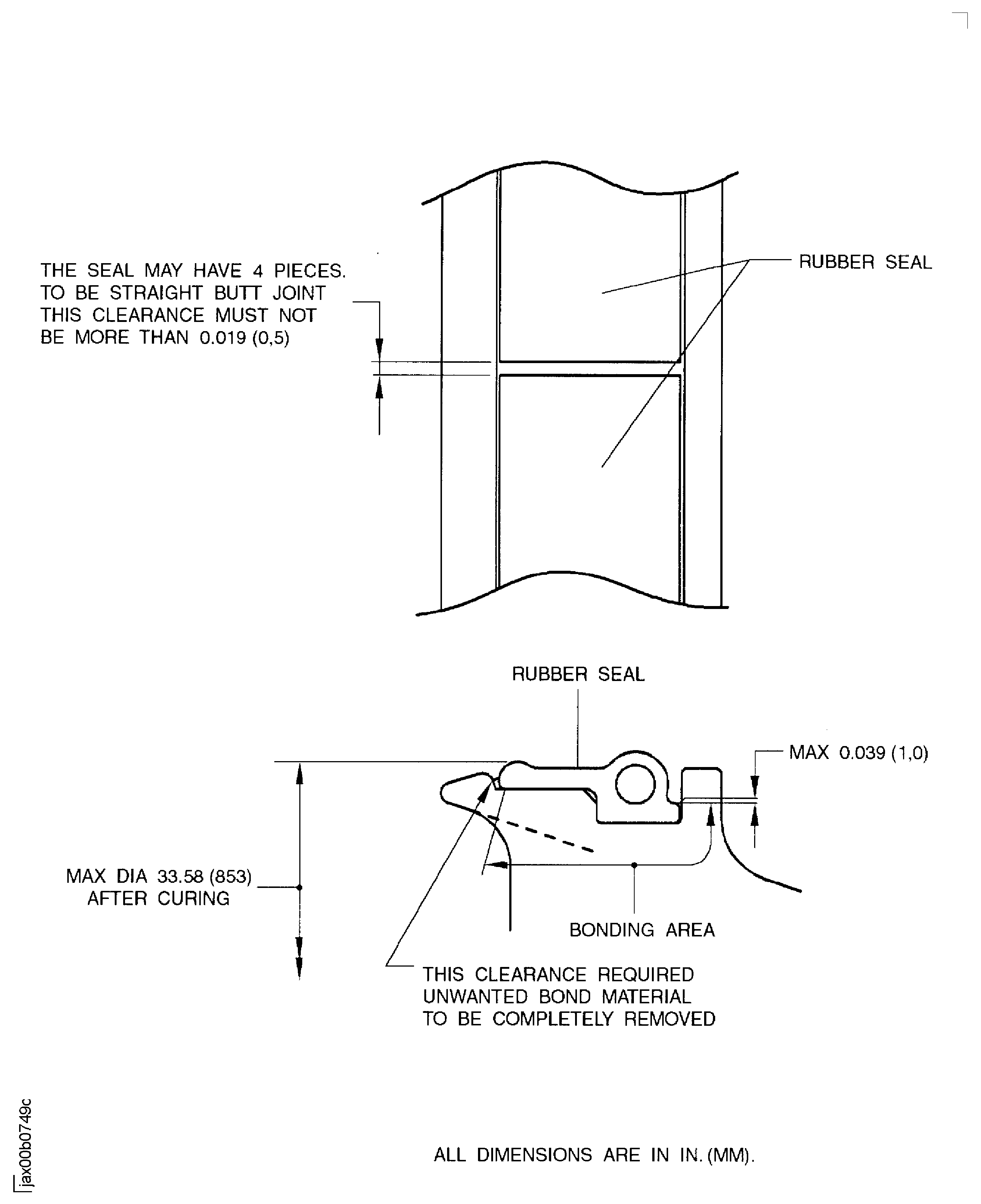

    5. Figure: Replace the rubber seal of the fan frame assembly - Assembly A

    Replace the rubber seal of the fan frame assembly - Assembly A

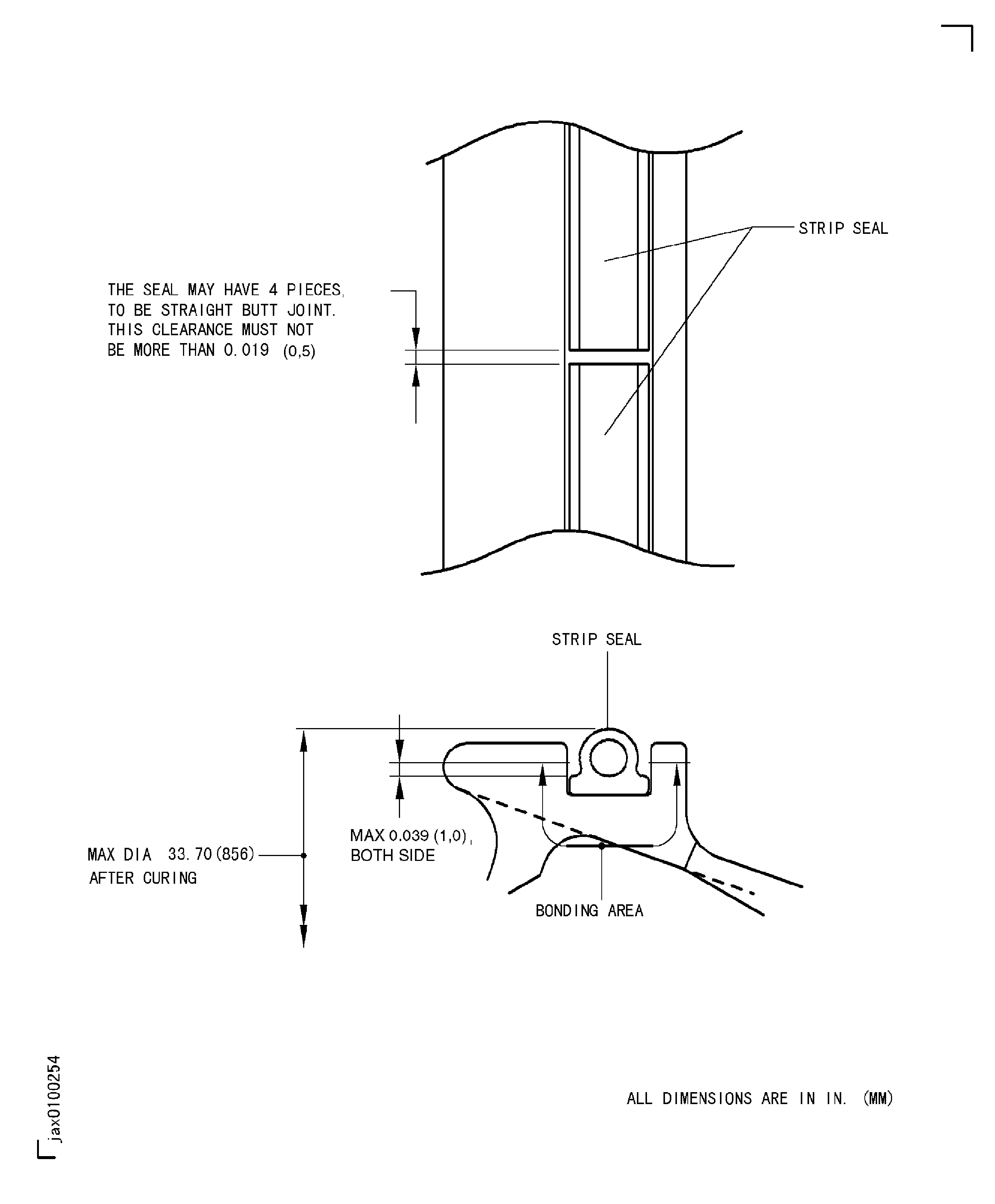

    Figure: Replace the strip seal of the fan frame assembly - Assembly B

    Replace the strip seal of the fan frame assembly - Assembly B

Requirements After Job Completion

Follow-On Conditions

NONE
