TASK 72-32-03-300-012 Fan Frame LH And RH Strut Corner Fillers - Replace The Thread Insert, Repair-012 (VRS1726)

DMC:V2500-A0-72-32-0303-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-03-300-012 Fan Frame LH And RH Strut Corner Fillers - Replace The Thread Insert, Repair-012 (VRS1726)

Effectivity

FIG/ITEM

PART NO.

01-700

5A2126

01-800

5A2126

01-750

5A2127

01-850

5A2127

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LH and RH corner panel

Aluminum alloy

filler assembly

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004
CoMat 10-039 ENGINE OILLOCALCoMat 10-039

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Insert, screw threadAGS37312

(0.190 - 32 UNIFIED)

Insert, screw threadAGS37312

(0.190 - 32 UNIFIED)

Insert, screw threadAGS38312

(0.190 - 32 UNIFIED)

Insert, screw threadAGS37312

(0.190 - 32 UNIFIED)

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-03-350-053 Remove the Damaged Insert

      1. Remove the damaged insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

        Refer to Fig Figure.

    2. SUBTASK 72-32-03-350-054 Install the New Helicoil Insert

      1. Apply a compound to the thread of new insert.

      2. Install the new helicoil insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

        Refer to Fig Figure.

      3. Remove the tang.

      1. Refer to the SPM TASK 70-35-08-300-501.

    4. NOTE

      All free tang shall be removed from the LH and RH corner panel filler assembly immediately after breaking off.

    3. SUBTASK 72-32-03-220-079 Examine the Installed Insert

      1. Visual examine the installed insert.

      1. Refer to the SPM TASK 70-35-08-300-501.

      2. Torque check the installed insert.

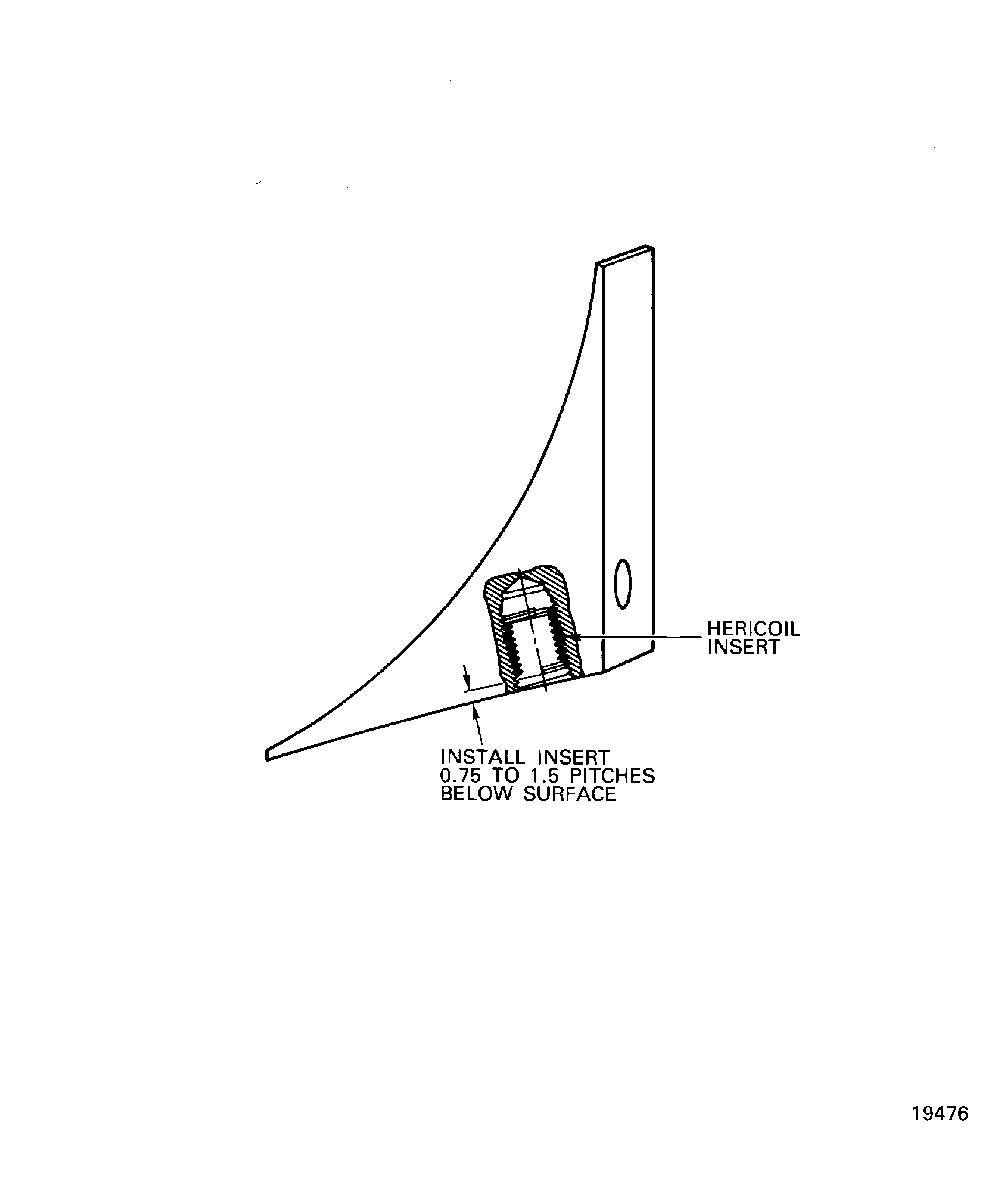

    4. Figure: LH and RH corner panel filler assembly Replace the thread insert

    LH and RH corner panel filler assembly Replace the thread insert

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Link not Found
Manufacturer Code:LOCAL
Supply Number:CoMat 04-004
Type:sp01
Supply Short Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Supply Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Specification Groups:
Doc NumberType
OMAT: 4/46 (REF RR)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
JCR-025 (JAEC REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:LOCAL
Supply Number:CoMat 10-039
Type:sp01
Supply Short Name:
Supply Name:CoMat 10-039 ENGINE OIL
Specification Groups:
Doc NumberType
DELETED
Suppliers:
ManufacturerRemarks
LOCAL
