TASK 72-32-05-300-004 PTO Center Bearing Housing - Replace The Wire Thread Insert, Repair-004 (VRS1188)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Center bearing housing | - | Titanium alloy |
assembly | (6A1 4V) |
General
Price and availability - not applicable
The practices and processes referred to in the procedure by the TASK number are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 10-077 APPROVED ENGINE OILS | LOCAL | CoMat 10-077 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Insert-screw thread | AGS3732 | 3 |
Safety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501.
Remove the damaged helilcal insert.
SUBTASK 72-32-05-350-053 Remove the Damaged Helical Insert
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501.
Remove the tang.
NOTE
All free tangs must be removed from the center bearing housing assembly immediately after breaking off.
SUBTASK 72-32-05-350-054 Install the New Helical Insert
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501.
Torque check the installed insert.
SUBTASK 72-32-05-230-056 Examine the Installed Helical Insert

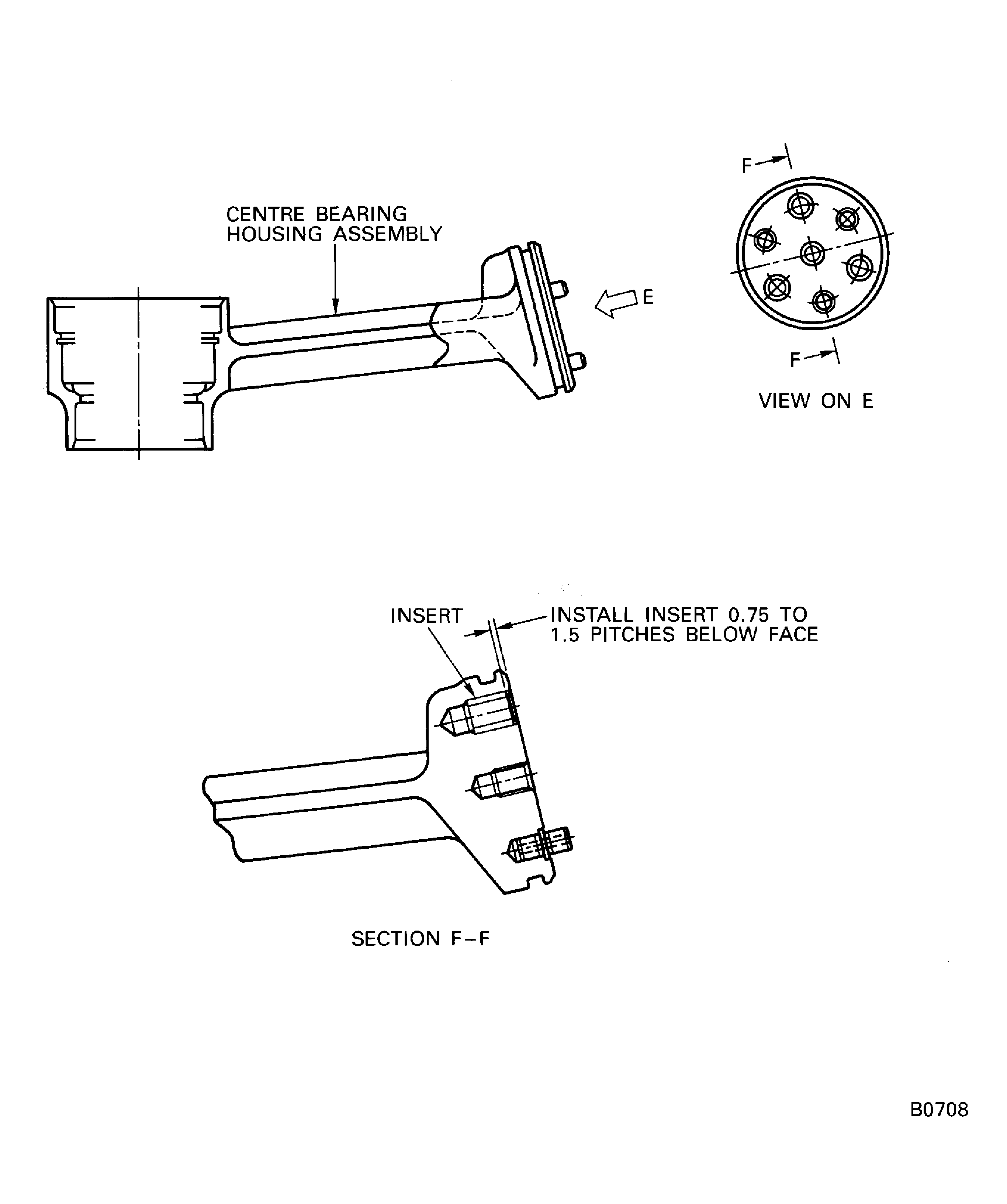

Figure: Replace the wire thread inserts of the center bearing housing assembly
Replace the wire thread inserts of the center bearing housing assembly
