TASK 72-32-16-300-003 Gearbox Driven Bevel Gearshaft (56T) - Blend Repair, Repair-003 (VRS1208)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
56T pinion bevel gearshaft | - | Non corrosion resistant steel |
General
Price and availability - not applicable
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnetic particle inspection equipment | LOCAL | Magnetic particle inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Surface finish of the repaired area must be the same as the adjacent surface.
Refer to the SPM TASK 70-35-03-300-501.
Use abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or a fine file.
Make smooth and/or hand polish to remove the pick-up, burrs, raised material of galls and/or scores (on all surface areas with the exception of gear teeth).
SUBTASK 72-32-16-350-055 Remove the Damage of the 56T Pinion Bevel Gearshaft Refer to
Refer to the SPM TASK 72-32-16-200-009.
Visually examine the repaired area.
SUBTASK 72-32-16-220-084 Examine the 56T Pinion Bevel Gearshaft
Refer to TASK 72-32-16-200-009.
Refer to the SPM TASK 70-24-01-240-501.
Magnetic particle examine the repaired area.
SUBTASK 72-32-16-240-057 Examine the 56T Pinion Bevel Gearshaft

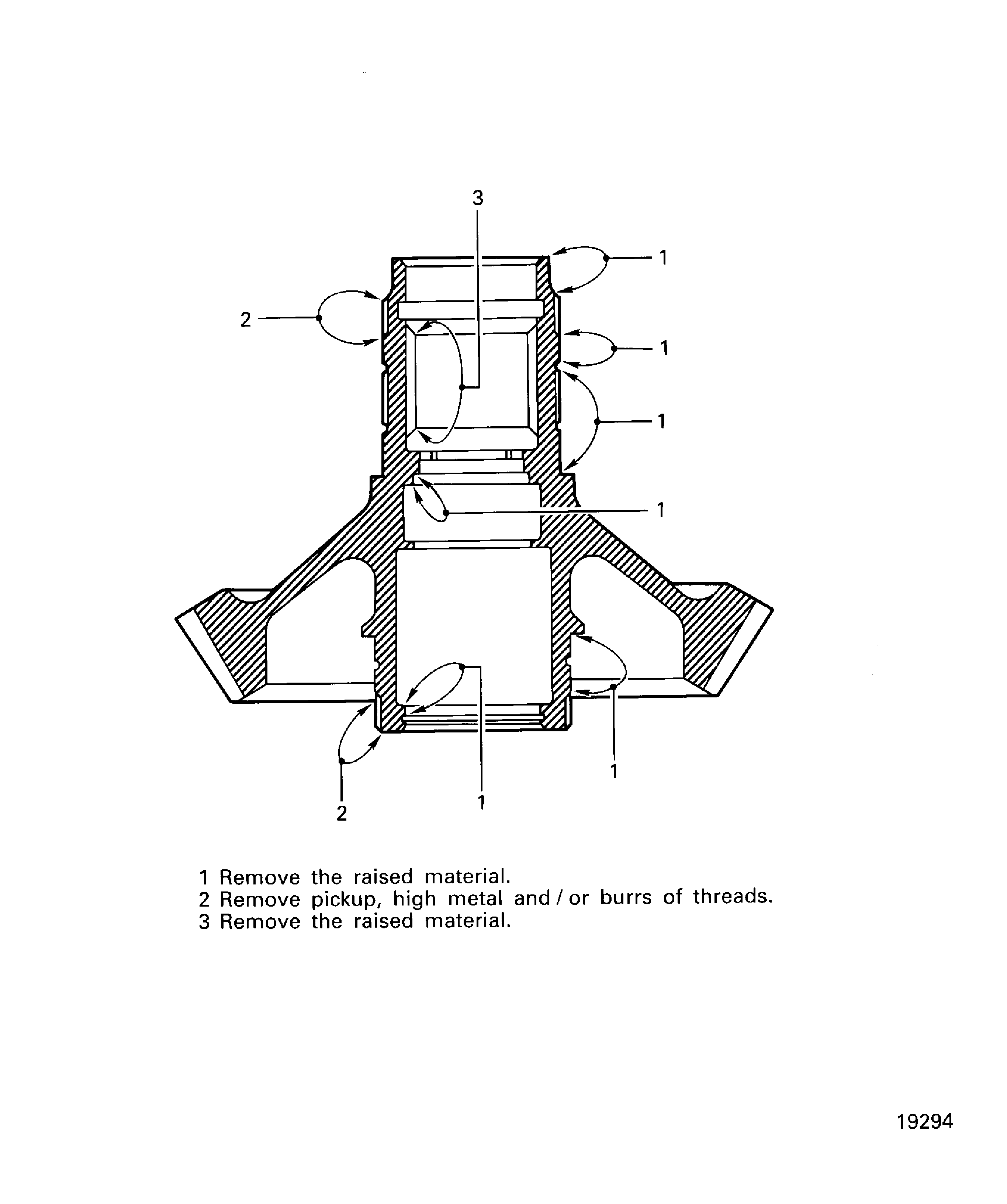

Figure: 56T pinion bevel gearshaft - repair limit
56T pinion bevel gearshaft - repair limit
