TASK 72-32-17-300-005 No. 2 Bearing Support - Replace The Insert, Repair-005 (VRS1211)

DMC:V2500-A0-72-32-1701-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-17-300-005 No. 2 Bearing Support - Replace The Insert, Repair-005 (VRS1211)

Effectivity

FIG/ITEM

PART NO.

01-850

5W2046

Material of component

PART IDENT

SYMBOL

MATERIAL

No.2 bearing support assembly

-

6Al-4V Titanium

No.2 bearing support assembly (insert)

-

Ni-19.5Cr-18Co-2.5Ti-1.5 Al

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-17-100-000 (CLEANING-000).

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Helicoil insert equipmentLOCALHelicoil insert equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 04-004 JOINTING COMPOUND, LIGHT GRADELOCALCoMat 04-004

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Insert, wire threadAGS373213
Insert, wire threadAGS37315

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-17-350-056 Remove the Damaged Inserts (01-870 and 01-875)

    1. Refer to Figure.

      2. Remove the damaged inserts.

      1. Refer to the SPM TASK 70-35-08-300-501.

    2. SUBTASK 72-32-17-350-057 Install the New Inserts (01-870 and 01-875)

    1. Refer to Figure.

      2. Install the new inserts.

      1. Refer to the SPM TASK 70-35-08-300-501.

    3. SUBTASK 72-32-17-220-076 Examine the Installed Inserts (01-870 and 01-875)

      1. Examine the inserts and the repaired area.

      1. Refer to the SPM TASK 70-35-08-300-501.

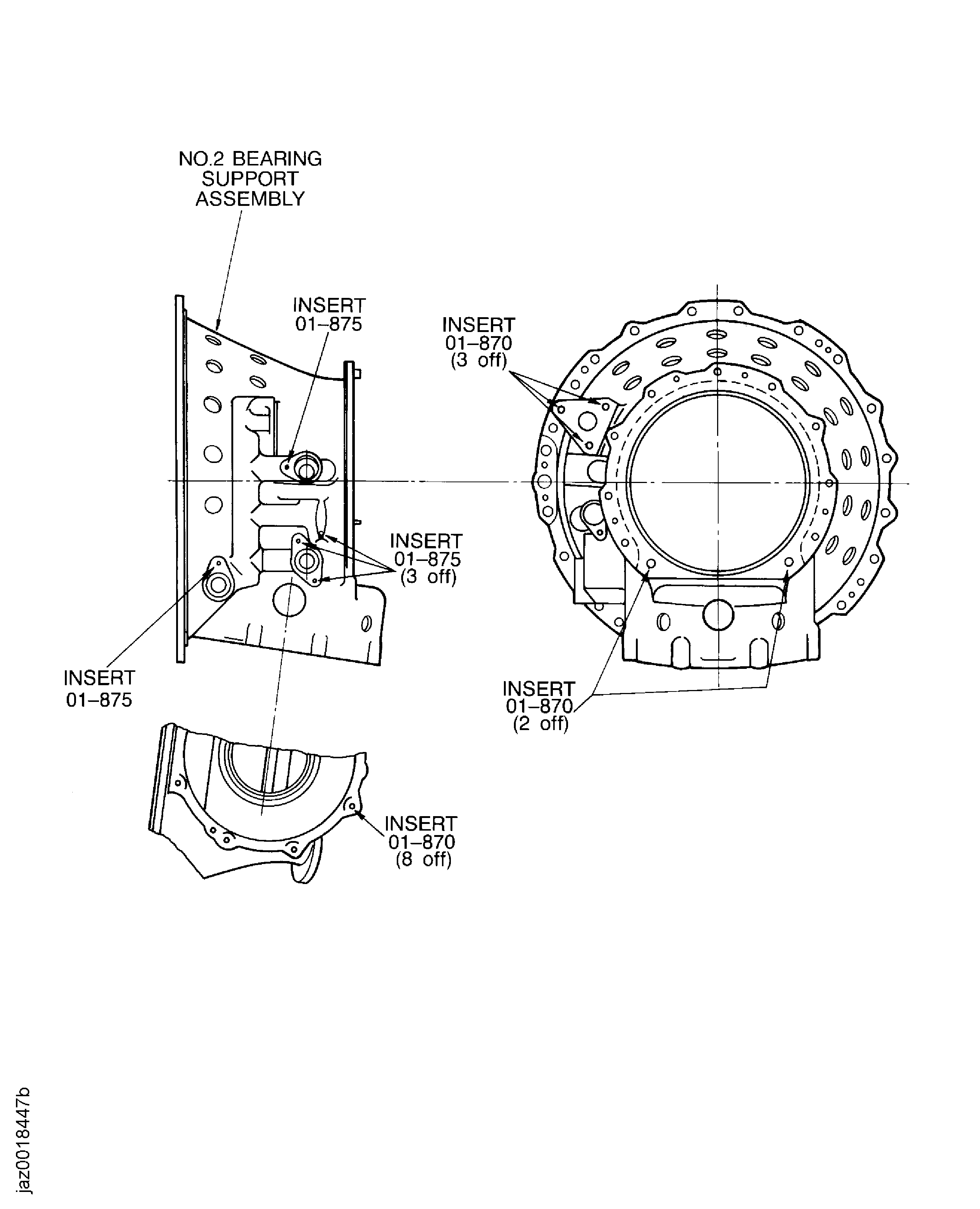

    4. Figure: Replacement of the insert

    Replacement of the insert

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Link not Found
Manufacturer Code:LOCAL
Supply Number:CoMat 04-004
Type:sp01
Supply Short Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Supply Name:CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE
Specification Groups:
Doc NumberType
OMAT: 4/46 (REF RR)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
JCR-025 (JAEC REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
MSRR 9055 (RR REF)HYLOMAR AEROGRADE (PL32), LIGHT GRADE
Suppliers:
ManufacturerRemarks
LOCAL
460Y4
CJ731
K3237
Manufacturer Code:LOCAL
Tool Number:Helicoil insert equipment
Tool Name:Helicoil insert equipment
