TASK 72-32-17-300-010 No. 2 Bearing Support - Replace The Pint, Repair-010 (VRS1217)

DMC:V2500-A0-72-32-1701-01A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-17-300-010 No. 2 Bearing Support - Replace The Pint, Repair-010 (VRS1217)

Effectivity

FIG/ITEM

PART NO.

01-850

5W2046

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 2 bearing support

-

6A1-4V titanium

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-17-100-000 (CLEANING-000).

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin, shoulder headlessAS448082
Pin, shoulder headlessAS448052
Pin5W21222

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-17-350-059 Remove Damaged Pin

    1. Refer to Figure.

      2. Remove damaged pin.

      1. Use a punch and a mallet.

    2. SUBTASK 72-32-17-350-060 Blend the Locating Pin Hole

      1. Blend raised metal and rough surface around the pin hole.

      1. Refer to the SPM TASK 70-35-03-300-501.

    3. SUBTASK 72-32-17-110-058 Clean the Pin Hole

      1. Clean the pin hole.

      1. Refer to the SPM TASK 70-11-26-300-503.

    4. SUBTASK 72-32-17-350-061 Install the Pin

    1. Refer to Figure

      2. Select the pin.

      1. Select the pin to get the adequate fit, 0.0001 in. (0.002 mm) to 0.0012 in. (0.032 mm) tight fit.

      3. Chill the new pin.

      1. Chill the pin using dry ice for 15 minutes.

    4. Install the pin.

    5. SUBTASK 72-32-17-350-062 Examine the Pin of the No. 2 Bearing Support

      1. Examine the repaired pin.

      1. Refer to TASK 72-32-17-200-000 (INSPECTION-000).

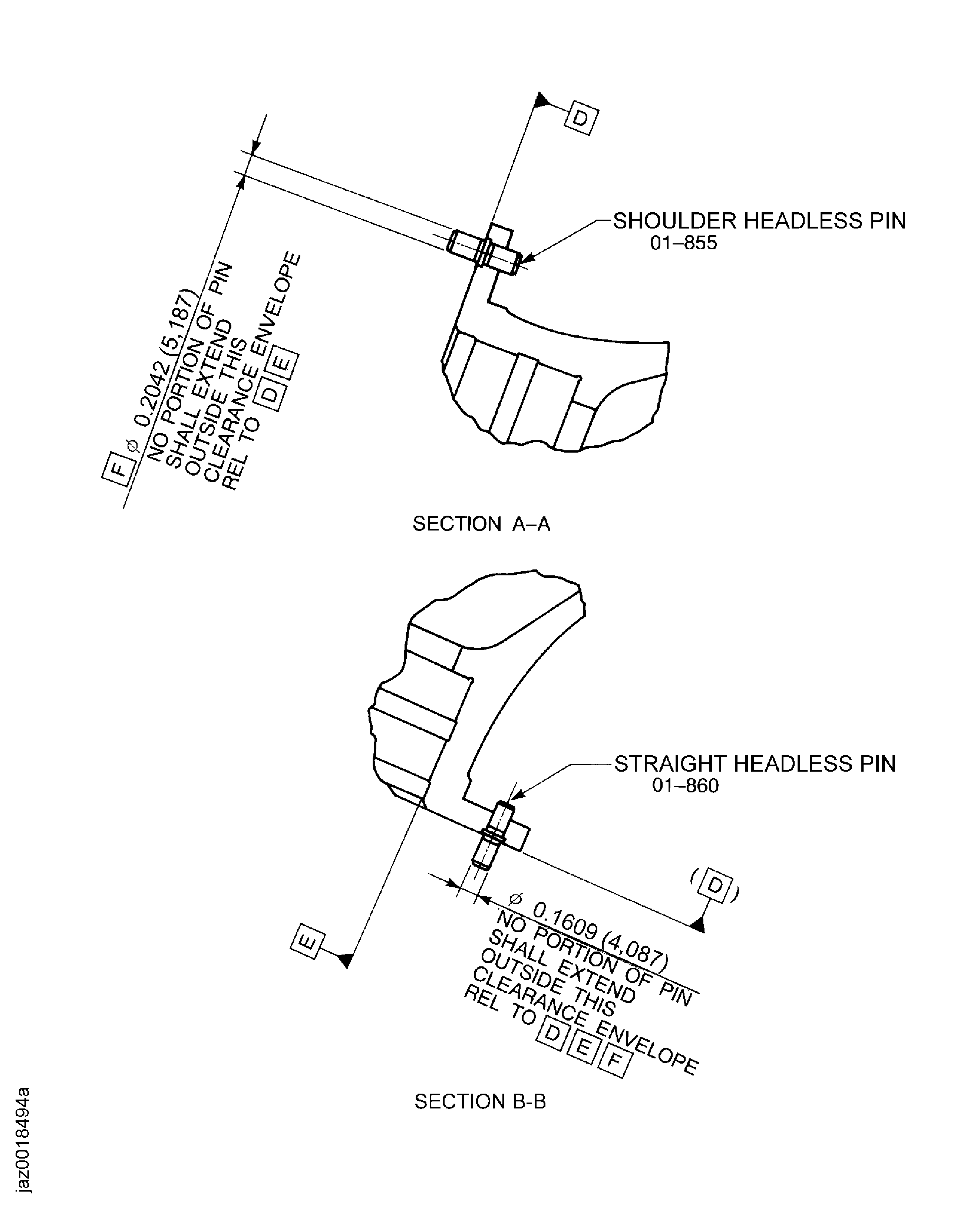

    6. Figure: Replacement of the pin

    Replacement of the pin

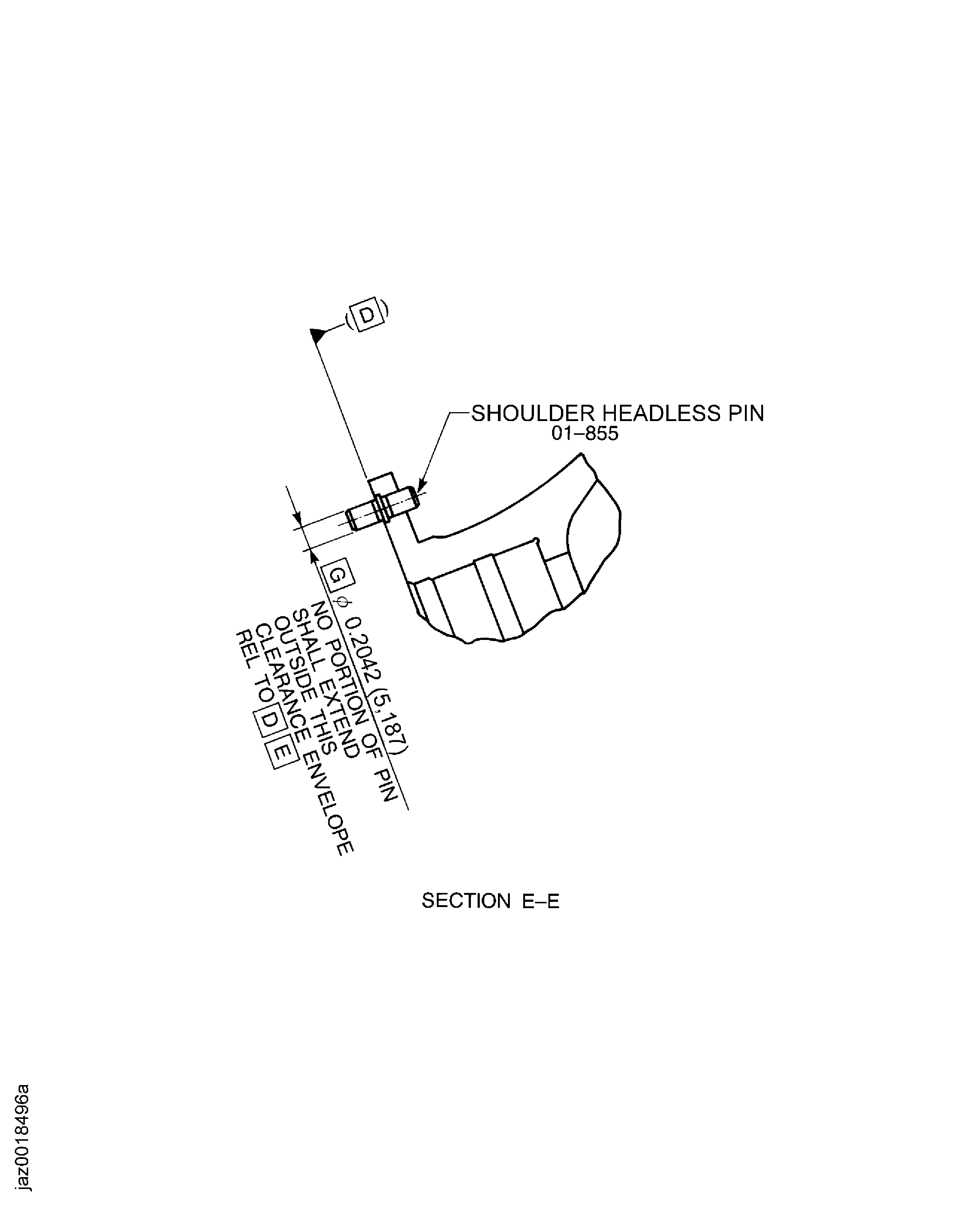

    Figure: Replacement of the pin

    Replacement of the pin

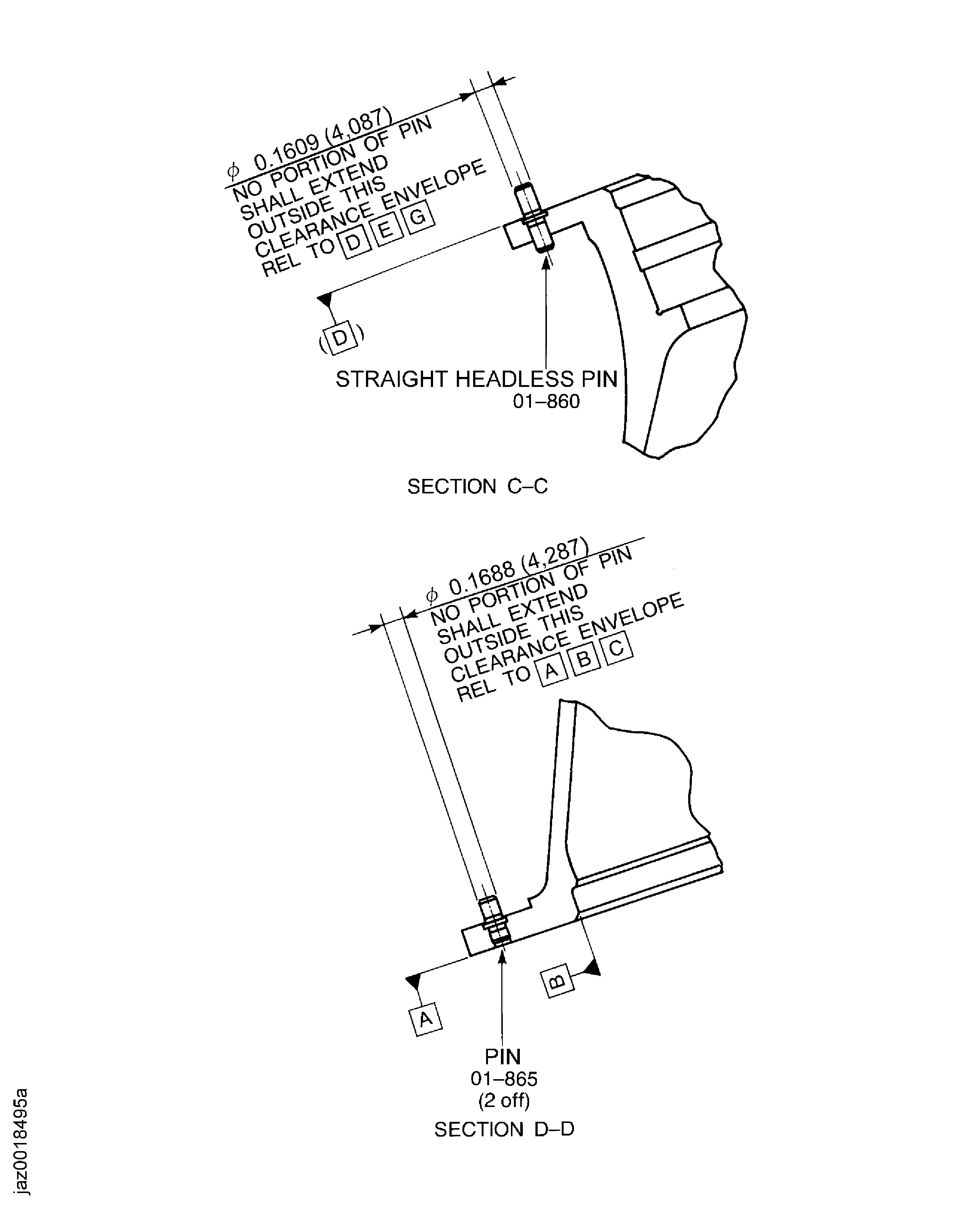

    Figure: Replacement of the pin

    Replacement of the pin

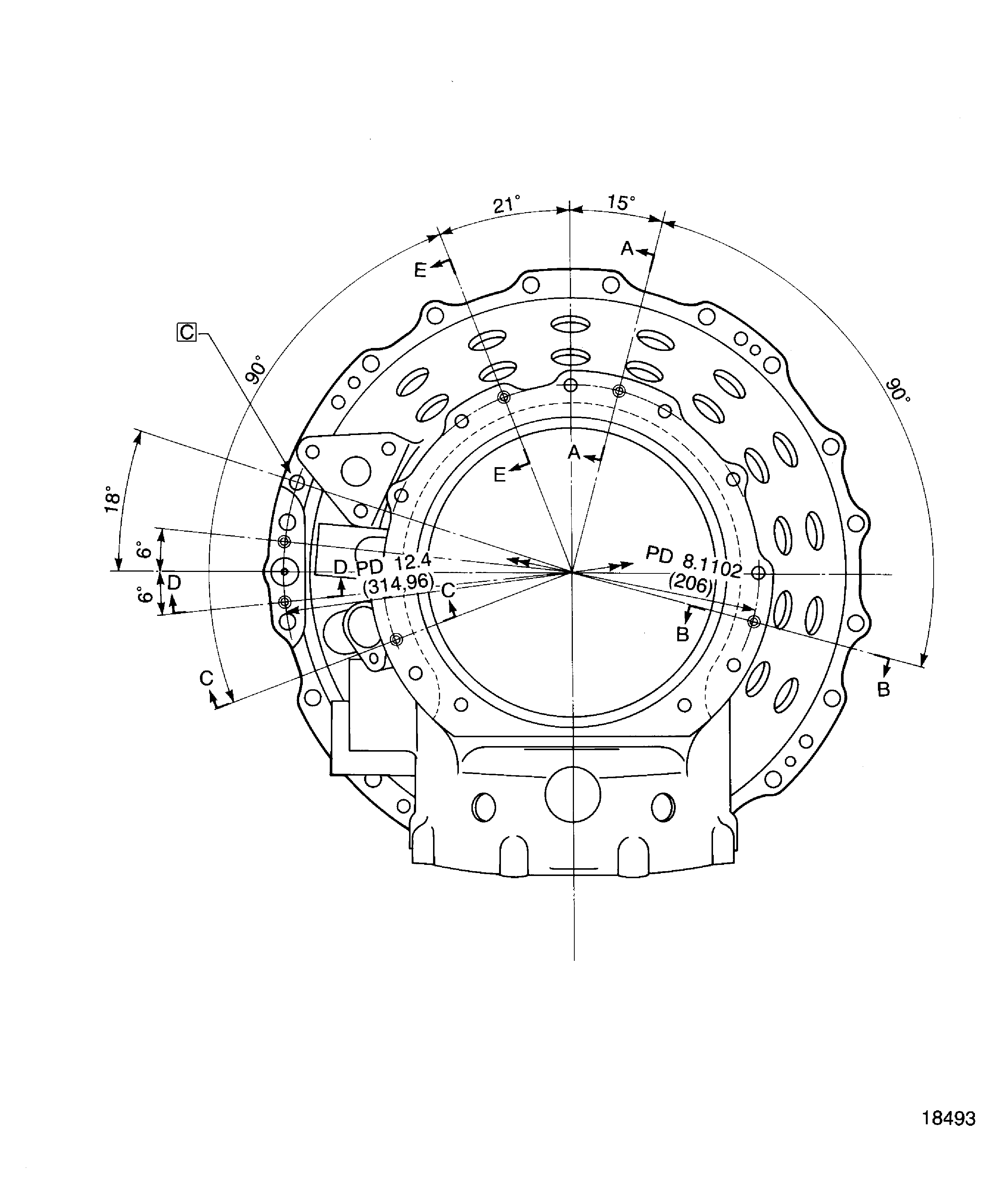

    Figure: Replacement of the pin

    Replacement of the pin

Requirements After Job Completion

Follow-On Conditions

NONE
