TASK 72-32-17-300-014 No. 2 Bearing Support - Replace The Locating Pin, Repair-014 (VRS1907)

DMC:V2500-A0-72-32-1701-03A-920A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-17-300-014 No. 2 Bearing Support - Replace The Locating Pin, Repair-014 (VRS1907)

Effectivity

FIG/ITEM

PART NO.

01-850

5W2253

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

No.2 bearing support assembly

6A1-4V titanium

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-17-100-000 (CLEANING-000).

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Locating pinAS448082
Locating pinAS448052
Locating pin5W21222
Locating pin5W21221

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-17-350-089 Remove the Damaged Locating Pin

    1. Refer to Figure.

      2. Remove the damaged locating pin.

      1. Use a punch and a mallet.

    2. SUBTASK 72-32-17-350-090 Blend the Locating Pin hole

      1. Blend raised metal and rough surfaces around the pin hole.

      1. Refer to the SPM TASK 70-35-03-300-501.

    3. SUBTASK 72-32-17-110-059 Clean the Locating Pin Hole

      1. Clean the locating pin hole.

      1. Refer to the SPM TASK 70-11-26-300-503.

    4. SUBTASK 72-32-17-350-091 Install the Locating Pin

    1. Refer to Figure.

      2. Select the locating pin.

      1. Select the locating pin to get an adequate fit of 0.0001 to 0.0012 in. (0.002 to 0.032 mm) tight fit.

      3. Chill the new locating pin.

      1. Chill the locating pin with dry ice for 15 minutes.

    4. Install the locating pin.

    5. SUBTASK 72-32-17-350-092 Examine the Locating Pin of the No.2 Bearing Support

      1. Examine the repaired locating pin.

      1. Refer to TASK 72-32-17-200-000 (INSPECTION-000).

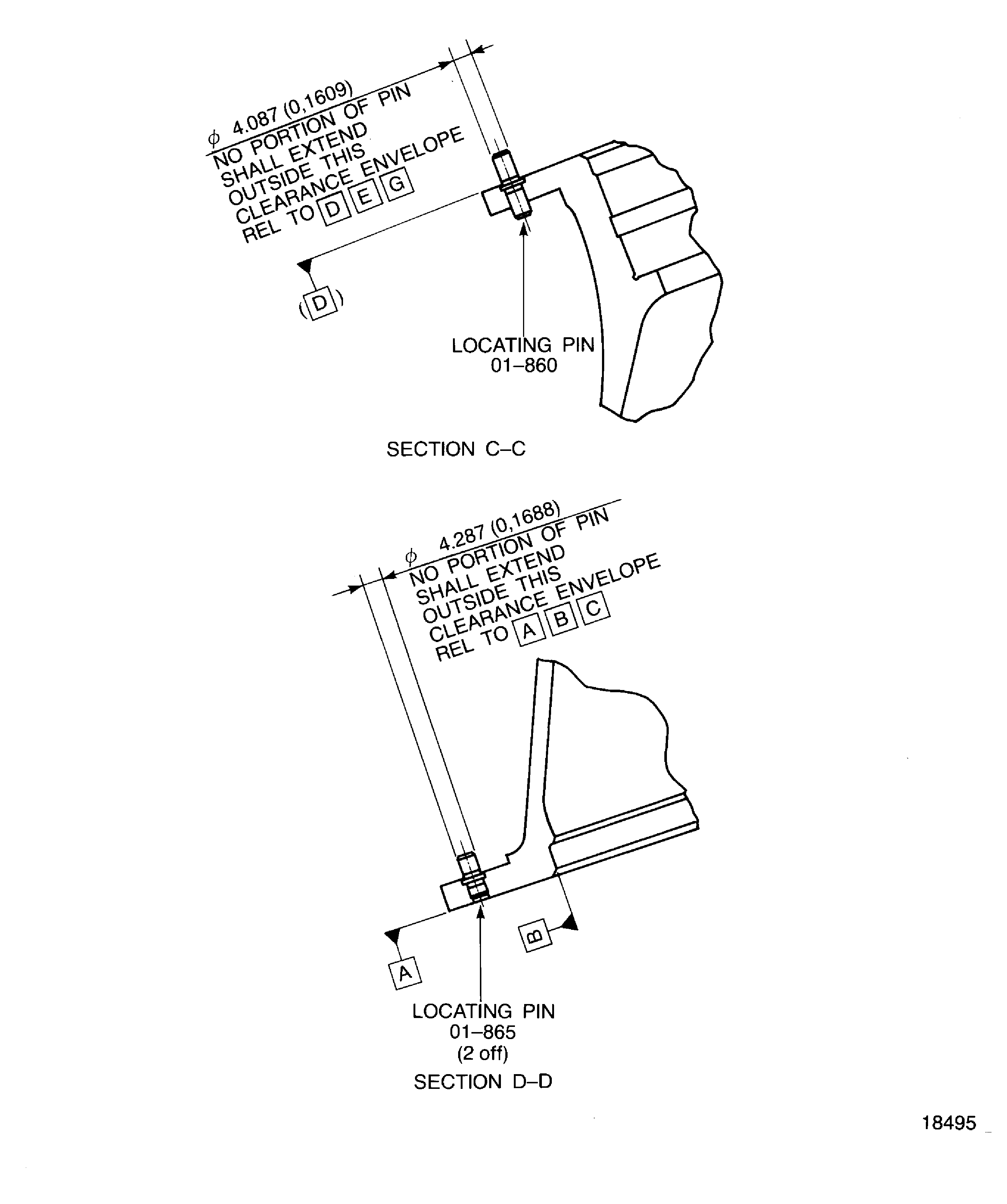

    6. Figure: Replacement of the locating pin

    Replacement of the locating pin

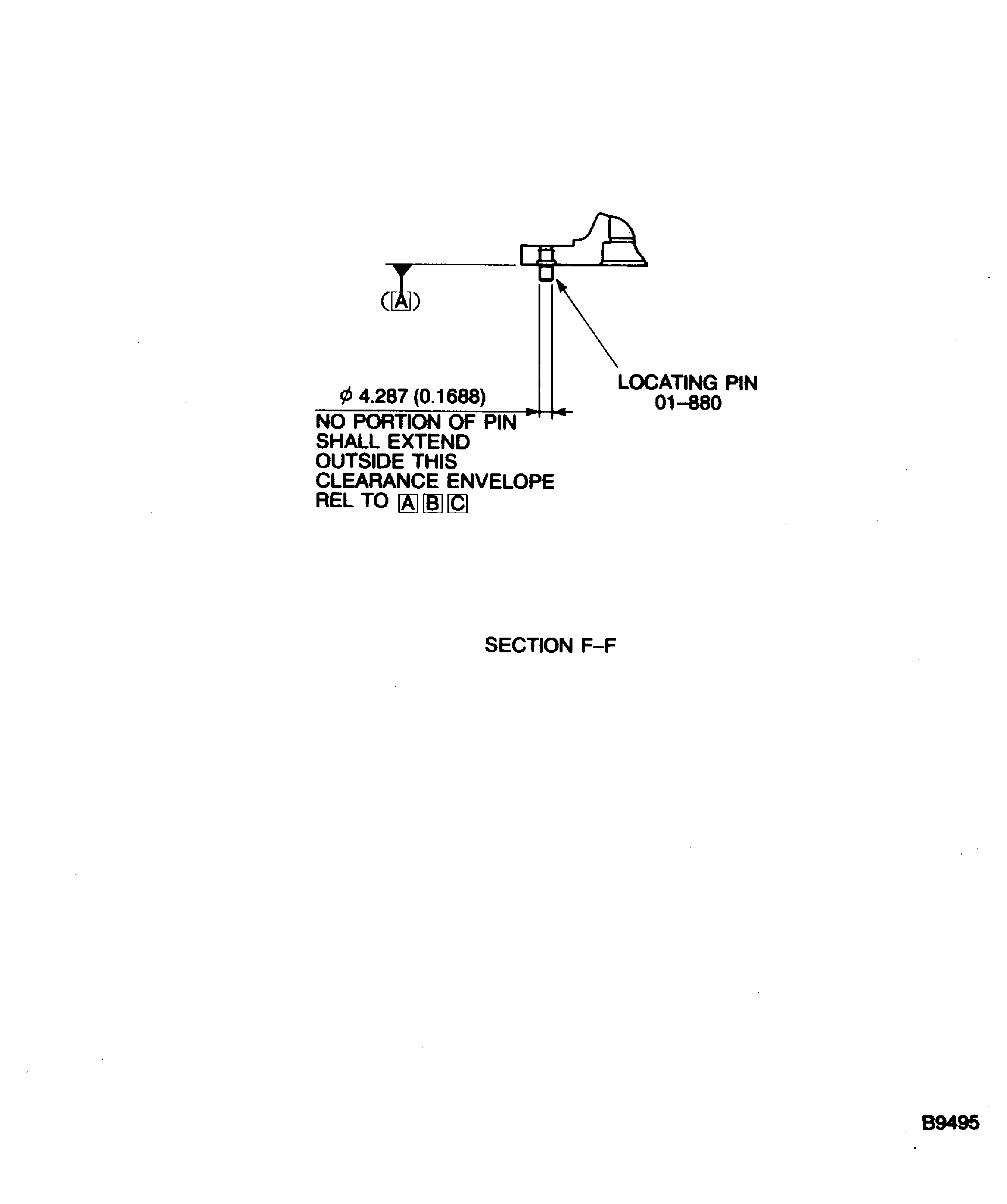

    Figure: Replacement of the locating pin

    Replacement of the locating pin

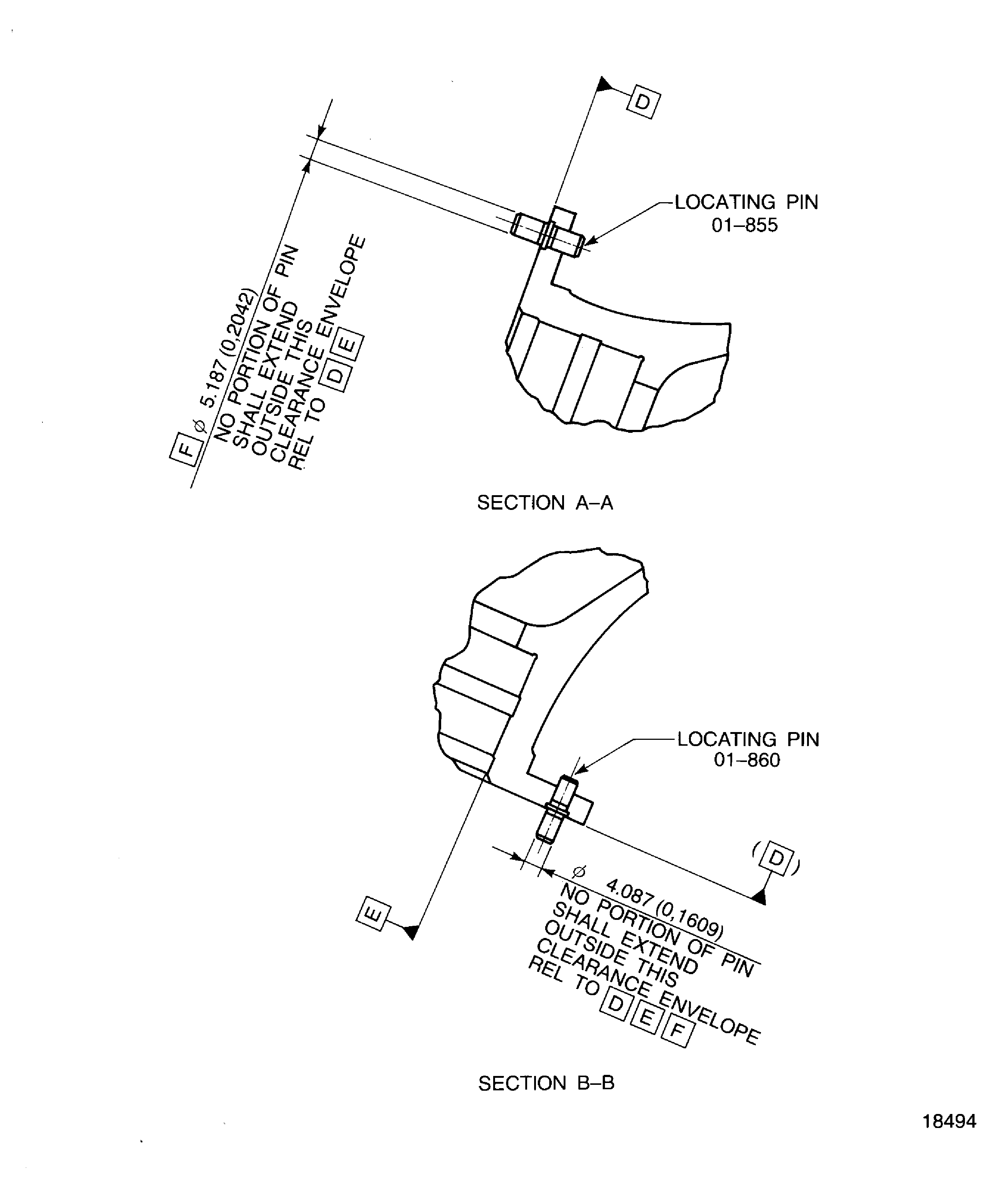

    Figure: Replacement of the locating pin

    Replacement of the locating pin

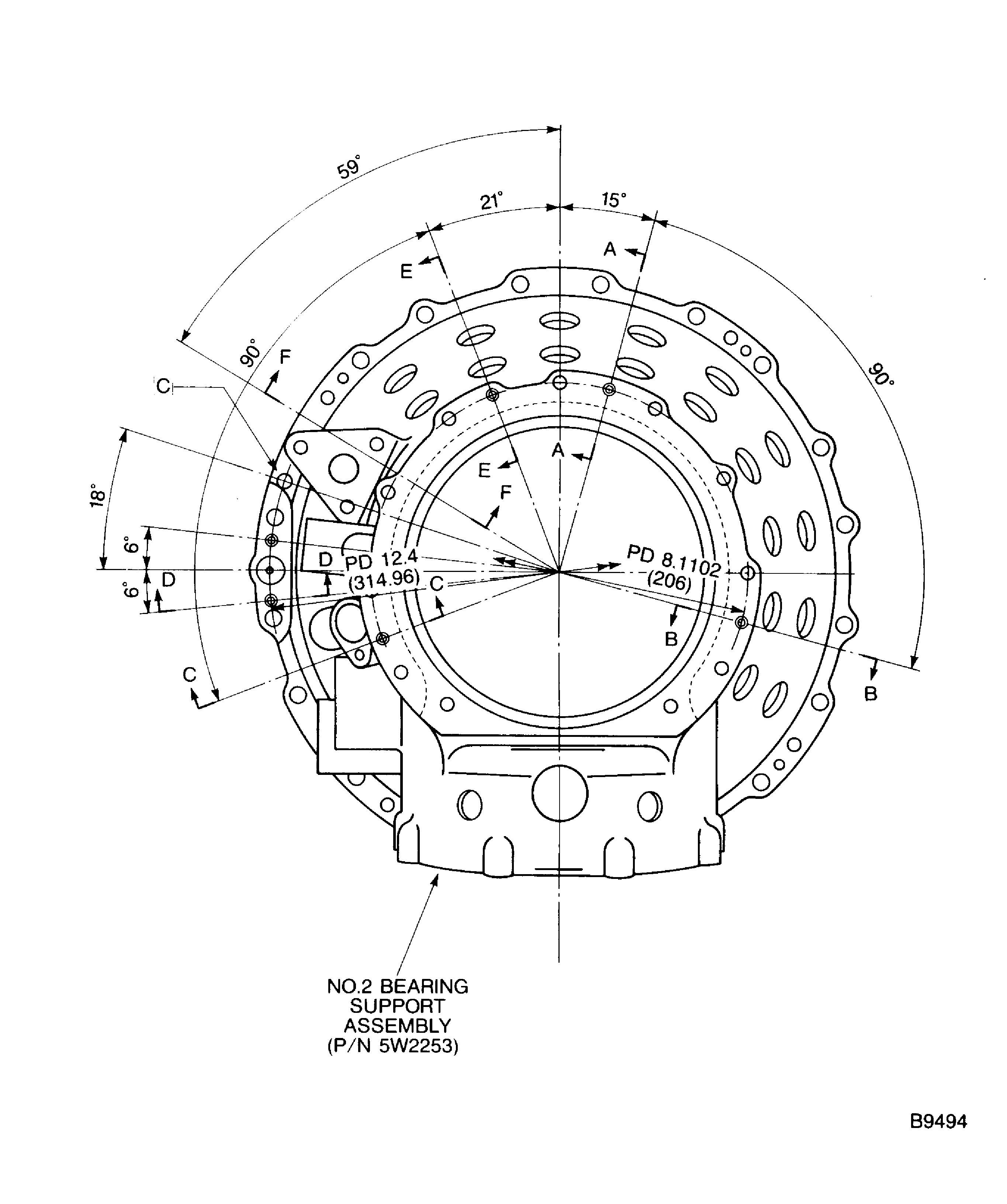

    Figure: Replacement of the locating pin

    Replacement of the locating pin

    Figure: Replacement of the locating pin

    Replacement of the locating pin

Requirements After Job Completion

Follow-On Conditions

NONE
