TASK 72-32-21-300-004 No. 3 Bearing Housing - Replace The Pin, Repair-004 (VRS3009)
General
Price and availability - refer to IAE
The practices and processes referred to in this procedure by TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONEConsumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Pin | 1A9666 (use | 2 | ||
| Pin | 2A2205 (use | 2 |
Safety Requirements
NONEProcedure
Refer to Figure.
Use a drift to remove the pins from the housing.
SUBTASK 72-32-21-350-055 Remove the Pins from the No. 3 Bearing Housing
Refer to the SPM TASK 70-11-26-300-503.
Clean the holes and the new pins before you install them into the housing.
SUBTASK 72-32-21-110-055 Clean the Holes and the New Pins
Refer to Figure.
Examine the housing to make sure the pins are installed correctly.
SUBTASK 72-32-21-220-080 Examine the Repair

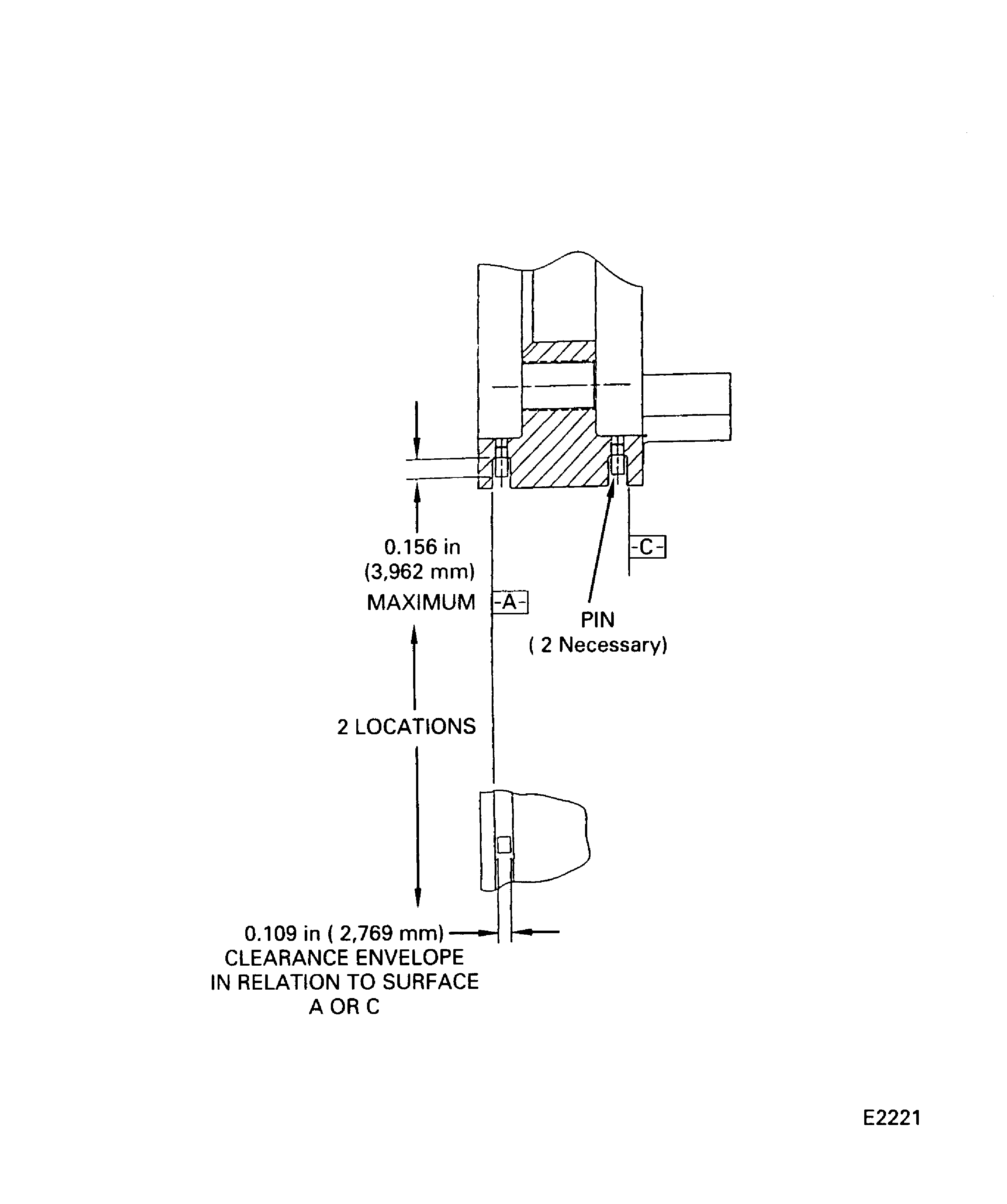

Figure: No. 3 bearing housing pin replacement
No. 3 bearing housing pin replacement
