TASK 72-32-22-300-004 No. 3 Bearing Seal Support - Nickel Plate, Repair-004 (VRS3004)
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure and the SPM TASK 70-33-25-300-503.
Strip the nickel plate from the seal support.
SUBTASK 72-32-22-350-060 Remove the Nickel Plate from the No. 3 Bearing Seal Support Assembly
Refer to Figure and the SPM TASK 70-33-25-300-503.
Apply nickel plate onto the seal support.
SUBTASK 72-32-22-350-061 Apply Nickel Plate onto the No. 3 Bearing Seal Support Assembly
Refer to Figure and TASK 72-32-22-200-000.
Examine the diameter after plating.
SUBTASK 72-32-22-220-077 Examine the No. 3 Bearing Seal Support Assembly after Nickel Plate Repair

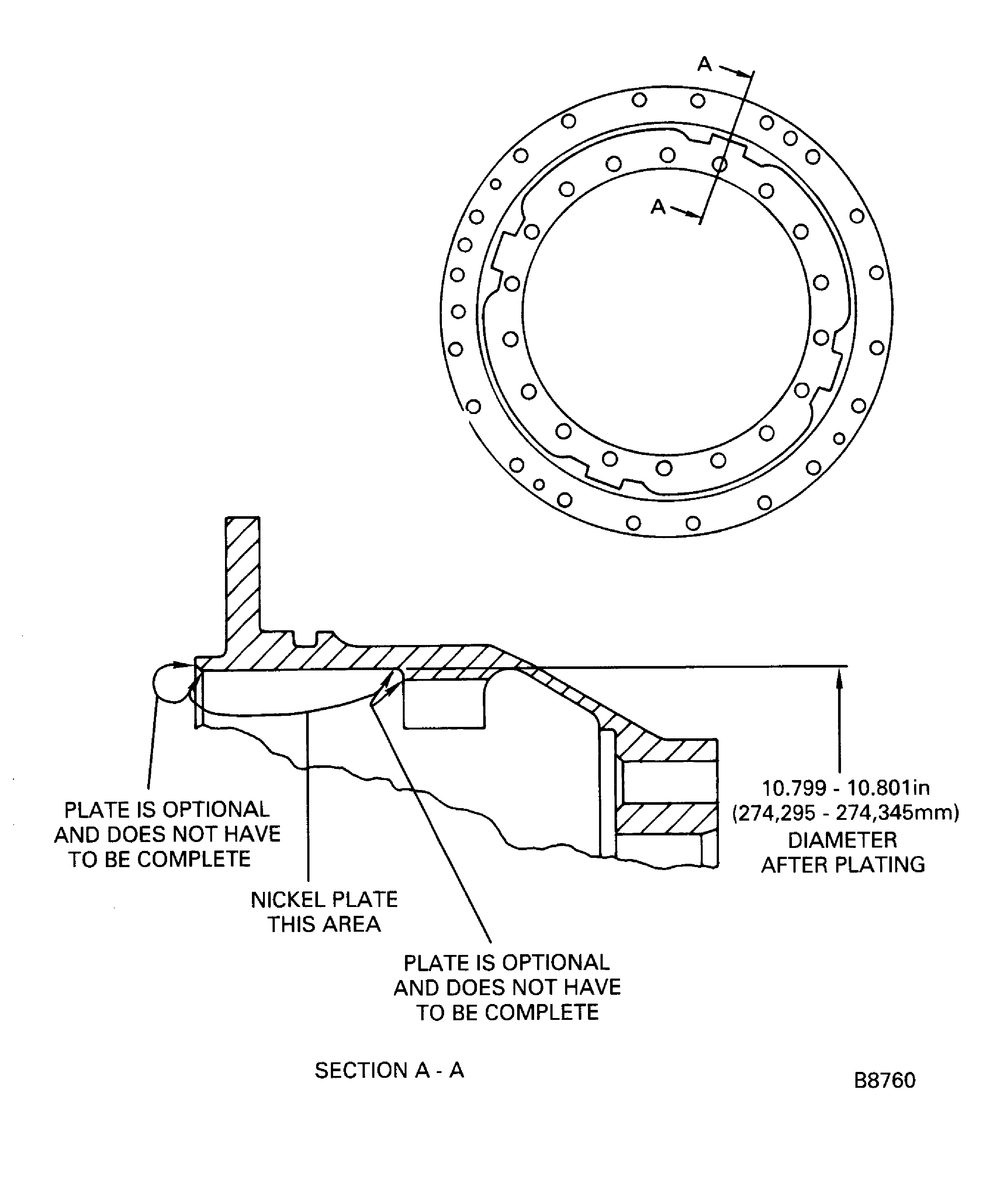

Figure: No. 3 bearing seal support assembly nickel plate repair
No. 3 bearing seal support assembly nickel plate repair
