TASK 72-32-23-300-012 Rotor Center Ring Seal Carrier Assembly - Replace The Surface Protection, Repair-012 (VRS6119)

DMC:V2500-A0-72-32-2301-02A-609A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-23-300-012 Rotor Center Ring Seal Carrier Assembly - Replace The Surface Protection, Repair-012 (VRS6119)

Effectivity

FIG/ITEM

PART NO.

01-720

6A2238

Assembly A

01-720

6A3890

Assembly A

01-720

6A3902

Assembly A

01-720

6A3916

Assembly B

01-720

6A4469

Assembly C

Material of component

PART IDENT

SYMBOL

MATERIAL

Ring seal carrier

AGY

Hykro (Air Melted)

Retainer

AGY

Hykro (Air Melted)

Seal ring

EAK

Modified 12 percent Chromium Steel

General

This Repair must only be done when the instruction to do so is given in TASK 72-32-23-200-000 (INSPECTION-000).

The surface protection will be replaced after all other repairs to the component have been completed.

Step describes the procedure to apply touch-up paint to the HP Compressor Seal Ring Carrier Assembly.

Step describes the complete application of the surface protection to the HP Compressor Seal Ring Carrier Assembly.

Make sure the coating on the outside diameter is not damaged during this repair.

Make sure the protective coating is not damaged during this repair.

The practices and processes referred to in the procedure by the TASK/SUBTASK numbers are in the SPM.

Price and availability

Refer to International Aero Engines.

Related repairs

HP Compressor Seal Ring Assembly - Replace the Seal Ring, refer to Repair VRS6113, TASK 72-32-23-300-009 (REPAIR-009).

NOTE

Equivalent materials or equipment can be used.
More equipment and materials necessary to do this Repair are in TASKS given below:
TASK 70-09-00-400-501
TASK 70-11-01-300-503
TASK 70-11-14-300-503
TASK 70-12-02-120-501
TASK 70-38-21-380-501

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Chemical cleaning equipmentLOCALChemical cleaning equipment
Paint brushLOCALPaint brush
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Abrasive blast equipmentLOCALAbrasive blast equipment
Paint spray equipmentLOCALPaint spray equipment
Conductivity meterLOCALConductivity meter

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-005 SOLVENT CLEANER72190CoMat 01-005
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 05-003 ABRASIVE MEDIUM ALUMINUM OXIDE, 120/220 GRADELOCALCoMat 05-003
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-073 INK, METAL MARKING88303CoMat 06-073
CoMat 07-024 AEROLAC METAL PROTECTIVE VARNISH, CLEARLOCALCoMat 07-024
CoMat 07-035 CORROSION RESISTANT COATINGLOCALCoMat 07-035
CoMat 07-037 CORROSION RESISTANT TOUCH-UP COATINGLOCALCoMat 07-037
CoMat 07-038 AIR DRYING ENAMELK3504CoMat 07-038

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-23-110-057 Clean the Assembly

      1. Chemically clean the ring seal carrier assembly.

      1. Refer to the SPM TASK 70-11-03-300-503.

    2. SUBTASK 72-32-23-350-081 Make Smooth the Damaged Area(s)

      1. Rub down the damaged area(s) for repair, feather the edges and make smooth.

    3. SUBTASK 72-32-23-110-070 Clean the Repair Area(s)

      1. Chemically clean the area(s) for repair.

      1. Refer to the SPM TASK 70-11-14-300-503.

      2. Use a paint brush and CoMat 01-005 SOLVENT CLEANER.

    4. SUBTASK 72-32-23-380-057 Touch-up the Damaged Coating

      1. Touch-up the damaged coating.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-010.

    5. SUBTASK 72-32-23-350-082 Identify the Part

      1. Re-identify the assembly part number (as necessary).

      1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-002.

      3. Mark on the part number if it has been removed during touch-up repair.

    6. SUBTASK 72-32-23-110-071 Clean the Assembly

      1. Chemically clean the seal ring carrier assembly.

      1. Refer to the SPM TASK 70-11-03-300-503.

    7. SUBTASK 72-32-23-320-054 Remove the Retainer and Seal Ring

      1. Remove the retainer and seal ring.

      1. Refer to Repair VRS6113, TASK 72-32-23-300-009 (REPAIR-009).

      2. Discard the retainer.

        NOTE

        Do not discard the seal ring.

    8. SUBTASK 72-32-23-110-072 Remove the Paint

      1. Remove the paint from the seal ring carrier.

      1. Refer to TASK 72-32-23-100-000 (CLEANING-000).

    9. SUBTASK 72-32-23-230-068 Do a Crack Test

      1. Penetrant crack test the seal ring carrier and seal ring.

      1. Refer to TASK 72-32-23-200-000 (INSPECTION-000).

      2. Use penetrant crack test equipment.

    10. SUBTASK 72-32-23-110-073 Chemically Clean

      1. Chemically clean the seal ring carrier and seal ring.

      1. Refer to the SPM TASK 70-11-03-300-503.

    11. SUBTASK 72-32-23-120-052-A00 Abrasive Blast, Assembly A

    1. Refer to Figure.

    4. Remove masking tape.

    12. SUBTASK 72-32-23-120-052-B00 Abrasive Blast, Assembly B

    1. Refer to Figure.

    4. Remove the masking tape.

    13. SUBTASK 72-32-23-120-052-C00 Abrasive Blast, Assembly C

    1. Refer to Figure.

    4. Remove the masking tape.

    14. SUBTASK 72-32-23-380-054-A00 Apply the Surface Protection, Assembly A

    1. Refer to Figure.

      2. Mask the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to TASK 70-38-21-380-501, SUBTASK 70-38-21-380-007 (type B coating).

      2. NOTE

        Remove the masking tape before you stove the corrosion resistant coating.

    15. SUBTASK 72-32-23-380-054-B00 Apply the Surface Protection, Assembly B

    1. Refer to Figure.

      2. Mask the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-007 (type B coating).

      2. NOTE

        Remove the masking tape before you stove the corrosion resistant coating.

    16. SUBTASK 72-32-23-380-054-C00 Apply the Surface Protection, Assembly C

    1. Refer to Figure.

      2. Mask the areas not to be painted.

      3. Apply the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-380-007 (type B coating).

      2. NOTE

        Remove the masking tape before you stove the corrosion resistant coating.

    17. SUBTASK 72-32-23-220-062 Examine the Surface Protection

      1. Examine the surface protection.

      1. Refer to the SPM TASK 70-38-21-380-501, SUBTASK 70-38-21-220-001 (type B coating).

      2. Do a conductivity check.

    18. SUBTASK 72-32-23-320-055 Install the Seal Ring and Retainer

      CAUTION

      DO NOT DAMAGE THE SURFACE PROTECTION.

      1. Assemble the seal ring carrier, seal ring and retainer.

      1. Refer to VRS6113, TASK 72-32-23-300-009, (REPAIR-009).

        NOTE

        Install a new or the initial seal ring as necessary.

    19. SUBTASK 72-32-23-350-058 Identify the Repair and the Part

      1. Re-identify the assembly part number.

        1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-002.

        2. Mark on the part number adjacent to the existing markings which are under the surface protection.

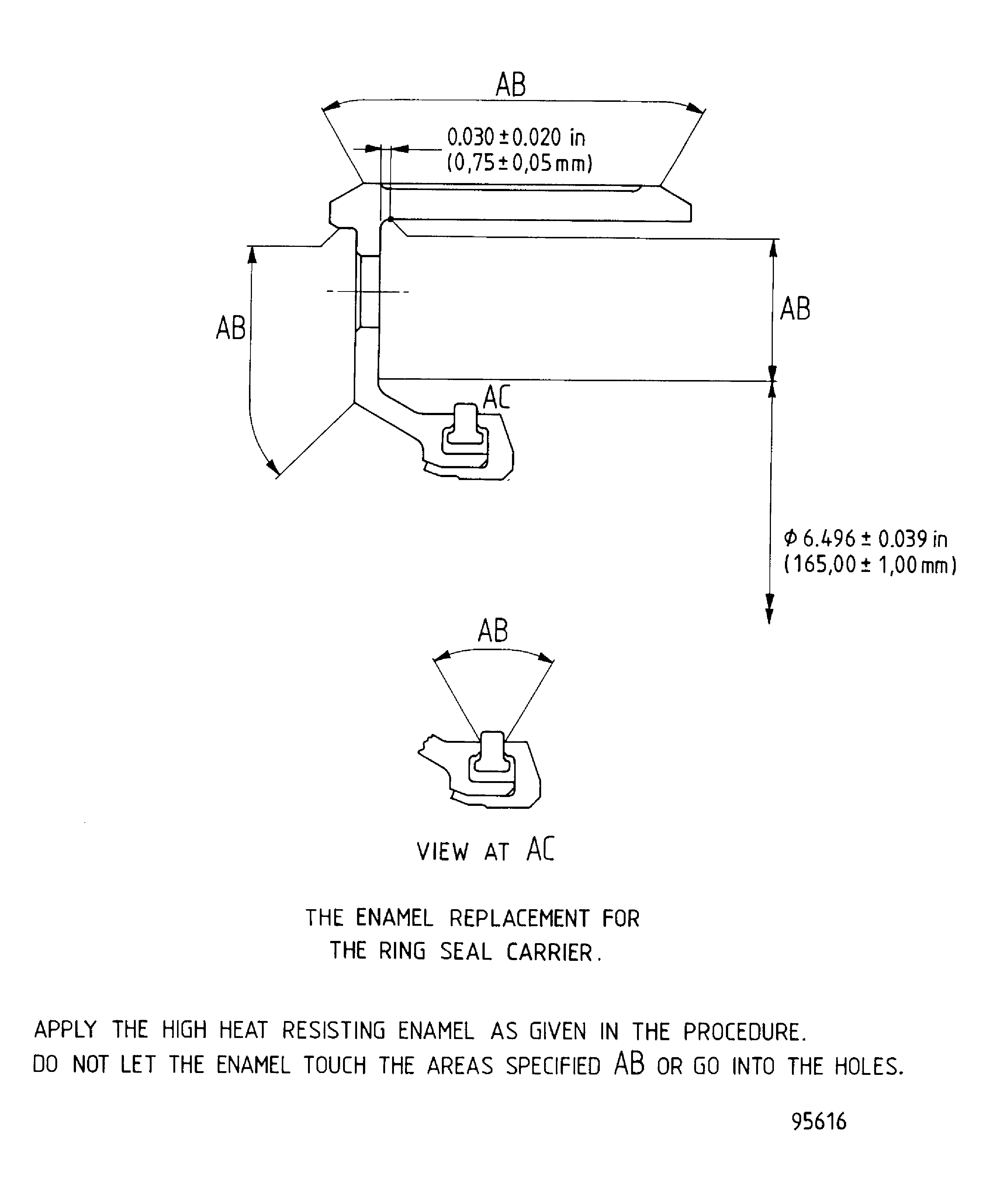

    20. Figure: Repair details and dimensions - Assembly A

    Repair details and dimensions - Assembly A

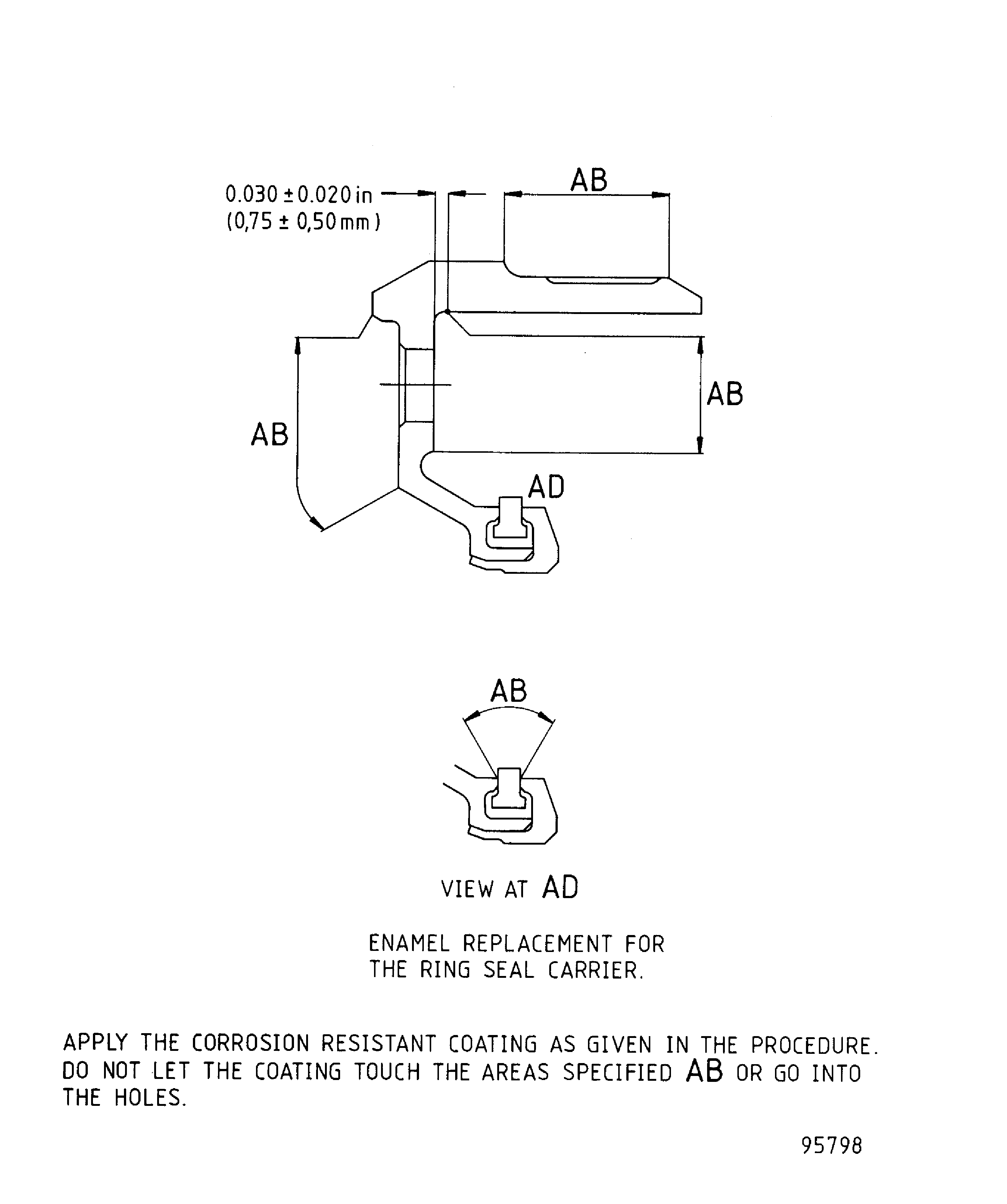

    Figure: Repair details and dimensions - Assembly B

    Repair details and dimensions - Assembly B

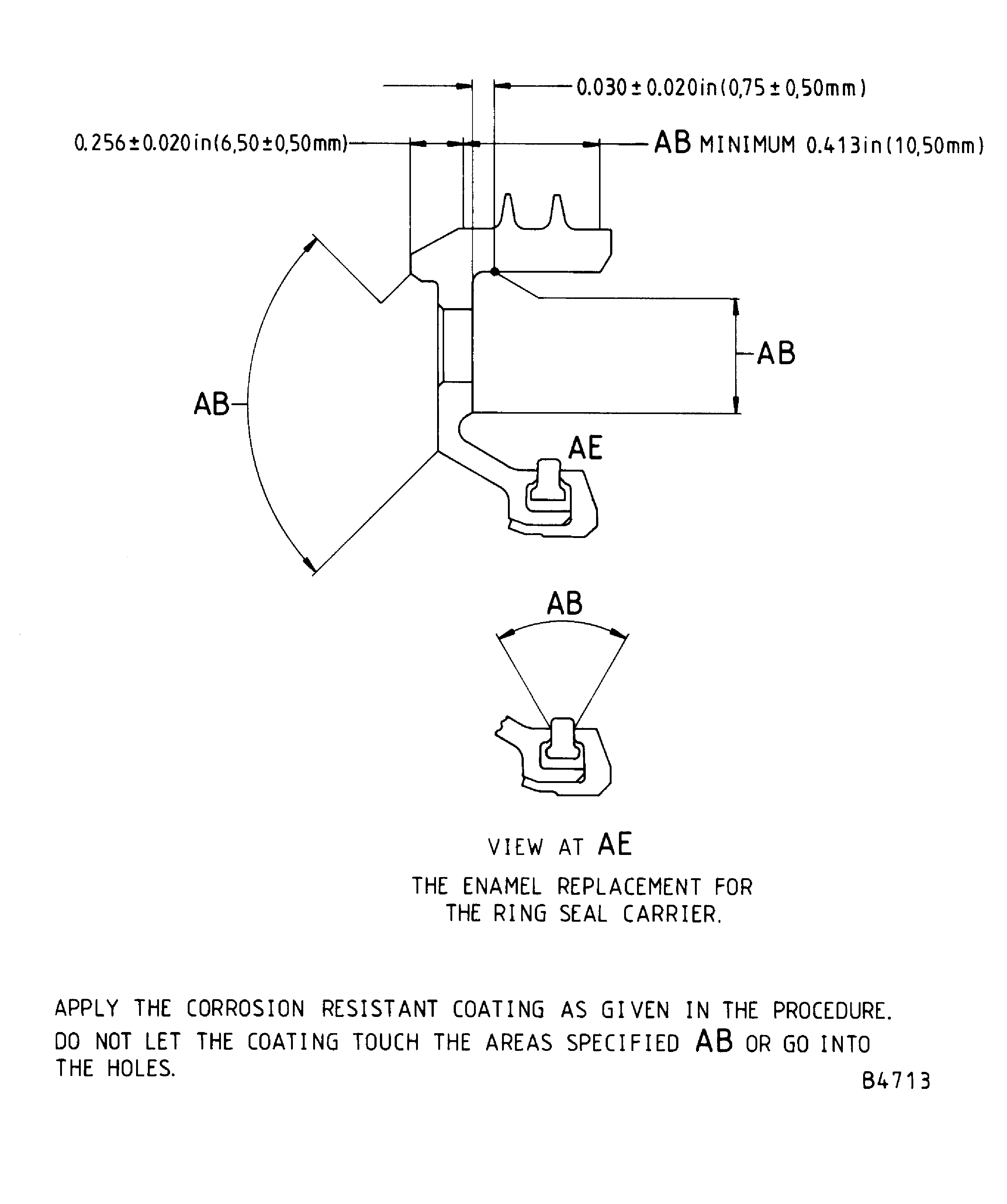

    Figure: Repair details and dimensions - Assembly C

    Repair details and dimensions - Assembly C

Requirements After Job Completion

Follow-On Conditions

NONE
