TASK 72-32-23-300-014 HPC Front Shaft Assembly - Blend Repair, Repair-014 (VRS1990)

DMC:V2500-A0-72-32-2302-02A-649A-C|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-23-300-014 HPC Front Shaft Assembly - Blend Repair, Repair-014 (VRS1990)

Effectivity

FIG/ITEM

PART NO.

01-745

6A2914

01-745

6A2940

01-745

6A3888

01-745

6A3899

01-745

6A4147

01-745

6A8083

01-745

6A8094

Material of component

PART IDENT

SYMBOL

MATERIAL

HP Compressor front stubshaft

TEG

Titanium aluminum vanadium

alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPP.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-019 WATERPROOF SILICON CARBIDELOCALCoMat 05-019
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY)LOCALCoMat 06-022

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-23-350-011 Remove the Damage on the Spline

    1. Refer to Figure.

      2. CAUTION

        TITANIUM COMPONENT - SILICON CARBIDE TYPE WHEELS, STONES AND ABRASIVE PAPERS ARE TO BE USED FOR THIS REPAIR.

        CAUTION

        TITANIUM COMPONENT - ALUMINUM OXIDE MUST NOT BE USED.

        CAUTION

        TITANIUM COMPONENT - THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY. IF THE MATERIAL SHOWS A CHANGE IN COLOR, TO DARKER THAN A LIGHT STRAW COLOR, THE COMPONENT IS TO BE REJECTED.

        Dress to remove the nicks, dents, galling, chips, scores and/or scratches.

      1. Use Portablegrinding equipment or abrasive stone.

      2. Refer to the SPM TASK 70-35-03-300-501.

      3. Make smooth and/or hand polish the repaired area.

      2. Surface finish of the repair must be the same as the adjacent area.

      3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-23-220-118 Examine the Repair

      1. Visually examine the repaired area.

      1. Visually examine the repaired area for nicks, dents, galling, chips, scores and/or scratches using 10X magnifying glass.

      3. If nicks, dents, galling, chips, scores and/or scratches are found, do Step again.

    3. SUBTASK 72-32-23-230-081 Do a Crack Test

      1. Do a local penetrant crack test.

      1. Refer to the SPM TASK 70-23-05-230-501.

      3. Cracks are not permitted.

    4. SUBTASK 72-32-23-350-012 Identify the Repair

    1. Refer to Figure.

      2. Mark the part with VRS1990 adjacent to the part number.

      1. Refer to the SPM TASK 70-09-00-400-501.

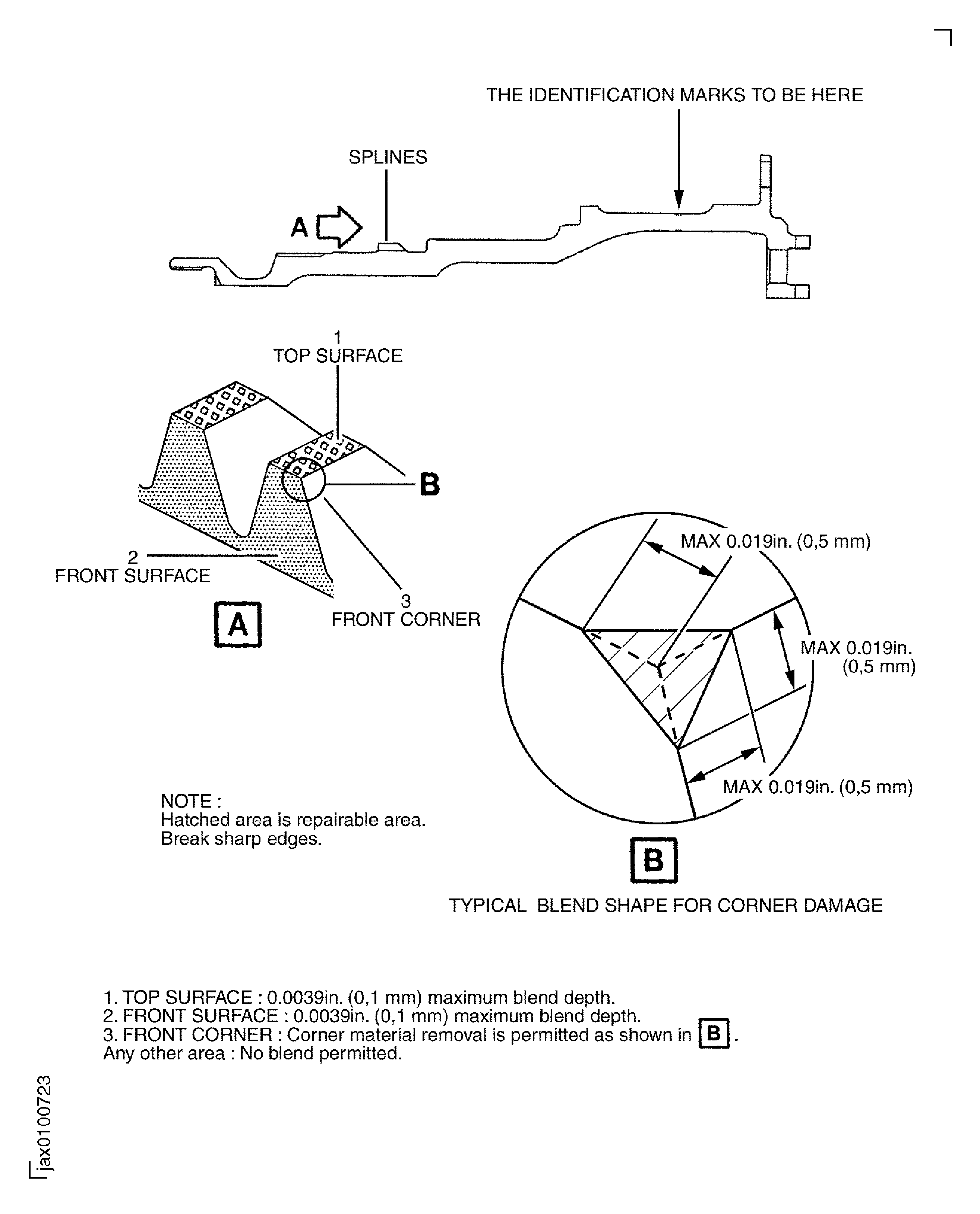

    5. Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
