TASK 72-32-26-300-005 Gearbox Driving Bevel Gearshaft (83T) - Blend Repair, Repair-005 (VRS1240)
Material of component
IAE | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
83T wheel bevel gearshaft | Non corrosion resistant steel |
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Magnetic particle inspection equipment | LOCAL | Magnetic particle inspection equipment | ||
| Portablegrinding equipment | LOCAL | Portable grinding equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-019 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-019 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Use portable grinding equipment, abrasive stone or CoMat 05-019 WATERPROOF SILICON CARBIDE, CoMat 05-020 WATERPROOF SILICON CARBIDE and CoMat 05-021 WATERPROOF SILICON CARBIDE and/or fine file.
Surface finish of the repaired area must be the same as the adjacent surface.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Scallop, make smooth and/or hand polish to remove the nicks, scratches and/or burrs.
SUBTASK 72-32-26-350-053 Remove the Damage of the 83T Wheel Bevel Gearshaft
Make sure there are no cracks in the repaired area.
Refer to TASK 72-32-26-200-003 (INSPECTION/CHECK-003, CONFIG-001).
Refer to the SPM TASK 70-24-01-240-501.
Magnetic particle examine the repaired area.
SUBTASK 72-32-26-240-053 Examine the 83T Wheel Bevel Gearshaft

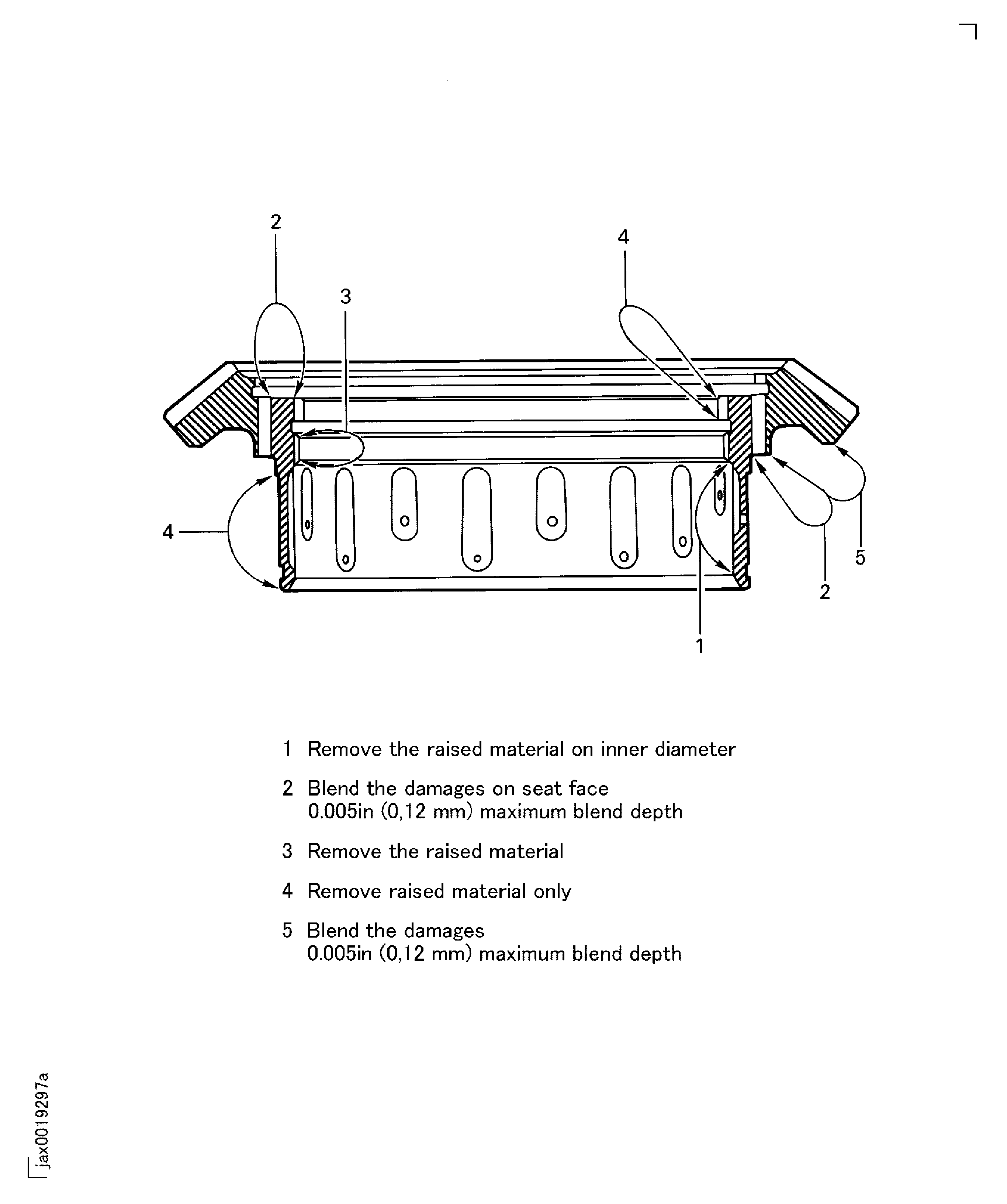

Figure: 83T wheel bevel gearshaft - Repair limit
83T wheel bevel gearshaft - Repair limit
