TASK 72-32-40-040-001 No. 1 Bearing And Support Assembly - Disassemble, Disassembly-001

DMC:V2500-A0-72-32-4000-00A-530A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-40-040-001 No. 1 Bearing And Support Assembly - Disassemble, Disassembly-001

General

This TASK gives the procedure to remove the oil feed tube and the oil jet from the No. 1 bearing support.

SBE 72-0391 standard No. 1 bearing support includes the No. 1 bearing front support and the No. 1 bearing rear support. Procedure to disassemble the No. 1 bearing support is given in TASK 72-32-41-040-001 (DISASSEMBLY, PB-501).

Fig/item numbers in parentheses in the procedure agree with those used in the IPC. Only the primary Fig/item numbers are used. For the service bulletin alpha variants refer to the IPC.

Discard all rubber seal rings, cotter pins and seal washers removed in this procedure.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-40-040-051 Remove the Oil Jet and Oil Feed Tube Assembly from the No. 1 Bearing Support Assembly

    1. Refer to Figure.

    2. Put the No. 1 bearing support assembly on a work bench horizontally.

    3. Put two applicable blocks adjacent to the No. 1 bearing support assembly to hold it.

    4. Remove the two screw bolts, nuts and washers which safety the No. 1 bearing oil jet to the front flange of the bearing support.

      NOTE

      Hold the oil jet and oil feed tube assembly before the bolts are removed.

    5. Remove the bolt No. 1 Bearing Front Support And Rear Support Assembly (72-32-41,01-110) from the bracket of the bearing support and remove the oil jet and oil feed tube assembly.

    2. SUBTASK 72-32-40-040-052 Remove the Oil Feed Tube from the Oil Jet Assembly

    1. Refer to Figure.

    2. Disconnect the oil feed tube from the oil jet assembly.

    3. Remove the two seal rings from the oil feed tube and discard them.

    4. Remove the inner and outer clips and the bushing from the oil feed tube.

    3. SUBTASK 72-32-40-040-053 Remove the Oil Jet and the Oil Jet Strainer from the Strainer Housing

    1. Refer to Figure.

    2. Remove the two bolts, nuts and washers and remove the No. 1 bearing oil jet from the strainer housing.

    3. Remove the oil jet strainer from the strainer housing.

    4. SUBTASK 72-32-40-040-054 Disassemble the No. 1 Bearing Support (SBE 72-0391)

    1. Disassemble the No. 1 bearing support. Refer to TASK 72-32-41-040-001 (DISASSEMBLY).

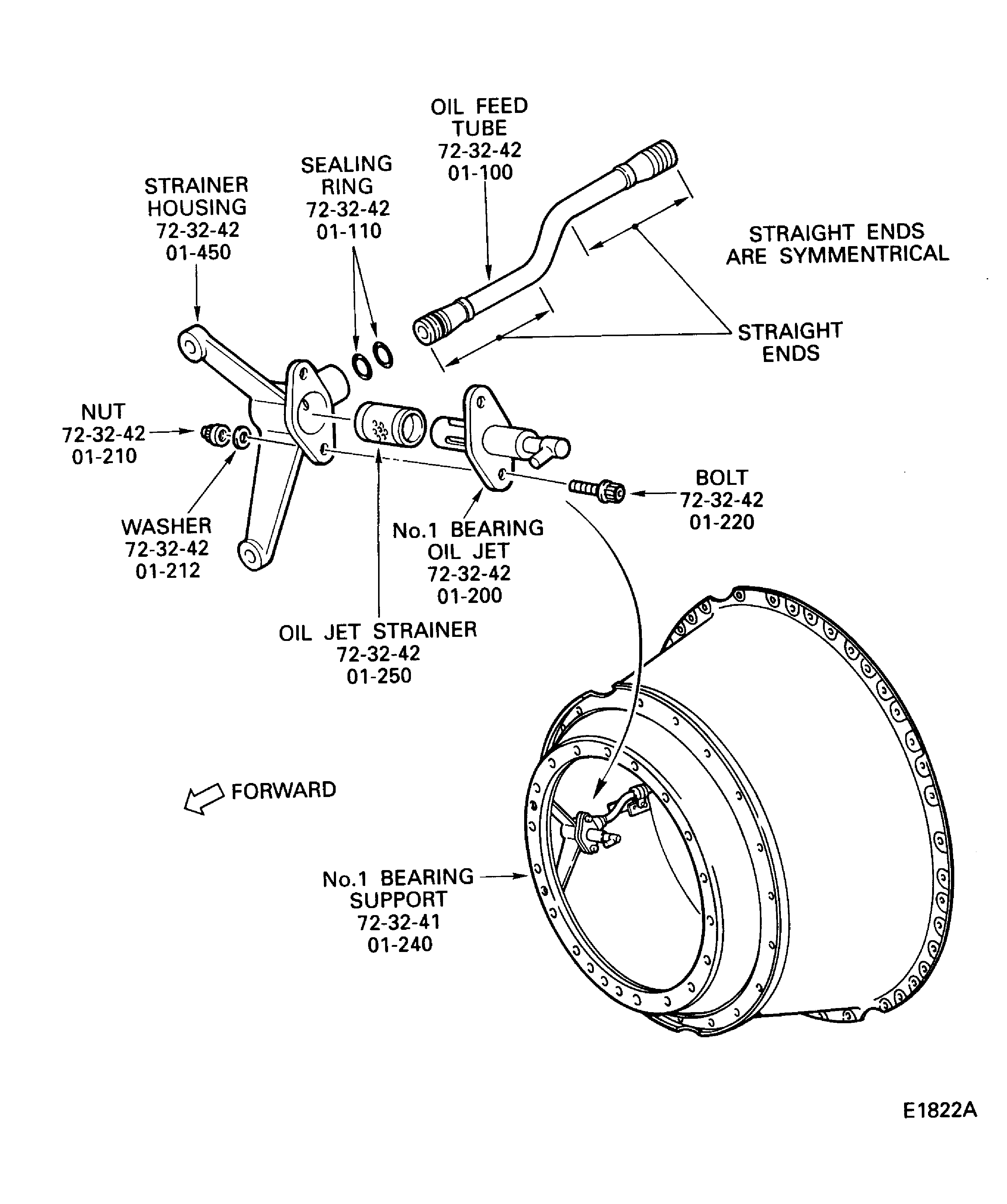

    5. Figure: View of the No. 1 bearing support assembly

    Sheet 1

    Legend
    View of the No. 1 bearing support assembly

    Sheet 1

    Close

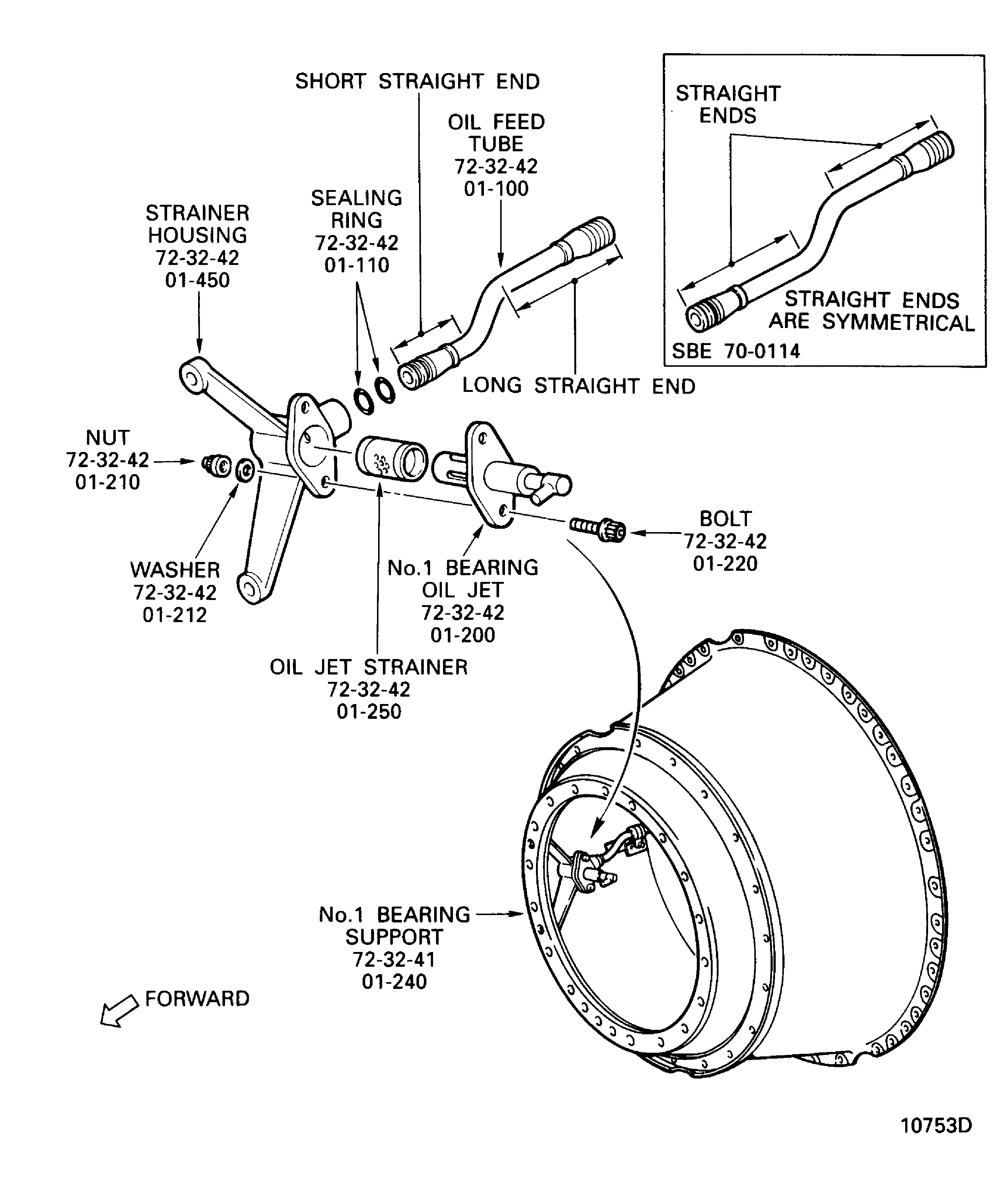

    Figure: V2500-A1: View of the No. 1 bearing support assembly

    Sheet 2

    Legend
    V2500-A1: View of the No. 1 bearing support assembly

    Sheet 2

    Close

    Figure: V2500-A5: View of the No. 1 bearing support assembly

    Sheet 3

    Legend
    V2500-A5: View of the No. 1 bearing support assembly

    Sheet 3

    Close
