TASK 72-32-41-300-013 No. 1 Bearing Front Support - Touch Up The Damaged Paint, Repair-013 (VRS1962)

DMC:V2500-A0-72-32-4103-00A-257A-C|Issue No:002.00|Issue Date:2021-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-41-300-013 No. 1 Bearing Front Support - Touch Up The Damaged Paint, Repair-013 (VRS1962)

Effectivity

FIG/ITEM

PART NO.

01-300

5W2323

Material of component

PART IDENT

SYMBOL

MATERIAL

No. 1 bearing front support assembly

17-4PH

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
ScalpelLOCALScalpel
BrushLOCALBrush
Spray gunLOCALSpray gun

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING76381CoMat 02-019
CoMat 05-020 WATERPROOF SILICON CARBIDE1E1X8CoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE1E1X8CoMat 05-021
CoMat 07-062 TWO-PACK EPOXY FINISH, GREY, AIRCRAFT, BS381C 6935HCF1CoMat 07-062
CoMat 07-117 EPOXY MATT FINISH-BLACKK2096CoMat 07-117
CoMat 07-118 CATALYST (FOR GLOSS FINISH)K2096CoMat 07-118
CoMat 07-119 EPOXY GLOSS FINISH-WHITEK2096CoMat 07-119
CoMat 07-120 CATALYST (FOR MATT FINISH)K2096CoMat 07-120

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-41-110-057 Clean the Area for Repair

      CAUTION

      SURFACES FOR REPAIR MUST BE FULLY CLEANED AND NOT TOUCHED BY HAND.

      1. Clean the area to be coated.

      1. Refer to the SPM TASK 70-11-26-300-503.

    2. SUBTASK 72-32-41-350-002 Prepare the No. 1 Bearing Front Support Assembly for Surface Protection

    1. Refer to Figure.

      2. If epoxy varnish coat are damaged, carefully cut away any epoxy varnish coat.

      1. Use a scalpel.

      3. Rub down the damaged area for repair, feather the edges and make smooth.

    3. SUBTASK 72-32-41-110-058 Clean the Area for Repair

      1. Clean the area to be coated.

      1. Refer to the SPM TASK 70-11-26-300-503.

    4. SUBTASK 72-32-41-350-003 Touch Up Damaged Paint of the No. 1 Bearing Front Support

    1. Refer to Figure.

      NOTE

      This procedure is only used when the epoxy varnish coat is damaged.

      3. Touch up the damaged coating.

        1. or.

          or.

        1. The mixture must be allowed to stand for 30 minutes before use.

        2. Refer to the SPM SUBTASK 70-38-34-300-002.

    4. Remove the masking tape.

    5. SUBTASK 72-32-41-210-001 Examine the Repaired Area of the No. 1 Bearing Front Support Assembly

    1. Refer to Figure.

      2. Visually examine the repaired areas.

      1. Make sure the surface is smooth.

      2. It is accepted if the color is not equal.

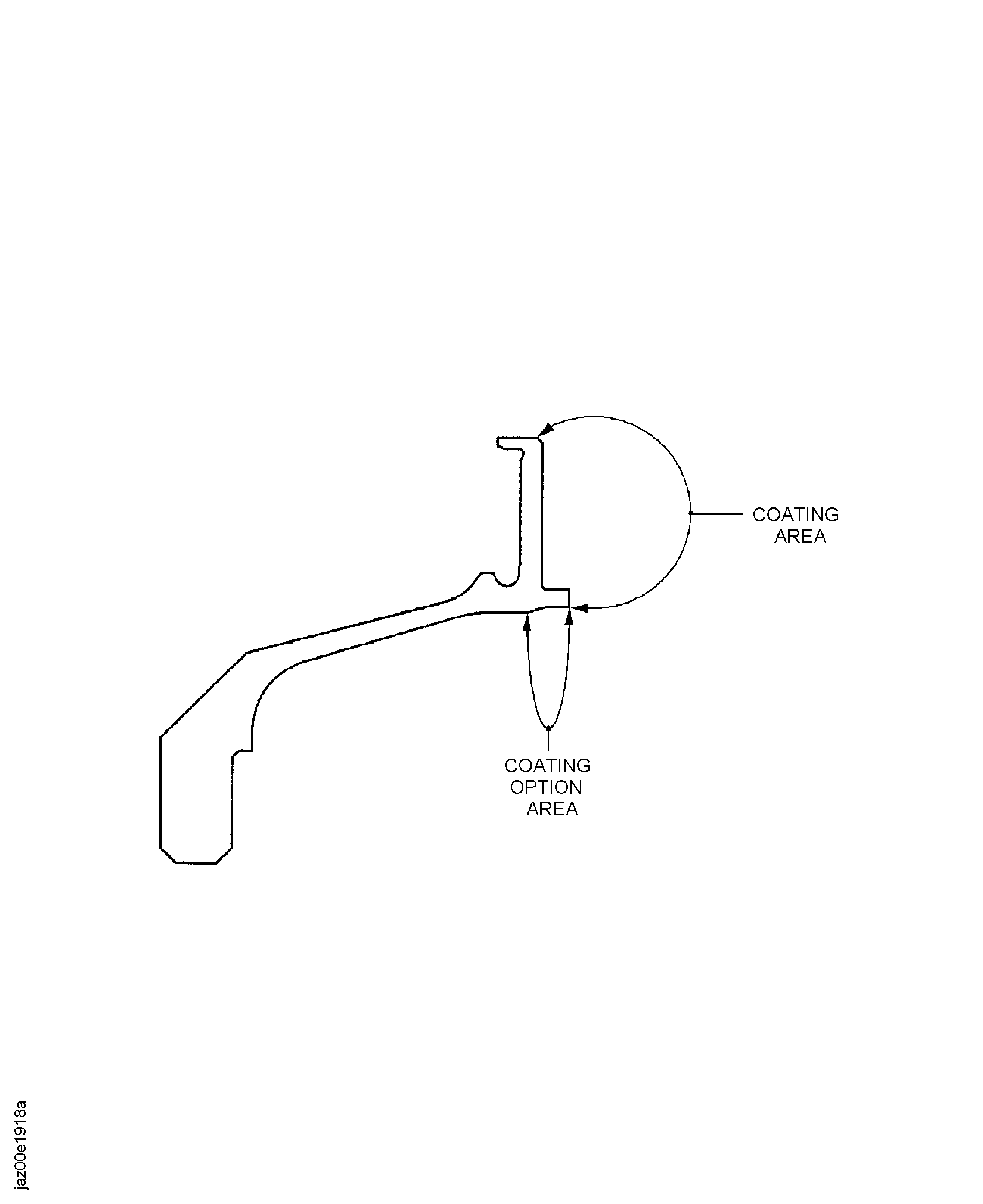

    6. Figure: Repair Details

    Repair Details

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Updated Figure 1 to add Coating Area (03VJ704C)

Manufacturer Code:1E1X8
Enterprise Name:SAINT-GOBAIN CERAMICS AND PLASTICS, INC
BU Name:SAINT-GOBAIN CERAMICS AND PLASTICS, INC
Street:1 NEW BOND ST
City:WORCESTER
State:MA
Zip Code:01606
Country:UNITED STATES OF AMERICA
Phone Number:1-508-795-5000, 1-800-243-0028
Fax Number:1-508-795-2380
Internet:www.saint-gobain-northamerica.com
Manufacturer Code:5HCF1
Enterprise Name:PPG AEROSPACE
BU Name:PPG AEROSPACE
Street:12780 SAN FERNANDO RD
City:SYLMAR
State:CALIFORNIA
Zip Code:91342
Country:UNITED STATES OF AMERICA
Manufacturer Code:76381
Enterprise Name:3M COMPANY
BU Name:3M COMPANY
Department:3M CENTER
City:ST PAUL
State:MN
Zip Code:55144-1000
Country:USA
Phone Number:1-651-733-1110
Fax Number:1-651-733-9973
Internet:www.mmm.com
Manufacturer Code:K2096
Enterprise Name:TYGAVAC ADVANCED MATERIALS
BU Name:TYGAVAC ADVANCED MATERIALS
Building:KINGWAY WEST BUSINESS PARK
Street:MOSS BRIDGE ROAD
City:ROCHDALE
Zip Code:OL16 5LX
Country:ENGLAND
Phone Number:44-1706-649222
Fax Number:44-1706-649611
Email:sales@tygavac.co.uk
Internet:www.tygavac.co.uk
