TASK 72-32-51-300-004 LP Rotor Center Shaft - Replace The Anti Fret Shims, Repair-004 (VRS1279)
General
This repair TASK gives the procedure for replacing shims.
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Shaft | Titanium alloy | |
Shim | Corrosion and heat resistant | |
steel |
Price and availability
Refer to IAE for any of these items.
Tools
Repair parts
Repair of spares
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 04-005 JOINTING COMPOUND, MEDIUM GRADE | LOCAL | CoMat 04-005 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Self locking shank nut | AS27891 | |||
| Anti fret shim | 5R0358 |
Safety Requirements
NONEProcedure
Repair, VRS1277 TASK 72-32-51-300-003 (REPAIR-003).
Remove the self locking shank nuts.
SUBTASK 72-32-51-350-054 Remove the Existing Self Locking Shank Nuts (01-150) and the Anti Fret Shim (01-160)
Repair, VRS1277 TASK 72-32-51-300-003 (REPAIR-003).
Install the new self locking shank nuts.
SUBTASK 72-32-51-350-055 Install the New Anti Fret Shim (01-160) and the Self Locking Shank Nuts (01-150)
Refer to TASK 72-32-51-200-000 (INSPECTION-000).
Use 10X magnifying glass.
Make sure that no nicks, burrs and scores exist.
Visually examine the repaired area.
SUBTASK 72-32-51-220-061 Examine the Shaft (01-100)

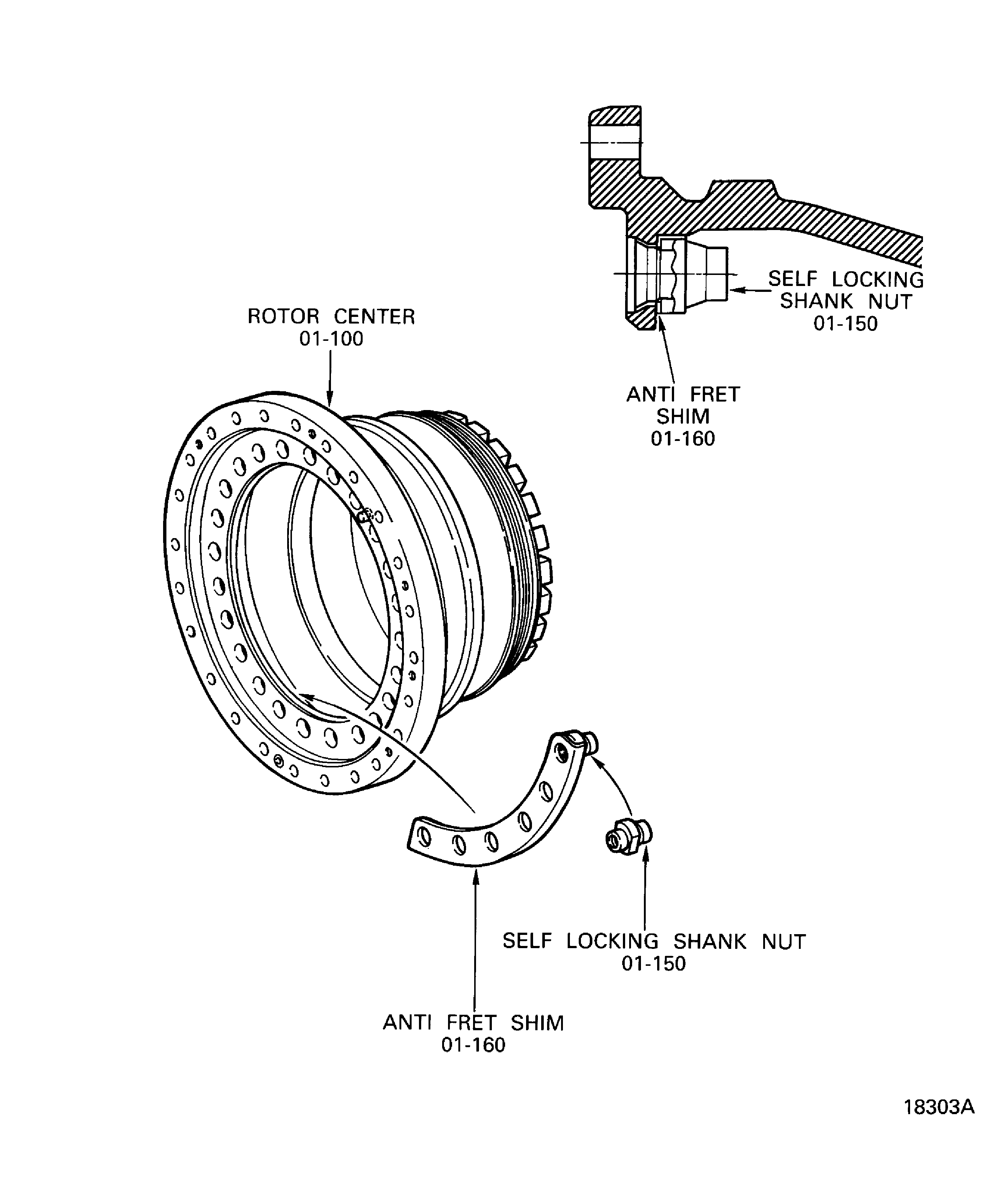

Figure: Shim
Shim
