TASK 72-32-51-300-021 Front Seal Runner Ring - Repair By Coating The Snap Diameter, Repair-021 (VRS1945)

DMC:V2500-A0-72-32-5102-01A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-021 Front Seal Runner Ring - Repair By Coating The Snap Diameter, Repair-021 (VRS1945)

Effectivity

FIG/ITEM

PART NO.

01-200

5R0400

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Seal runner

General

Price and availability

Refer to IAE for any of the following:

Tools

Engine parts

Repair of spares

The practices and processes referred to in the procedure by the TASK number are in the SPM.

This Repair scheme gives the procedure for coating the snap diameter of the seal runner.

NOTE

Equivalent equipment may be used.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Grinding machineLOCALGrinding machine
Abrasive blasting facilityLOCALAbrasive blasting facility
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent Penetrant Inspection Equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-051 HIGH TEMPERATURE GLASS CLOTH TAPE0AM53CoMat 02-051
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADELOCALCoMat 05-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-324-055 Machine the Worn Snap Diameter

    1. Refer to Figure.

      2. Attach the seal runner on the grinding machine, set the seal runner to run true.

      1. Use grinding machine.

      3. Grind the snap diameter to between 10.4055 in (264.3 mm) and 10.394 in. (264.00 mm).

      1. Hold the diameter to a minimum to allow for subsequent repairs. However, any previous coating and damage must be removed.

    2. SUBTASK 72-32-51-220-107 Examine the Seal Runner

      1. Visually examine the machined area.

      1. Refer to the SPM TASK 70-21-01-220-501.

    3. SUBTASK 72-32-51-230-059 Examine the Seal Runner for Cracks

      1. Do a crack test.

        1. Cracks are not permitted.

        1. Refer to the SPM TASK 70-23-01-230-501.

    4. SUBTASK 72-32-51-120-052 Abrasive Blast the Seal Runner

      1. Mask off areas that are not to be plasma sprayed.

      2. Abrasive blast seal runner surface to be plasma sprayed.

    5. SUBTASK 72-32-51-340-052 Apply Metal Plasma on the Snap Diameter

    1. Refer to Figure.

      2. Touch up masking if necessary.

      3. Apply plasma spray. Maximum diameter of 10.376 in. (263.55 mm) is required after plasma spraying.

    6. SUBTASK 72-32-51-324-056 Machine the Snap Diameter

    1. Refer to Figure.

      2. Grind the plasma sprayed snap diameter to between 10.3879 in. (263.852 mm) and 10.3859 in. (263.800 mm) with 63 microinches (1.6 micrometers) surface finish.

      1. Use grinding machine.

    7. SUBTASK 72-32-51-220-108 Examine the Seal Runner

      1. Visually examine the seal runner.

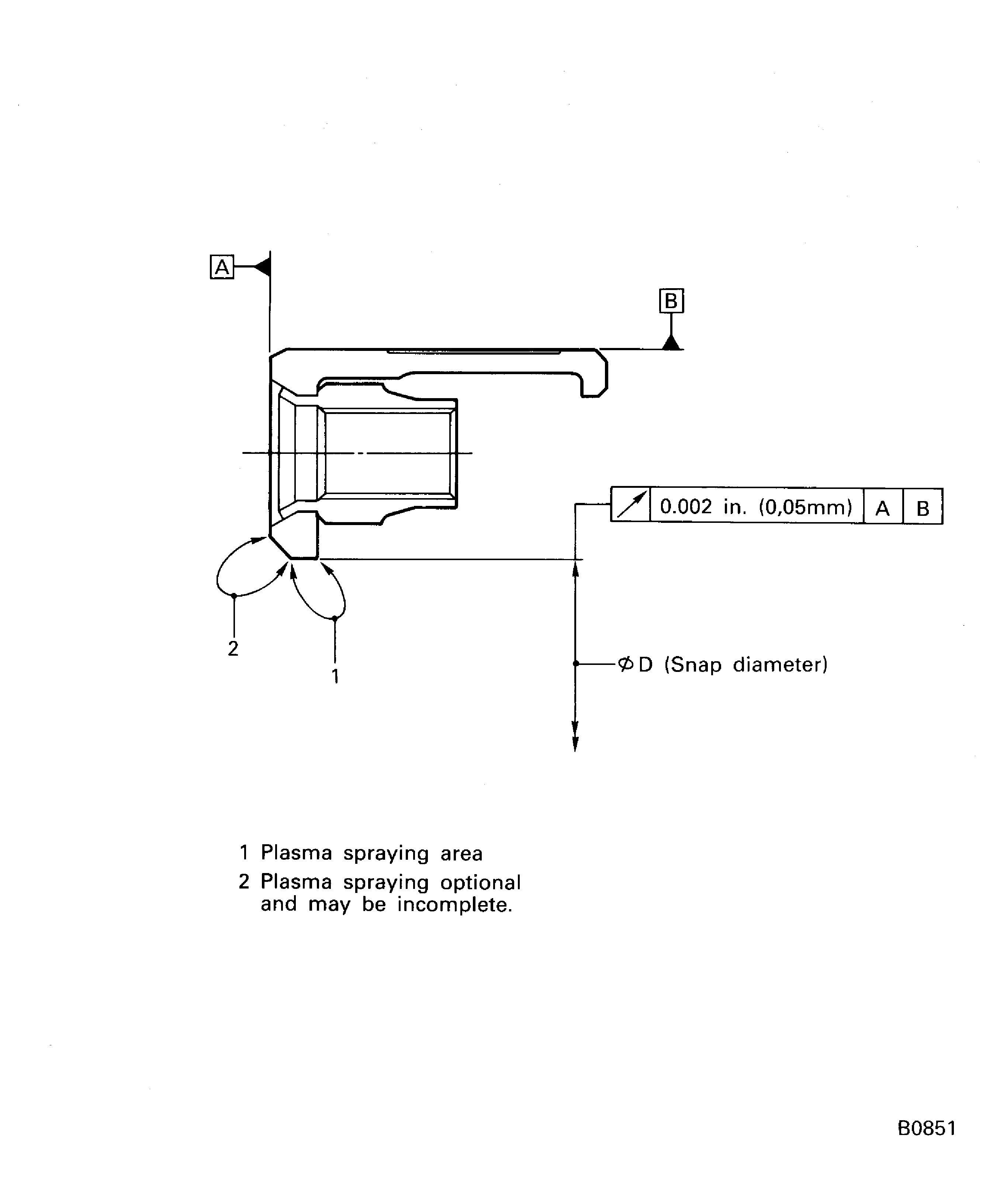

    8. Figure: Plasma spraying

    Plasma spraying

Requirements After Job Completion

Follow-On Conditions

NONE
