TASK 72-32-51-300-002 Phonic NF Probe Wheel - Replace The Timing Pin, Repair-002 (VRS1905)

DMC:V2500-A0-72-32-5103-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-51-300-002 Phonic NF Probe Wheel - Replace The Timing Pin, Repair-002 (VRS1905)

Effectivity

FIG/ITEM

PART NO.

01-250

5A0102

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Phonic wheel

Non-corrosion resistant

steel

General

Price and availability - not applicable

The practices and processes referred to in the procedure by the TASK numbers are in the SPP.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Magnetic particle inspection equipmentLOCALMagnetic particle inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Timing pin5A01011

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-51-350-068 Remove the Defective Timing Pin from the Phonic Wheel Assembly

    1. Refer to Figure.

    2. Examine and identify defective timing pin.

      3. Press out the defective timing pin.

      1. Use hand tools.

    2. SUBTASK 72-32-51-350-077 Prepare the Phonic Wheel Assembly for Timing Pin Replacement

    1. Refer to Figure.

    2. Examine for damage in bore.

      3. Scratches.

      1. Accept.

    5. Dimensionally examine the pin hole.

      6. If hole diameter is between 0.1178 and 0.1183 in. (2.992 and 3.006 mm).

      1. Accept.

      7. More than in Step.

      1. Repair VRS1978, TASK 72-32-51-300-028 (REPAIR-028).

    3. SUBTASK 72-32-51-230-058 Examine the Phonic Wheel Assembly for Cracks

      NOTE

      This SUBTASK is not required after the part was repaired by VRS1978.

      1. Magnetic particle examine the pin hole.

      1. Make sure there are no cracks in the pin hole.

        Refer to the SPM TASK 70-24-01-240-501.

    4. SUBTASK 72-32-51-380-057 Install the New Timing Pin

    1. Refer to Figure.

      2. Clean the new timing pin and the pin hole.

      1. Use clean dry air blast or CoMat 02-099 LINT-FREE CLOTH.

      3. WARNING

        APPROPRIATE PROTECTIVE CLOTHING MUST BE WORN WHEN HANDLING LIQUID NITROGEN AND COOLED COMPONENTS.

        Freeze the timing pin.

      1. Freeze the pin to aid replacement into pin hole.

      4. Install and press the timing pin into the pin hole.

      1. Use hand tools.

    5. SUBTASK 72-32-51-220-102 Examine the Pin Seating

    1. Refer to Figure.

      2. Visually examine the pin seating.

      1. Pin shoulder must be located against flange face.

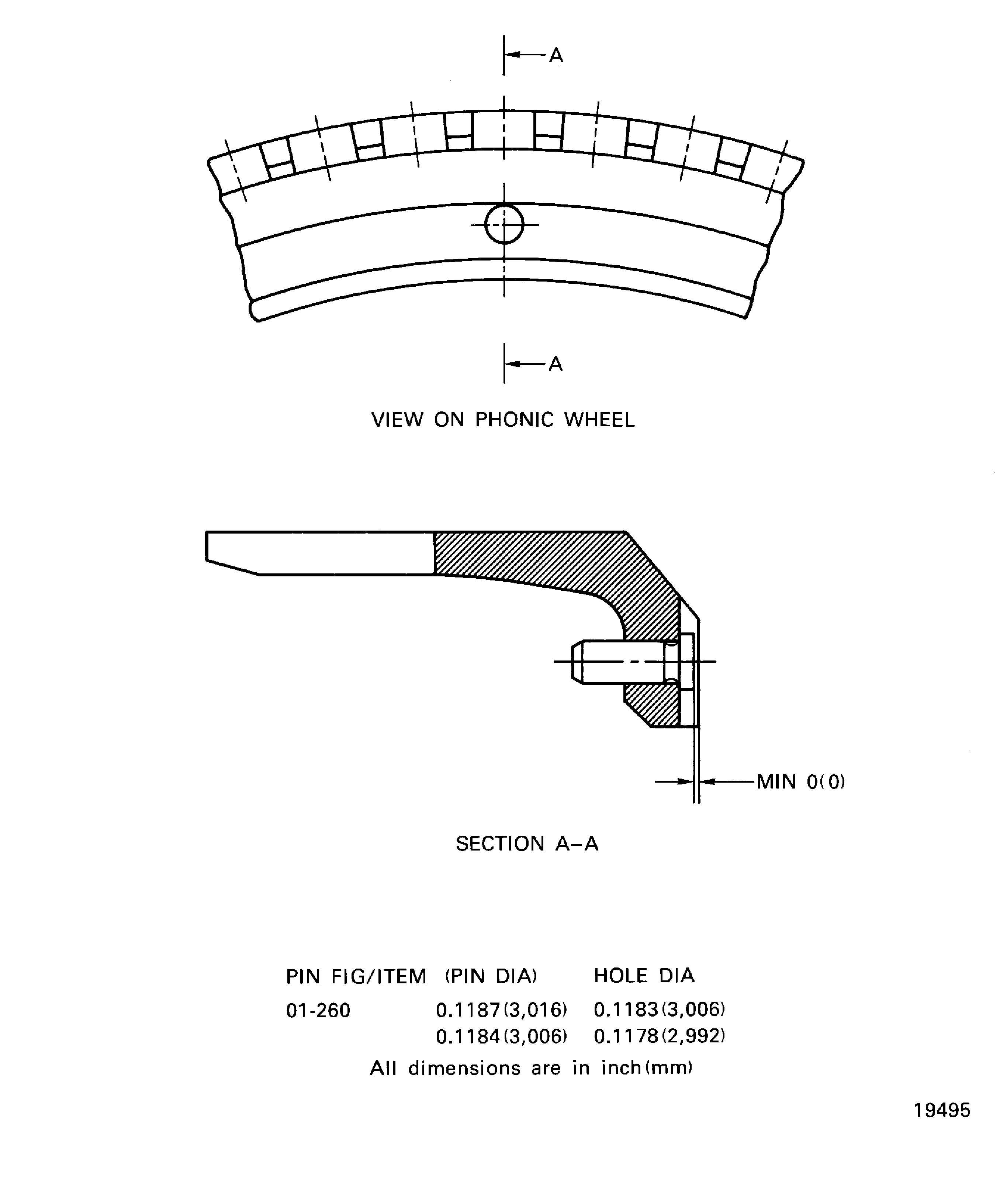

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
