TASK 72-32-55-300-002 Front Bearing Compartment Seal Support - Replace The Insert, Repair-002 (VRS1302)
Material of component
RR | ||
|---|---|---|
DESCRIPTION | SYMBOL | MATERIAL |
Seal support | - | 11Cr-1Mo-0.85Mn-0.65Ni- |
0.25V-0.15C Steel | ||
Seal support (insert) | - | Ni-19.5Cr-18Co-2.5Ti-1.5Al |
General
The practices and processes referred to in the procedure by the TASK number are in the SPM.
For the method to clean the parts, refer to TASK 72-32-55-100-000 (CLEANING-000).
Price and availability - none
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Helicoil insert equipment | LOCAL | Helicoil insert equipment | (Refer to SPM TASK V2500-00-70-35-08-00A-920A-D) |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 04-004 JOINTING COMPOUND, LIGHT GRADE | LOCAL | CoMat 04-004 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Insert, screw thread | AGS3732 | 3 |
Safety Requirements
NONEProcedure
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501.
Remove the damaged helicoil inserts.
SUBTASK 72-32-55-350-053 Remove the Damaged Helicoil Inserts (01-110)
Refer to Figure.
Refer to the SPM TASK 70-35-08-300-501.
Install new inserts.
SUBTASK 72-32-55-350-054 Install the New Inserts (01-110)
Refer to the SPM TASK 70-35-08-300-501.
Examine the inserts and the repaired area.
SUBTASK 72-32-55-220-057 Examine the Installed Inserts (01-110)

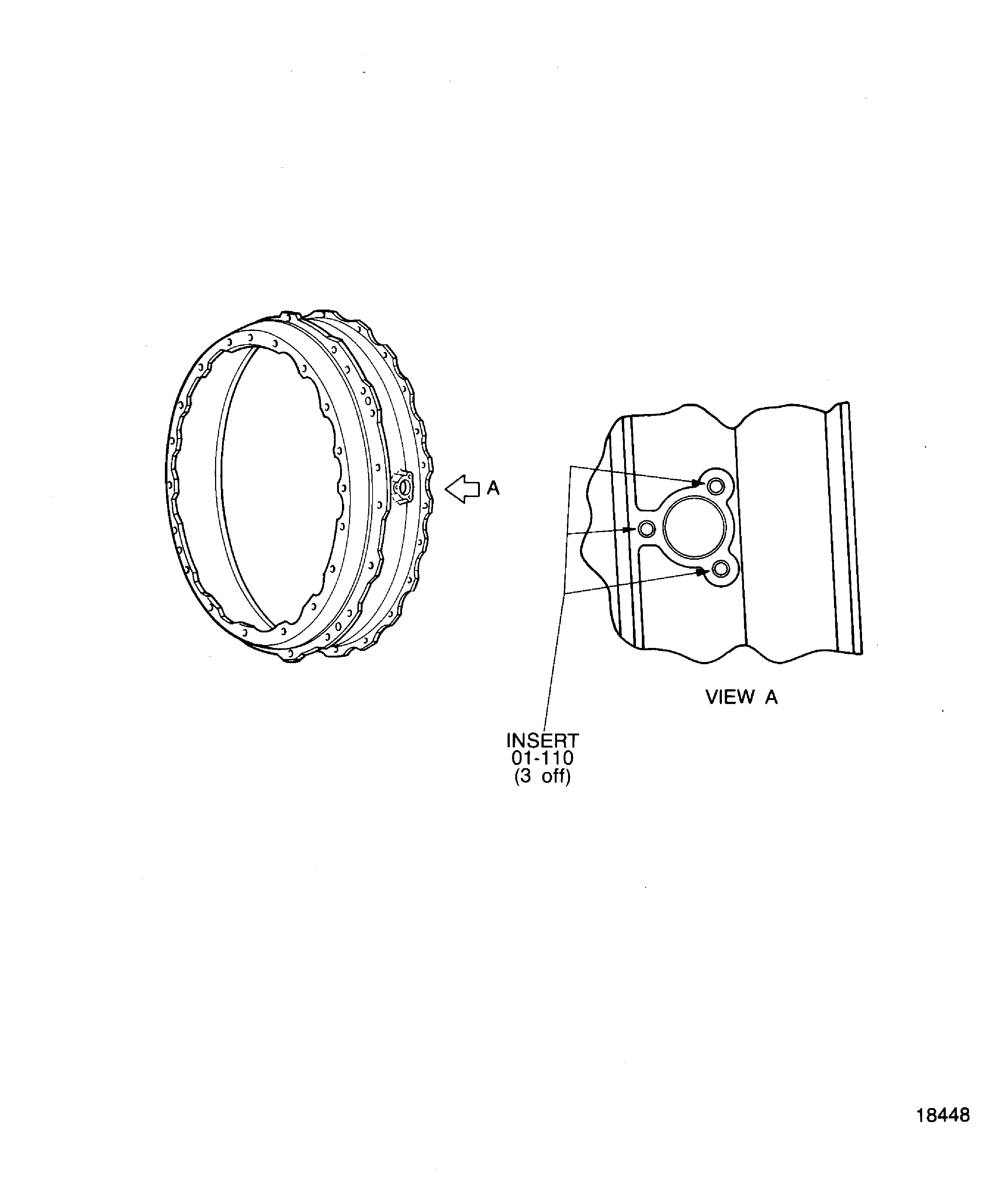

Figure: Replacement of the insert
Replacement of the insert
