TASK 72-32-56-300-002 Front Bearing Compartment Front Air Seal Assembly - Replace The Brush Seal, Repair-002 (VRS1308)
General
Price and availability
Refer to IAE for any of the following:
Tools
Engine parts
Repair of spares
This Repair scheme gives the procedure for replacing of the brush seal.
The practices and processes referred to in the procedure by the TASK number are in the SPM.
A ** following any REPAIR referenced in this repair scheme indicates that the REPAIR is not yet published in the current revision of this manual and the part must be rejected.
Contact IAE for additional information concerning FAA approved repair data.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Hand tools | LOCAL | Tools, hand |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 03-026 LIQUID NITROGEN | LOCAL | CoMat 03-026 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Seal, A/O Brush | 6A2053 | 1 |
Safety Requirements
NONEProcedure
Within the limit in the Figure.
Repair, VRS1309 TASK 72-32-56-300-003**.
Diameter more than in Step.
SUBTASK 72-32-56-220-055 Examine the Inside diameter of the outer FBC front seal
Immerse the brush seal in CoMat 03-026 LIQUID NITROGEN.
WARNING
APPROPRIATE PROTECTIVE CLOTHING MUST BE WORN WHEN HANDLING LIQUID NITROGEN AND COOLED COMPONENTS.Chill the brush seal.
SUBTASK 72-32-56-350-053 Install the Brush Seal
Refer to TASK 72-32-56-200-000.
Do a visual inspection.
SUBTASK 72-32-56-220-056 Examine the FBC Front Seal Assembly

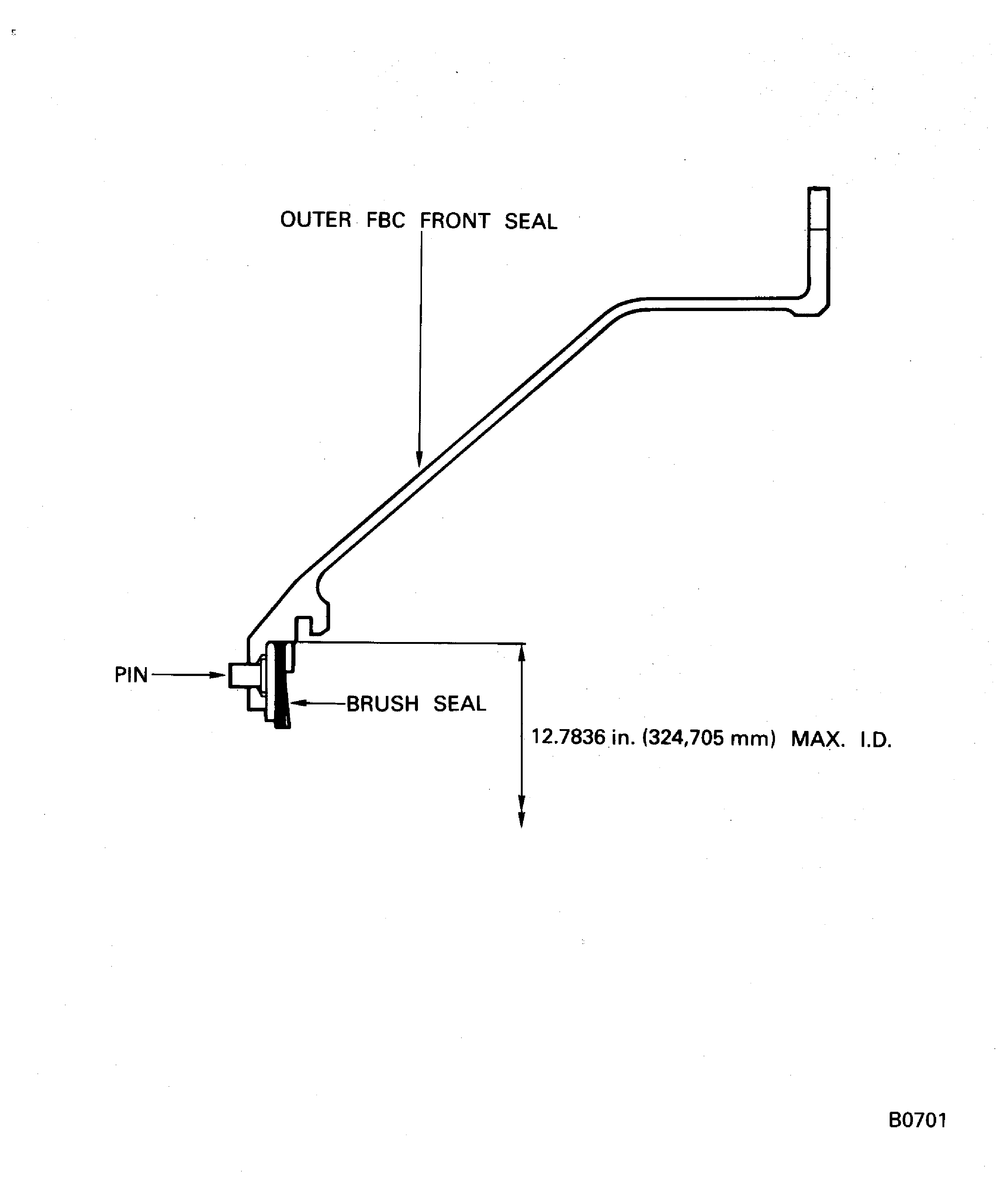

Figure: FBC front air seal
FBC front air seal
