TASK 72-32-56-300-003 Front Bearing Compartment Front Air Seal Holder - Repair By Plasma Spraying The Snap Diameter, Repair-003 (VRS1309)

DMC:V2500-A0-72-32-5601-00A-609A-C|Issue No:002.00|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-56-300-003 Front Bearing Compartment Front Air Seal Holder - Repair By Plasma Spraying The Snap Diameter, Repair-003 (VRS1309)

Effectivity

FIG/ITEM

PART NO.

01-150

5R6131

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Front air seal

-

Titanium alloy

General

Price and availability

Refer to IAE for any of the following

Tools

Engine parts

Repair of spares

The practices and processes referred to in the procedure by the TASK number are in the SPM.

This Repair scheme gives the procedure for plasma spraying the snap diameter of the front air seal.

NOTE

Equivalent equipment may be used.

NOTE

To identify the consumable material refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
LatheLOCALLathe
Grinding machineLOCALGrinding machine
Abrasive blasting facilityLOCALAbrasive blasting facility
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-051 HIGH TEMPERATURE GLASS CLOTH TAPE0AM53CoMat 02-051
CoMat 03-038 METAL SPRAYING POWDER NICKEL ALUMINIUM (95/5)IE200CoMat 03-038
CoMat 05-001 ABRASIVE MEDIUM, ALUMINIUM OXIDE, 20/30 GRADELOCALCoMat 05-001

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-56-325-051 Machine the Worn Snap Diameter

    1. Refer to Figure.

      2. Attach the front air seal on a lathe, set the front air seal to run true.

      1. Use a lathe.

    3. Machine the snap diameter to 12.799 to 12.792 in. (325.1 to 324.9 mm).

    2. SUBTASK 72-32-56-220-057 Inspect the Front Air Seal

      1. Do a visual inspection for the machined area.

      1. Refer to the SPM TASK 70-21-01-220-501.

    3. SUBTASK 72-32-56-230-053 Examine the Front Air Seal for Cracks

      1. Do a crack test.

        1. Refer to the SPM TASK 70-23-01-230-501.

        1. Cracks are not permitted.

    4. SUBTASK 72-32-56-120-051 Abrasive Blast the Front Air Seal

      1. Mask off areas that are not to be plasma sprayed.

      2. Abrasive blast the front air seal surface to be plasma sprayed.

      1. Refer to the SPM TASK 70-12-02-120-501.

    5. SUBTASK 72-32-56-340-051 Apply Plasma Spray on the Snap Diameter

    1. Refer to Figure.

      2. Touch up masking if necessary.

      3. Apply plasma spray. Maximum diameter of 12.770in. (324.37 mm) is required after plasma spray.

      1. Refer to the SPM TASK 70-34-03-340-501.

    6. SUBTASK 72-32-56-324-052 Grind the Snap Diameter

    1. Refer to Figure.

      2. Grind the plasma sprayed snap diameter to 12.783 to 12.781 in. (324.705 to 324.616 mm).

      1. Use a grinding machine.

    7. SUBTASK 72-32-56-220-058 Examine the Front Air Seal

      1. Do a visual inspection.

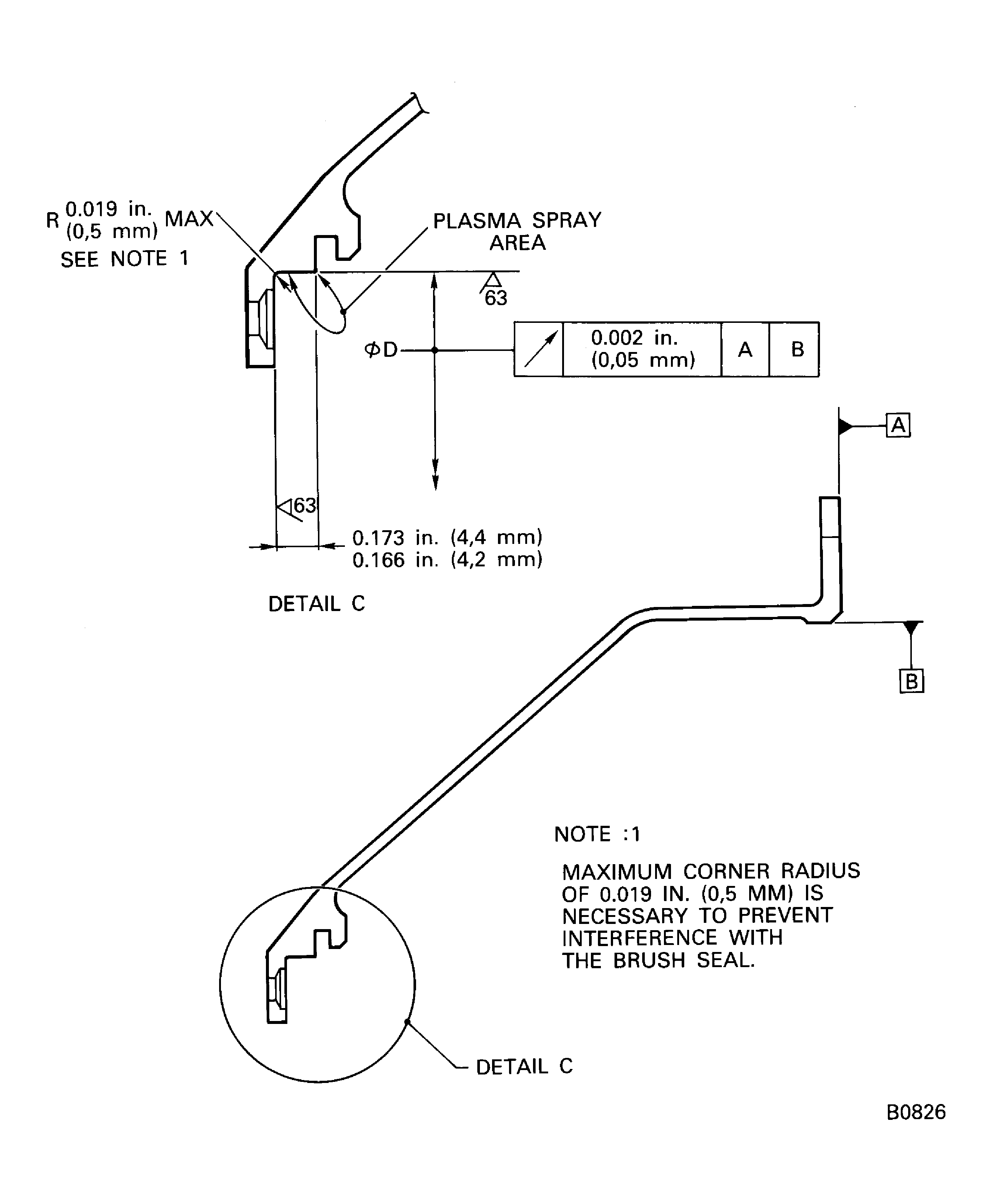

    8. Figure: Front air seal

    Front air seal

Requirements After Job Completion

Follow-On Conditions

NONE
