TASK 72-32-60-300-001 LPC Bleed Duct - Blend Repair, Repair-001 (VRS1316)

DMC:V2500-A0-72-32-6001-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-60-300-001 LPC Bleed Duct - Blend Repair, Repair-001 (VRS1316)

Effectivity

FIG/ITEM

PART NO.

01-250

5W2038

01-250

5W2080

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

LPC bleed duct

Al-5Si-1.3Cu-0.5Mg

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

For the method to clean the parts, refer to TASK 72-32-60-100-000.

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Hand held pneumatic grinderLOCALHand held pneumatic grinder
Hand polish and blend equipmentLOCALHand polish and blend equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-350-051 Blend the Damaged Surface of the LPC Bleed Duct (01-250)

    1. Refer to Figure and Figure.

      2. Dress to remove damage.

        1. Use hand held pneumatic grinder.

        1. Dress until all damage is removed.

    2. SUBTASK 72-32-60-220-060 Examine the LPC Bleed Duct (01-250)

    1. Refer to Figure and Figure.

      2. Examine the repaired area, except the outlet surface of the air bleed vent.

      1. If the blended area is more than the blend limit given in Figure and Figure reject the LPC bleed duct.

      3. Visually examine the LPC bleed duct.

      1. Refer to TASK 72-32-60-200-000 for the applicable Inspection TASK.

      2. Use 8x magnifying glass.

    3. SUBTASK 72-32-60-380-051 Surface Treat the Blended Surface of the LPC Bleed Duct (01-250)

      1. Degrease the blended surface with a cloth.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Do a chemical touch up to the blended surface by a brush.

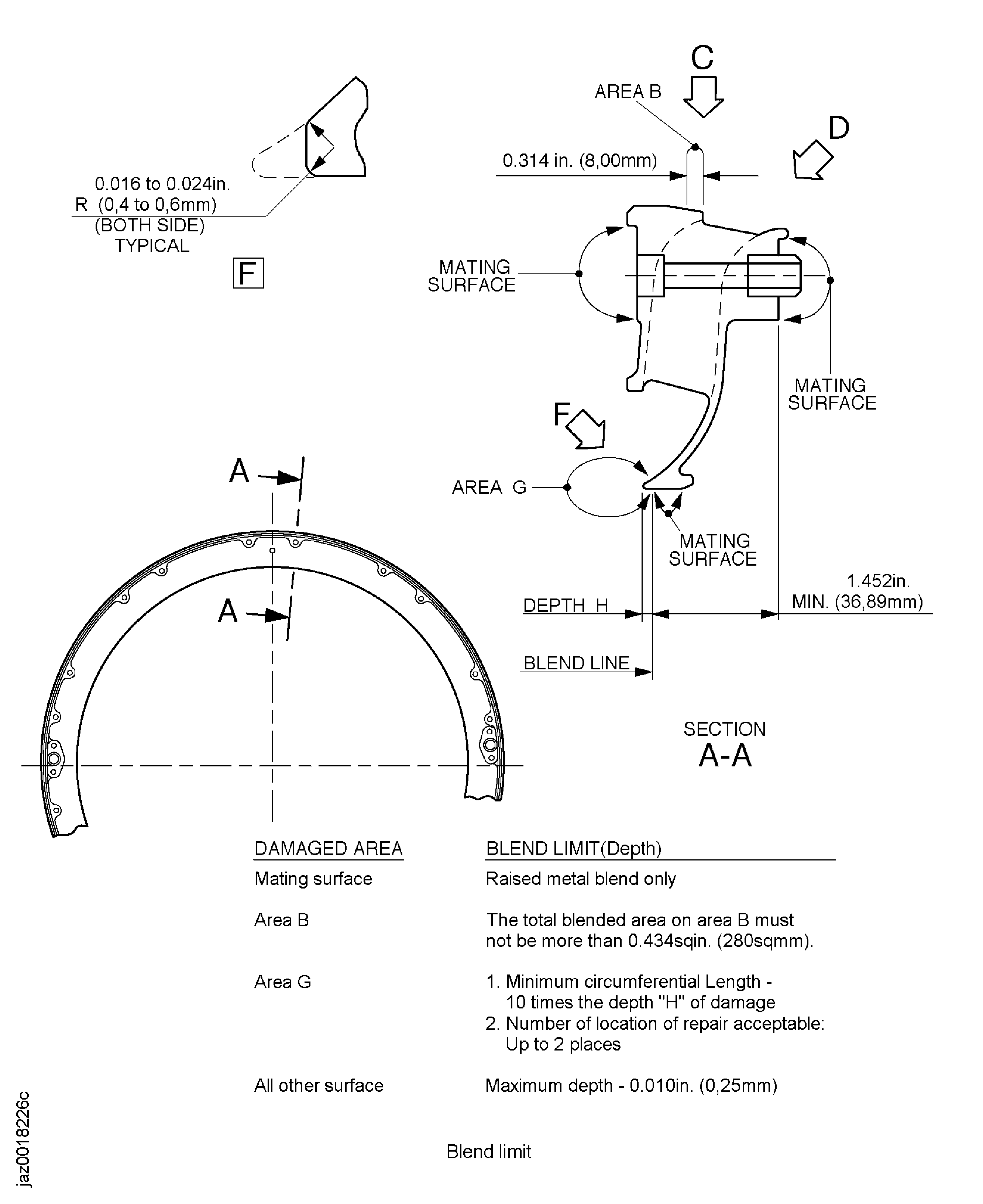

    4. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

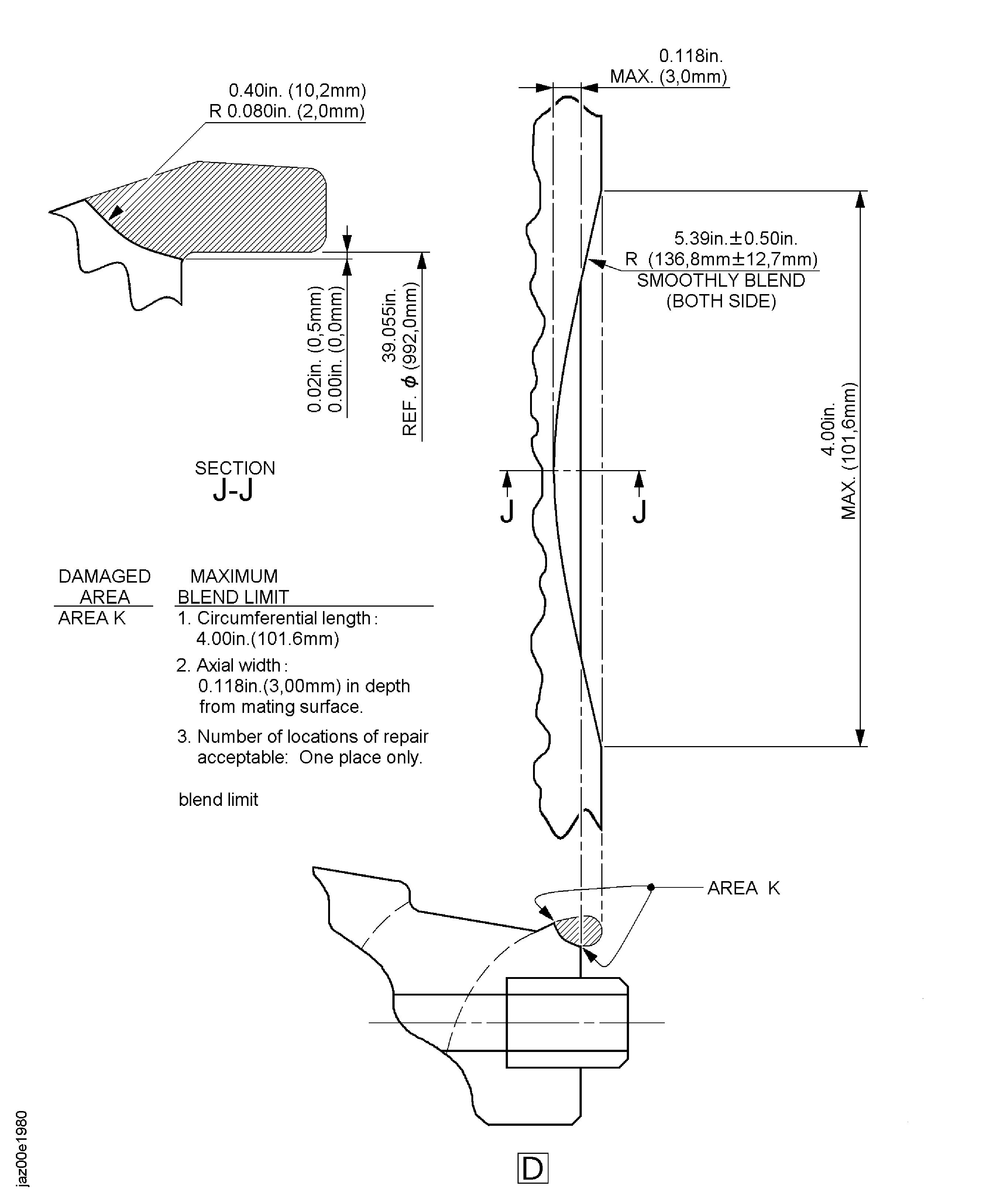

    Figure: Repair Details and Dimensions

    Sheet 3

    Legend
    Repair Details and Dimensions

    Sheet 3

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
