TASK 72-32-60-300-003 LPC Bleed Duct - Replace The Locating Pin, Repair-003 (VRS1318)

DMC:V2500-A0-72-32-6001-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-60-300-003 LPC Bleed Duct - Replace The Locating Pin, Repair-003 (VRS1318)

Effectivity

FIG/ITEM

PART NO.

01-250

5W2038

01-250

5W2080

Material of component

DESCRIPTION

SYMBOL

MATERIAL

LPC bleed duct

Al-5Si-1.3Cu-0.5Mg

Pin

17-4PH

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-60-100-000.

NOTE

Equivalent materials or equipment can be used.
More equipment and materials necessary to do this repair are given in the SPM TASK 70-11-26-300-503 and SPM TASK 70-35-03-300-501.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
PincersLOCALPincers
Hand polish and blend equipmentLOCALHand polish and blend equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin5W211220

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-350-052 Remove the Damaged Pin

    1. Refer to Figure.

      2. Remove the damaged pin.

      1. Use Pincers.

    2. SUBTASK 72-32-60-350-053 Blend the Pin Hole

      1. Blend raised metal and rough surface around the pin hole.

      1. Refer to the SPM TASK 70-35-03-300-501.

    3. SUBTASK 72-32-60-380-052 Surface Treat the Bore Surface of the LPC Bleed Duct (01-250)

      1. Clean the pin hole.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Do a chemical touch up to the bore surface by a brush.

    4. SUBTASK 72-32-60-350-054 Install the Pin

    1. Refer to Figure.

      2. Select the pin.

      1. Select the pin to get the adequate fit, 0.00020 in. (0.005 mm) to 0.00134 in. (0.034 mm) tight fit.

      3. Chill the new locating pin.

      1. Chill the locating pin using dry ice for 15 minutes.

    4. Install the locating pin.

    5. SUBTASK 72-32-60-220-057 Examine the installed pin

      1. Examine the installed pin.

      1. Refer to the TASK 72-32-60-200-000.

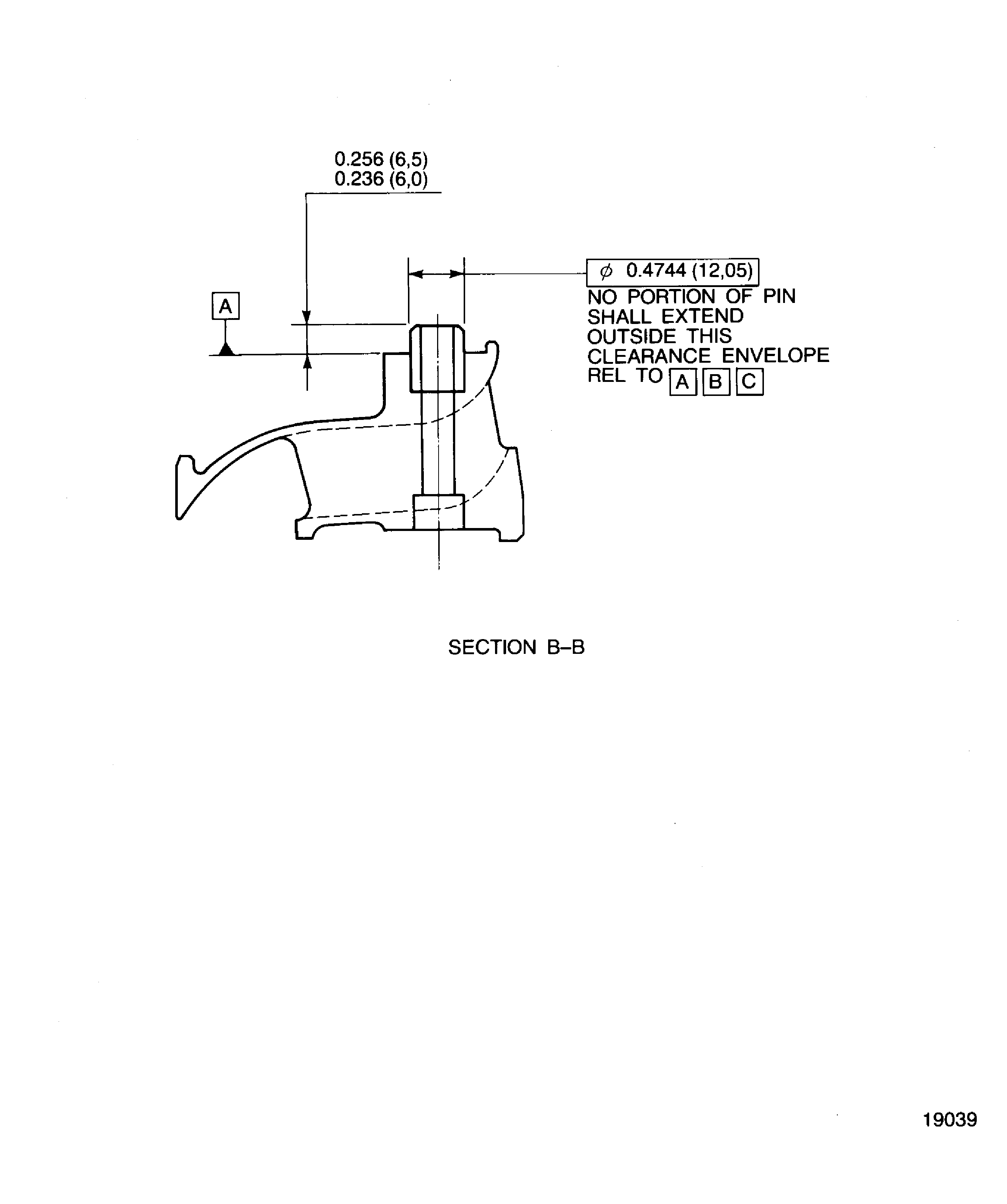

    6. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

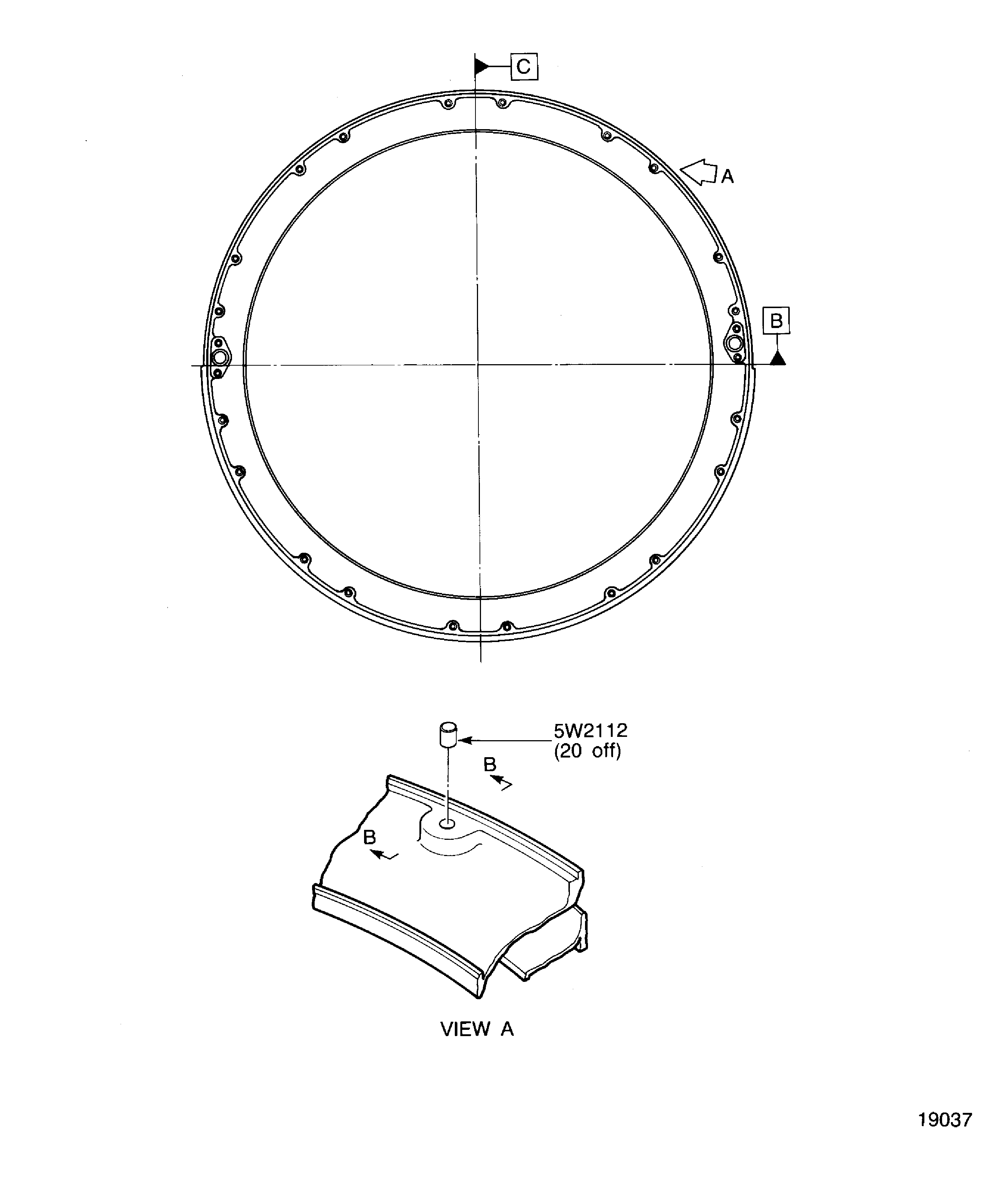

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
