TASK 72-32-60-300-008 LPC Bleed Duct - Replace The Locating Pin, Repair-008 (VRS1909)

DMC:V2500-A0-72-32-6001-03A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-60-300-008 LPC Bleed Duct - Replace The Locating Pin, Repair-008 (VRS1909)

Effectivity

FIG/ITEM

PART NO.

01-250

5W2231

01-250

5W2268

01-250

5W2280

01-250

5W2318

01-250

5W2331

01-250

5W2332

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC bleed duct

A1-5Si-1.3Cu-0.5Mg

Locating pin

17-4PH

General

Prices and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-60-100-000 (CLEANING-000)

NOTE

To identify the consumable materials refer to the PCI

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
PincersLOCALPincers
Hand polish and blend equipmentLOCALHand polish and blend equipment

(Refer to SPM TASK V2500-00-70-35-03-00A-649A-D)

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Pin5W219420

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-60-350-063 Remove the Damaged Pin

    1. Refer to Figure.

      2. Remove the damaged pin.

      1. Use pincers.

    2. SUBTASK 72-32-60-350-064 Blend the Pin Hole

      1. Blend the raised metal and rough surface around the pin hole.

      1. Refer to the SPM TASK 70-35-03-300-501.

    3. SUBTASK 72-32-60-380-056 Surface Treat the Bore Surface of the LPC Bleed Duct Assembly

      1. Clean the pin hole.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Do a chemical touch up to the bore surface with a brush.

    4. SUBTASK 72-32-60-350-065 Install the Locating Pin

    1. Refer to Figure.

      2. Select a locating pin.

      1. Select a pin to get the best fit, 0.00020 to 0.00134 in. (0.005 to 0.034 mm) tight fit.

      3. Chill the new locating pin.

      1. Chill the locating pin using dry-ice for 15 minutes.

    4. Install the locating pin.

    5. SUBTASK 72-32-60-220-092 Examine the Installed Pin

      1. Examine the installed pin.

      1. Refer to TASK 72-32-60-200-000 (INSPECTION-000).

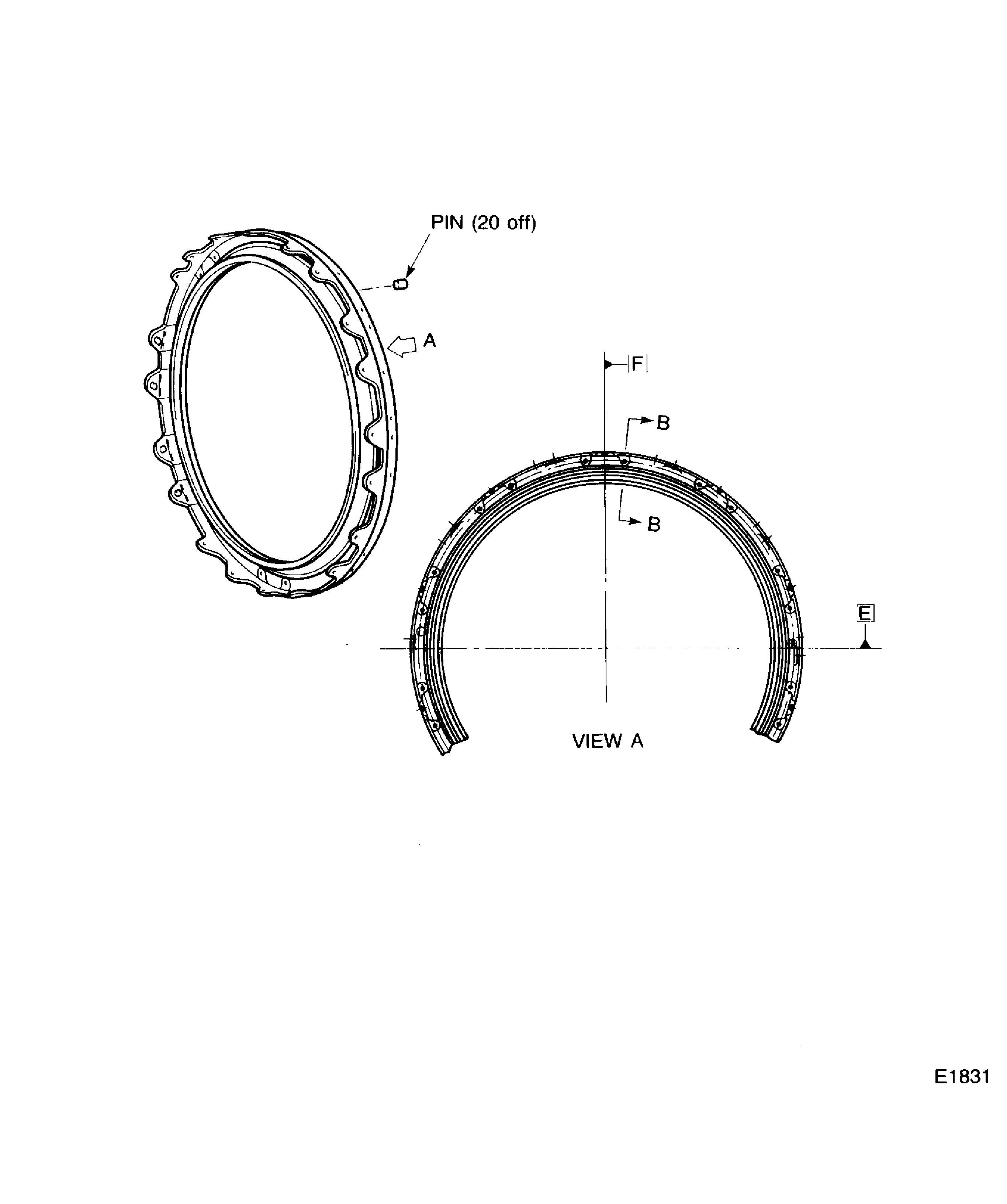

    6. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
