TASK 72-32-71-300-004 LPC Bleed Valve Link - Repair Surface Damage By Blending, Repair-004 (VRS1323)

DMC:V2500-A0-72-32-7136-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-71-300-004 LPC Bleed Valve Link - Repair Surface Damage By Blending, Repair-004 (VRS1323)

Effectivity

FIG/ITEM

PART NO.

01-200

5A3713

Assembly A

01-200

5A1731

Assembly B

01-400

5A3713

Assembly A

01-400

5A1731

Assembly B

Material of component

PART IDENT

SYMBOL

MATERIAL

Link (Assembly A)

Aluminium alloy

Spherical bearing

17-4 PH

Link (Assembly B)

17-4 PH

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Magnifying glass, 10xLOCALMagnifying glass, 10x

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUMLOCALCoMat 01-275
CoMat 02-001 ADHESIVE TAPE (MASKING)LOCALCoMat 02-001
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-71-350-051 Remove the Damage from the Link Assembly

    1. Refer to Figure.

      2. Scallop, make smooth and/or hand polish to remove the burrs the nicks and/or scores.

        1. At staking area, remove high metal only.

        2. Surface finish of the repair must be the same as the adjacent area.

        3. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-71-220-075 Visually Examine the Link Assembly

      1. Visually examine the repaired area.

        1. Visually examine the repaired area for burrs, nicks and/or scores using Magnifying glass, 10x.

        1. Refer to TASK 72-32-71-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-71-230-057 Examine the Link Assembly

      1. Mask all over the bearing.

      2. Fluorescent penetrant examine the repaired area.

        1. Make sure there is no cracks in the repaired area.

        1. Refer to the SPM TASK 70-23-05-230-501.

    3. Remove the masking tape.

    4. SUBTASK 72-32-71-110-051 Examine the Grease from the Link Assembly

      1. Mask all over the bearing.

      2. Remove the grease.

      1. Refer to the SPM TASK 70-11-26-300-503.

    3. Remove the masking tape.

    5. SUBTASK 72-32-71-330-051 Apply the Surface Protection to the Link Assembly

      1. NOTE

        This SUBTASK only applies to Assembly A.

        Mask all over the bearing.

      2. Apply chromate conversion coating to the repaired area.

        1. Refer to TASK 70-38-02-380-501.

    3. Clean the repaired area with cold water and dry with air blast.

    4. Remove the masking tape.

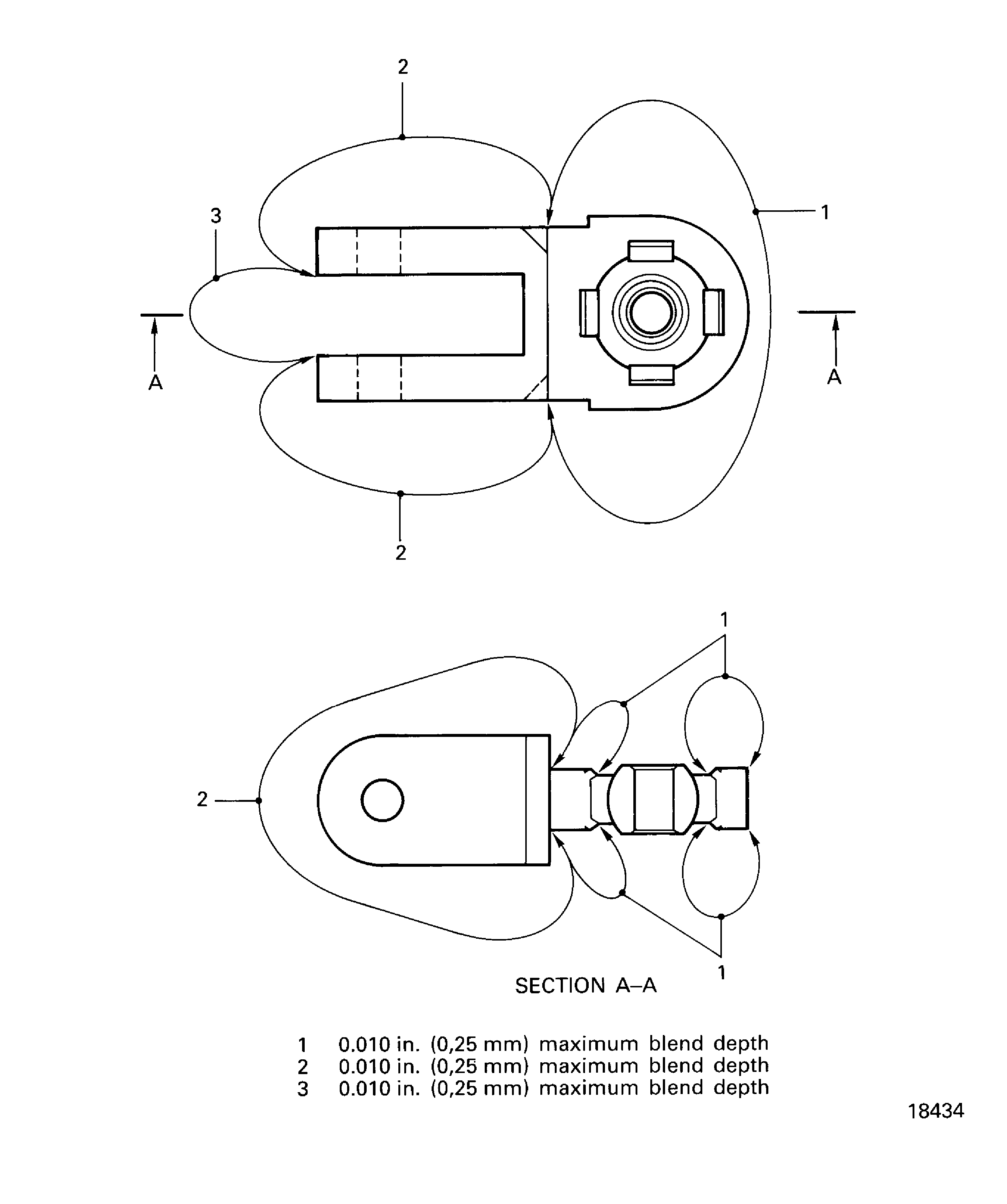

    6. Figure: Link assembly - repair limits

    Link assembly - repair limits

Requirements After Job Completion

Follow-On Conditions

NONE
