TASK 72-32-73-300-003 LPC Bleed Valve Synchronizing Ring - Repair The Worn Pin Hole By Bush, Repair-003 (VRS1361)

DMC:V2500-A0-72-32-7301-00A-664A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-73-300-003 LPC Bleed Valve Synchronizing Ring - Repair The Worn Pin Hole By Bush, Repair-003 (VRS1361)

Effectivity

FIG/ITEM

PART NO.

01-150

5A0954

Material of component

PART IDENT

SYMBOL

MATERIAL

Synchronize ring

Aluminum alloy

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop equipmentLOCALStandard workshop equipment
Horizontal boring machineLOCALHorizontal boring machine
Rotary tableLOCALRotary table
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Dial bore gageLOCALDial bore gage
Vibrating marking pencilLOCALVibrating marking pencil
IAE 3J12790 Machining fixture0AM53IAE 3J127901

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-73-320-051 Machine the Worn Pin Hole(s)

    1. Refer to Figure, Figure, Figure, Figure and Figure.

      2. Set a rotary table onto the horizontal boring machine.

      3. Put the machining fixture onto the boring machine.

      4. Set the machining fixture by plane A and dia B given in figure.

      1. Use dial set indicator.

      2. Make sure the datum A and B are set to turn correctly.

    5. Install and clamp the synchronize ring into the machining fixture.

    6. Find the hole C and adjust the zero degree of the rotary table to the center of hole C.

    7. Measure and make sure location of the pin holes C, D and AD on the synchronize ring.

      8. NOTE

        If damaged pin hole can not clean up to give the necessary finish on the diameter, it must be machined to the next oversize in accordance with table 1, 2 and 3.

        Machine the worn pin hole(s) oversize as necessary.

    9. Make chamfer on the outside edge of the machined pin hole(s).

    10. Remove the synchronize ring from the machining fixture.

    2. SUBTASK 72-32-73-220-064 Examine the Machined Pin Hole(s)

    1. Refer to Figure, Figure, Figure and Figure.

      2. Measure the dimension of the machined pin hole(s).

    3. SUBTASK 72-32-73-230-052 Examine the Machined Pin Hole(s) of the Synchronize Ring Assembly for Cracks

      1. Do a penetrant crack test on the machined pin hole(s).

      1. Refer to the SPM TASK 70-23-02-230-501.

      2. Use penetrant crack test equipment.

    4. SUBTASK 72-32-73-380-052 Apply the Chromate Conversion Coating to the Synchronize Ring Assembly

      1. Apply the chromate conversion coating to the machined pin hole(s).

      1. Refer to the SPM TASK 70-38-02-300-503, SUBTASK 70-38-02-300-002.

    5. SUBTASK 72-32-73-350-054 Identify the Repair

    1. Refer to Figure, Figure and Figure.

      2. Make a mark adjacent to the part number.

        1. Refer to the SPM TASK 70-09-00-400-501, SUBTASK 70-09-00-400-001.

      3. Make a mark suffix letter on the machined pin hole(s) (oversize).

        1. Refer to TASK 70-09-00-400-801, SUBTASK 70-09-00-400-001.

      4. Apply the chromate conversion coating to the marked letter.

      1. Refer to step 7. SUBTASK 72-32-73-280-052.

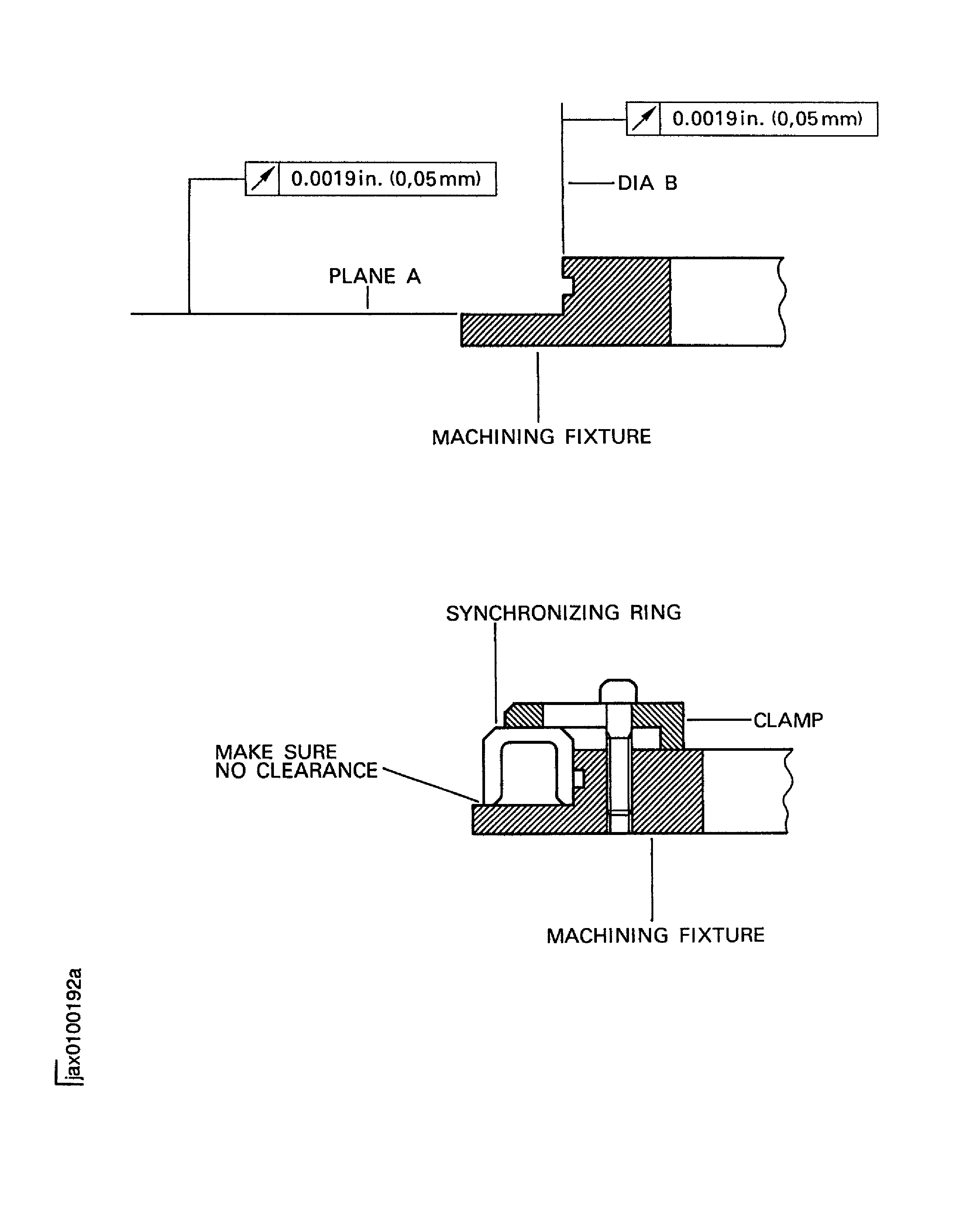

    6. Figure: Set the synchronize ring onto machining fixture

    Set the synchronize ring onto machining fixture

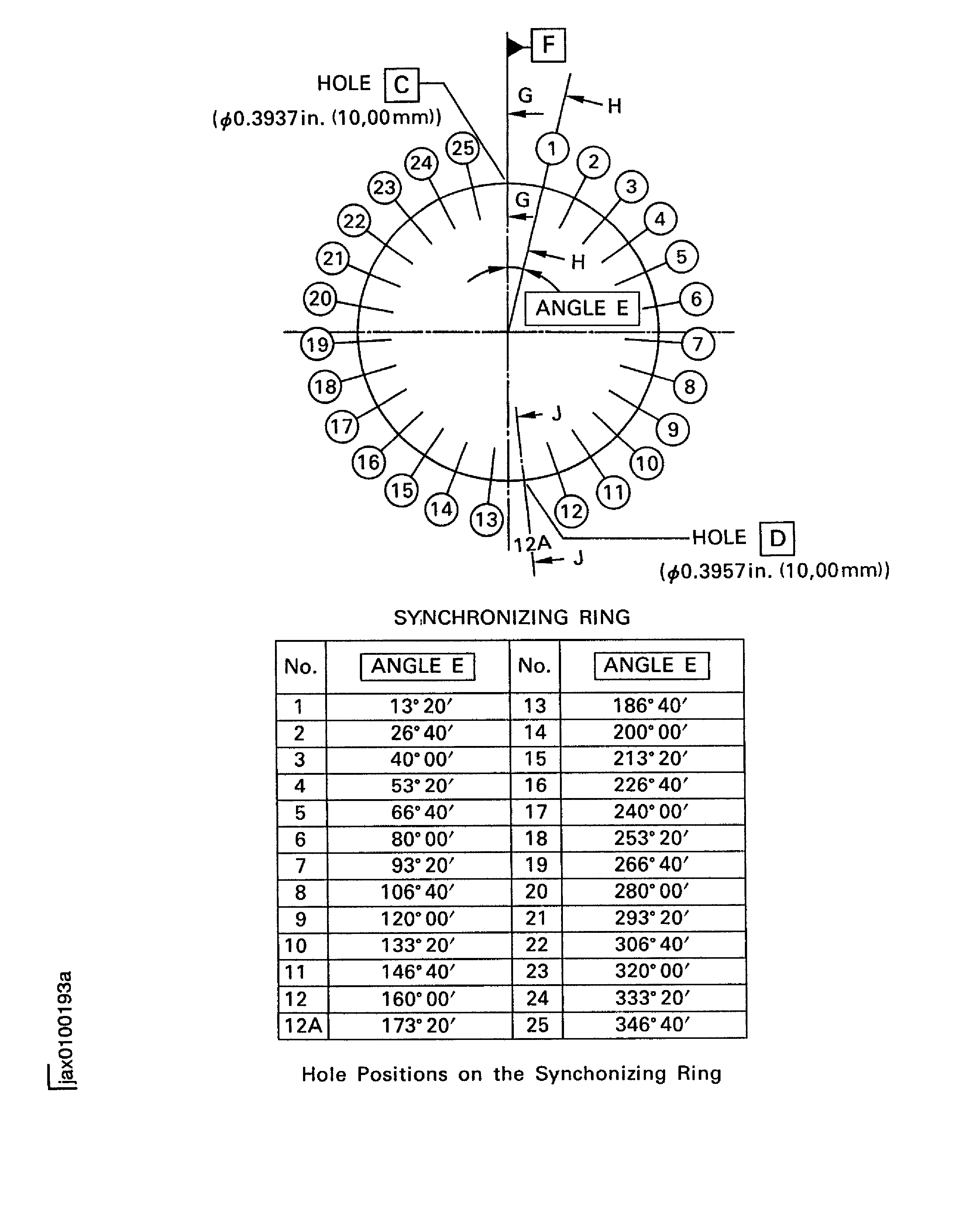

    Figure: Repair details and dimensions

    Repair details and dimensions

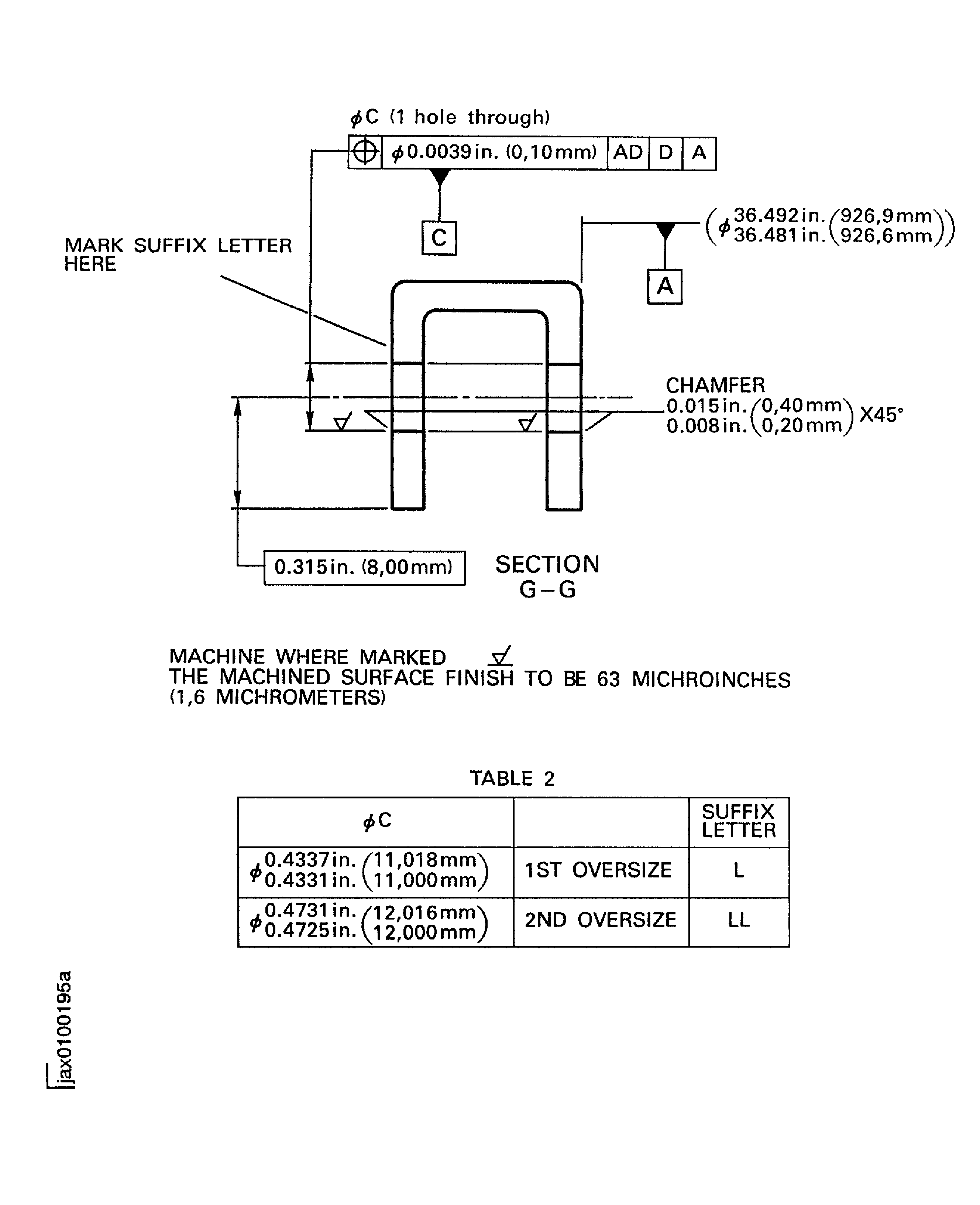

    Figure: Repair details and dimensions

    Repair details and dimensions

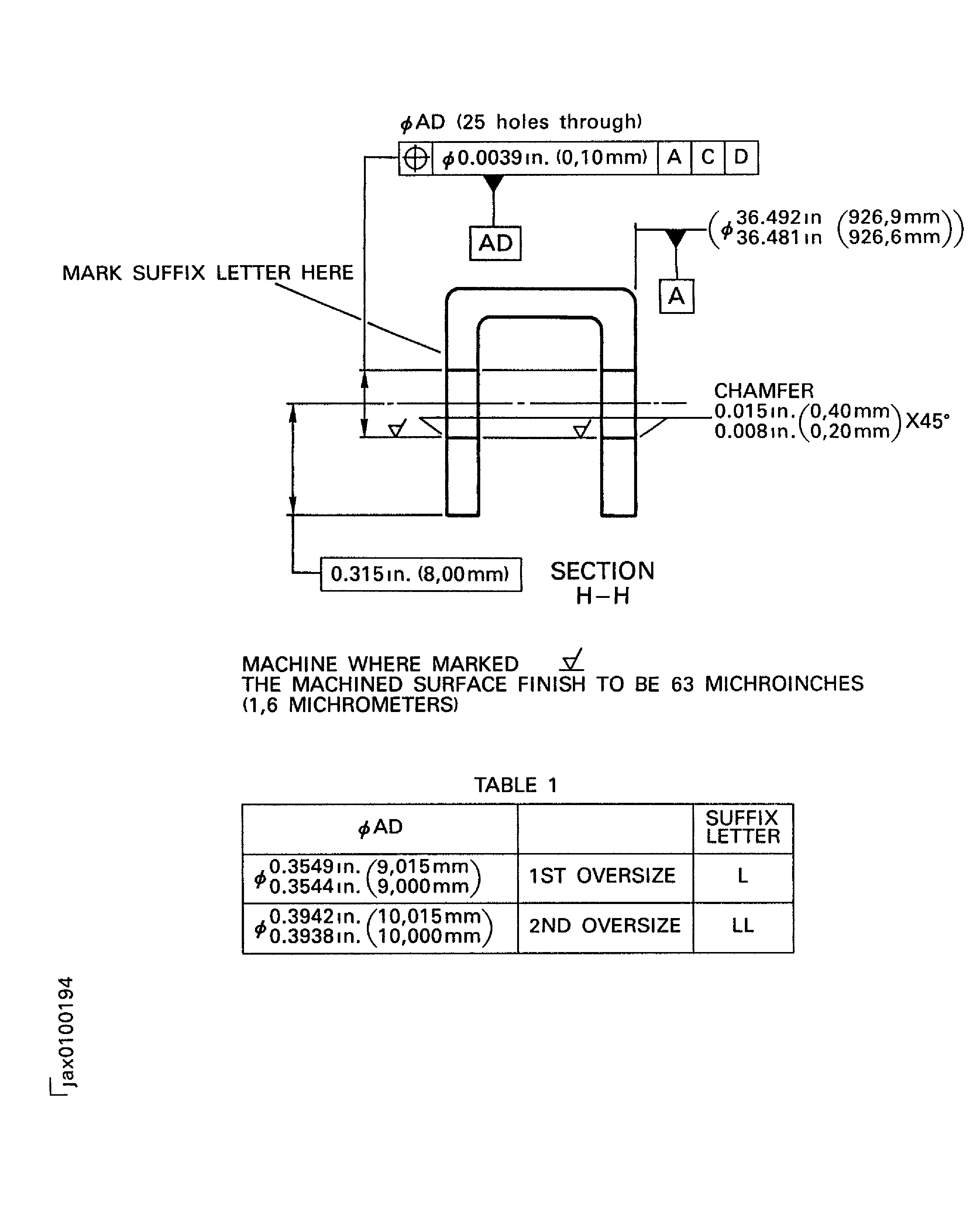

    Figure: Repair details and dimensions

    Repair details and dimensions

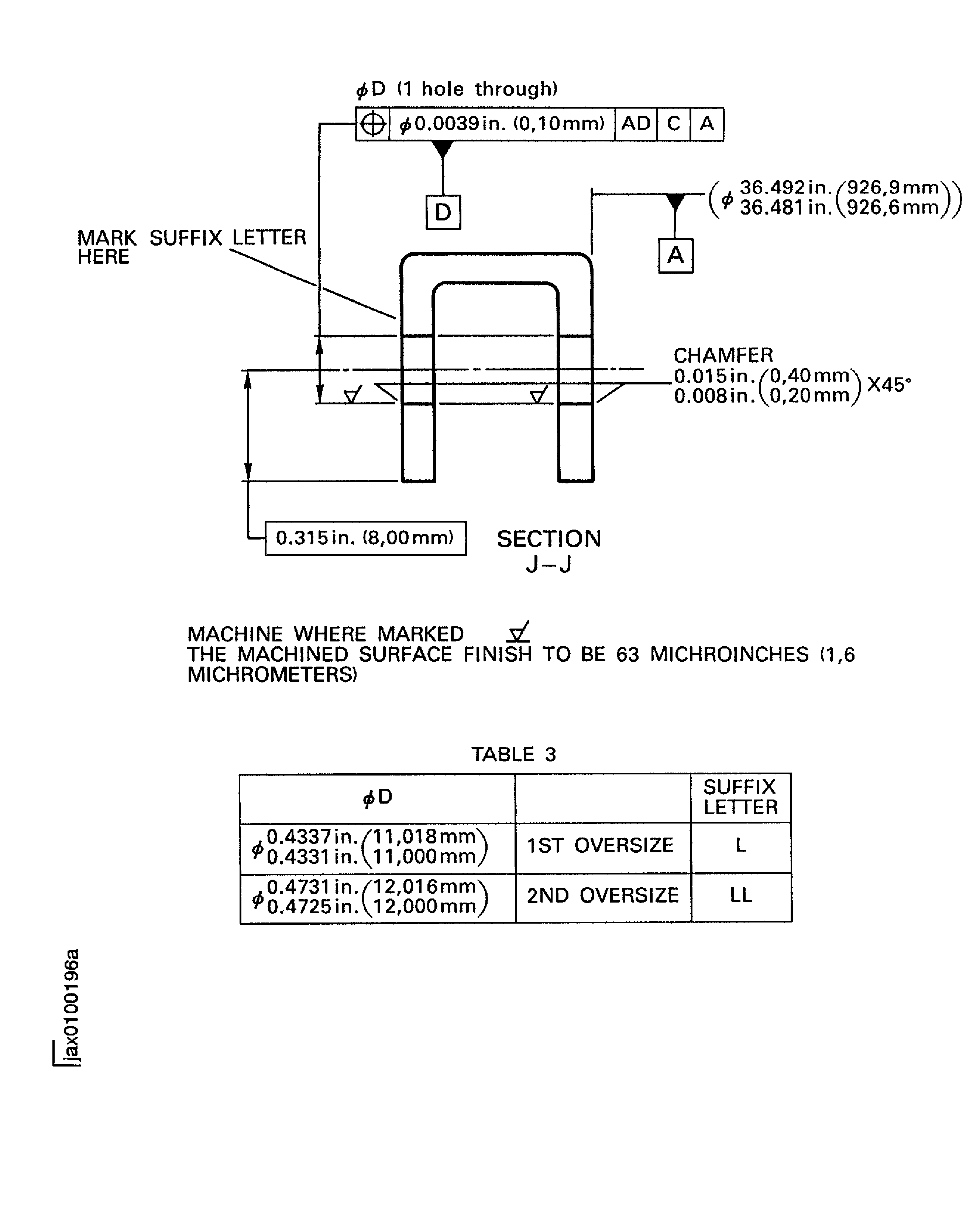

    Figure: Repair details and dimensions

    Repair details and dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
