TASK 72-32-76-300-006 LPC Stage 2.5 Stator - Blend Repair, Repair-006 (VRS1348)

DMC:V2500-A0-72-32-7600-01A-649A-C|Issue No:002.00|Issue Date:2016-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-76-300-006 LPC Stage 2.5 Stator - Blend Repair, Repair-006 (VRS1348)

Effectivity

FIG/ITEM

PART NO.

01-400

5R0029

01-400

5R6088

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Vane, STG 2.5 (O/C)

Aluminum alloy

Vane, STG 2.5 (Nom)

Aluminum alloy

Vane, STG 2.5 (U/C)

Aluminum alloy

General

This Repair scheme gives the procedure for dressing of the LP compressor stage 2.5 vane assembly.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Dressing of stator vanes will affect engine performance. The extent of repair in a given stage must be limited accordingly.

Price and availability

Refer to IAE for any of the followings:

Tools

Engine parts

Repair of spares

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM TASK 70-23-05-230-501 and TASK 70-38-02-300-503.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
Portablegrinding equipmentLOCALPortable grinding equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-76-350-056 Dress to Remove Damage

    1. Refer to Figure.

      2. Dress to remove damage.

        1. Use portable grinding equipment.

        1. Dress until all damage is removed.

        2. See Figure.

        3. Do not overheat material.

      3. Blend dressed area and polish out scores.

        1. Polish and blend marks must be in a radial direction.

        1. Surface finish must be the same as that of the adjacent undressed area.

        2. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-32-76-220-056 Examine the Vanes

      1. Visually inspect repaired area.

        1. Refer to TASK 72-32-76-200-001.

        1. Refer to Figure.

    3. SUBTASK 72-32-76-230-051 Examine the Vanes for Cracks

      1. Penetrant crack test dressed area.

        1. Refer to the SPM TASK 70-23-05-230-501.

        1. Penetrant solution must not be applied on to the silicone rubber.

    4. SUBTASK 72-32-76-110-055 Clean the Vanes

      1. Clean the vanes.

      1. Refer to the SPM TASK 70-11-26-300-503.

    5. SUBTASK 72-32-76-380-053 Reprotect Depressed Areas

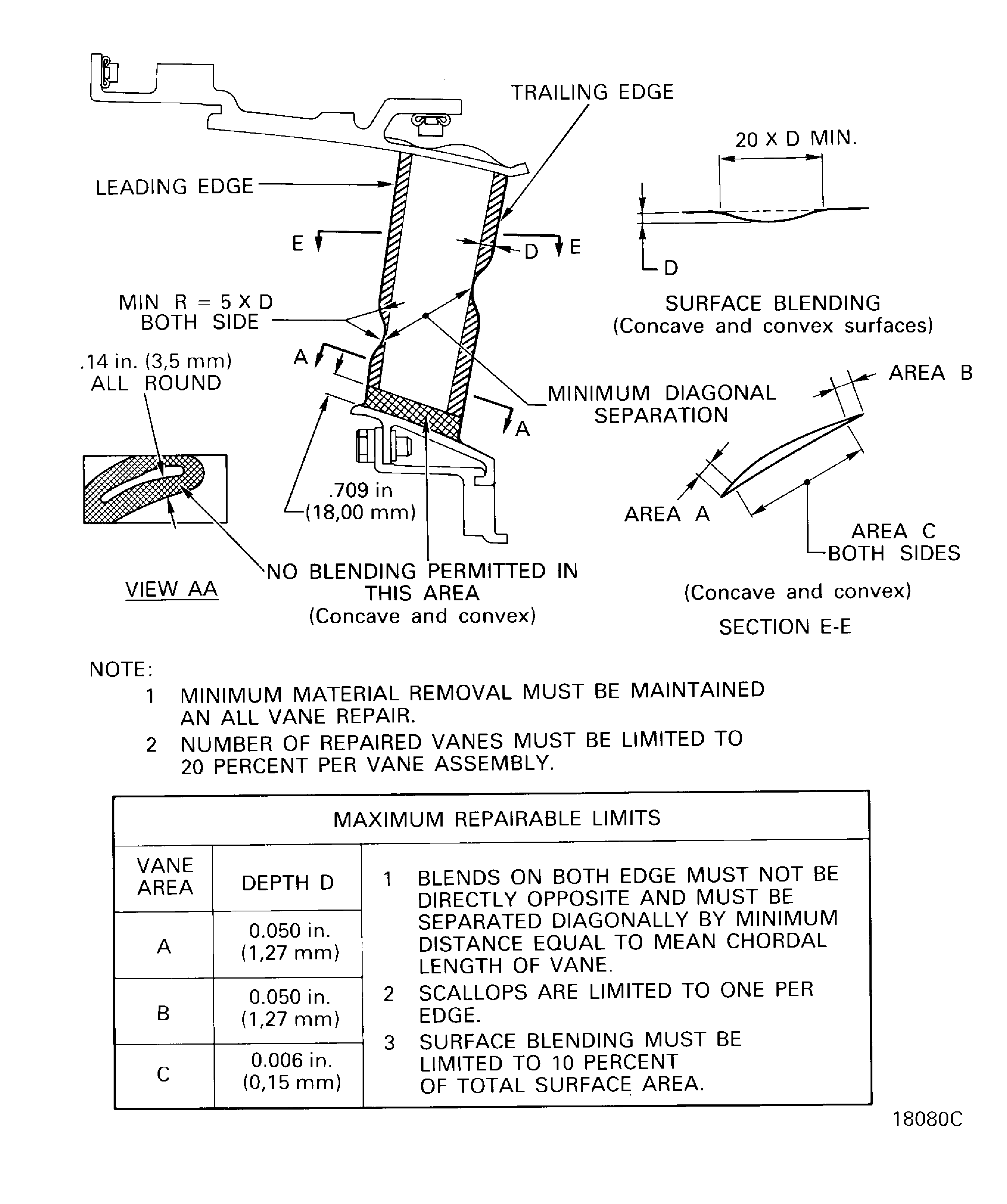

    6. Figure: LP compressor stage 2.5 stator vanes, dressing dimensions

    LP compressor stage 2.5 stator vanes, dressing dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Corrected the SPM Task number
