TASK 72-32-80-200-001-B00 LPC Assembly - Examine The Plates, Inspection-001

DMC:V2500-A0-72-32-8000-00B-300A-B|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-80-200-001-B00 LPC Assembly - Examine The Plates, Inspection-001

Effectivity

FIG/ITEM

PART NO.

03-220

5R0151

03-235

5R0153

03-250

5R0157

03-265

5R0155

General

This TASK gives the procedure for the inspection of the plates.

Fig/item numbers in parentheses in the procedure agree with those used in the IPC.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-32-80-100-000.

All parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

The procedure for those parts which must have a crack test is given in the Step. Do the test before the part is visually examined.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All parts must be examined to make sure that all repairs have been completed satisfactorily.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items.

Definitions of Damage, SPM TASK 70-02-02-350-501

Inspection of Parts, SPM TASK 70-20-00-200-501

Some data on these items are contained in this TASK. For more data on these items refer to the SPM.

Method of Testing for Crack Indications

Chemical Processes

Surface protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-80-230-053 Examine the Plates (03-220,03-235,03-250 and 03-265) for Cracks

    1. Clean the parts. Refer to TASK 72-32-80-100-001.

      2. Do the test for cracks on the parts that are given below. Use the applicable penetrant procedure.

        PART IDENT

        TASK/OP

        Plate

        1. Cracked

        1. Reject

    2. SUBTASK 72-32-80-220-055 Examine the Plates (03-200,03-235,03-250 and 03,265)

    1. Refer to Figure.

      2. Distorted or bent

      1. Reject

      3. Worn

        1. If the thickness of the plate at the inner and outer location is within the limits shown in Figure.

        1. Accept

        2. If the thickness of the plate is less than in Step

        1. Reject

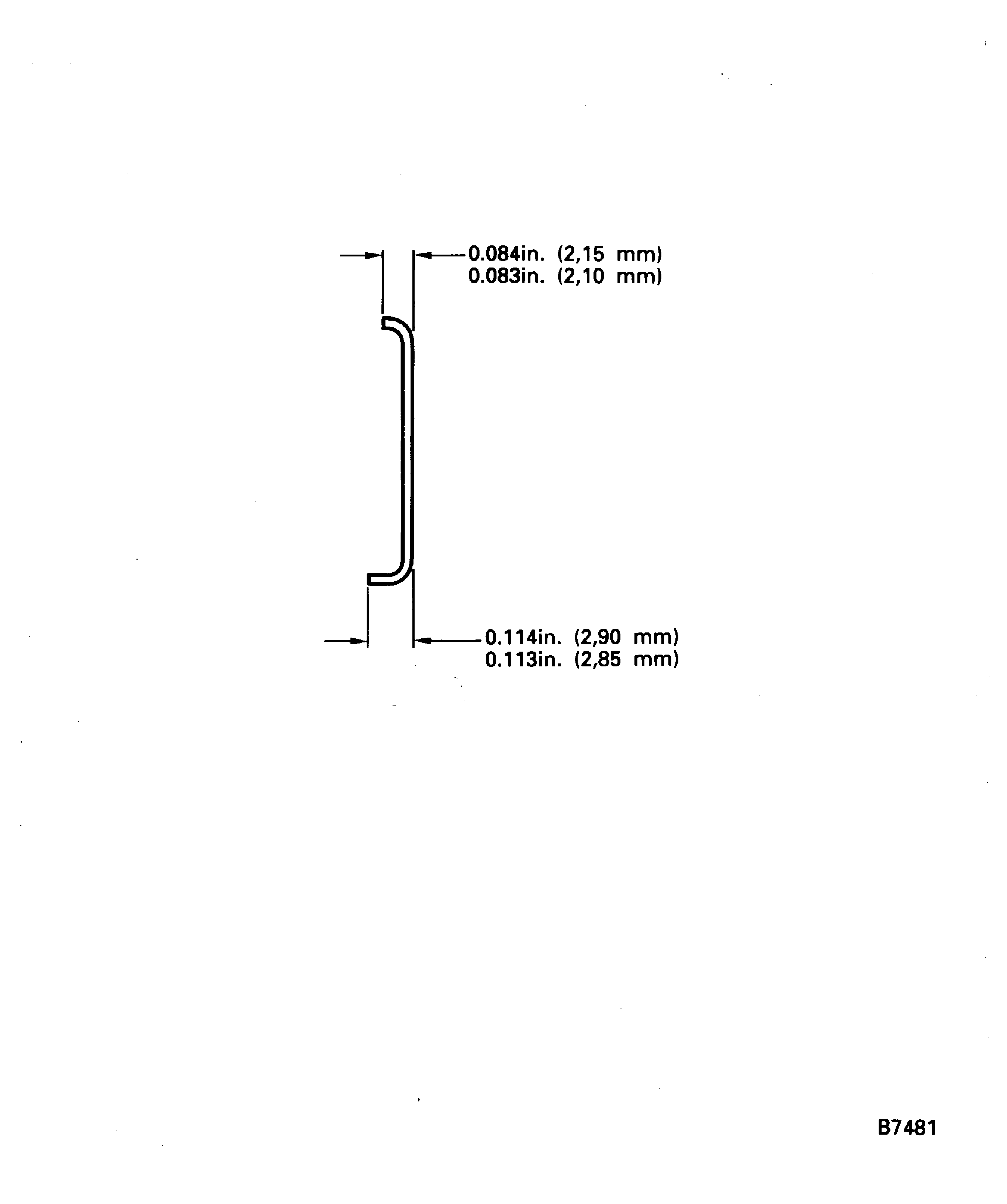

    3. Figure: Plates

    Plates

Requirements After Job Completion

Follow-On Conditions

NONE
