TASK 72-32-82-300-007 LPC Blades - Replace The Strip Of The Blade, Repair-007 (VRS1373)

DMC:V2500-A0-72-32-8200-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-82-300-007 LPC Blades - Replace The Strip Of The Blade, Repair-007 (VRS1373)

Effectivity

FIG/ITEM

PART NO.

01-250

5R0043

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Blade

Titanium alloy

Strip

Silicone rubber

General

Price and availability

Refer to IAE for any of the following:

Tools

Engine parts

Repair of spares

This Repair scheme gives the procedure for replacing the sealing strip.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

  1. To identify the consumable materials, refer to the PCI.

  2. Other consumable materials are given in the SPM TASK 70-36-02-360-501.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Sealing strip5R00441

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-82-350-056 Remove the Damaged Strip

      1. Remove the damaged sealing strip.

      1. Refer to the SPM TASK 72-32-82-100-000.

    2. SUBTASK 72-32-82-350-057 Prepare the Bonding Surface

    1. Refer to Figure and Figure.

      2. Prepare the bonding surface.

      1. Refer to the SPM TASK 70-36-02-360-501.

    3. SUBTASK 72-32-82-350-058 Prime the Bonding Surface

    1. Refer to Figure and Figure.

      2. CAUTION

        DO NOT APPLY THE PRIMER ON THE SURFACE OF THE SEALING STRIPS.

        Prime the bonding surface.

    4. SUBTASK 72-32-82-360-051 Bond the Sealing Strip

    1. Refer to Figure and Figure.

      2. CAUTION

        INCLUSION OF AIR IN THE BONDING SURFACE MUST BE PREVENTED AND EXCESS COMPOUND MUST BE REMOVED.

        Bond the sealing strip.

      3. Visually examine for correct bonding by bending the sealing strip 90 degrees.

      1. Make sure that there is no evidence of foreign inclusion, delamination, soft spot and lack of bonding.

    5. SUBTASK 72-32-82-220-080 Examine the Blade Assembly

      1. Visually examine the blade assembly.

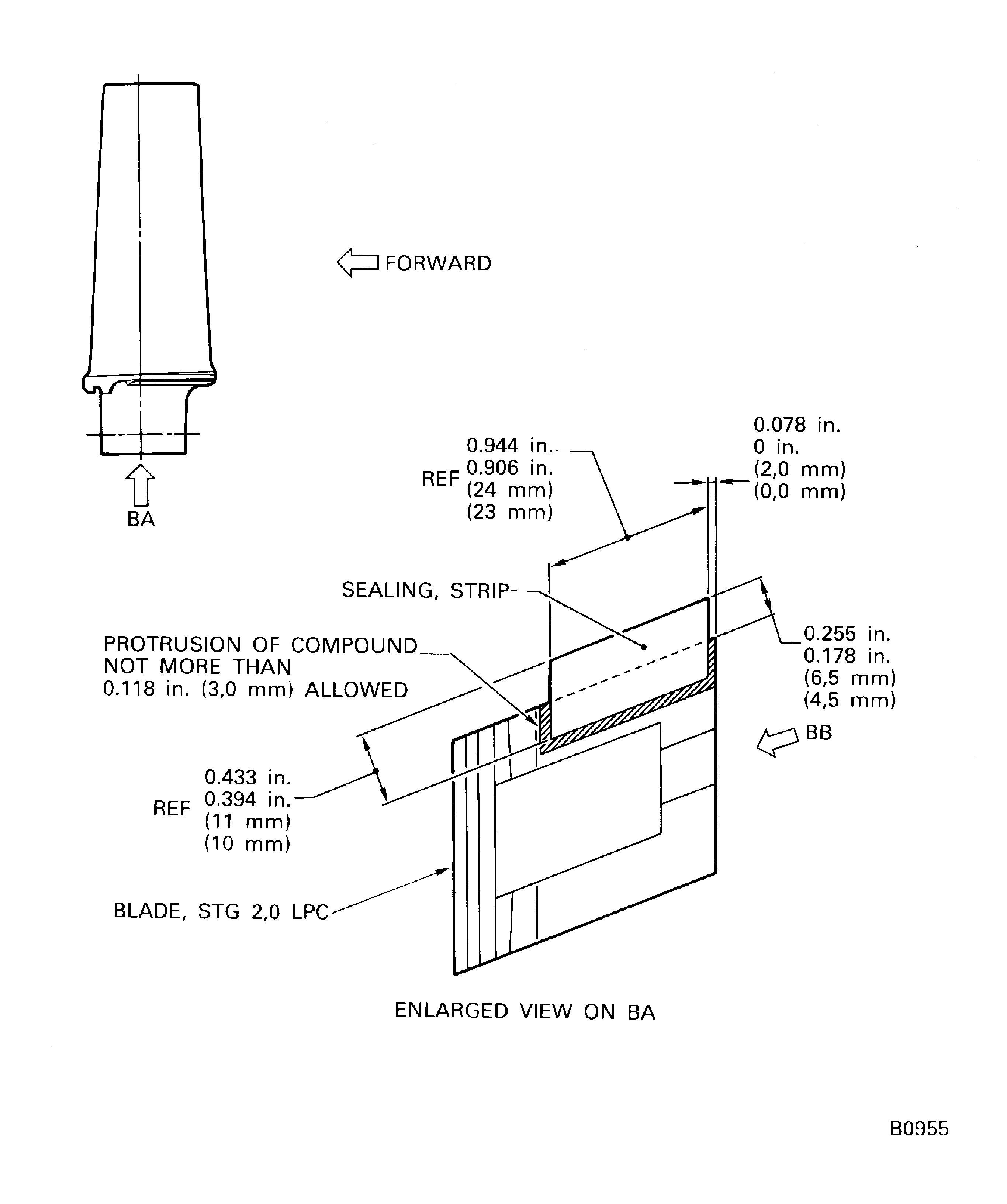

    6. Figure: Bonding of sealing strip

    Bonding of sealing strip

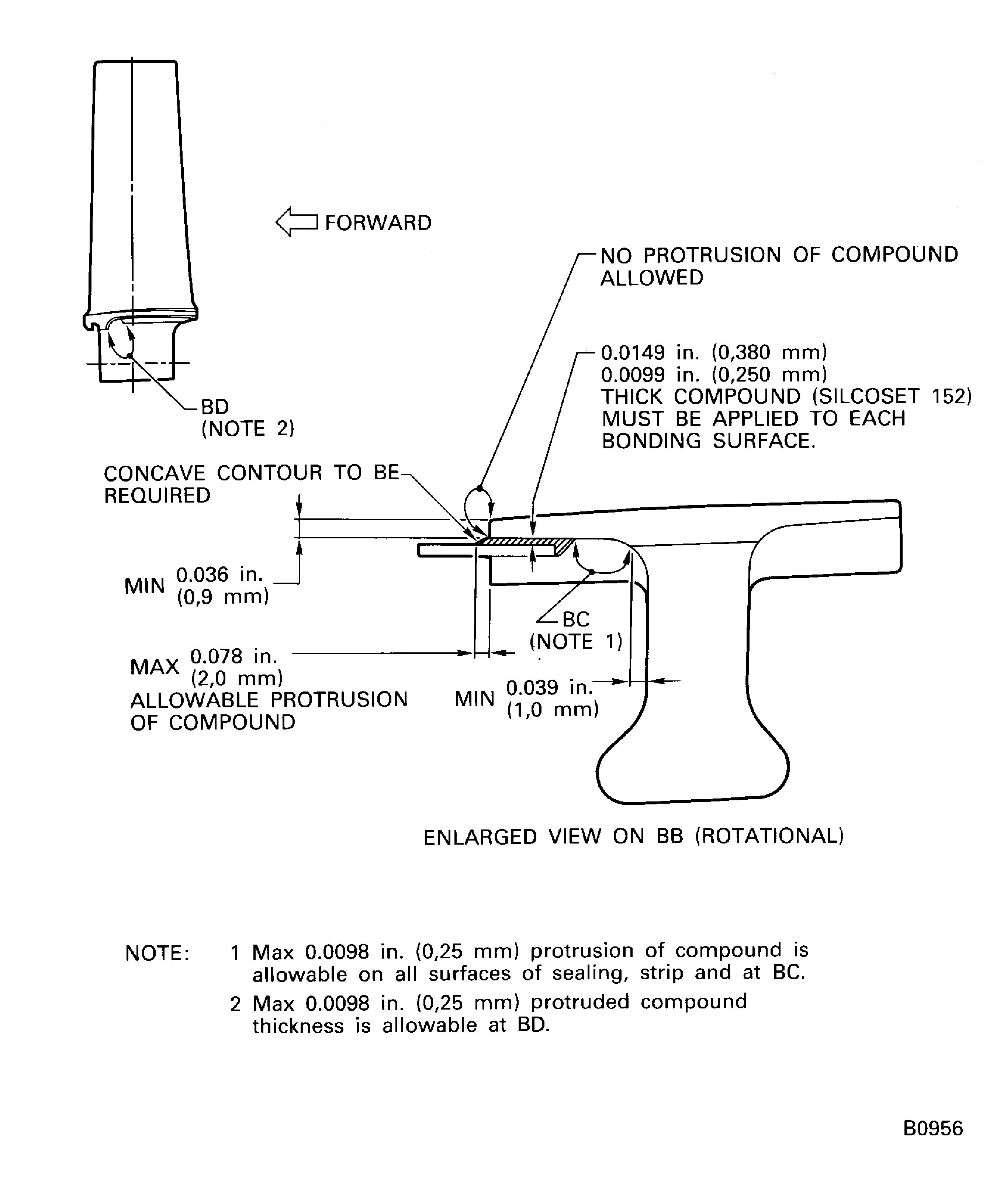

    Figure: Bonding of sealing strip

    Bonding of sealing strip

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:X222X
Supply Number:CoMat 08-013
Type:sp01
Supply Short Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Supply Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Specification Groups:
Doc NumberType
If CoMat 08-013 is specified without an asterisk or a letter suffix, use one of the letter suffix alternative materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X222X
Supply Number:CoMat 08-014
Type:sp01
Supply Short Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Supply Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Specification Groups:
Doc NumberType
Use the applicable letter suffix material. Refer to SPM TASK 70-36-02-360-501.
Suppliers:
ManufacturerRemarks
X222X
