TASK 72-32-82-300-008 LPC Blades - Replace The Strip Of The Blade, Repair-008 (VRS1384)

DMC:V2500-A0-72-32-8200-02A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-82-300-008 LPC Blades - Replace The Strip Of The Blade, Repair-008 (VRS1384)

Effectivity

FIG/ITEM

PART NO.

01-400

5A0162

01-400

5A1507

Material of component

PART IDENT

SYMBOL

MATERIAL

Blade

Titanium alloy

Strip

Silicone rubber

General

Price and availability

Refer to IAE for any of the followings:

Tools

Engine parts

Repair of spares

This repair scheme gives the procedure for replacing the sealing strip.

The practices and processes referred to in the procedure by the TASK number are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 08-013 COLD CURING SILICONE COMPOUNDLOCALCoMat 08-013
CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT0AM53CoMat 08-014

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Sealing strip5A01631

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-82-350-052 Remove the Damaged Strip

      1. Remove the damaged sealing strip.

      1. Refer to TASK 72-32-82-100-000 (CLEANING-000).

    2. SUBTASK 72-32-82-350-053 Prepare the Bonding Surface

    1. Refer to Figure.

      2. Prepare the bonding surface.

      1. Refer to the SPM TASK 70-36-02-360-501.

    3. SUBTASK 72-32-82-350-054 Prime the Bonding Surface

    1. Refer to Figure.

      2. NOTE

        Do not apply the primer on the surface of sealing strips.

        Prime the bonding surface.

    4. SUBTASK 72-32-82-350-055 Bond the Sealing Strip

    1. Refer to Figure.

      2. NOTE

        Inclusion of air in the bonding surface must be prevented and excess compound must be removed.

        Bond the sealing strip.

      3. NOTE

        Make sure that there is no evidence of foreign inclusion, delamination, soft spot and lack of bonding.

        Visually inspect for correct bonding by bending the sealing strip 90 degrees.

      1. Refer to Figure.

    5. SUBTASK 72-32-82-220-079 Examine the Blade Assembly

      1. Do a visual inspection.

      1. Refer to TASK 72-32-82-200-000 (INSPECTION-000).

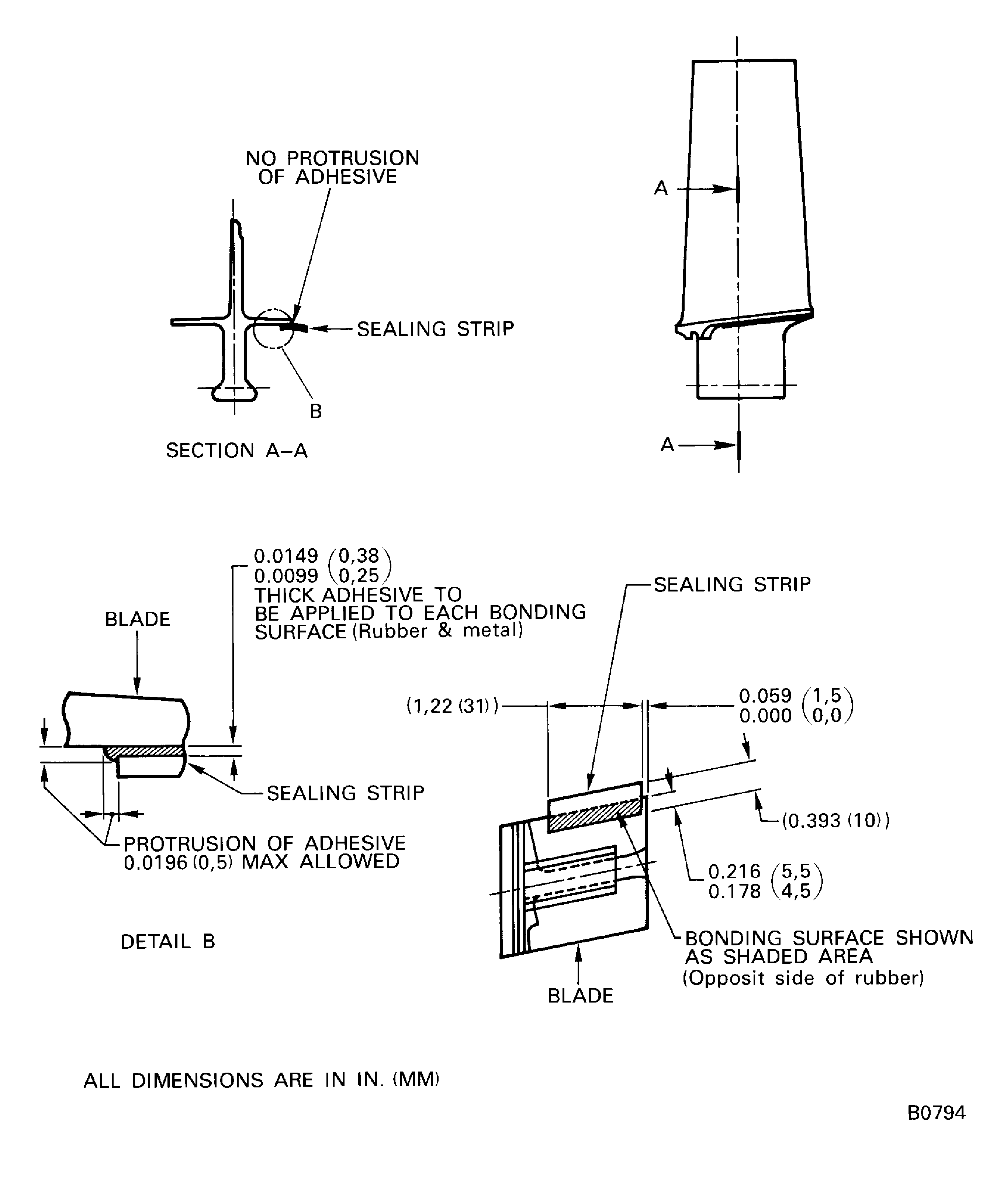

    6. Figure: Bonding of sealing strip

    Bonding of sealing strip

Requirements After Job Completion

Follow-On Conditions

NONE
Link not Found
Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:LOCAL
Enterprise Name:LOCALLY SUPPLIED
Link not Found
Manufacturer Code:X222X
Supply Number:CoMat 08-013
Type:sp01
Supply Short Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Supply Name:CoMat 08-013 COLD CURING SILICONE COMPOUND
Specification Groups:
Doc NumberType
If CoMat 08-013 is specified without an asterisk or a letter suffix, use one of the letter suffix alternative materials.
Suppliers:
ManufacturerRemarks
X222X
Manufacturer Code:X222X
Supply Number:CoMat 08-014
Type:sp01
Supply Short Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Supply Name:CoMat 08-014 PRIMER, SILICONE ADHESIVE/SEALANT
Specification Groups:
Doc NumberType
Use the applicable letter suffix material. Refer to SPM TASK 70-36-02-360-501.
Suppliers:
ManufacturerRemarks
X222X
