TASK 72-32-83-300-020 LPC Mid Case - Blend Repair, Repair-020 (VRS1584)

DMC:V2500-A0-72-32-8335-00A-649A-C|Issue No:004.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-020 LPC Mid Case - Blend Repair, Repair-020 (VRS1584)

Effectivty

FIG/ITEM PART NO.

02-650

5W2198

Material of component

DESCRIPTION SYMBOL MATERIAL

LPC mid case assembly

2.3Cu-1.6Mg-1.1FE-1.0Ni-0.18Si-0.0Ti

Aluminum

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK number are in the SPM.

For the method to clean the parts, refer to TASK 72-32-83-100-000.

NOTE

  1. Other consumable materials are given in the SPM.

  2. To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028
CoMat 01-459 AQUEOUS WIPE CLEANER71410CoMat 01-459
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-350-062 Blend the Damaged Surface of the LPC Mid Case Assembly (02-650)

    1. Refer to Figure, Figure and Figure.

      2. Blend the damaged surface.

      1. The width of the repaired area is to be minimum 30 times the depth. Blend limit per Figure.

        If abradable seal is removed with parent material for smooth blending, blend the abradable seal in accordance with Figure.

        If the damage can not be removed in accordance with the blend limit, Figure, reject the LPC mid case assembly.

    2. SUBTASK 72-32-83-220-244 Examine the LPC Mid Case Assembly (02-650)

      1. Visually examine the repaired area.

      1. Visually examine the damaged surface.

        Use a 10X magnifying glass. Refer to TASK 72-32-83-200-000 (INSPECTION/CHECK-000).

    3. SUBTASK 72-32-83-230-107 Examine the LPC Mid Case Assembly (02-650) for Cracks

      1. Fluorescent penetrant examine the repaired area.

    4. SUBTASK 72-32-83-380-056 Surface treat the Blended Surface of the LPC Mid Case Assembly (02-650)

      1. Degrease the blended surface with a cloth.

      2. Do a chemical touch up to the blended surface by a brush.

      1. Refer to the SPM TASK 70-38-02-300-503.

        Use CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUM chemical conversion coating for aluminium.

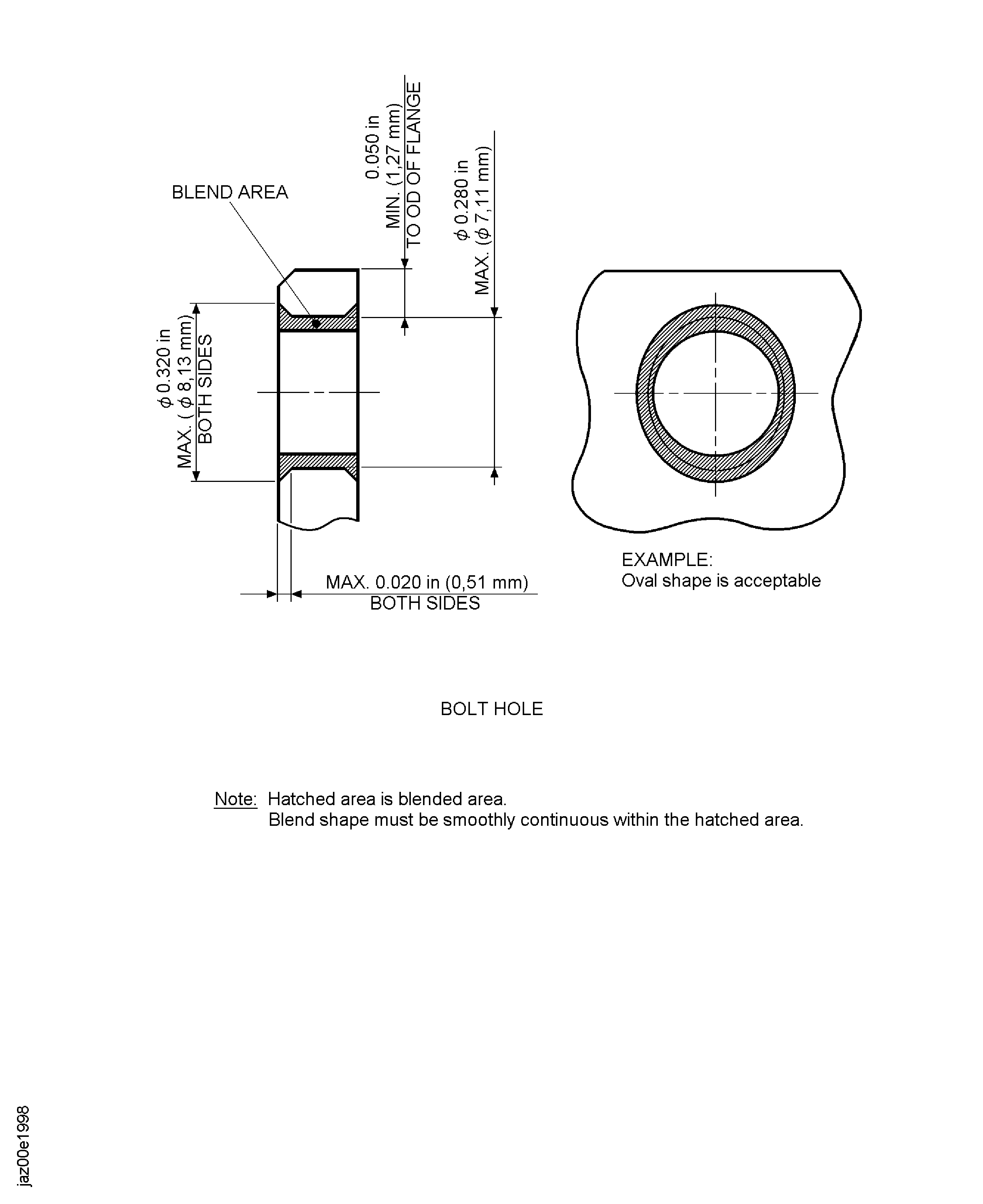

    5. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
Change Type:

Revised Figure 1. (92VJ882F)
