TASK 72-32-83-300-003 LPC Rear Case - Blend Repair, Repair-003 (VRS1396)

DMC:V2500-A0-72-32-8340-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-003 LPC Rear Case - Blend Repair, Repair-003 (VRS1396)

Effectivity

FIG/ITEM

PART NO.

01-650

5W2055

01-650

5W2037

Material of component

DESCRIPTION

SYMBOL

MATERIAL

LPC rear case assembly

2.3Cu-1.6Mg-1.1Fe-1.0Ni-0.18Si-0.07Ti

Aluminum

General

Price and availability - none

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials refer to the PCI.
Other consumable materials are given in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-459 AQUEOUS WIPE CLEANER71410CoMat 01-459
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 07-028 CHROMATE CONVERSION COATING FOR ALUMINUMLOCALCoMat 07-028
CoMat 05-020 WATERPROOF SILICON CARBIDELOCALCoMat 05-020
CoMat 05-021 WATERPROOF SILICON CARBIDE44197CoMat 05-021
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-350-053 Blend the Damaged Surface of the LPC Rear Case Assembly (01-650)

    1. Refer to Figure.

      2. Blend the damaged surface.

      1. Refer to the SPM TASK 70-35-03-300-501.

      3. The width of the repaired area is to be minimum 30 times the depth.

      4. Blend limit per Figure.

      5. If abradable seal is removed with parent material for smooth blending, blend the abradable seal in accordance with Figure.

      6. If the damage can not be removed in accordance with the blend limit, Figure, reject the LPC rear case assembly.

    2. SUBTASK 72-32-83-220-241 Examine the LPC Rear Case Assembly (01-650)

      1. Visually examine the repaired area.

      1. Visually examine the damaged surface. Use a 10x magnifying glass.

      2. Refer to TASK 72-32-83-200-000 (INSPECTION-000).

    3. SUBTASK 72-32-83-230-104 Examine the LPC Rear Case Assembly (01-650) for Cracks

      1. Fluorescent penetrant examine the repaired area.

      1. Refer to the SPM TASK 70-23-05-230-501.

      3. No crack are permitted.

    4. SUBTASK 72-32-83-380-051 Surface treat the Blended Surface of the LPC Rear Case Assembly (01-650)

      1. Degrease the blended surface with a cloth.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Do a chemical touch up to the blended surface by a brush.

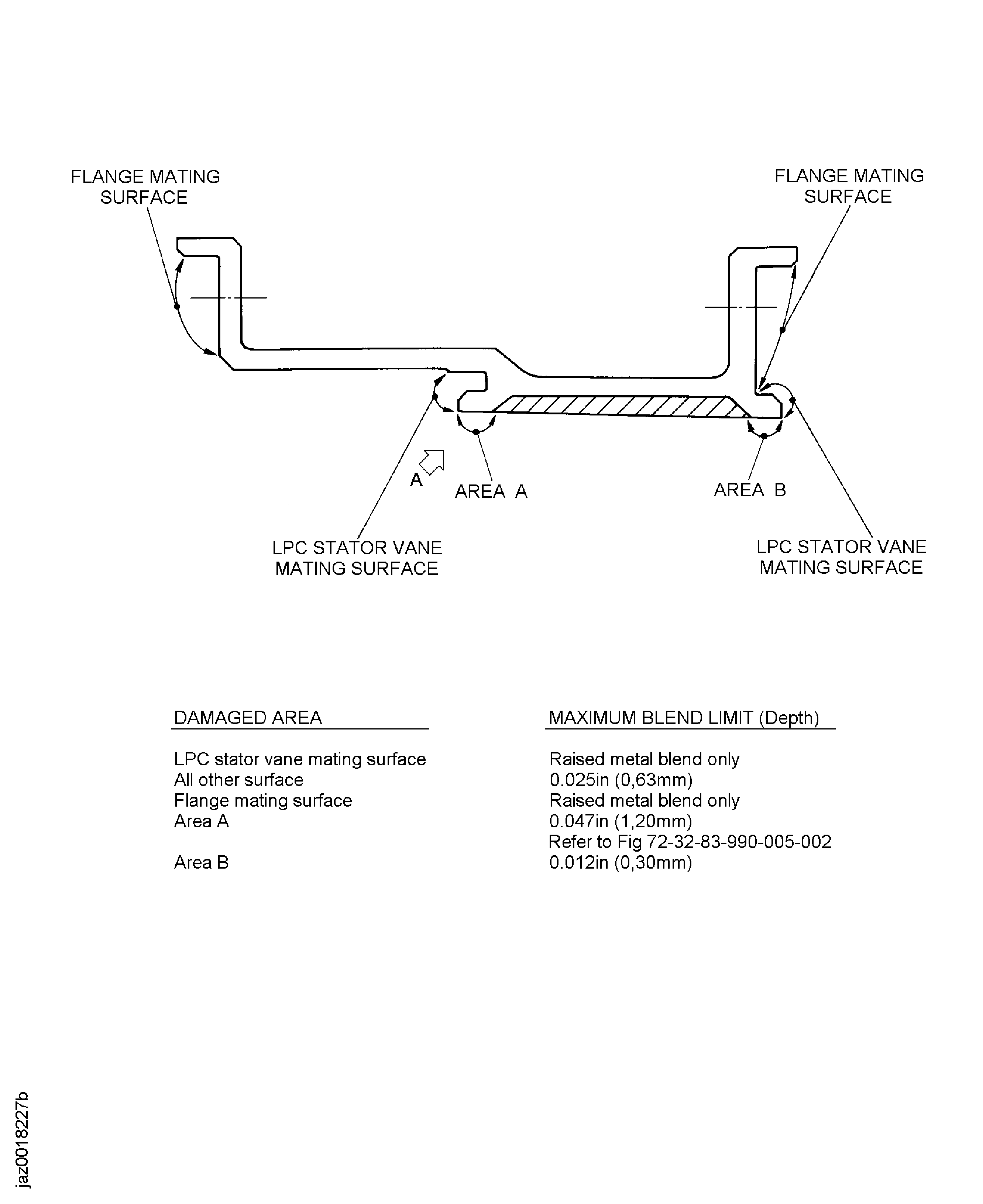

    5. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

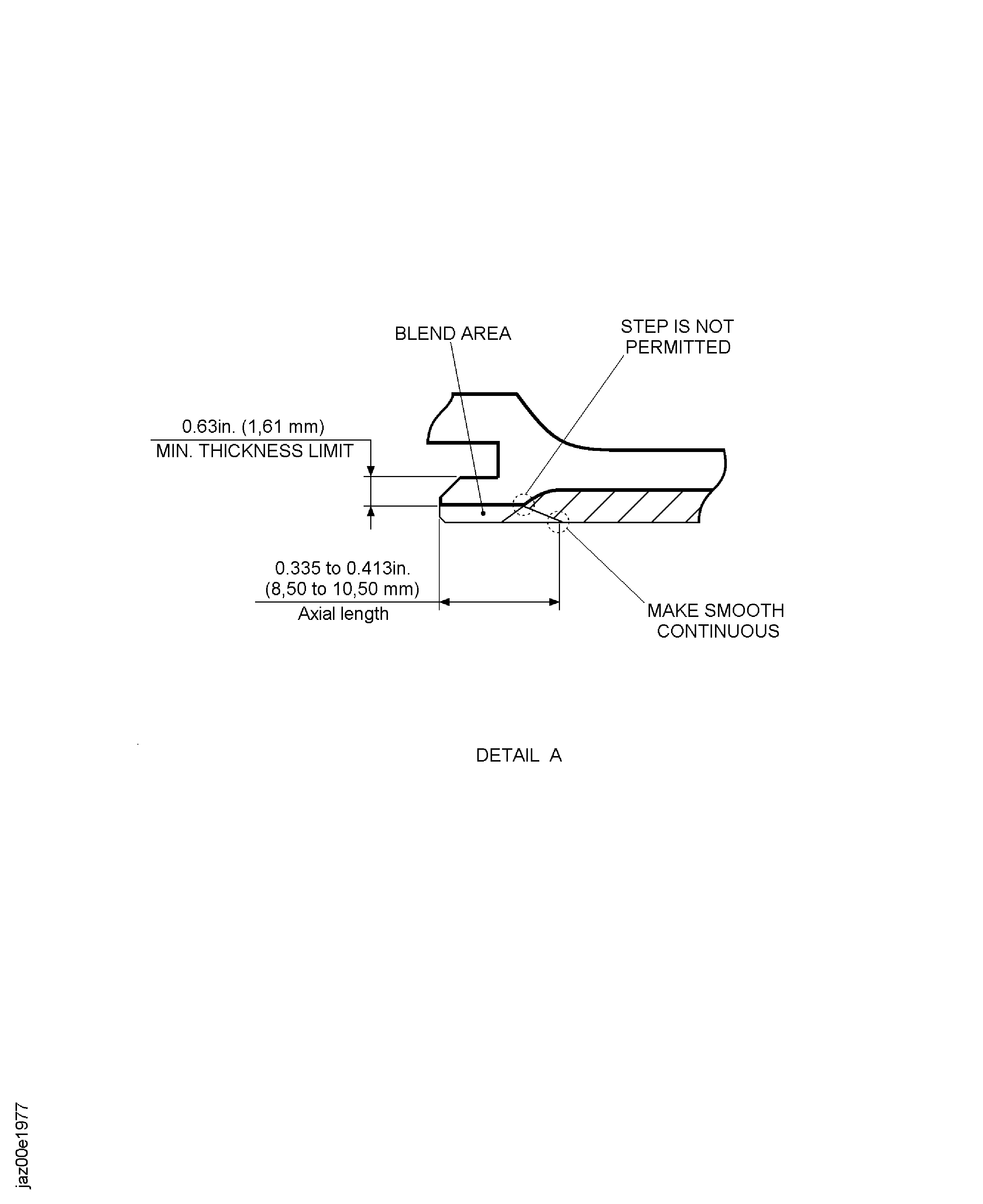

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
