TASK 72-32-83-300-057 LPC Rear Case - Refit The Washer, Repair-057 (VRS1375)
General
Price and availibility - none
The practices and processes referred to in the procedure by TASK numbers are in the SPM.
For the method to clean the parts, refer to TASK 72-32-83-100-000.
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-076 METHYL ETHYL KETONE | LOCAL | CoMat 01-076 | ||
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 | ||
| CoMat 02-099 LINT-FREE CLOTH | LOCAL | CoMat 02-099 |
Spares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Washer | RLA23SM4 | 8 |
Safety Requirements
NONEProcedure
Refer to the SPM TASK 70-23-05-230-501.
Use fluorescent penetrant inspection equipment.
No cracks are permitted.
Do a penetrant crack test of the repaired area.
Clean the surface with CoMat 01-076 METHYL ETHYL KETONE and CoMat 02-099 LINT-FREE CLOTH.
Refer to the SPM TASK 70-38-02-300-503.
Apply the chromate conversion coating to the repaired area.
SUBTASK 72-32-83-450-001 Install the Washer
Refer to TASK 72-32-83-200-000.
Refer to the SPM TASK 70-23-05-230-501.
Use fluorescent penetrant inspection equipment.
No cracks are permitted.
Do a penetrant crack test of the repaired area.
SUBTASK 72-32-83-220-235 Examine the Repaired Area
Refer to the SPM TASK 70-09-00-400-501.
Use a vibrating marking pencil.
Write VRS1375, adjacent to the part number on the LPC rear case assembly.
Refer to the SPM TASK 70-38-02-300-503.
Apply chromate conversion coating to the marked VRS number.
SUBTASK 72-32-83-350-134 Mark VRS Number on the LPC Rear Case Assembly

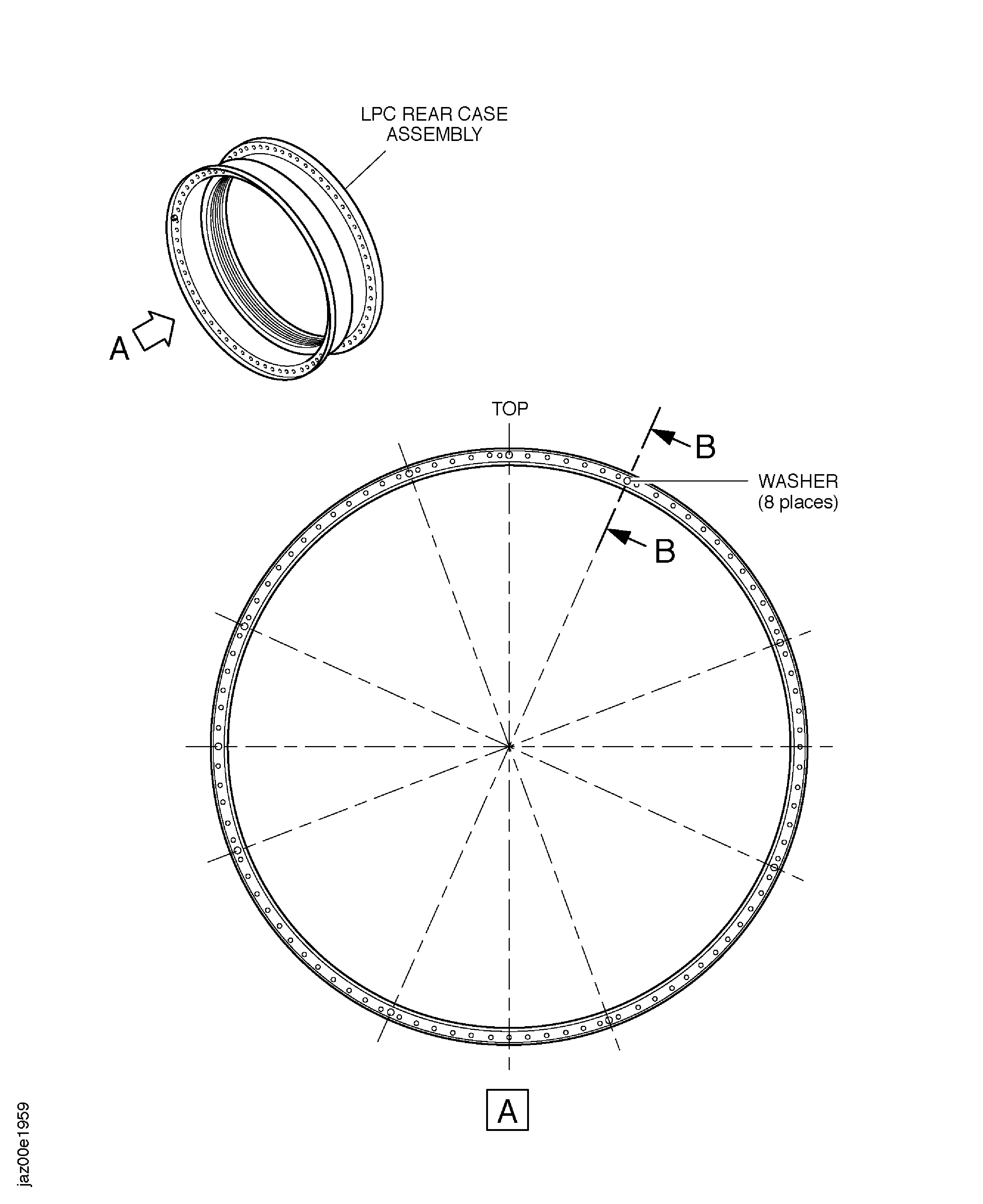

Figure: Repair Details and Dimensions
Sheet 1

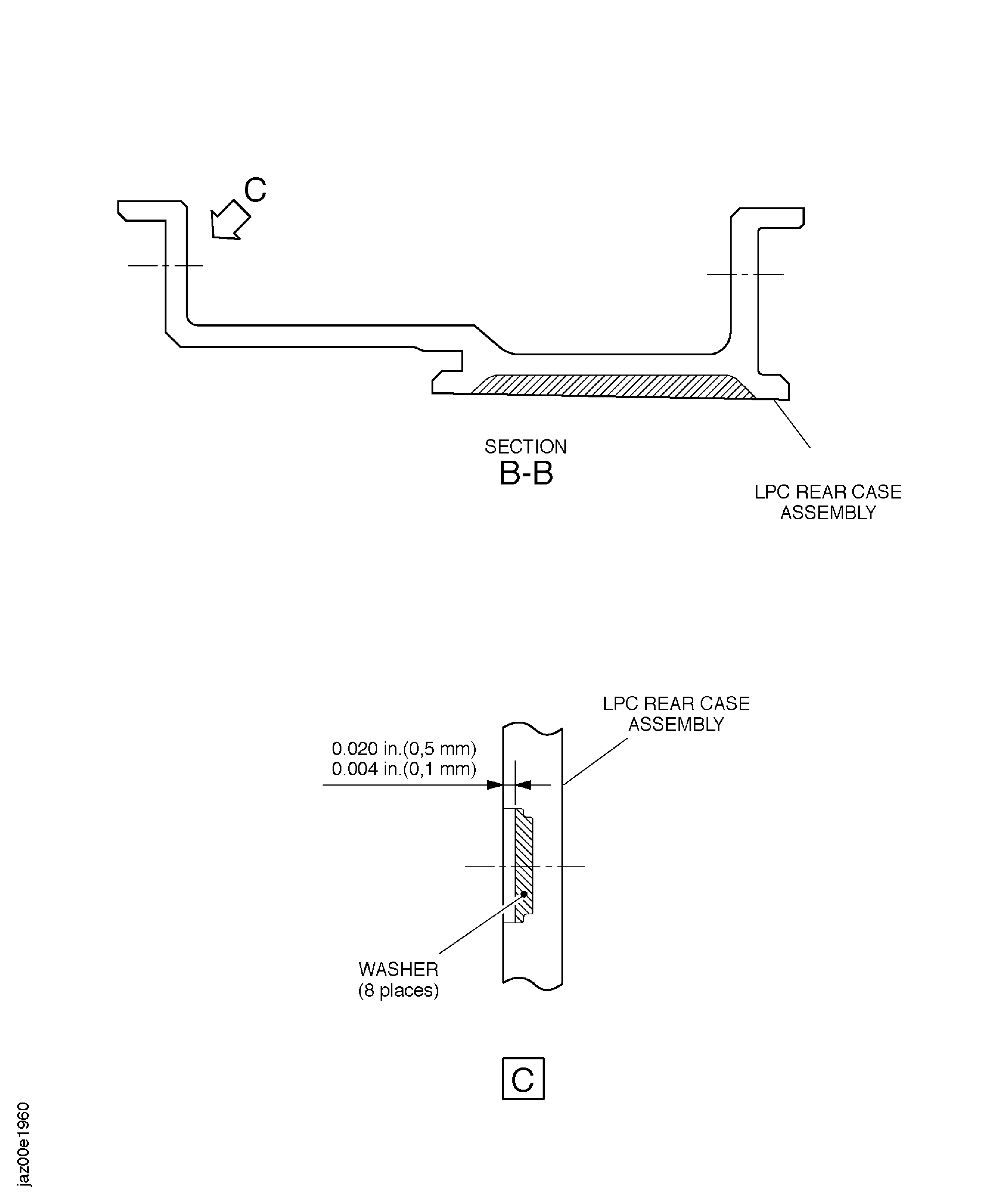

Figure: Repair Details and Dimensions
Sheet 2
