TASK 72-32-83-300-056 LPC Rear Case - Replace The Nut, Repair-056 (VRS1374)

DMC:V2500-A0-72-32-8340-06A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-83-300-056 LPC Rear Case - Replace The Nut, Repair-056 (VRS1374)

Effectivity

FIG/ITEM

PART NO.

01-650

5W2037

01-650

5W2055

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC rear case assembly

2.2A1-1.5Mg-1.1Ni-1.1Fe Aluminum

General

Price and availibility - none

The practices and processes referred to in the procedure by TASK numbers are in the SPM.

NOTE

The installation tool above (RPN10DS) can be obtained from:
ROSAN INC.
2901W. Coast Highway
Newport Beach, CA 92663
USA

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Drilling machineLOCALDrilling machine
Vibrating marking pencilLOCALVibrating marking pencil
Standard workshop equipmentLOCALStandard workshop equipment
SpatulaLOCALSpatula
Arbor PressLOCALArbor press
Drive toolLOCALRPN10DS1

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-124 ISOPROPYL ALCOHOLLOCALCoMat 01-124
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-016 GARNET PAPER, 80-GRITLOCALCoMat 05-016
CoMat 05-017 GARNET PAPER, 60 GRITLOCALCoMat 05-017
CoMat 06-063 FLUORESCENT PENETRANT (POST-EMULSIFIED MEDIUM SENSITIVITY)LOCALCoMat 06-063
CoMat 06-064 FLUORESCENT PENETRANT (WATER WASHABLE MEDIUM SENSITIVITY)LOCALCoMat 06-064
CoMat 08-109 RESIN, EPOXY ADHESIVELOCALCoMat 08-109
CoMat 08-110 HARDENER, EPOXY ADHESIVELOCALCoMat 08-110

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
NutRPNF250-28SM8

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-83-360-139 Remove the Damaged Nut from the LPC Rear Case Assembly

    1. Refer to Figure and Figure.

    2. Examine and identify the damaged nut.

      3. Remove the damaged nut from the LPC rear case assembly, if necessary.

      1. Use standard workshopp equipment to pull out the nut.

      4. Remove the raised material around the nut hole.

    2. SUBTASK 72-32-83-230-103 Examine the Nut Hole of the LPC Rear Case Assembly for Cracks

      1. Do a penetrant crack test on the nut location hole.

      1. Make sure there are no cracks on the nut location hole.

      2. Refer to the SPM TASK 70-23-05-230-501.

      4. Use penetrant crack test equipment.

    3. SUBTASK 72-32-83-360-140 Prepare the Bonding Surfaces of the Nut and the LPC Rear Case Assembly

    1. Refer to Figure and Figure.

      2. Remove the grease from the bonding surfaces of the nut and the LPC rear case assembly.

    4. Repeat step B.

    4. SUBTASK 72-32-83-360-141 Apply and Cure the Epoxy Paste Adhesive

    1. Refer to Figure and Figure.

    2. CAUTION

      AFTER PREPARATION THE MATING SURFACES MUST BE FULLY CLEANED AND MUST NOT BE TOUCHED BY HAND TO PREVENT CONTAMINATION.

      Make up the two part epoxy paste adhesive.

    3. The adhesive is made up from two parts: CoMat 08-109 RESIN, EPOXY ADHESIVE 100 parts by weight. CoMat 08-110 HARDENER, EPOXY ADHESIVE 40 parts by weight. Fully mix the two parts. The pot life of the adhesive is one hour at 68 deg F (20 deg C).

      4. Apply the epoxy paste adhesive to the mating surfaces of the nut and the LPC rear case assembly.

      1. Use a spatula.

      5. Install the nut to the LPC rear case assembly.

      1. Apply sufficient pressure to ensure good contact by hand or arbor press.

    6. Remove excess adhesive.

    7. Cure the adhesive at 68 deg F (20 deg C) for 16 hours or at 248 deg F (120 deg C) for 10 minutes.

    5. SUBTASK 72-32-83-220-232 Examine the Repaired Areas of the LPC Rear Case Assembly

    1. Refer to Figure and Figure.

      2. Visually examine the position of the repaired nut.

      1. A gap is not permitted between the nut and the LPC rear case assembly.

      3. Visually examine the adhesive.

      1. Make sure the adhesive extends 360 degrees around the nut.

    6. SUBTASK 72-32-83-350-131 Mark the VRS Number on the LPC Rear Case Assembly

      1. Write VRS1374, adjacent to the part number on the LPC rear case assembly.

      1. Refer to the SPM TASK 70-09-00-400-501.

      2. Use vibrating marking pencil.

      2. Apply chromate conversion coating to the marked VRS number.

      1. Refer to the SPM TASK 70-38-02-300-503.

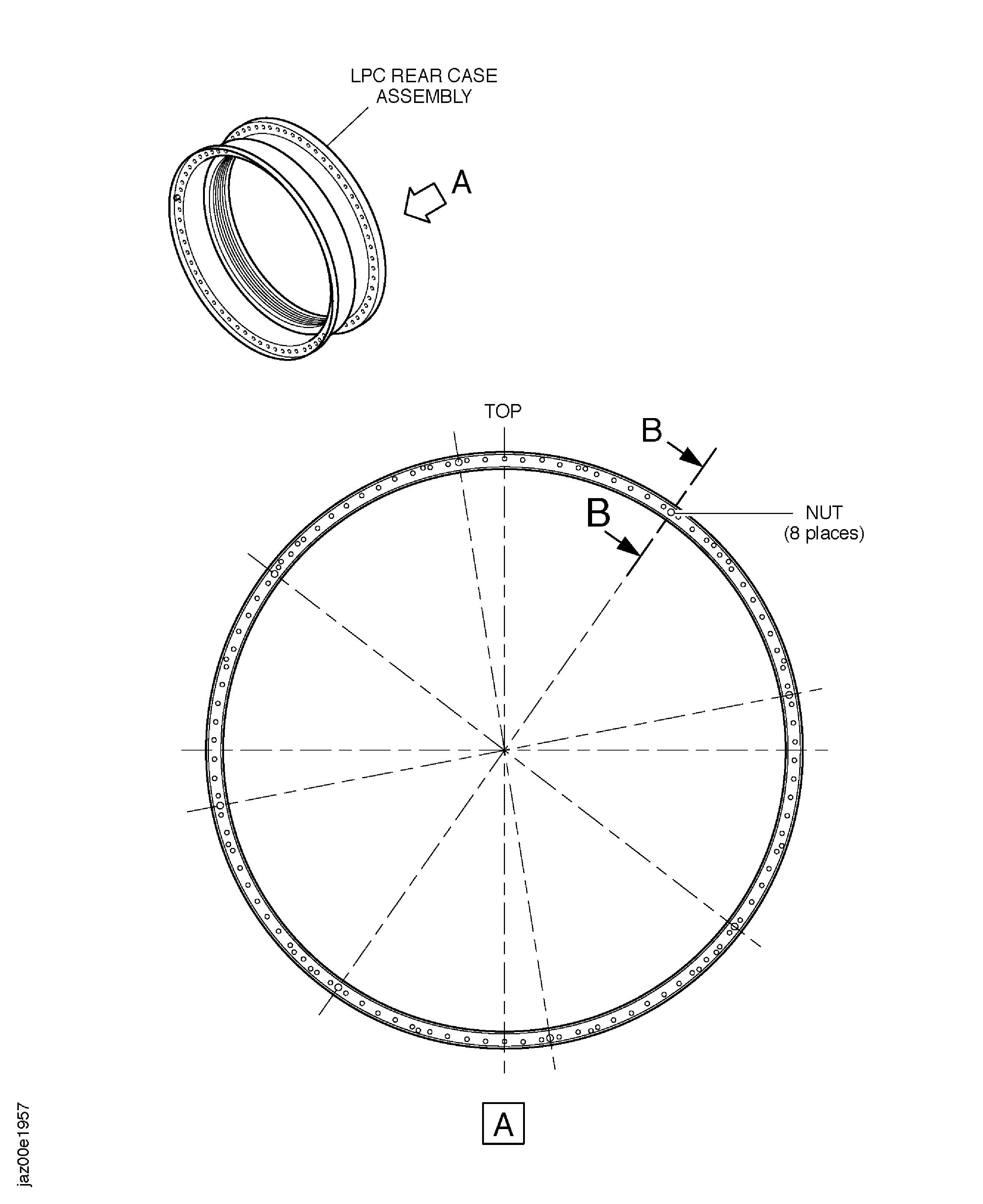

    7. Figure: Repair Details and Dimensions

    Sheet 1

    Legend
    Repair Details and Dimensions

    Sheet 1

    Close

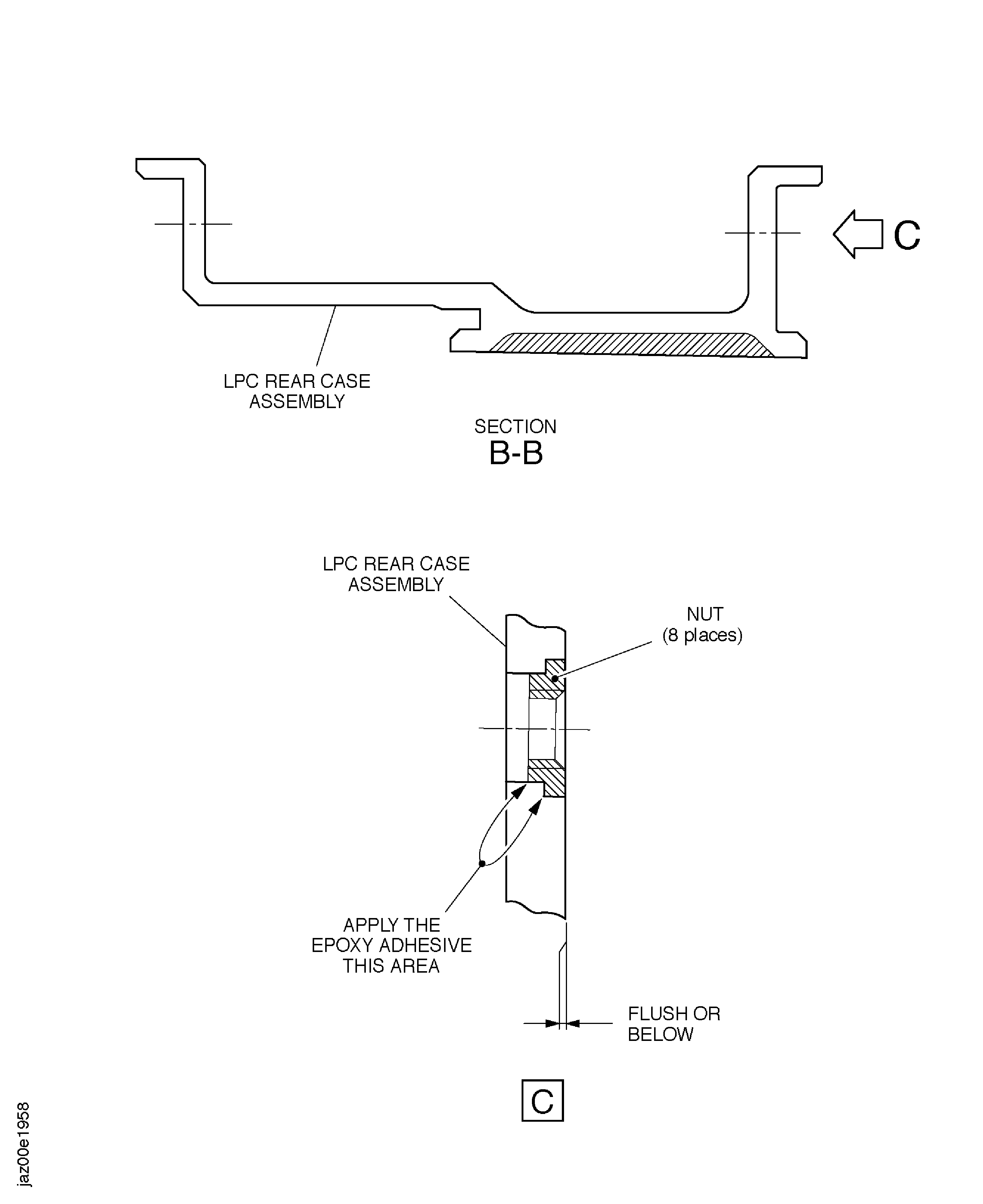

    Figure: Repair Details and Dimensions

    Sheet 2

    Legend
    Repair Details and Dimensions

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
