TASK 72-32-87-200-001 Fan Case Liner Panel Rubber Seal - Examine, Inspection-001

DMC:V2500-A0-72-32-8701-00A-300A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-87-200-001 Fan Case Liner Panel Rubber Seal - Examine, Inspection-001

Effectivity

FIG/ITEM

PART NO.

01-100

5A0819

01-100

5A1601

01-100

5A2139

01-150

5A0823

01-150

5A2140

01-150

5A2179

01-150

5A2190

01-200

5A0824

01-200

5A2141

01-250

5A0825

01-250

5A2142

01-300

5A0827

01-300

5A2143

01-300

5A2180

01-300

5A2191

01-350

5A0828

01-350

5A2144

01-400

5A0829

01-400

5A2145

01-400

5A2181

01-400

5A2192

01-450

5A0830

01-450

5A2146

01-500

5A0831

01-500

5A2147

01-550

5A0832

01-550

5A2148

01-550

5A2182

01-550

5A2193

General

This TASK gives the procedure for the inspection of the panel rubber seal.

The policy that is necessary for inspection is given in the SPM TASK 70-20-00-200-501.

All the parts must be cleaned before any part is examined. Refer to the TASK 72-32-87-100-000 (CLEANING-000).

All the parts must be visually examined for damage, corrosion and wear. Any defects that are not identified in the procedure must be referred to IAE.

Do not discard any part until you are sure there are no repairs available. Refer to the instructions in Repair before a discarded part is used again or oversize parts are installed.

Parts which should be discarded can be held although no repair is available. The repair of a discarded part could be shown to be necessary at a later date.

All the parts must be examined to make sure that all the repairs have been completed satisfactorily.

A ** following repair referenced in this inspection indicates that the repair is not yet published in the current revision of the manual and the part must be rejected. Contact IAE for additional information concerning FAA approved repair date.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

References

Refer to the SPM for data on these items:

Definition of Damage, SPM TASK 70-02-02-350-501.

Inspection of Parts, SPM TASK 70-20-00-200-501.

Some data on these items are contained in this TASK. For more data on these items refer to the SPM:

Chemical Processes

Surface Protection

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-87-220-051 Examine the Panel Rubber Seal Around the Bushes

    1. Refer to Figure.

      2. Examine the panel rubber seal around the bushes at location 1.

        1. Chipped

        1. Reject

        2. Cracked.

        1. Cracks which go to or come from the bush.

          2. Not more than 0.118 in. (3.00 mm) in length and any number of cracks

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          3. Not more than 0.197 in. (5.00 mm) in length and the number of bushes with cracks is two or less

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          4. Not more than 0.197 in. (5.00 mm) in length and the number of bushes with cracks is more than two

          1. Reject

          5. More than 0.197 in. (5.00 mm) in length Step

          1. Reject

        6. Cracks which go to or come from the edge of groove. Refer to Figure at detail A.

          7. If the number of grooves with cracks is two or less

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          8. More than in Step

          1. Reject

        3. Cracks which increase between the bush and the groove

        1. Reject

    2. SUBTASK 72-32-87-220-052 Examine the Panel Rubber Seal Bushes

    1. Refer to Figure.

      2. Examine the bushes at location 2.

        1. Galled

          1. Not more than 0.015 in. (0.38 mm) in depth

          1. Accept

          2. More than in Step

          1. Reject

        2. Loose

        1. Reject

    3. SUBTASK 72-32-87-220-053 Examine the Panel Rubber Seal Edge Surfaces

    1. Refer to Figure.

      2. Examine the edge surfaces at location 3.

        1. Scored or scratched.

          1. Not more than 0.010 in. (0.25 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        2. Cracked.

        1. Not more than 1.00 in. (2.54 mm) in length.

          2. Any number of cracks

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        3. Not more than 2.00 in. (50.8 mm) in length.

          4. Not more than one crack

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          5. More than in Step

          1. Reject

          6. More than in Step

          1. Reject

    4. SUBTASK 72-32-87-220-054 Examine the Panel Rubber Seal Curved Area

    1. Refer to Figure.

      2. Examine the curved area at location 4.

        1. Chipped or pierced

        1. Reject

        2. Cracked.

        1. Not more than 1.00 in. (25.4 mm) in length.

          2. Any number of cracks

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        3. Not more than 2.00 in. (50.8 mm) in length.

          4. Not more than one crack

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          5. More than in Step

          1. Reject

          6. More than in Step

          1. Reject

        3. Nicked, dented, worn or pitted (caused by erosion).

          1. Not more than 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

    5. SUBTASK 72-32-87-220-086 Examine the Panel Rubber Seal Grooves

    1. Refer to Figure.

      2. Examine the grooves at location 5.

        1. Scored or scratched.

          1. Not more than 0.010 in. (0.25 mm)

          1. Accept

          2. More than in Step

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        2. Cracked.

        1. If the cracks do not go through from groove surface to air passage surface.

          2. Any number of cracks

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        3. If the cracks go through from groove surface to air passage surface.

          4. If the number of groove with cracks is two or less

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          5. More than in Step

          1. Reject

    6. SUBTASK 72-32-87-220-087 Examine the Panel Rubber Seal Remaining Surfaces

    1. Refer to Figure.

      2. Examine the remaining surfaces which do not include the identified locations before.

        1. Chipped

        1. Reject

        2. Cracked.

        1. Not more than 1.00 in. (25.4 mm) in length.

          2. Any number of cracks

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

        3. Not more than 2.00 in. (50.8 mm) in length.

          4. Not more than one crack

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

          5. More than in Step

          1. Reject

          6. More than in Step

          1. Reject

        3. Nicked, dented, worn or pitted (caused by erosion).

          1. Not more than 0.010 in. (0.25 mm) in depth

          1. Accept

          2. More than in Step

          1. Repair, VRS1940 TASK 72-32-87-300-007 (REPAIR-007)

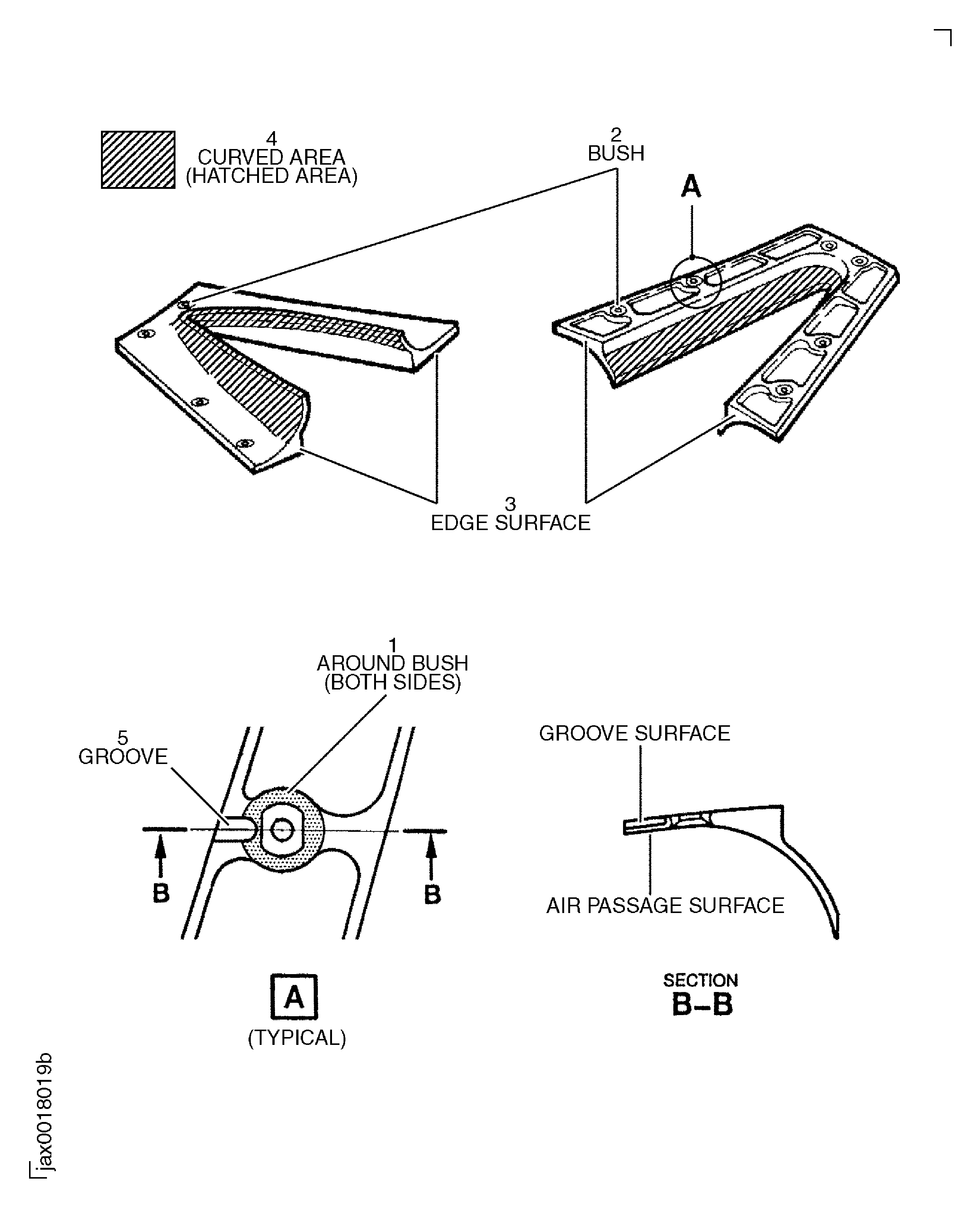

    7. Figure: Locations on the Panel Rubber Seal

    Locations on the Panel Rubber Seal

Requirements After Job Completion

Follow-On Conditions

NONE
