TASK 72-32-88-300-005 Fan Exit Guide Vane - Repair The Surface Damage, Repair-005 (VRS1770)
Effectivity
FIG/ITEM | PART NO. | |
06-100 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
06-300 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
06-500 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
06-700 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
07-100 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
07-300 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
07-500 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
07-700 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
08-100 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
08-300 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
08-500 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
08-700 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
09-100 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
09-300 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
09-500 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
09-700 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
10-100 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
10-300 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
10-500 | 5A1375 | Assembly A |
5A1513 | Assembly B | |
10-700 | 5A1375 | Assembly A |
5A1513 | Assembly B |
Material of component
DESCRIPTION | RR SYMBOL | MATERIAL |
|---|---|---|
Fan exit guide vane assembly (Assembly A) | Aluminum alloy | |
Fan exit guide vane assembly (Assembly B) | Vane: Aluminum alloy Outer platform: Carbon fiber reinforced plastics Inner platform: Aluminum alloy |
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 01-275 CHROMATE CONVERSION COATING FOR ALUMINIUM | LOCAL | CoMat 01-275 | ||
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
All polish marks must be in a radial direction from the vane ID to OD.
The surface finish of the repair area must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Use abrasive stones or papers and/or fine files.
Scallop, make smooth and/or hand polish to remove nicks, scratches and damage.
Remove the minimum quantity of material necessary to give the correct radius.
Refer to the SPM TASK 70-35-03-300-501.
Hand polish the vane leading and/or trailing edge radius and the vane profile to make a smooth shape.
SUBTASK 72-32-88-350-056 Remove the Damage from the Fan Exit Vane
Use a 10X magnifying glass.
Refer to TASK 72-32-88-200-000 (INSPECTION-000).
Visually examine the repaired area for nicks, scratches and damage.
Visually examine the repaired area.
SUBTASK 72-32-88-220-066 Examine the Fan Exit Vane
Make sure that there are no cracks in the repaired area.
Refer to the SPM TASK 70-23-05-230-501.
NOTE
The fluorescent penetrant inspection is not applicable to the outer platform of Assembly B.Fluorescent penetrant examine the repaired area.
SUBTASK 72-32-88-230-055 Examine the Fan Exit Vanes for Cracks
Refer to the SPM TASK 70-11-26-300-503.
NOTE
The surface protection is not applicable to the outer platform of Assembly B.Remove the grease with solvent.
SUBTASK 72-32-88-110-053 Remove the Grease from the Fan Exit Vane
Refer to the SPM TASK 70-38-02-300-503.
NOTE
The surface protection is not applicable to the outer platform of Assembly B.Apply the chemical conversion coating with a brush to the repaired area.
SUBTASK 72-32-88-380-054 Apply the Surface Protection to the Fan Exit Vane

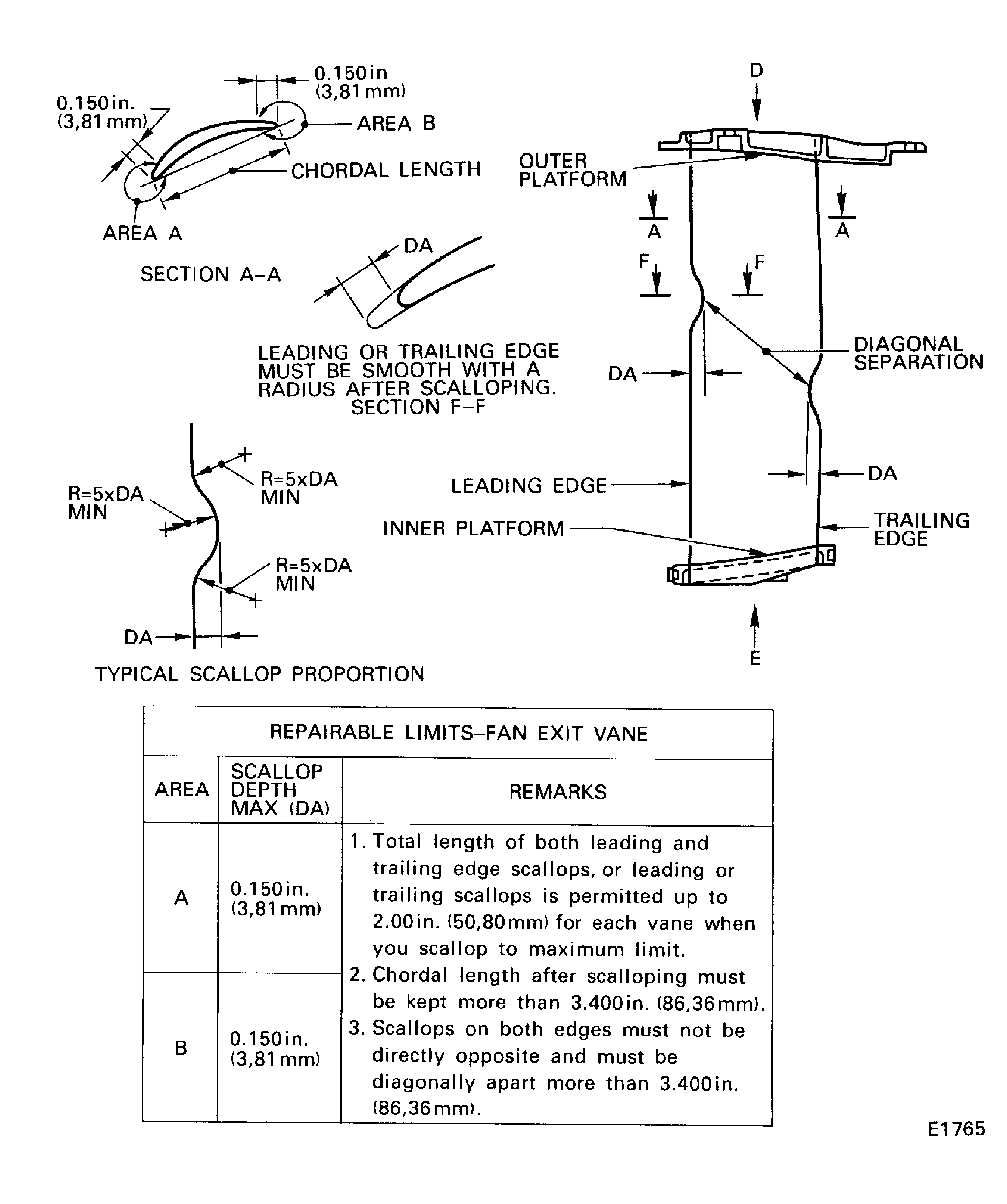

Figure: Fan exit vane, Assembly A and B - blend limits
Fan exit vane, Assembly A and B - blend limits

Figure: Fan exit vane, Assembly A and B - blend limits
Fan exit vane, Assembly A and B - blend limits

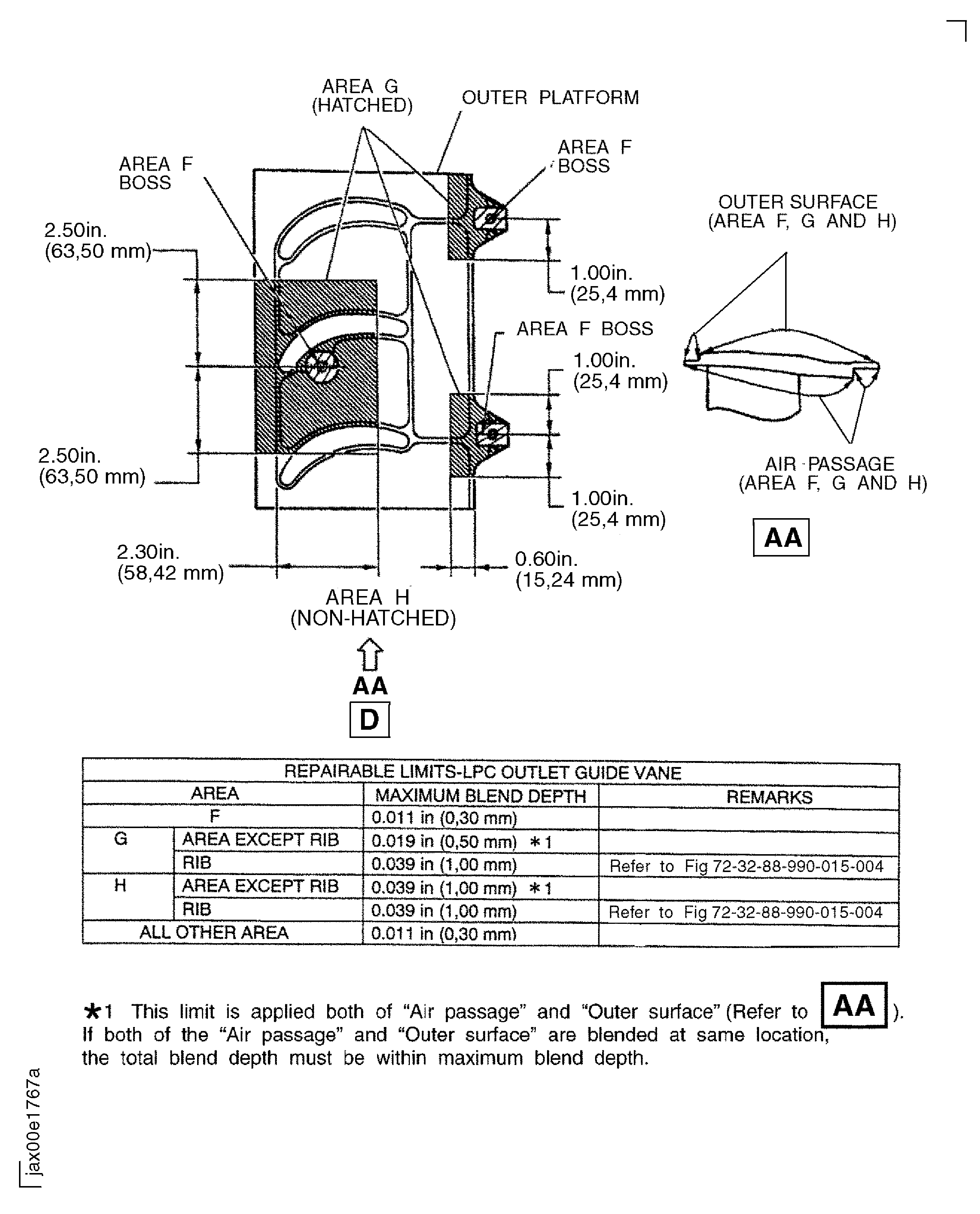

Figure: Fan exit vane, Assembly A - blend limits
Fan exit vane, Assembly A - blend limits

Figure: Fan exit vane, Assembly B - blend limits
Fan exit vane, Assembly B - blend limits

Figure: Fan exit vane, Assembly A and B - blend limits
Fan exit vane, Assembly A and B - blend limits

Figure: Fan exit vane, Assembly A and B - blend limits for damages on rib
Fan exit vane, Assembly A and B - blend limits for damages on rib
