TASK 72-32-91-300-008 LPC Inlet Guide Vane (Stator) - Replace The Abradable Seal, Repair-008 (VRS1437)

DMC:V2500-A0-72-32-9102-01A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-32-91-300-008 LPC Inlet Guide Vane (Stator) - Replace The Abradable Seal, Repair-008 (VRS1437)

Effectivity

FIG/ITEM

PART NO.

01-400

5A0060

01-400

5A0179

01-400

5A1494

01-400

5A7381

Material of component

PART IDENT

SYMBOL

MATERIAL

LPC inlet guide vane assembly

Aluminum alloy

General

Price and availability - none

NOTE

To identify the consumable materials refer to the PCI.

NOTE

Special tools are identified in the procedure by the tool primary number.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Dry blast cabinetLOCALDry blast cabinet
Hardness tester (durometer)LOCALHardness tester (durometer)
InjectorLOCALInjector

(air pressure type)

IAE 3J12133 Molding fixture0AM53IAE 3J121331
IAE 3J12722 Molding fixture0AM53IAE 3J127221
IAE 3J12775 Bond test fixture0AM53IAE 3J127751
IAE 3J12785 Inspection stand0AM53IAE 3J127851

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-005 ADHESIVE TAPE (MASKING)LOCALCoMat 02-005
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 05-050 SILICON CARBIDE GRIT1E1X8CoMat 05-050
CoMat 08-032 PRIMERLOCALCoMat 08-032
CoMat 08-037 DELETEDLOCALCoMat 08-037
CoMat 08-038 SILICONE RUBBER COMPOUND64101CoMat 08-038

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-91-360-051 Remove the Damaged Abradable Seal

    1. Refer to Figure.

    2. Remove the damaged abradable seal by scraper with care to part.

    2. SUBTASK 72-32-91-120-051 Clean the Surfaces which are to be Applied the Silicone Rubber Compound

    1. Refer to Figure.

      2. Apply masking tape to the areas where silicone rubber compound is not required.

      3. Apply dry abrasive blast to mold area by silicon carbide grit, air pressure 70 psig (483 kPa) at a distance of 6 in. (152 mm) minimum from air nozzle to part.

        1. Use dry blast system cabinet.

    4. Remove residual abrasive by vacuuming.

      5. Wipe blasted surface.

    6. NOTE

      After cleaning the component must not be touched by hand and must be covered by craft paper, to prevent contamination.

      Air dry for 10 minutes minimum.

    3. SUBTASK 72-32-91-360-052 Apply Primer to the Surface after Cleaning

      1. NOTE

        The primed surface must have a faintly visible pink coloration. If there is no visible coloration, the primer film may not be continuous. If the color is quite bright, streaky bright or chalky, the primer is too thick.

        NOTE

        Keep the primer in a small container for single usage only. The remaining primer must not be used.

        Immediately after air dry, apply a very thin coat (thickness 0.0001in. (0.003 mm)) of primer to mold surface using unsized cheese cloth.

      2. Cure the primed surface.

      1. Refer to the SPM TASK 70-36-06-360-501.

    4. SUBTASK 72-32-91-360-053 Mix the Silicone Rubber Compound

      1. NOTE

        Silicone rubber compound has a shelf life of six months from date of shipment.

        NOTE

        Compound as received has been kept at temperature not higher than 90 deg F (32 deg C).

        NOTE

        Shelf life extension is based on both viscosity and storage temperature.

        NOTE

        Resin and catalyst in each kit are chemically matched. Do not mix with components from other kits.

        Mix silicone rubber compound using the mixer with a drill press between 70 and 80 deg F (21 and 27 deg C) for 20 to 30 minutes.

    2. Degas from mixture with a vacuum of 25 to 50 mm Hg for 30 minutes minimum.

    5. SUBTASK 72-32-91-360-054 Mold the Silicone Rubber Compound

      1. Clean the molding fixture.

    2. Attach the component to molding fixture.

    3. Put the degased silicone rubber compound into the air press type injector.

      4. Pour silicone rubber compound to the component with fixture using the air press type injector.

        1. Injection pressure:

        1. After silicone rubber coming out from the vent port 35 psig (241.5 kPa).

    6. SUBTASK 72-32-91-360-055 Cure the Silicone Rubber Compound

      1. Cure the compound.

      1. Refer to the SPM TASK 70-36-06-360-501.

    2. Remove the component from molding fixture.

      3. Cure the component.

      1. Refer to the SPM TASK 70-36-06-360-501.

    7. SUBTASK 72-32-91-220-070 Examine the Repaired Area

    1. Refer to Figure and Figure.

      2. Visually examine the repaired area.

      1. Refer to TASK 72-32-91-200-000 (INSPECTION-000).

    3. Dimensional check the diameter of repaired area. If necessary, grind the diameter of repaired area.

      4. Hardness check the repaired area at four positions equally spaced on circumference.

        1. Use hardness tester (durometer).

        1. Hardness: ASTM D2240 (Durometer 'A') 52 - 65.

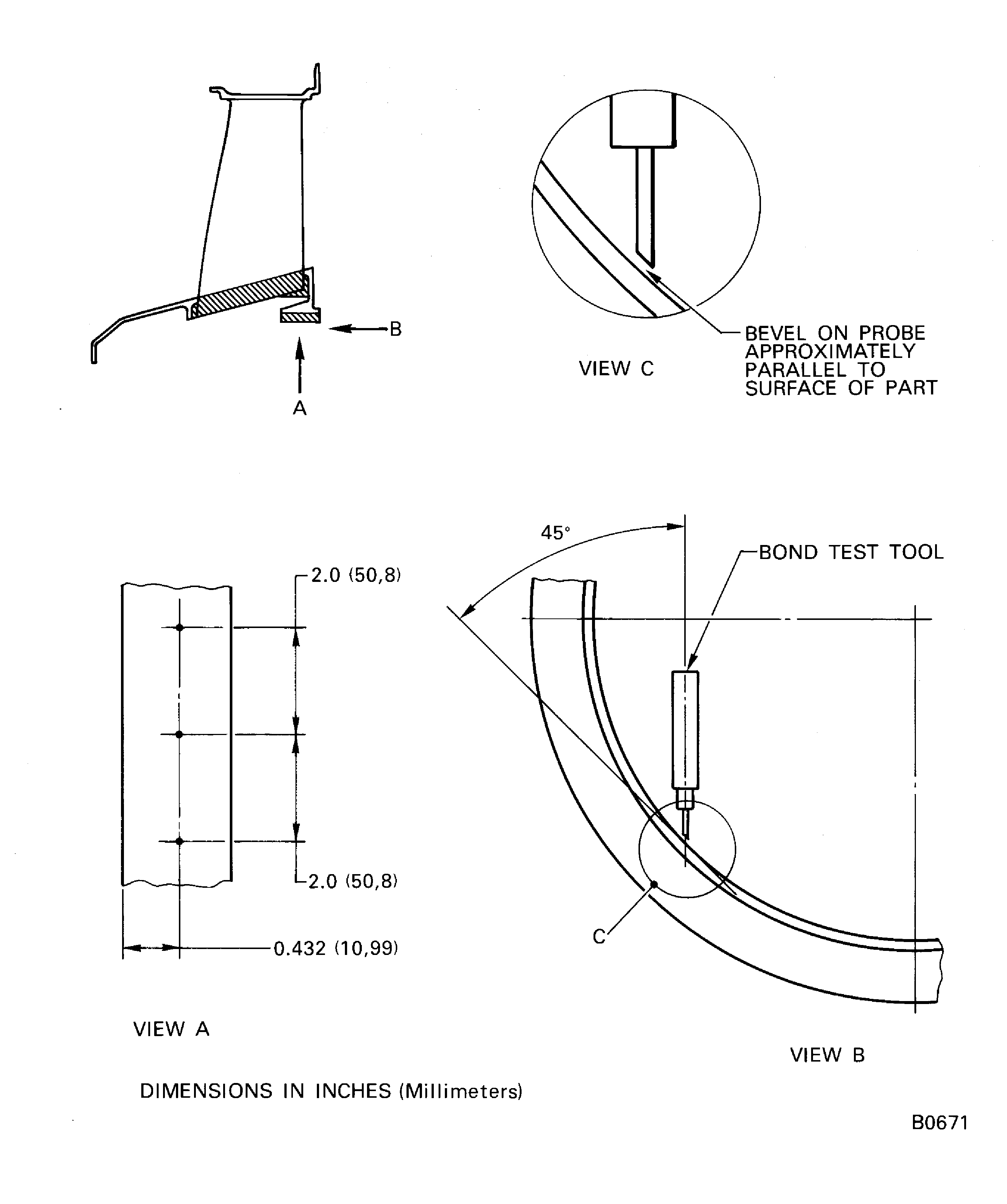

    8. SUBTASK 72-32-91-220-071 Do a Bond Test the Repaired Area

    1. Refer to Figure.

      2. NOTE

        Bond test must be done after curing (bake) of rubber on the following conditions:

        NOTE

        Inspection gas: Air or nitrogen gas.

        NOTE

        Gas pressure: 200 psig (1380 kPa).

        NOTE

        Inspection position: Vary the pattern as necessary to examine partial repaired area.

        NOTE

        Probe angle: Approximately 45 degrees.

        Do a bond test to the repaired area.

        1. No signs of bulging or air leakage are permitted.

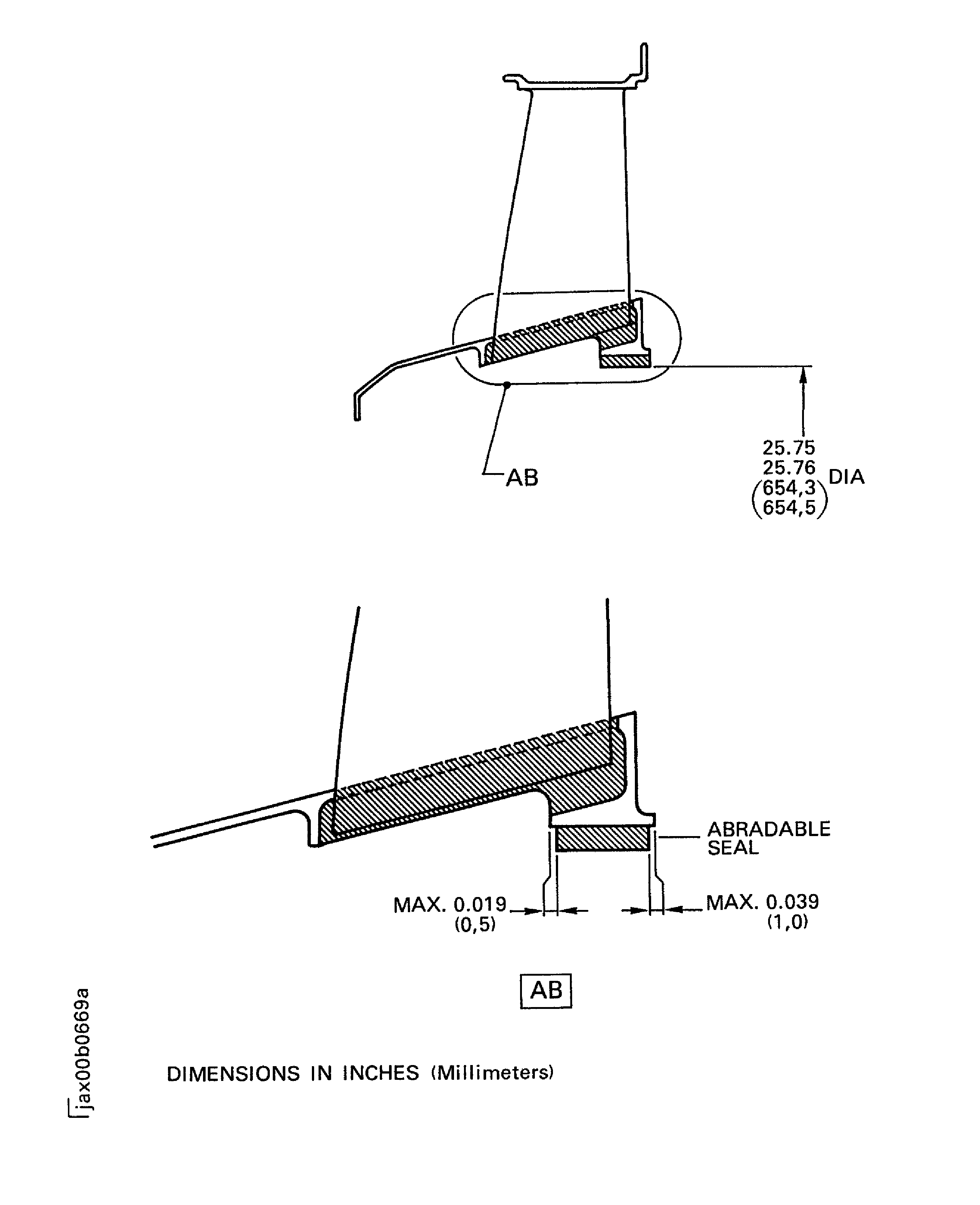

    9. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

    Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
