TASK 72-32-95-300-001 PTO Quill Shaft - Repair Surface Damage, Repair-001 (VRS1452)
General
Price and availability - none
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Surface finish of the repair must be the same as the adjacent area.
Refer to Figure.
Refer to the SPM TASK 70-35-03-300-501.
Use abrasive stones or papers and/or honing stone.
Make smooth and/or hand polish to remove galls, scores and burrs.
SUBTASK 72-32-95-350-051 Remove the Damage from the Quill Shaft
Refer to TASK 72-32-95-200-000.
Visually examine the repaired area for galls and/or burrs using 10X magnifying glass.
Visually examine the repaired area.
SUBTASK 72-32-95-220-055 Examine the Quill Shaft
Refer to the SPM TASK 70-24-01-240-501.
Make sure there is no crack in the repaired area.
Refer to TASK 72-32-95-200-000.
Magnetic particle examine the repaired area.
SUBTASK 72-32-95-240-052 Examine the Quill Shaft for Cracks

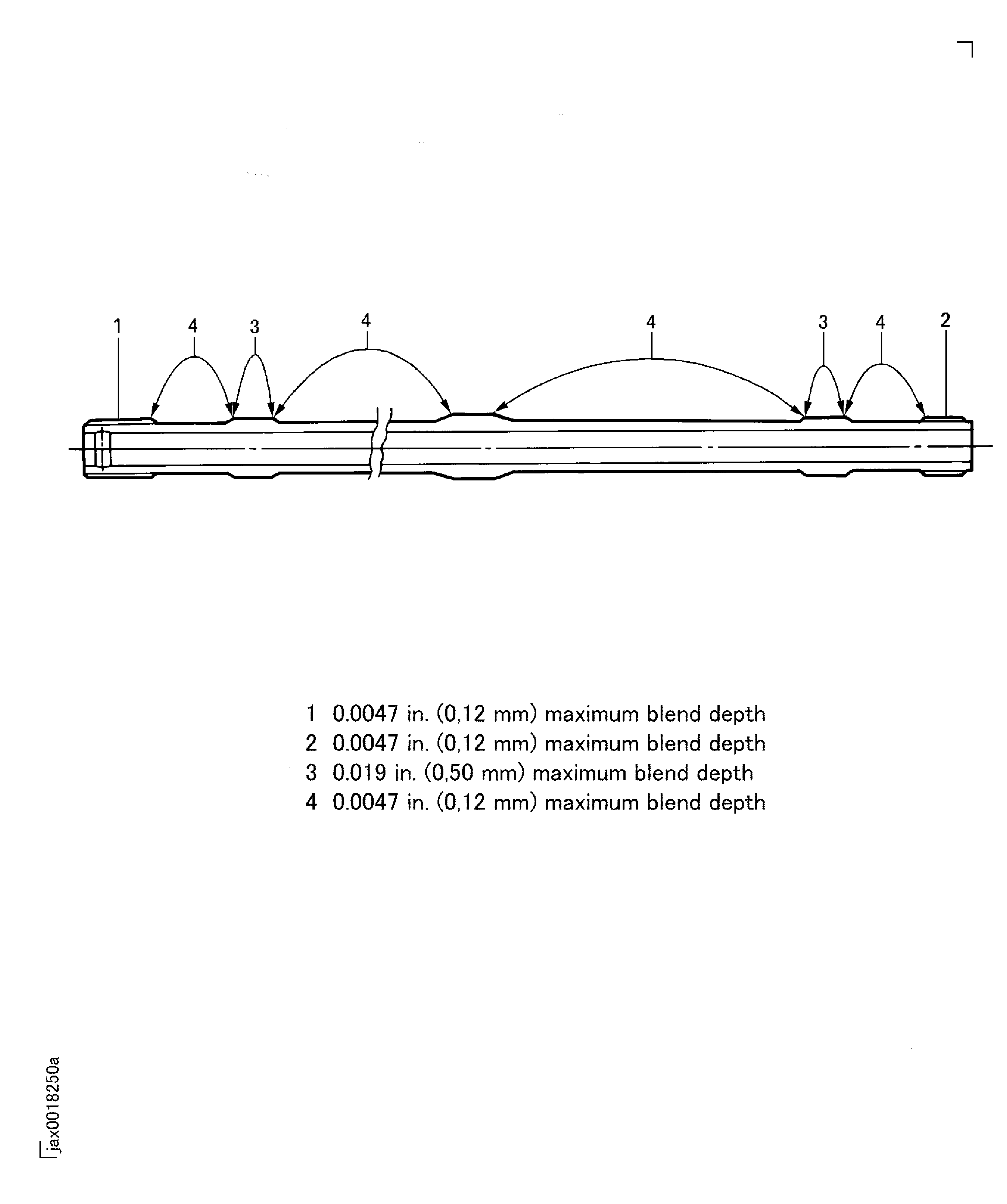

Figure: Quill shaft - Blend limits
Quill shaft - Blend limits
