DMC:V2500-A0-72-32-9500-01A-649A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
Common Information
TASK 72-32-95-300-002 PTO Quill Shaft - Repair Surface Damage, Repair-002 (VRS1781)
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
Price and availability - none
NOTE
To identify the consumable materials refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
NONEConsumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 05-020 WATERPROOF SILICON CARBIDE | LOCAL | CoMat 05-020 | ||
| CoMat 05-021 WATERPROOF SILICON CARBIDE | 44197 | CoMat 05-021 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
The surface finish of the repair must be the same as the adjacent area.
Refer to the SPM TASK 70-35-03-300-501.
Use abrasive stones or papers and/or honing stone.
Make smooth and/or hand polish to remove galls, scores and burrs.
SUBTASK 72-32-95-350-052 Remove the Damage from the Quill Shaft
Use a 10X magnifying glass.
Refer to TASK 72-32-95-200-000 (INSPECTION-000).
Visually examine the repaired area for galls, scores and/or burrs.
Visually examine the repaired area.
SUBTASK 72-32-95-220-059 Examine the Quill Shaft
Refer to the SPM TASK 70-24-01-240-501.
Make sure that there are no cracks in the repaired area.
Refer to TASK 72-32-95-200-000 (INSPECTION-000).
Magnetic particle examine the repaired area.
SUBTASK 72-32-95-240-054 Examine the Quill Shaft for Cracks

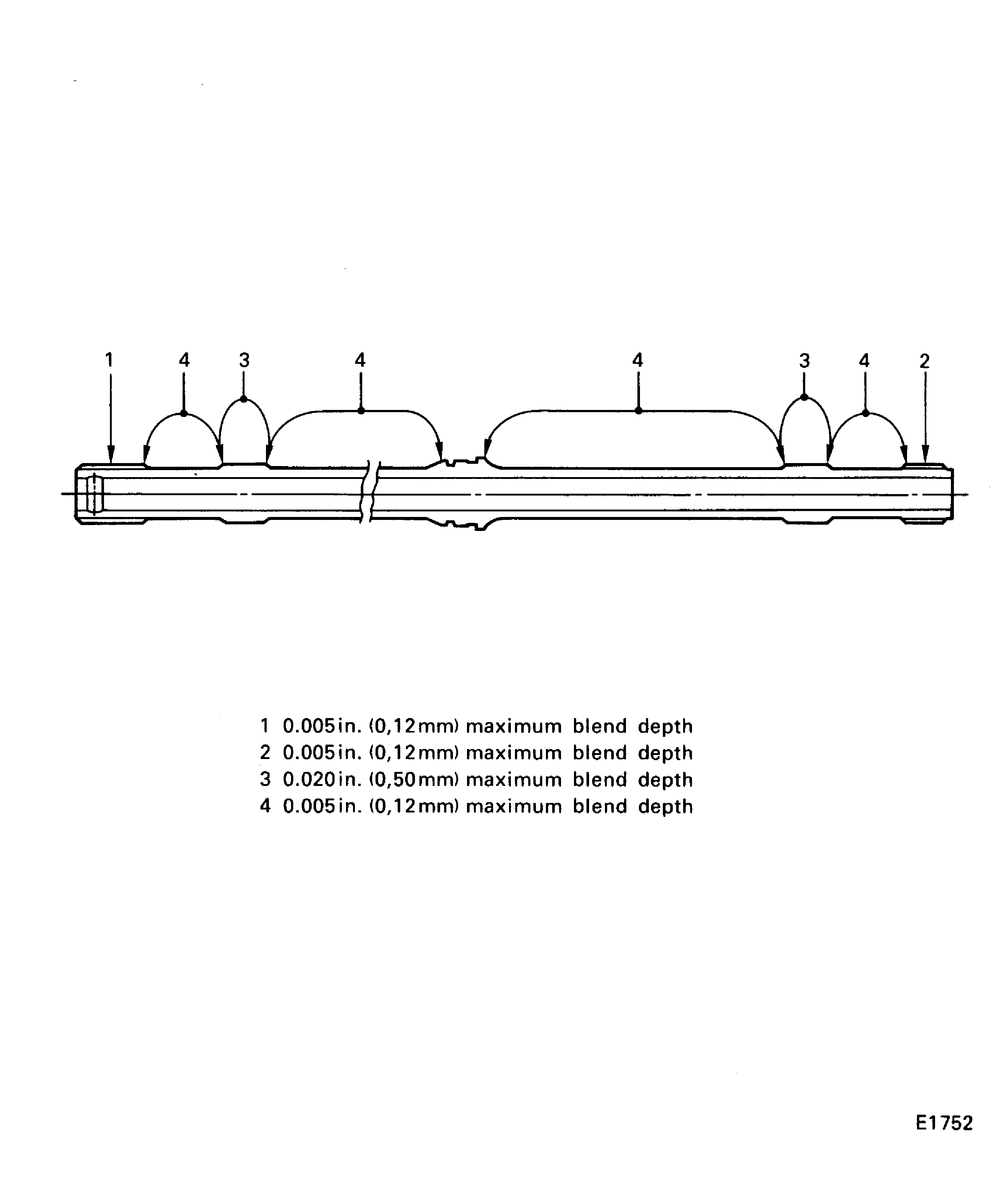

Figure: Quill shaft - blend limits
Quill shaft - blend limits
