TASK 72-40-00-840-001 No. 4 Bearing/HPT Nut - Provide A New Retaining Nut, Rework-001- SBE 72-0095

DMC:V2500-A0-72-40-0012-00A-933A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-840-001 No. 4 Bearing/HPT Nut - Provide A New Retaining Nut, Rework-001- SBE 72-0095

Effectivity

FIG/ITEM

PART NO.

04-020

2A0145

General

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Refer to the indicated Service Bulletin for specific application requirements.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NONE

Consumables, Materials and Expendables

NONE

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-320-054 Machine the HPT Bearing Retaining Nut

      1. Set-up and machine the 2A0145 retaining nut cooling air holes to the dimensions given in the figure.

      1. Refer to Figure requirements.

    2. SUBTASK 72-40-00-350-067 Install the Metering Plugs

      1. Install the 2A2248 metering plugs in every other cooling air hole.

      1. Refer to Figure requirements.

    3. SUBTASK 72-40-00-350-068 Identify the HPT Bearing Retaining Nut

      1. Mark the new part number adjacent to the part number that was there before.

      1. NUMBER BEFORE 2A0145.

        2. NEW NUMBER 2A2247.

        1. Refer to Figure requirements.

        2. Do the procedure given in the SPM TASK 70-09-00-400-501 and use the vibration peen method.

    4. SUBTASK 72-40-00-440-051 Assemble the HP Turbine Case and Vane Assembly

      1. Install the 2A2247 HPT bearing retaining nut.

      1. Do the procedure given in TASK 72-40-00-430-006 or TASK 72-00-45-420-001-001.

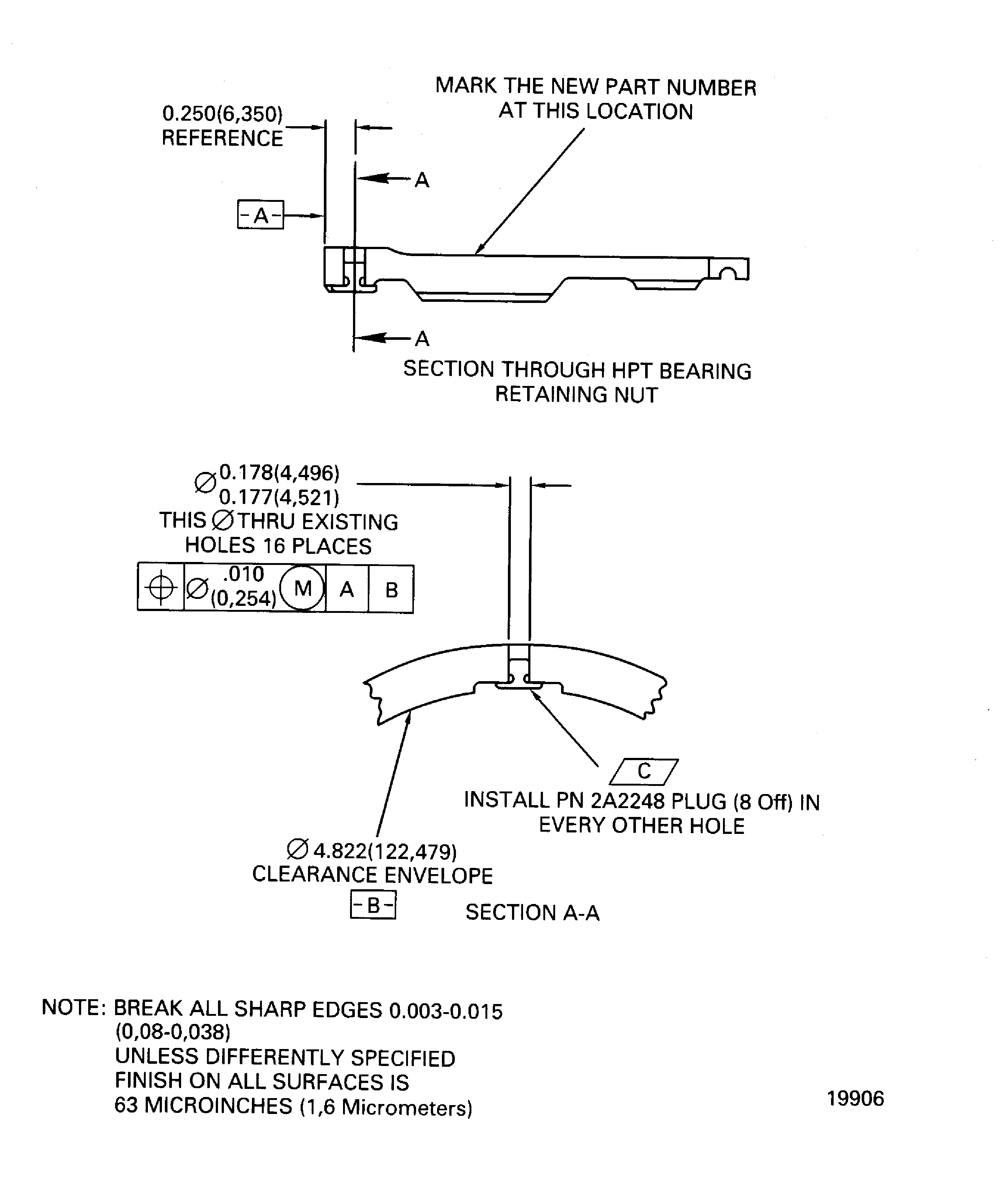

    5. Figure: Modification of the HPT bearing retaining nut

    Modification of the HPT bearing retaining nut

Requirements After Job Completion

Follow-On Conditions

NONE
