TASK 72-40-00-300-009 Fuel Flow Divider Valve Bracket - Replace The Epoxy Primer, Repair-009 (VRS3433)

DMC:V2500-A0-72-40-0031-00A-609A-C|Issue No:002.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-40-00-300-009 Fuel Flow Divider Valve Bracket - Replace The Epoxy Primer, Repair-009 (VRS3433)

Effectivity

FIG/ITEM

PART NO.

01-260

2A1903-01

01-260

2A2073-01

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

Fuel flow divider valve bracket

-

Inconel 718

General

Price and availability - refer to IAE

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Paint air-spray gunLOCAL

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
DELETEDLOCALDELETED
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 07-174 PRIMER, EPOXY00BB6CoMat 07-174
CoMat 07-180 REDUCER, SOLVENT00BB6CoMat 07-180

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-40-00-350-070-001 Remove the Epoxy Primer from the Fuel Flow Divider Valve Bracket

      1. Remove the epoxy primer from the bracket.

      1. Do the procedure given in the SPM TASK 70-12-07-120-501.

    2. SUBTASK 72-40-00-120-051 Clean the Fuel Flow Divider Valve Bracket

      1. Clean the bracket.

      1. Do the procedure given in the SPM TASK 70-11-03-300-503.

    3. SUBTASK 72-40-00-230-071 Examine the Fuel Flow Divider Valve Bracket

      1. NOTE

        Bracket with crack must be rejected.

        Examine the bracket.

      1. Do the procedure given in the SPM TASK 70-23-01-230-501 (Dip, Spray or Electrostatic Spray).

    4. SUBTASK 72-40-00-350-071 Apply Masking Tape to the Areas not to be repaired

      1. Apply masking tape to the areas not to be repaired.

    5. SUBTASK 72-40-00-380-052 Prepare the Epoxy Primer

      1. Do the subsequent procedure to mix the CoMat 07-174 PRIMER, EPOXY.

      1. Mix seven parts by volume of the base component in the CoMat 07-174 PRIMER, EPOXY kit with one part by volume of the catalyst component in the CoMat 07-174 PRIMER, EPOXY

      2. Add CoMat 07-180 REDUCER, SOLVENT as necessary to get the correct consistency.

    2. NOTE

      The working life of each mixture is approximately four hours at room temperature. You should identify the time and date of mixing each mixture.

      Mix well.

    6. SUBTASK 72-40-00-380-053 Apply the Epoxy Primer to the Fuel Flow Divider Valve Bracket

      1. Apply two coats of CoMat 07-174 PRIMER, EPOXY. Air dry for one hour minimum between coats.

        1. Use a paint air-spray gun and filtered air.

        1. Make sure you keep the equipment clean.

    2. Air dry for a minimum of 30 minutes.

    3. Bake at 225 to 255 deg F (107 to 124 deg C) for two hours minimum or air dry for 24 hours minimum at room temperature..

    4. Remove the masking tape.

    7. SUBTASK 72-40-00-220-142 Post Repair Inspection

      1. Visually inspect the repair.

      1. Refer to TASK 72-40-00-200-000, (INSPECTION-000) and Figure.

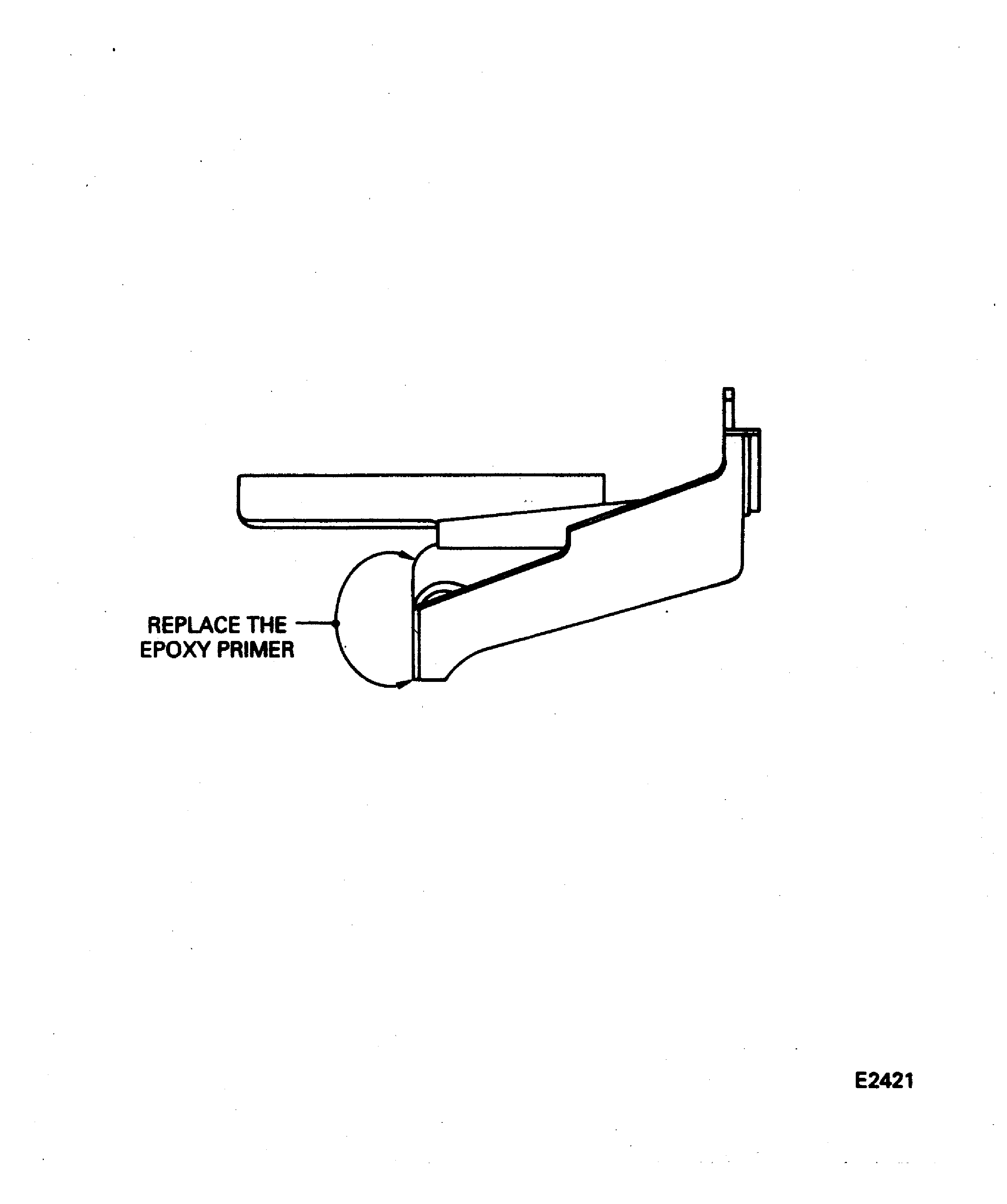

    8. Figure: Repair Details and Dimensions

    Repair Details and Dimensions

Requirements After Job Completion

Follow-On Conditions

NONE
