TASK 72-41-00-300-007 HPC Brackets - Replace The Fuel Flow Divider Valve Bracket Nut, Repair-007 (VRS3381)
General
Price and availability - refer to IAE
The practices and processes referred to in the procedure by the TASK numbers are in the SPM
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Riveting equipment | LOCAL | Riveting equipment |
Consumables, Materials and Expendables
NONESpares
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Rivet | AN123452 | 2 | ||
| Rivet | AN123487 | 2 | ||
| Nut | 594412 | 1 | ||
| Nut | 728665 | 1 |
Safety Requirements
NONEProcedure
Refer to Figure.
Remove the rivets from the nut(s) on the bracket.
SUBTASK 72-41-00-350-054 Remove the Damaged Nut(s) from the Fuel Flow Divider Valve Bracket
Refer to Figure.
Do the procedure given in TASK 70-39-03-390-501.
Rivet the new nut(s) to the bracket.
SUBTASK 72-41-00-390-051 Install New Nut(s) to the Fuel Flow Divider Valve Bracket with Rivets
Refer to TASK 72-41-00-200-000, (INSPECTION-000) and Figure.
Visually inspect the repair.
SUBTASK 72-41-00-220-145 Post Repair Inspection

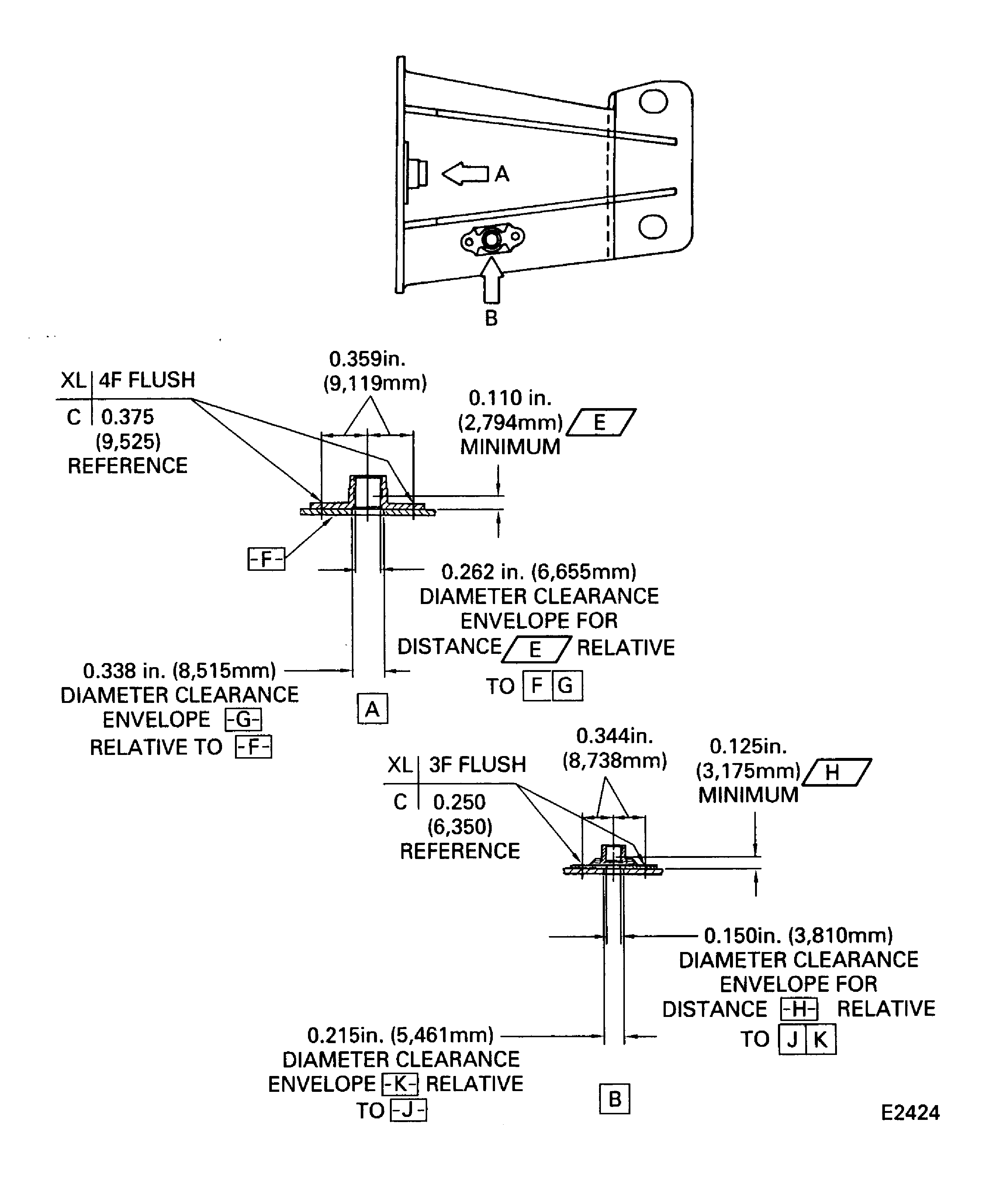

Figure: Replace the nut(s) on the fuel flow divider valve bracket
Replace the nut(s) on the fuel flow divider valve bracket
