TASK 72-41-11-840-001 HPC Stage 3 - 8 Drum Disk - Apply Dry Film Lubricant, Rework-001 - SBE 72-0035

DMC:V2500-A0-72-41-1101-00A-933A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-11-840-001 HPC Stage 3 - 8 Drum Disk - Apply Dry Film Lubricant, Rework-001 - SBE 72-0035

Effectivity

FIG/ITEM

PART NO.

01-200

6A3508

01-200

6A3648

General

The practices and processes referred to in the procedure by TASK number are in the SPM.

NOTE

Equivalent materials or equipment can be used.
More equipment and materials necessary to do this rework are given in the SPM TASK 70-11-01-300-503, SPM TASK 70-38-03-380-501 and SPM TASK 70-09-00-400-501.

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Standard workshop equipmentLOCALStandard workshop equipment
Spray gunLOCALSpray gun
Vibrating marking pencilLOCALVibrating marking pencil

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 02-002 ADHESIVE TAPE GENERALPURPOSE PAPERLOCALCoMat 02-002
CoMat 02-019 TAPE, ADHESIVE PAPER HEAT RESISTING MASKING94960CoMat 02-019
CoMat 07-009 THINNERLOCALCoMat 07-009
CoMat 10-002 DRY FILM LUBRICANTLOCALCoMat 10-002

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-11-110-055 Clean the Surfaces

      1. Clean the surfaces which are to be given a layer of dry film lubricant.

      1. Refer to the SPM TASK 70-11-01-300-503.

    2. SUBTASK 72-41-11-380-051 Apply the Dry Film Lubricant

      1. CAUTION

        DO NOT ABRASIVE BLAST THIS IS A SHOT PEENED AREA.

        Apply masking tape to areas which are not to be given a layer of dry film lubricant.

      2. Apply 3 layers of dry film lubricant.

      1. Refer to the SPM TASK 70-38-03-380-501 SUBTASK 70-38-03-380-002.

      3. Refer to Figure and Figure.

    3. SUBTASK 72-41-11-380-052 Stove the Component

      1. Stove the component.

      1. Refer to SPM TASK 70-38-03-380-501, SUBTASK 70-38-03-380-005.

    4. SUBTASK 72-41-11-210-051 Examine the Disks

      1. Examine the layer of dry film lubricant.

      1. Refer to the SPM TASK 70-38-03-380-501, SUBTASK 70-38-03-220-001.

    5. SUBTASK 72-41-11-350-058 Identify the Reworked Disk with the New Part Number

      1. Vibration peen the new part number adjacent to the assembly part number.

      1. Use vibro-engraving equipment.

        2. Refer to the SPM TASK 70-09-00-400-501.

        1. NUMBER BEFORE 6A3508

        2. NEW NUMBER 6A3934

        3. NUMBER BEFORE 6A3648

        4. NEW NUMBER 6A3936

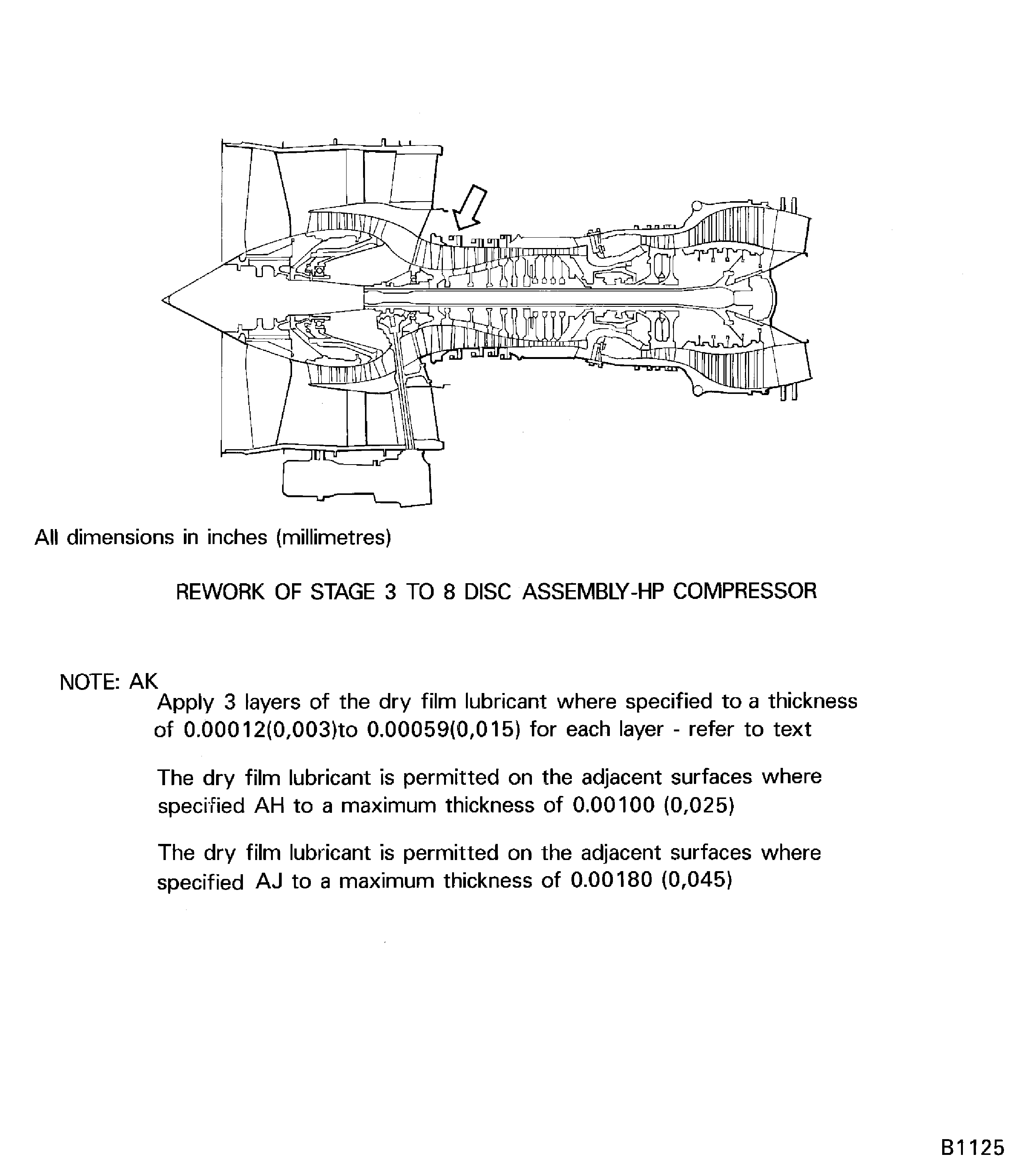

    6. Figure: Rework of HP compressor stage 3 to 8 disk assembly

    Rework of HP compressor stage 3 to 8 disk assembly

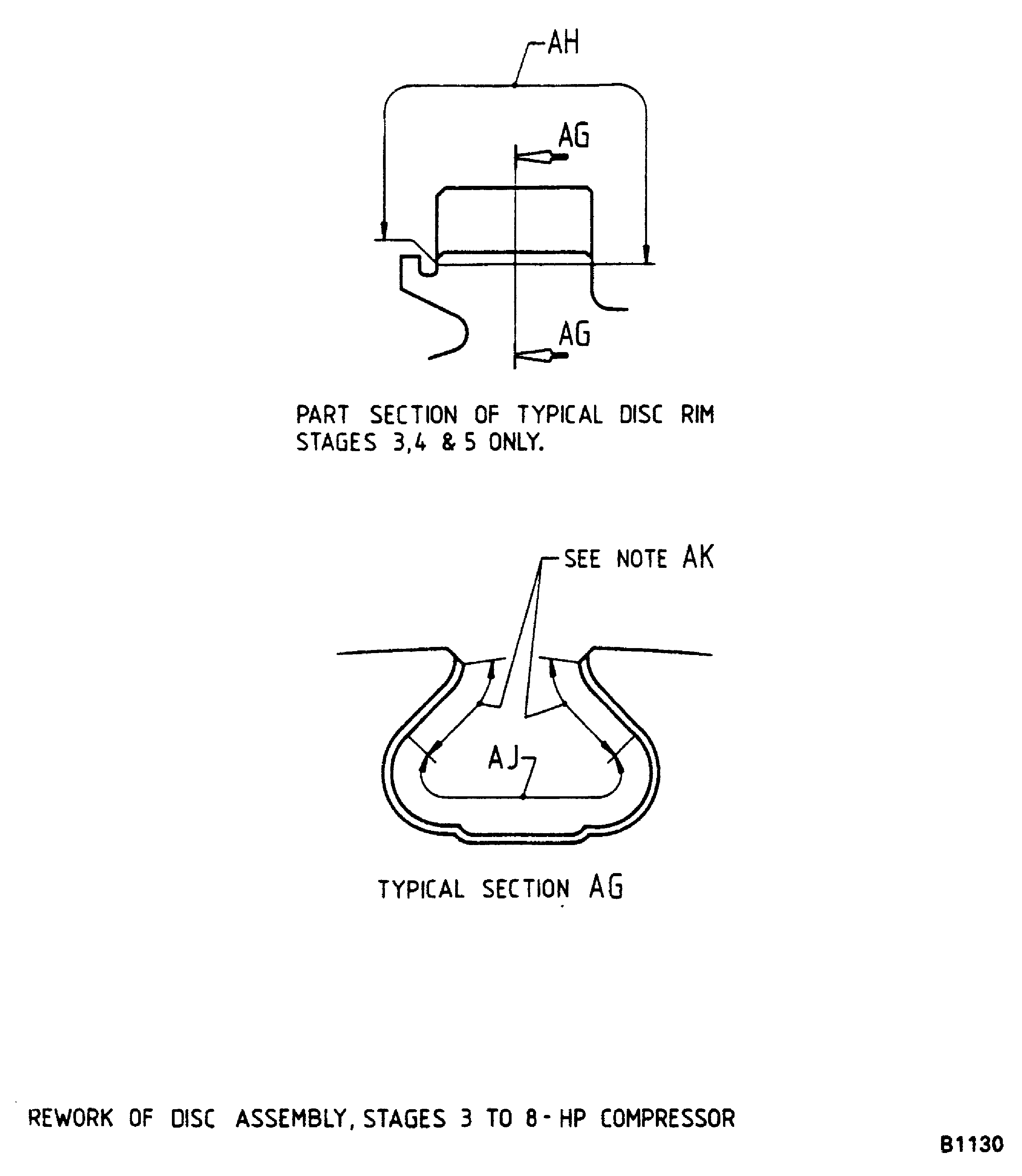

    Figure: Rework of HP compressor stage 3 to 8 disk assembly

    Rework of HP compressor stage 3 to 8 disk assembly

Requirements After Job Completion

Follow-On Conditions

NONE
