TASK 72-41-13-300-001 HPC Rear Shaft - Blend Repair, Repair-001 (VRS3445)

DMC:V2500-A0-72-41-1301-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-13-300-001 HPC Rear Shaft - Blend Repair, Repair-001 (VRS3445)

Effectivity

FIG/ITEM

PART NO.

01-900

2A1386

01-900

2A1967

01-900

2A1990

General

This blend repair uses the rotary or manual type of consumable materials. Use only the consumable materials specified for each type of repair.

The maximum rotary equipment speed is 18,000 RPM.

Use the rotary consumable materials only in the sequence given below or damage to the part will result. It is not necessary to use all of the rotary equipment for each repair. When you start with a rotary consumable material you must use all the subsequent materials through D. For example, if you start with B, you must use B, C and D:

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

HP shaft

-

Nickel alloy

Price and availability - refer to IAE

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Rotary equipmentLOCALRotary equipment
Workshop inspection equipmentLOCALWorkshop inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-143 STONE, BROWN INDIA (MEDIUM)9K848CoMat 05-143
CoMat 05-144 WHEEL, BEAR-TEX UNIFIED DEBURRING9K848CoMat 05-144
CoMat 05-145 WHEEL, CLOTH BUFFIAE65CoMat 05-145
CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED0AM53CoMat 05-146
CoMat 05-147 WHEEL, RUBBER BONDED GRINDINGLOCALCoMat 05-147
CoMat 05-148 STONE, WHITE ARKANSAS (HARD)06565CoMat 05-148
CoMat 05-149 COMPOUND, BUFFING AND POLISHINGIAE65CoMat 05-149

Spares

NONE

Safety Requirements

CAUTION

USE THIS REPAIR FOR THE DAMAGED PARTS WHICH HAVE LESS THAN THEIR LIFE CYCLE LIMIT. THIS REPAIR WILL NOT EXTEND THE HP SHAFT LIFE CYCLE. DO NOT REPAIR A SHAFT SEAL THAT HAS A CRACK OR ANY INDICATION THAT IS NOT CLEARLY THE RESULT OF LOCAL DAMAGE SUCH AS DENTS, NICKS, SCRATCHES AND CORROSION PITS. IF CRACKS OR OTHER UNUSUAL CONDITIONS ARE FOUND BY THE PENETRANT TEST OR VISUAL INSPECTION, REJECT THE PART.

Procedure

    1. SUBTASK 72-41-13-350-053-001 Blend the HP Shaft (Rotary Method)

      1. WARNING

        PUT ON EYE PROTECTION WHEN YOU OPERATE THE ROTARY EQUIPMENT. DISCHARGE AIR WILL BLOW LOOSE GRIT AND MATERIALS WHICH CAN CAUSE INJURY.

        Blend the surface damage such as dents, nicks, scratches and corrosion pits.

        1. Refer to Figure.

        1. Use the rotary consumable materials by the procedure given in General.

        2. Make the abrasive coat become soft on the CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED and remove the rough or unwanted grit until the wheel surface is smooth before you do the blend repair.

        3. All blended areas must be smooth and continuous.

        4. The surface finish must be 63AA or smoother.

        5. The minimum blend area to depth ratio is 100 to 1.

        6. Remove all the lifted material.

        7. Remove only the minimum quantity that is necessary to do the repair.

        8. A flexible borescope with a video monitoring system will make it easier to blend on the inside of the shaft.

    2. SUBTASK 72-41-13-350-053-002 Blend the HP Shaft (Manual Method)

      1. Blend the surface damage such as dents, nicks, scratches and corrosion pits.

        1. Refer to Figure.

        2. All blended areas must be smooth and continuous.

        3. The surface finish must be 63AA or smoother.

        4. The minimum blend area to depth ratio is 100 to 1.

        5. Remove all the lifted material.

        6. Remove only the minimum quantity that is necessary to do the repair.

        7. A flexible borescope with a video monitoring system will make it easier to blend on the inside of the shaft.

    3. SUBTASK 72-41-13-230-055 Examine the Repair

      1. Fluorescent penetrant inspect the repaired surfaces for cracks.

        1. Refer to the SPM TASK 70-23-04-230-501.

        1. No cracks are permitted.

    4. SUBTASK 72-41-13-350-054 Identify the Repair

      1. Make a mark VRS3445 adjacent to the part number.

        1. Make a permanent mark by the SPM TASK 70-09-00-400-501.

        1. Use the deep etch method.

        2. Refer to Figure for the electrical contact areas.

        3. No burning, pitting or selective attack is permitted from the electrical contact.

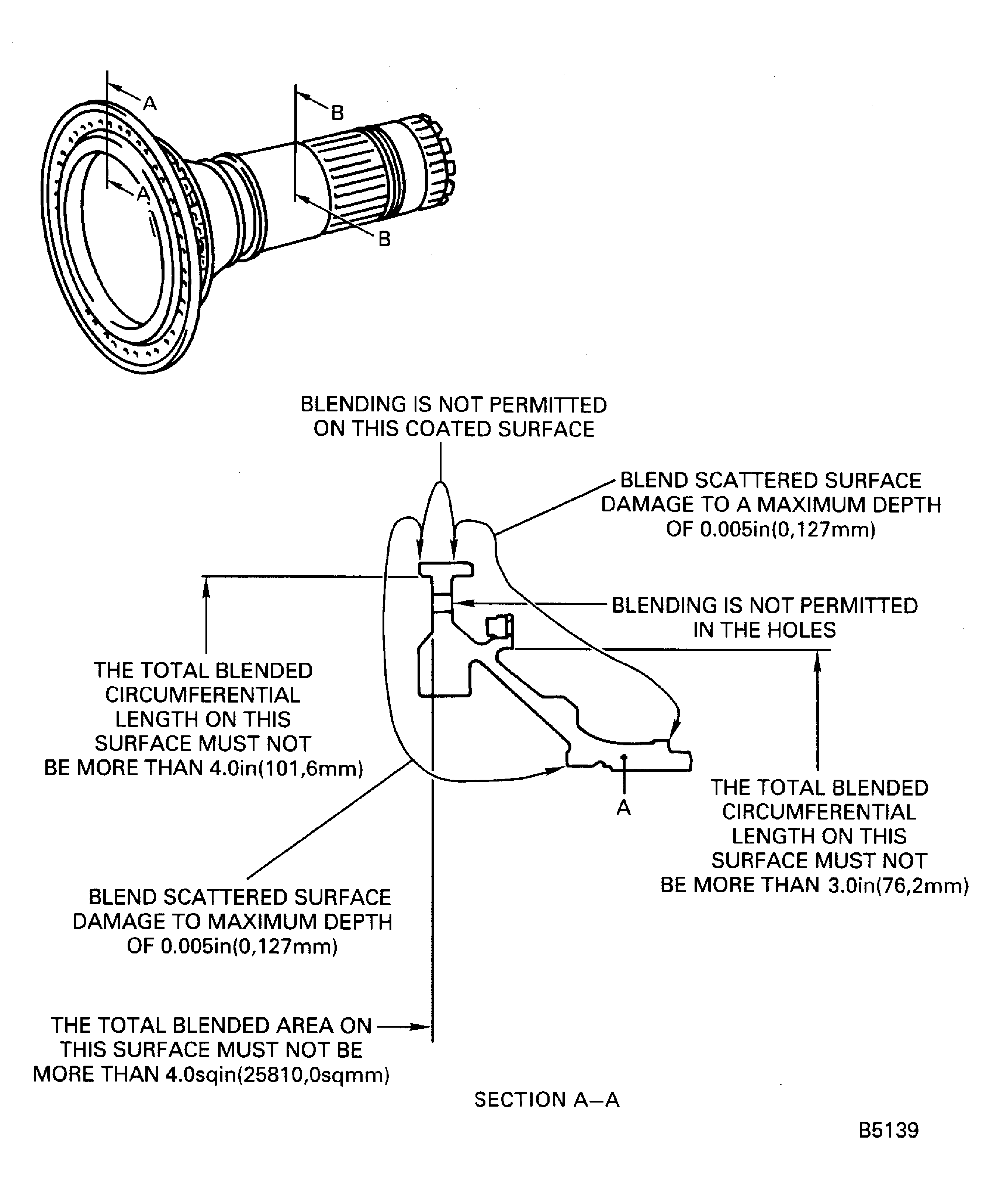

    5. Figure: HPC shaft (PN 2A1386) blend repair

    HPC shaft (PN 2A1386) blend repair

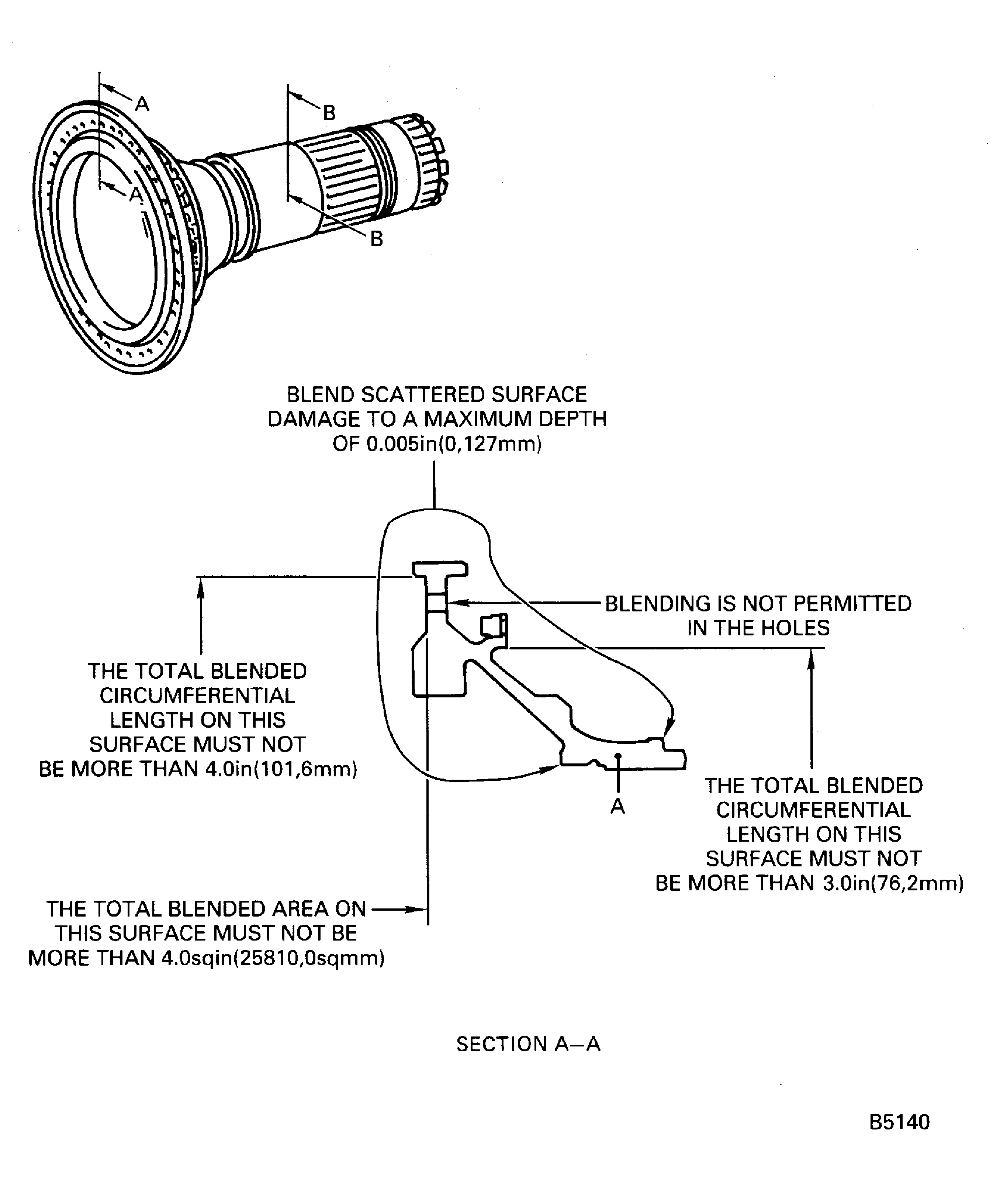

    Figure: HPC shaft (PN 2A1386) blend repair

    HPC shaft (PN 2A1386) blend repair

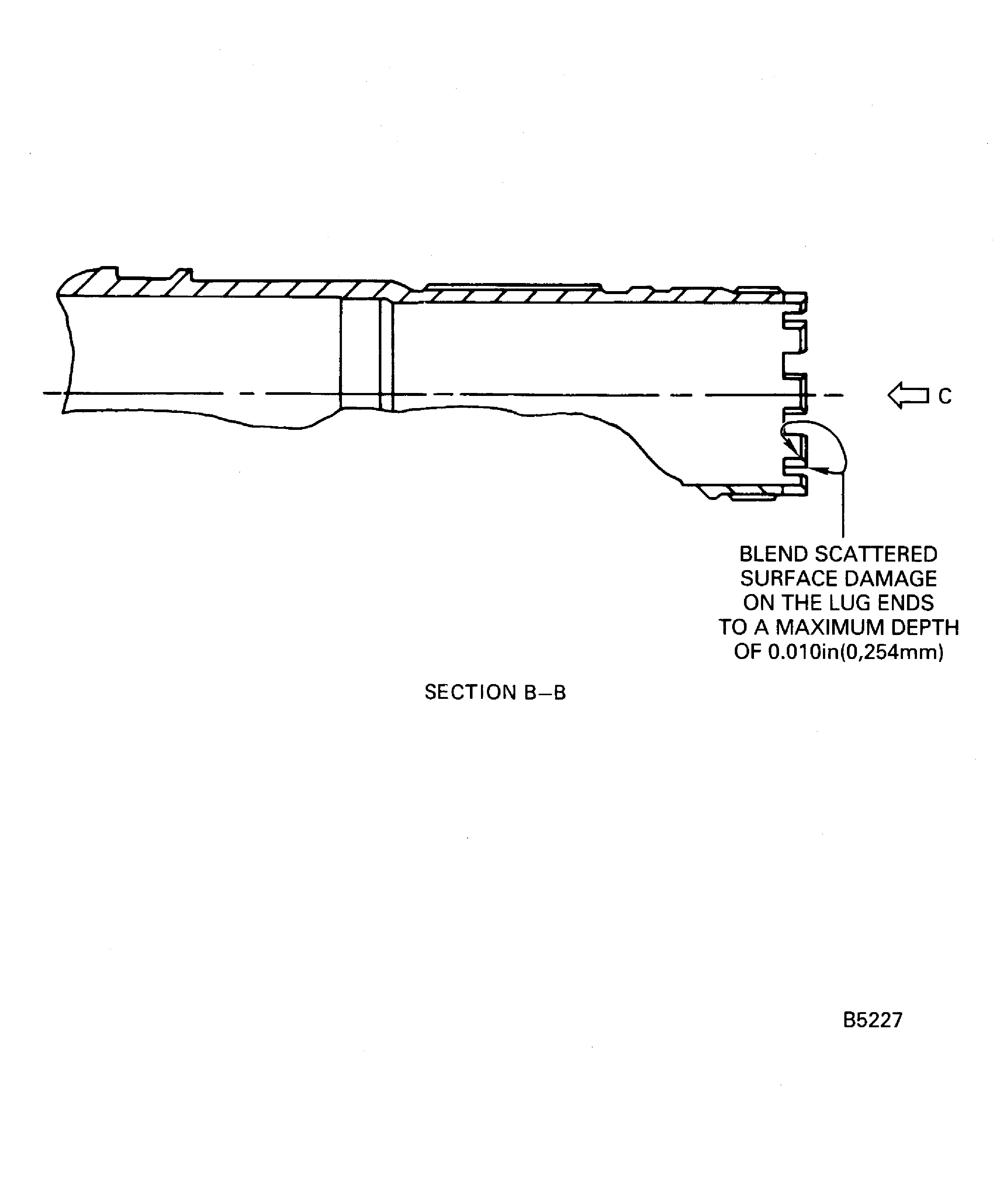

    Figure: HPC shaft (PN 2A1967 and 2A1990) blend repair

    HPC shaft (PN 2A1967 and 2A1990) blend repair

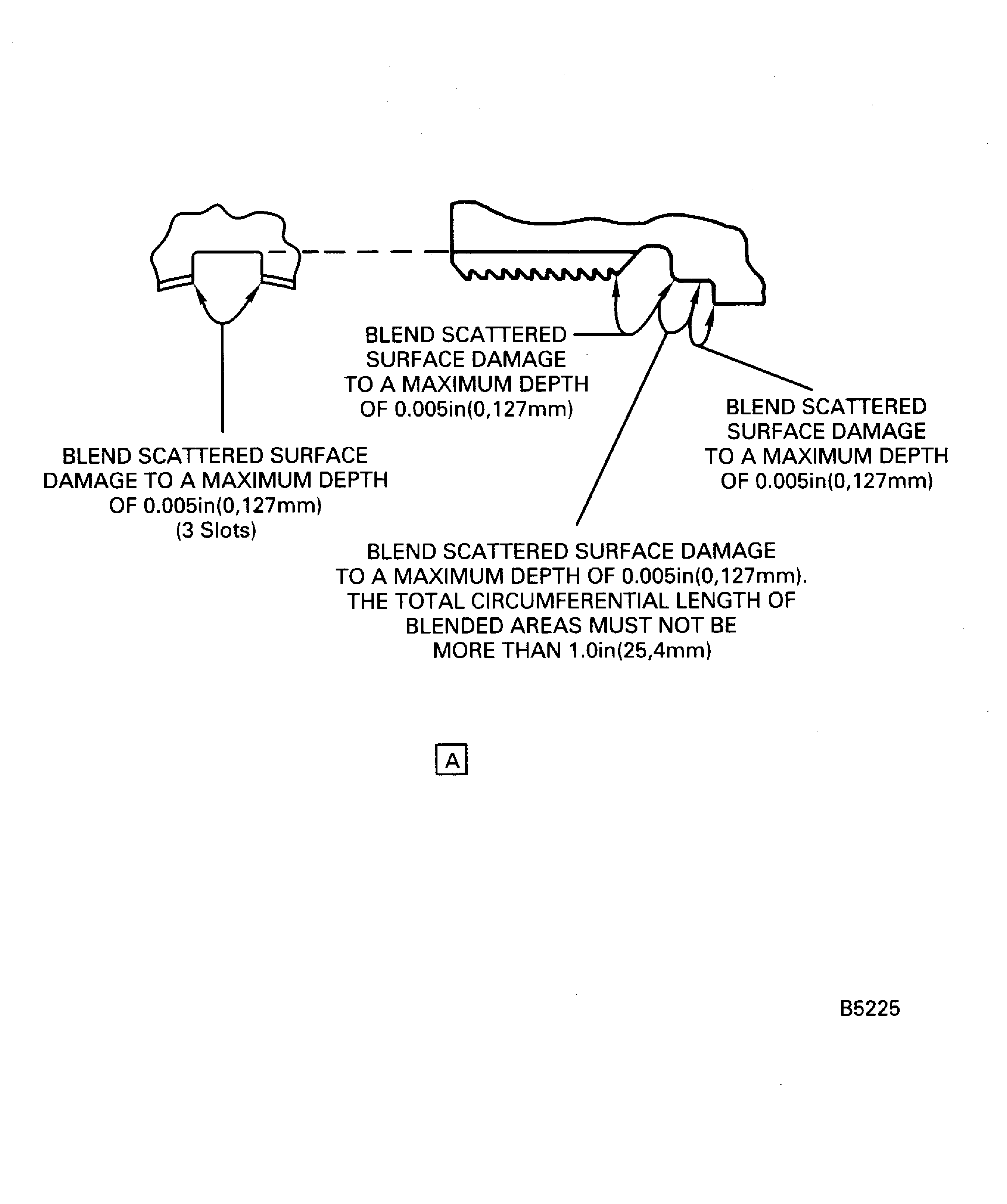

    Figure: HPC shaft (PN 2A1967 and 2A1990) blend repair

    HPC shaft (PN 2A1967 and 2A1990) blend repair

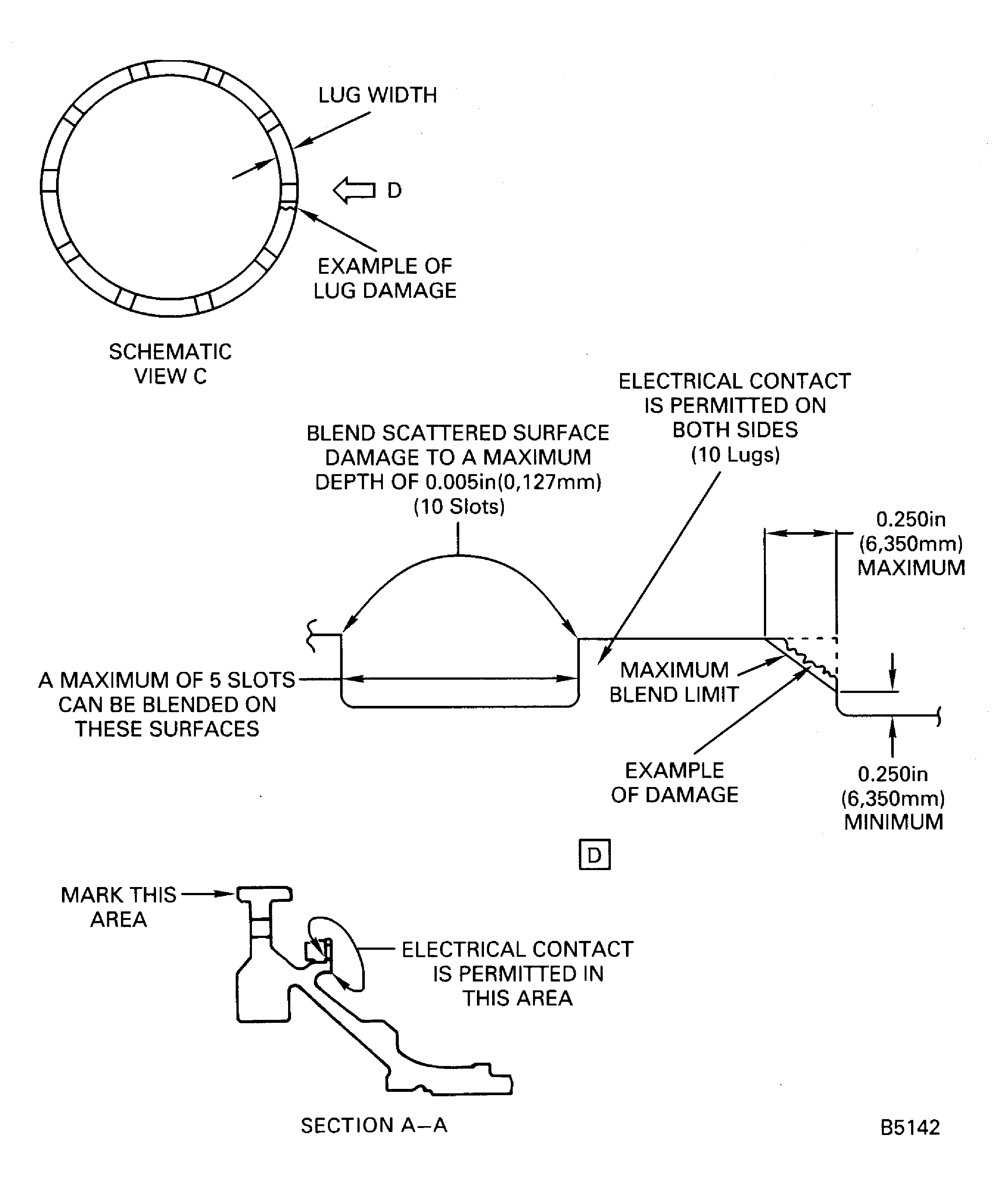

    Figure: HPC shaft blend repair

    HPC shaft blend repair

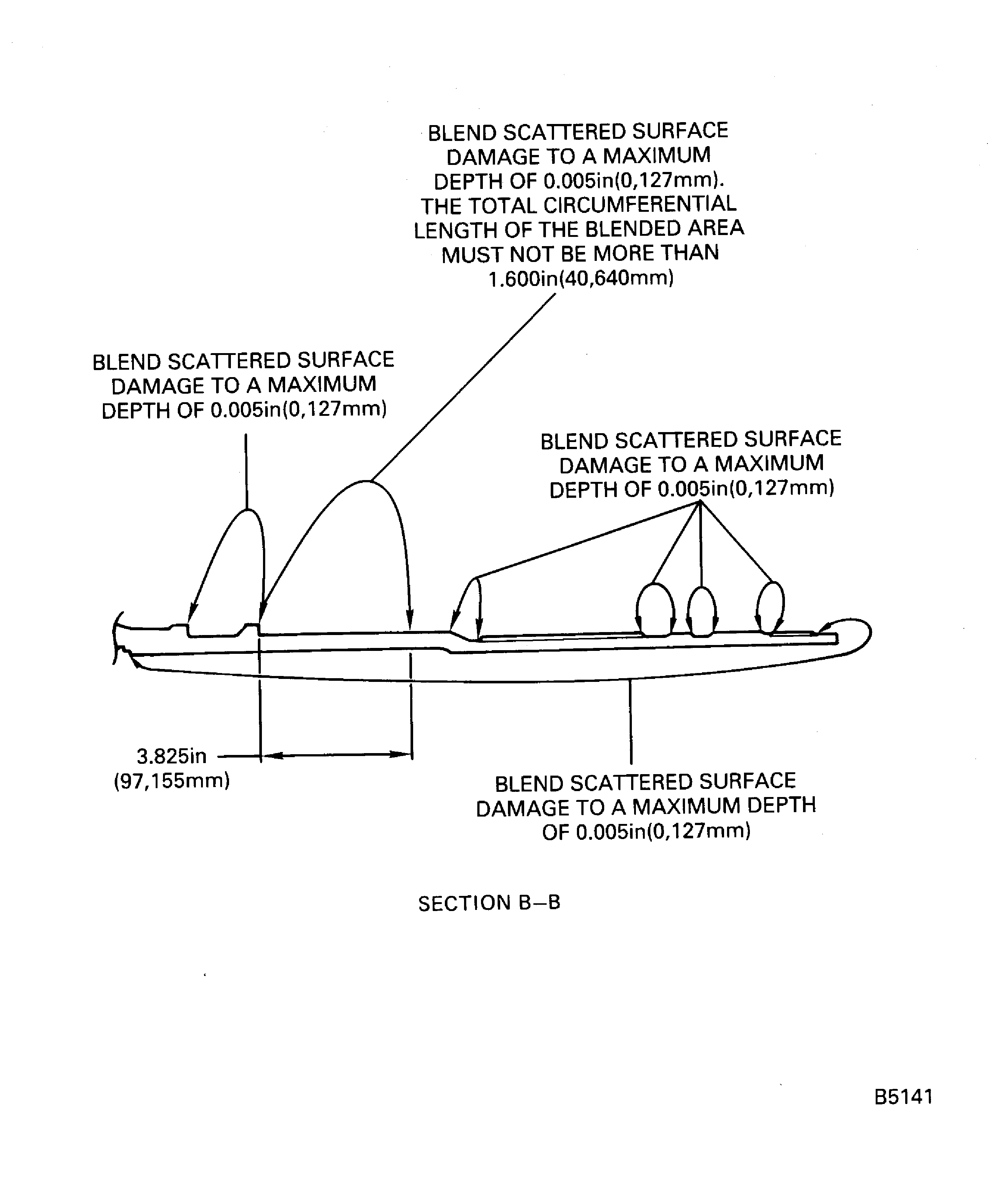

    Figure: HPC shaft blend repair

    HPC shaft blend repair

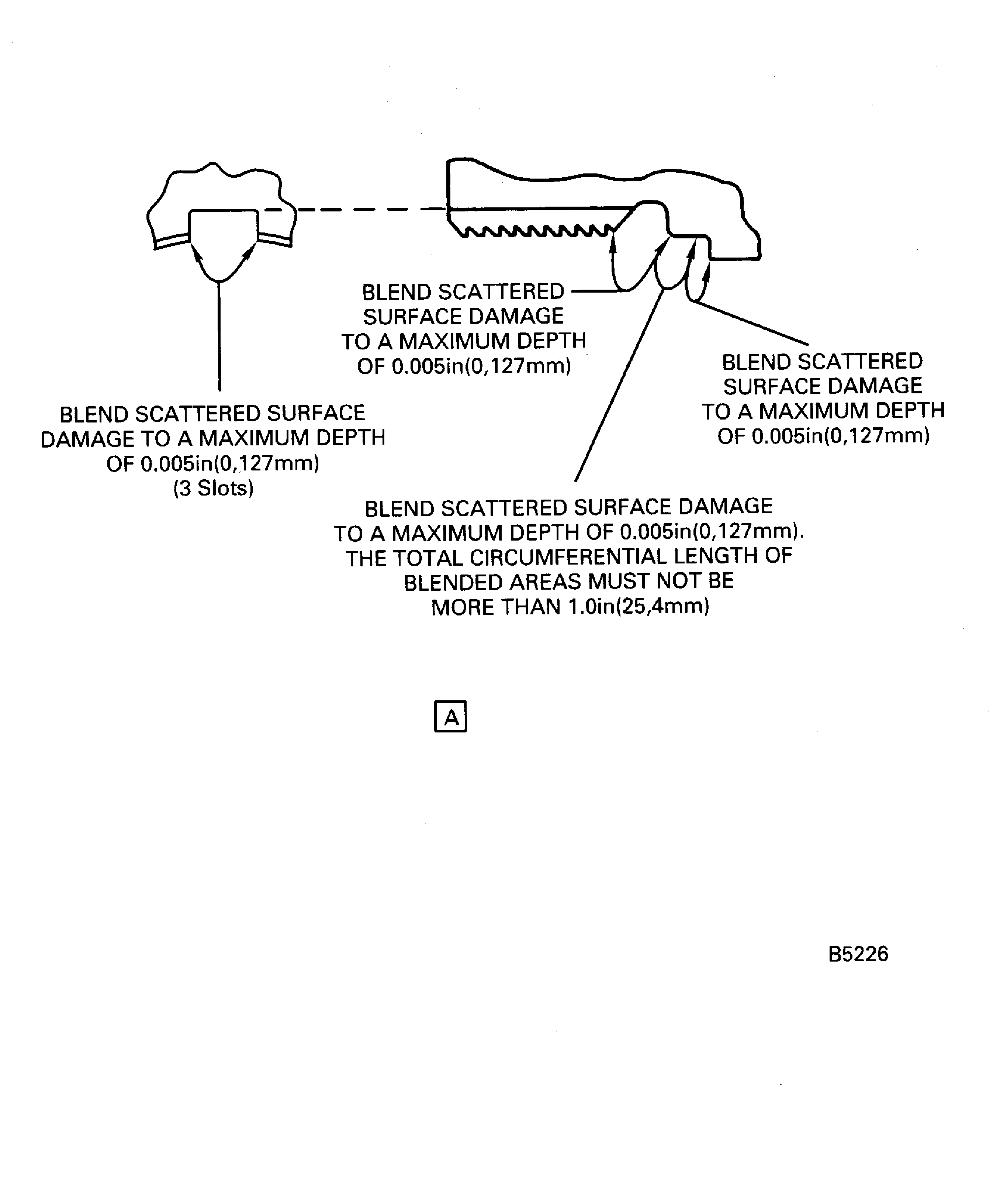

    Figure: HPC shaft blend repair

    HPC shaft blend repair

Requirements After Job Completion

Follow-On Conditions

NONE
