TASK 72-41-13-300-015 HPC Rear Shaft - Repair The HPC Shaft Rear Side Spline By Machining, Repair-015 (VRS3481)
General
The practices and processes referred to in the procedure by TASK number are in the SPM.
Price and availability - none
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Machining equipment | LOCAL | Machining equipment | ||
| Workshop inspection equipment | LOCAL | Workshop inspection equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Refer to Figure requirements.
Break all the sharp edges to between 0.003 and 0.015 in. (0.08 to 2.38 mm) after machining.
Set-up and machine 0.080in. (2.032 mm) axially from the rear side of the spline by the requirements given in View B and C.
SUBTASK 72-41-13-320-051 Remove the Damage
No cracks permitted.
Refer to the SPM TASK 70-23-04-230-501 (Dip or Spray).
Do a penetrant crack test.
SUBTASK 72-41-13-230-053 Do a crack test
Refer to Figure requirements.
Do a visual and dimensional inspection.
SUBTASK 72-41-13-220-080 Examine the Repair
Refer to Figure.
Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501.
Mark VRS3481 adjacent to the part number. Use the vibration peen method.
SUBTASK 72-41-13-350-051 Identify the Repair

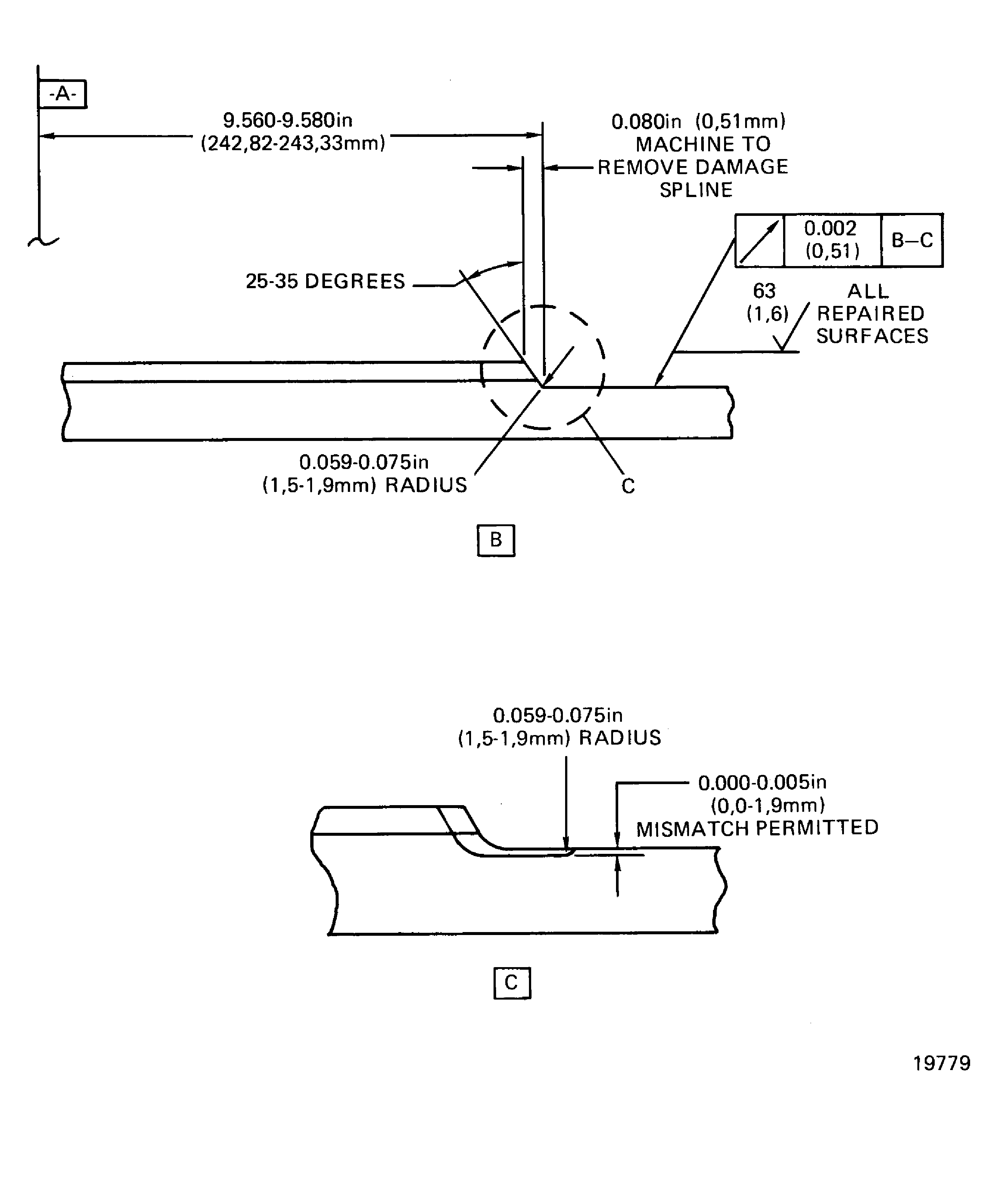

Figure: HPC shaft rear side spline machining
HPC shaft rear side spline machining
Figure: HPC shaft rear sided spline machining
HPC shaft rear sided spline machining
