TASK 72-41-13-300-017 HPC Rear Shaft - Blend Repair On The Threads, Repair-017 (VRS3519)

DMC:V2500-A0-72-41-1301-02A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-13-300-017 HPC Rear Shaft - Blend Repair On The Threads, Repair-017 (VRS3519)

Effectivity

FIG/ITEM

PART NO.

01-900

2A1331

01-900

2A1386

01-900

2A1967

01-900

2A1990

General

This blend repair uses the rotary or manual type of consumable materials. Use only the consumable materials specified for each type of repair.

The maximum rotary equipment speed is 18,000 RPM.

Use the rotary consumable material only in the sequence given below or damage to the part will result. It is not necessary to use all of the rotary equipment for each repair. When you start with a rotary consumable material, you must use all the subsequent materials through D. For example, if you use the material in B. you must also use all the materials in C. and D.

The practices and processes referred to in the procedure by TASK number are in the SPM.

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

HPC shaft assembly

-

Nickel alloy

Price and availability - not applicable

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Portablegrinding equipmentLOCALPortable grinding equipment
Shot peening equipmentLOCALShot peening equipment
Fluorescent Penetrant Inspection EquipmentLOCALFluorescent penetrant inspection equipment
Standard inspection equipmentLOCALStandard inspection equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-143 STONE, BROWN INDIA (MEDIUM)9K848CoMat 05-143
CoMat 05-144 WHEEL, BEAR-TEX UNIFIED DEBURRING9K848CoMat 05-144
CoMat 05-145 WHEEL, CLOTH BUFFIAE65CoMat 05-145
CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED0AM53CoMat 05-146
CoMat 05-147 WHEEL, RUBBER BONDED GRINDINGLOCALCoMat 05-147
CoMat 05-148 STONE, WHITE ARKANSAS (HARD)06565CoMat 05-148
CoMat 05-149 COMPOUND, BUFFING AND POLISHINGIAE65CoMat 05-149

Spares

NONE

Safety Requirements

CAUTION

USE THIS REPAIR FOR THE DAMAGED PARTS WHICH HAVE LESS THAN THEIR LIFE CYCLE LIMIT. THIS REPAIR WILL NOT EXTEND THE LIFE CYCLE. DO NOT REPAIR THE SHAFT ASSEMBLY THAT HAS A CRACK OR ANY INDICATION THAT IS NOT CLEARLY THE RESULT OF LOCAL DAMAGE SUCH AS DENTS, NICKS, SCRATCHES AND CORROSION PITS. IF CRACKS OR OTHER UNUSUAL CONDITIONS ARE FOUND BY THE PENETRANT TEST OR VISUAL INSPECTION, REJECT THE PART.

Procedure

    1. SUBTASK 72-41-13-350-055-001 Blend the Shaft Assembly Threads (Rotary Method)

      WARNING

      WEAR EYE PROTECTION WHEN YOU OPERATE THE ROTARY EQUIPMENT. DISCHARGE AIR WILL BLOW LOOSE GRIT AND MATERIAL WHICH CAN CAUSE INJURY TO A PERSON.

      1. Blend the damage threads.

      1. Refer to Figure and Figure requirements.

      2. Use the rotary consumable materials given in the general section.

      3. Make the abrasive coat become soft on the CoMat 05-146 WHEEL, SILICON CARBIDE ABRASIVE COAT DELETED.

        4. Remove the rough and unwanted grit until the wheel surface is smooth before you do the blend repair.

        1. The surface texture must be 125 AA (3.2 micro m) or smoother.

      5. Remove only the minimum quantity of length and depth that is necessary to do the repair.

        6. Remove all the lifted material.

        1. Eight nicks of 0.040 in. (1.016 mm) maximum circumferential length can be blended to the major diameter of the internal thread.

        2. The maximum removal thread in one location is 2.0 in. (50.8 mm) of circumferential length.

        3. The minimum distance between repairs in one location is 3.5 in. (88.9 mm) of circumferential length.

        4. The maximum total thread removal is 7.0 in. (177.8 mm) of circumferential length.

        7. Break the edge on all blended area to between 0.003 and 0.015 in. (0.08 and 0.38 mm).

        1. All blended corner radii must be 0.020 in. (0.508 mm) minimum.

    2. SUBTASK 72-41-13-350-055-002 Blend the Shaft Assembly Threads (Manual Method)

      1. Blend the damage threads.

      1. Refer to Figure and Figure requirements.

        1. The surface texture must be 125 AA (3.2 micro m) or smoother.

      3. Remove only the minimum quantity of length and depth that is necessary to do the repair.

        4. Remove all the lifted material.

        1. Eight nicks of 0.040 in. (1.016 mm) maximum circumferential length can be blended to the major diameter of the internal thread.

        2. The maximum removal thread in one location is 2.0 in. (50.8 mm) of circumferential length.

        3. The minimum distance between repairs in one location is 3.5 in. (88.9 mm) of circumferential length.

        4. The maximum total thread removal is 7.0 in. (177.8 mm) of circumferential length.

        5. Break the edge on all blended area to between 0.003 and 0.015 in. (0.08 and 0.38 mm).

        1. All blended corner radii must be 0.020 in. (0.508 mm) minimum.

    3. SUBTASK 72-41-13-230-056 Fluorescent Penetrant the Repair Area

      1. Fluorescent penetrant inspect all of the repaired areas for cracks.

      1. Refer to Figure and Figure.

        2. Do the procedure given in the SPM TASK 70-23-03-230-501 or SPM TASK 70-23-08-230-501.

        1. No cracks permitted.

    4. SUBTASK 72-41-13-220-094 Examine the Repair

      1. Visually examine the repaired splines.

      1. Refer to Figure and Figure requirements.

    5. SUBTASK 72-41-13-350-056 Identify the Repair

      1. Mark VRS3519 adjacent to the part number.

      1. Refer to Figure requirements.

      2. Make a permanent mark by the procedures given in the SPM TASK 70-09-00-400-501.

        3. Use the deep electrolytic etch method.

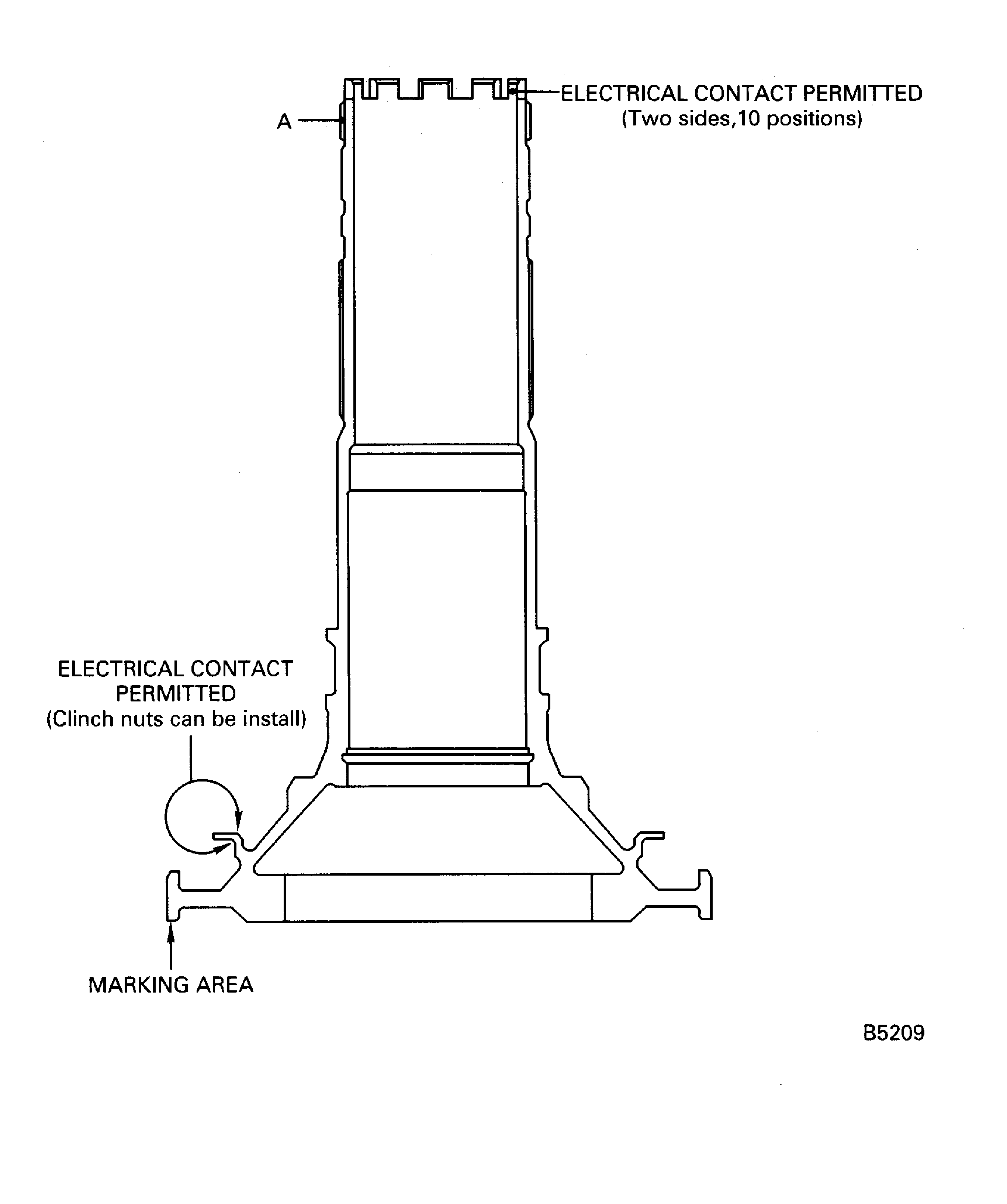

        1. See the figure for the electrical contact area.

        2. No burning, pitting or selective attack is permitted from the electrical contact.

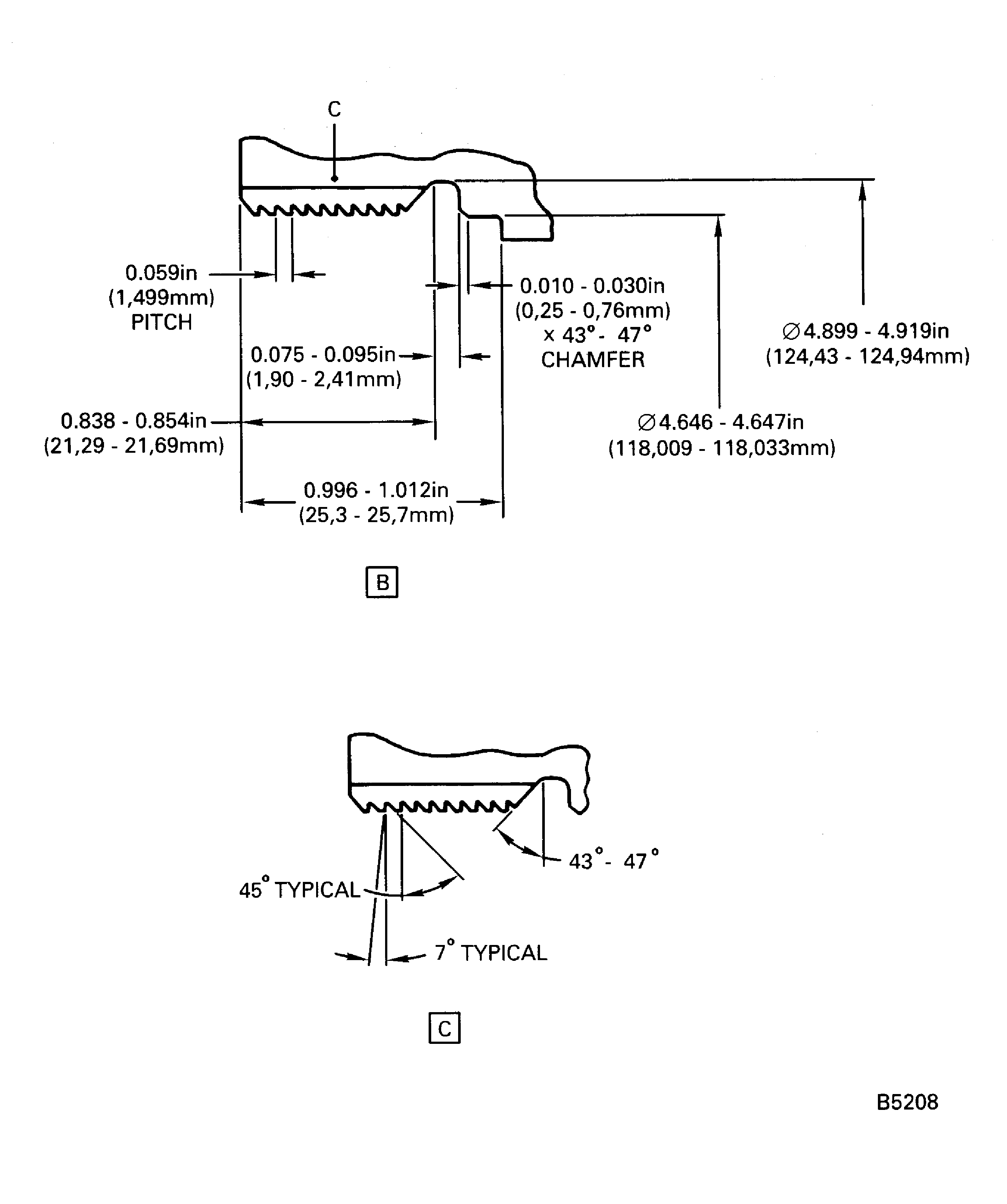

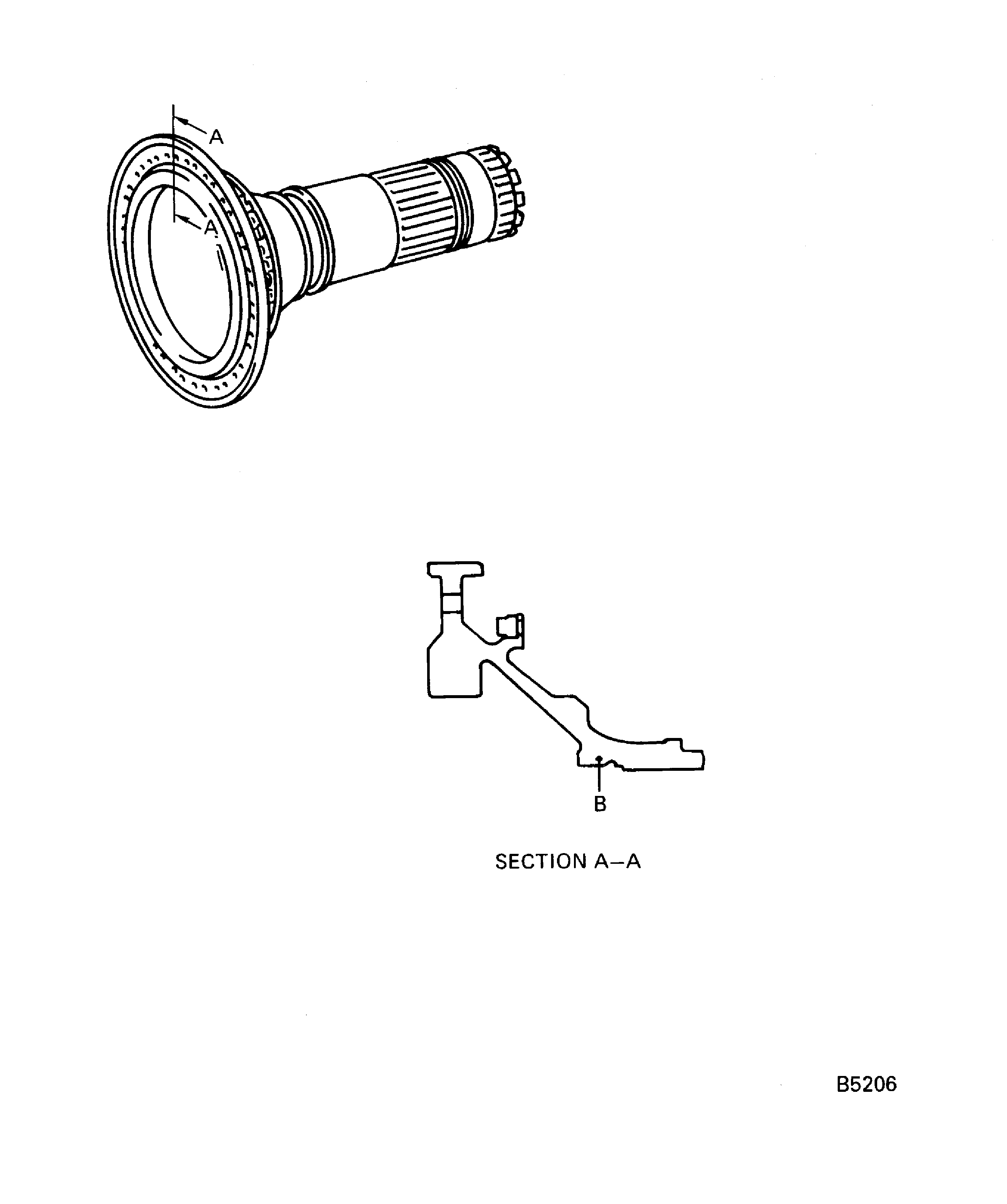

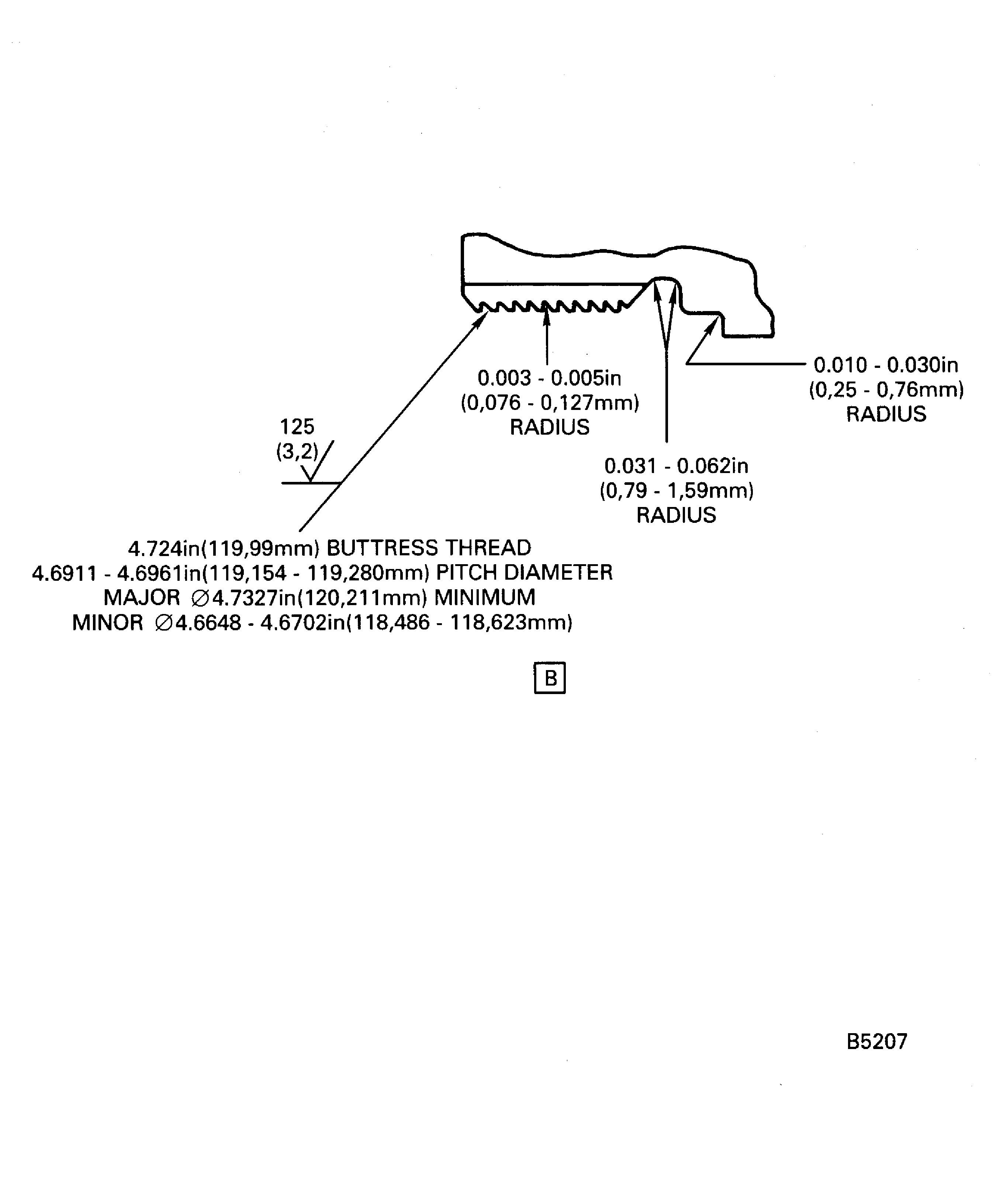

    6. Figure: HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 1

    Legend
    HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 1

    Close

    Figure: HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 2

    Legend
    HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 2

    Close

    Figure: HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 3

    Legend
    HPC shaft assembly thread blend repair areas (Inner diameter threads)

    Sheet 3

    Close

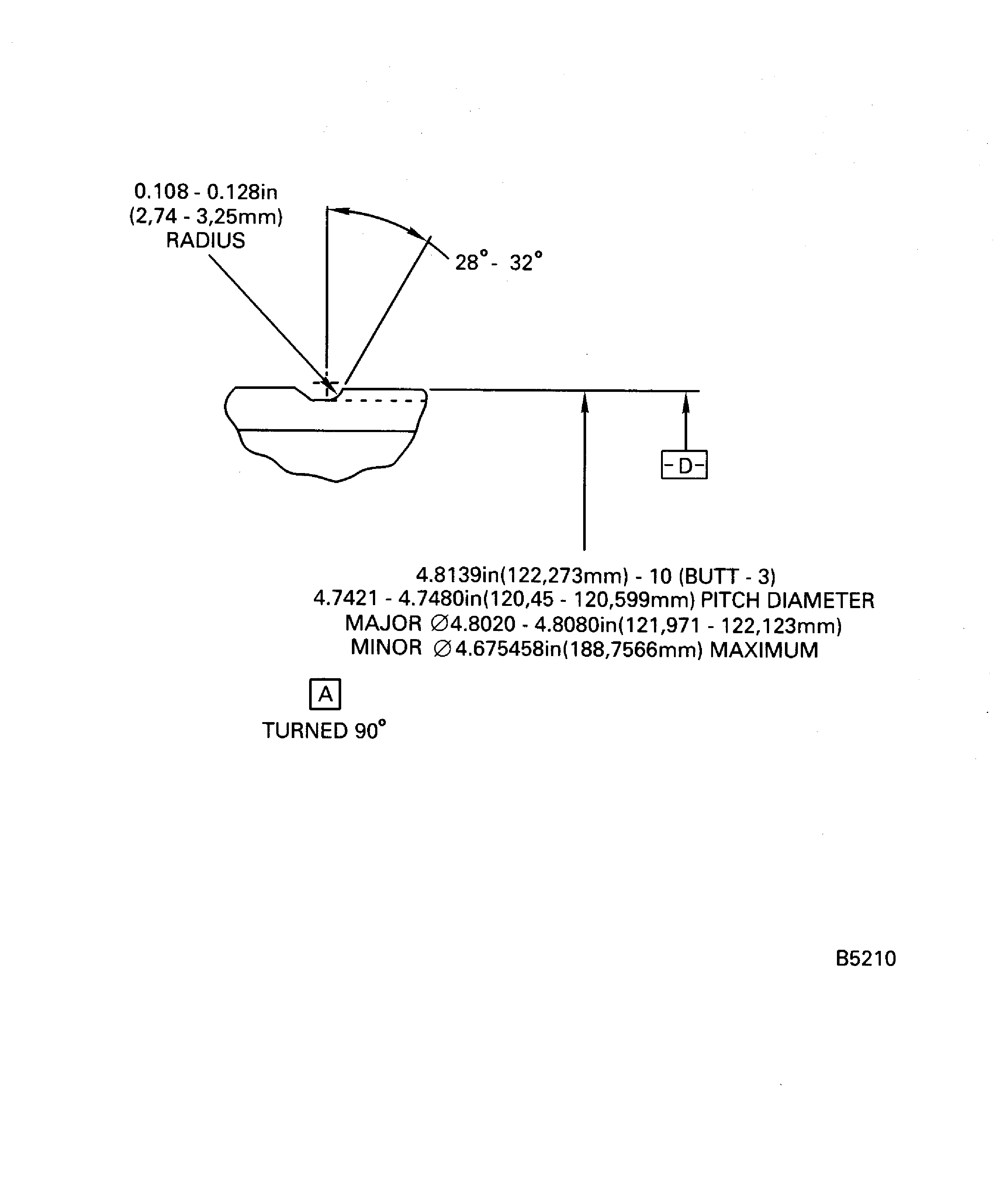

    Figure: HPC shaft assembly thread blend repair areas (Outer diameter threads)

    Sheet 1

    Legend
    HPC shaft assembly thread blend repair areas (Outer diameter threads)

    Sheet 1

    Close

    Figure: HPC shaft assembly thread blend repair areas (Outer diameter threads)

    Sheet 2

    Legend
    HPC shaft assembly thread blend repair areas (Outer diameter threads)

    Sheet 2

    Close

Requirements After Job Completion

Follow-On Conditions

NONE
