TASK 72-41-14-300-001 HPC Rear Rotating Air Seal - Blend Repair, Repair-001 (VRS6089)

DMC:V2500-A0-72-41-1400-00A-649A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Common Information

TASK 72-41-14-300-001 HPC Rear Rotating Air Seal - Blend Repair, Repair-001 (VRS6089)

Effectivity

FIG/ITEM

PART NO.

01-800

6A3305

01-800

6A4113

01-800

6A4392

01-800

6A5869

Material of component

RR

DESCRIPTION

SYMBOL

MATERIAL

HP compressor rotating seal

QDY

Waspaloy

General

This repair must only be done when the instruction to do so is given in 72-41-14 Inspection(Inspection).

The practices and processes referred to in the procedure by the TASK number are in the SPM.

Price and availability

Refer to International Aero Engines

Related repairs - none

NOTE

More equipment and materials necessary to do this Repair are in the SPM TASKS given below:
SPM TASK 70-23-04-230-501
SPM TASK 70-11-39-300-503

NOTE

To identify the consumable materials refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Workshop inspection equipmentLOCALWorkshop inspection equipment
Penetrant Crack Test EquipmentLOCALPenetrant crack test equipment
BinocularsLOCALBinoculars

10x

Vibrating marking pencilLOCALVibrating marking pencil
Chemical cleaning equipmentLOCALChemical cleaning equipment

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 05-106 ABRASIVE STONEK6835CoMat 05-106
CoMat 05-110 EMERY POLISHING PAPER0AM53CoMat 05-110
CoMat 05-111 EMERY POLISHING PAPER06565CoMat 05-111

Spares

NONE

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-41-14-350-051 Remove the Damage

    1. Refer to Figure.

      2. Remove the small areas of damage as necessary.

        1. The diameter of the area to be removed is to be 50 times the depth of the damage.

        1. The maximum depth to be removed must not be more than 0.005 in. (0.13 mm).

      3. Refer to the SPM TASK 70-35-03-300-501.

      3. Blend the area of repair.

      1. Remove all the sharp corners.

      3. Refer to the SPM TASK 70-35-03-300-501.

      4. Polish the area of repair.

      1. Polish the repaired area to remove all the scratches.

      2. Make sure the surface finish is the same as the adjacent material.

      4. Refer to the SPM TASK 70-35-03-300-501.

    2. SUBTASK 72-41-14-220-061 Examine the Repair

    1. Refer to Figure.

      2. Do a visual and dimensional inspection.

      1. Make sure the surface finish is the same as the adjacent material.

      2. Make sure the maximum depth of repair is 0.005 in. (0.13 mm) and diameter of repair is not more than 0.250 in. (6.35 mm).

      3. Use workshop inspection equipment.

    3. SUBTASK 72-41-14-110-055 Do a Cold Ferric Chloride Etch

      1. Swab etch the repaired area.

      1. Refer to the SPM TASK 70-11-39-300-503.

      2. Use chemical cleaning equipment.

    4. SUBTASK 72-41-14-220-062 Binocular Examine

      1. Binocular examine the repaired area.

        1. Use 10x binoculars.

        1. Indications of surface defects are not permitted.

        2. Make sure that there is no raised metal remaining.

    5. SUBTASK 72-41-14-230-054 Do a Crack Test

      1. Do a penetrant crack test.

        1. Refer to the SPM TASK 70-23-04-230-501 .

        1. Use penetrant crack test equipment.

        2. Cracks are not permitted.

    6. SUBTASK 72-41-14-110-063 Chemically Clean

      1. Chemically clean the repaired area(s) to remove fluorescent penetrant.

      1. Refer to the SPM TASK 70-11-26-300-503.

      2. Use chemical cleaning equipment.

    7. SUBTASK 72-41-14-350-052 Identify the Component

    1. Refer to Figure.

    2. Vibro-engrave VRS6089 adjacent to the part number.

    8. Figure: An example of an area to be repaired

    An example of an area to be repaired

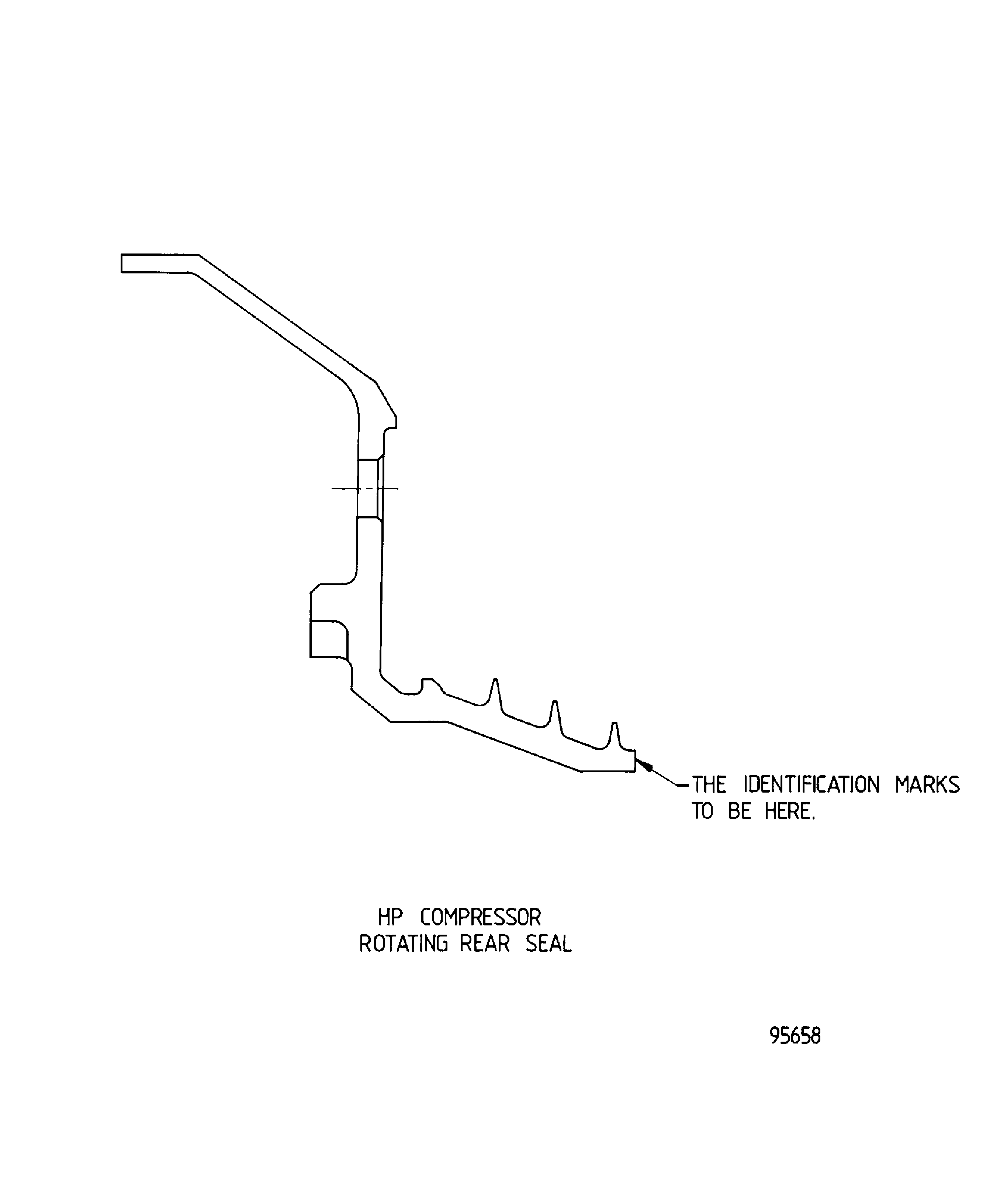

    Figure: The position of the identification marks

    The position of the identification marks

Requirements After Job Completion

Follow-On Conditions

NONE
